Vehicle Disinfection Channel System

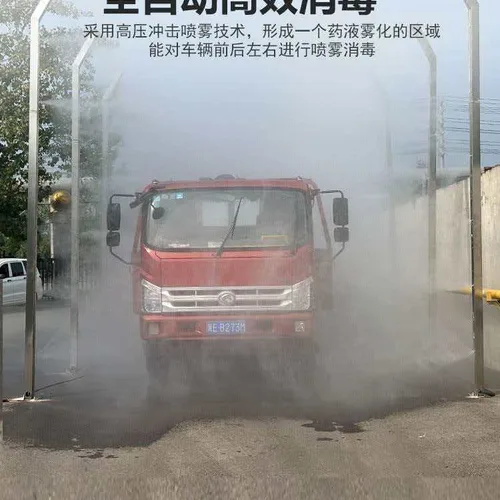

Vehicle disinfection channel is a fully automatic high-pressure spray epidemic prevention disinfection equipment, specially designed for vehicles entering and leaving specific areas. It forms a full-enclosed spray barrier through multi-directional high-pressure nozzles, realizing 360° dead-angle-free disinfection for vehicle body, tires, chassis and cargo box, blocking the transmission path of bacteria, viruses and harmful organisms. Suitable for epidemic prevention scenarios such as livestock breeding, food processing and public health. Automatic induction start-stop, no manual duty required.
$2380.00
Send Message Contact Supplier
Shandong Jiayue Environmental Protection Equipment Co., Ltd.

Shandong Jiayue Environmental Protection Equipment Co., Ltd.

View Supplier
Registration Date August 30, 2023
Number of Employees 50
Factory Area 1,500 m²
Annual Sales Over $800,000 USD
Main Products Environmental Protection Equipment, High-pressure Spray Systems, Waste Gas Treatment Equipment, PLC Control Cabinets, Environmental Monitoring Instruments
Target Markets Global (Excluding Europe)
Details
Specifications
The core of this machine adopts high-pressure plunger pump pressurization, which pressurizes disinfectant/water to 8-10MPa, and atomizes it into ultra-fine fog drops of 50-100μm through special anti-clogging nozzles to form a high-density full-coverage spray curtain. Fog drops fully adhere to the vehicle body to complete all-round disinfection when vehicles pass. The whole host and upright poles are made of stainless steel, with 304 stainless steel water & medicine tank, corrosion-resistant and easy to clean. Supports ground induction/infrared/license plate recognition automatic start-stop, timing control, automatic liquid proportioning, multi-stage filtration reflux anti-freezing. Multi-angle nozzles on upright poles realize full coverage spraying on side & top, one-way/two-way disinfectable. Equipped with multiple safety protection of water shortage, overload and electric leakage, stable outdoor long-term use.
Equipment Name
Vehicle Disinfection Channel System
Host Material
Stainless Steel
Upright Pole Material
Stainless Steel
Host Power
4KW / 5.5KW / 7.5KW / 11KW
Working Voltage
380V/50HZ
Max Flow
40-70L/min
Rated Working Pressure
3-10MPa
Atomized Particle Size
50-100μm
Host Water Tank
140L Stainless Steel Water Tank
Medicine Tank Size
50×32×115CM
Upright Pole Size
10×10×430/500CM
Upright Pole Quantity
2 / 4 / 6 / 8 / 10 Poles
Nozzle Type
Fan-shaped Nozzle
Dosing Device
Automatic Proportion Dosing Device
Control Mode
Manual / Ground Induction / Remote Control / License Plate Recognition Optional
Disinfection Mode
One-way / Two-way Disinfection Adjustable
Ground Induction Controller
220V/50HZ, 50W
Electric Heating System
220V/50HZ, 2000W
Nozzle & Pipeline
Nickel-plated Brass Anti-clog Nozzle / Stainless Steel/PA Nylon High-pressure Pipeline
  • Vehicle Disinfection Channel System
  • Vehicle Disinfection Channel System
  • Vehicle Disinfection Channel System
  • Vehicle Disinfection Channel System
  • Vehicle Disinfection Channel System

Description

The core of this machine adopts high-pressure plunger pump pressurization, which pressurizes disinfectant/water to 8-10MPa, and atomizes it into ultra-fine fog drops of 50-100μm through special anti-clogging nozzles to form a high-density full-coverage spray curtain. Fog drops fully adhere to the vehicle body to complete all-round disinfection when vehicles pass. The whole host and upright poles are made of stainless steel, with 304 stainless steel water & medicine tank, corrosion-resistant and easy to clean. Supports ground induction/infrared/license plate recognition automatic start-stop, timing control, automatic liquid proportioning, multi-stage filtration reflux anti-freezing. Multi-angle nozzles on upright poles realize full coverage spraying on side & top, one-way/two-way disinfectable. Equipped with multiple safety protection of water shortage, overload and electric leakage, stable outdoor long-term use.
