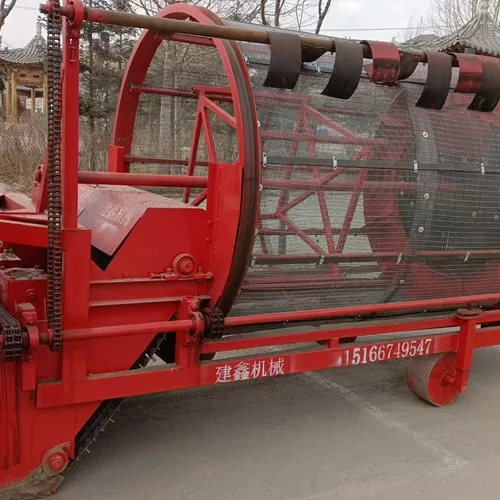

Tractor-driven Rotary Screen Herb Harvester, High-efficiency Rhizome Herb Harvesting Equipment

This rotary drum herb harvester is designed for small and medium-sized rhizome medicinal herbs such as Pinellia ternata, Desmodium styracifolium, Ranunculus ternatus, Argentina anserina and Corydalis yanhusuo. Powered by tractor PTO, it features a rotary screen vibration separation structure that integrates digging, soil removal and screening, with dimensions of 1.2m × 3.3m × 2m. Suitable for various soil conditions with high efficiency and low damage rate, it is an ideal harvesting equipment for large-scale planting bases.
$2132.00
Qufu Jianxin Agricultural Machinery Manufacturing Co., Ltd.

Qufu Jianxin Agricultural Machinery Manufacturing Co., Ltd.

View Supplier
Number of Employees 50+
Factory Area 5,300 ㎡
Annual Sales Revenue RMB 10 million
Main Products The company specializes in small-to-medium agricultural machinery for cash crops and field crops, with four core product lines: Medicinal crop machines: Transplanters, harvesters, and planters for herbs like Scutellaria, Bupleurum, and Angelica. Fruit & vegetable machines: Harvesters for strawberries, garlic, potatoes, sweet potatoes, and konjac. Field management machines: Rotary tillers, stone pickers, soil tillers, and deep plowing machines.Livestock & fertilizer equipment: Manure separators, dewatering machines, and organic fertilizer processing units.
Target Markets Middle East, Central Asia, Africa
Details
Specifications
Specialized Design for Small/Medium Herbs
The rotary screen aperture and vibration frequency are optimized for small/medium rhizome herbs like Pinellia ternata and Corydalis yanhusuo, efficiently removing soil while minimizing damage, avoiding loss issues from traditional equipment with ill-fitting screen sizes.
High-efficiency Soil Removal with Good Grading
Continuous rotation and vibration of the rotary screen separate soil quickly, while herbs are conveyed with internal flights, achieving integrated "digging-soil removal-preliminary grading" to reduce subsequent manual sorting work.
Adaptable to Various Soils and Scenarios
Operates in sandy loam, loam and other soil conditions. Adjustable digging depth and drum speed adapt to herbs with different growth depths, suitable for large-scale field bases and cooperative harvesting.
Tractor-towed Design, Simple Installation and Operation
Three-point hitch and PTO connection fits most standard tractors. Installation and operation are simple, requiring no complex debugging, reducing manual labor intensity.
Durable Structure, Easy Maintenance
Reinforced steel frame and wear-resistant rotary screen adapt to complex field conditions. Easy-to-replace wearing parts like chains and bearings result in low maintenance costs, suitable for long-term high-frequency operation.
Dimensions
1.2m (W) × 3.3m (L) × 2m (H)
Equipment Name
Rotary Drum Herb Harvester
Compatible Power
Tractor-driven (PTO power take-off)
Manufacturer
Jianxin Machinery
Applicable Herbs
Small/medium rhizome herbs: Pinellia ternata, Desmodium styracifolium, Ranunculus ternatus, Argentina anserina, Corydalis yanhusuo, etc.
Operation Structure
Digging Blade + Rotary Screen Vibration Separator
Functions
Integrated Digging + Soil Removal + Grading Screening
  • Tractor-driven Rotary Screen Herb Harvester, High-efficiency Rhizome Herb Harvesting Equipment

Description

Specialized Design for Small/Medium Herbs
The rotary screen aperture and vibration frequency are optimized for small/medium rhizome herbs like Pinellia ternata and Corydalis yanhusuo, efficiently removing soil while minimizing damage, avoiding loss issues from traditional equipment with ill-fitting screen sizes.
High-efficiency Soil Removal with Good Grading
Continuous rotation and vibration of the rotary screen separate soil quickly, while herbs are conveyed with internal flights, achieving integrated "digging-soil removal-preliminary grading" to reduce subsequent manual sorting work.
Adaptable to Various Soils and Scenarios
Operates in sandy loam, loam and other soil conditions. Adjustable digging depth and drum speed adapt to herbs with different growth depths, suitable for large-scale field bases and cooperative harvesting.
Tractor-towed Design, Simple Installation and Operation
Three-point hitch and PTO connection fits most standard tractors. Installation and operation are simple, requiring no complex debugging, reducing manual labor intensity.
Durable Structure, Easy Maintenance
Reinforced steel frame and wear-resistant rotary screen adapt to complex field conditions. Easy-to-replace wearing parts like chains and bearings result in low maintenance costs, suitable for long-term high-frequency operation.
