Simple slope paver

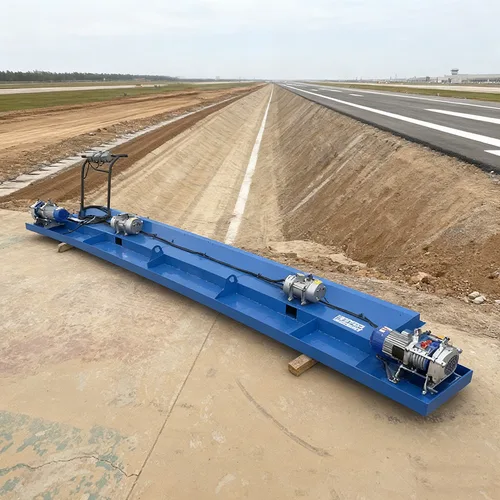

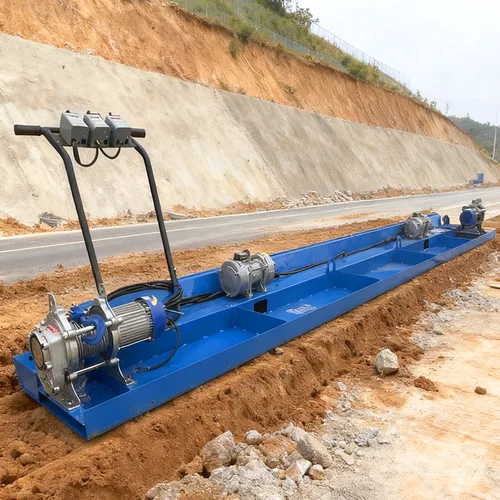

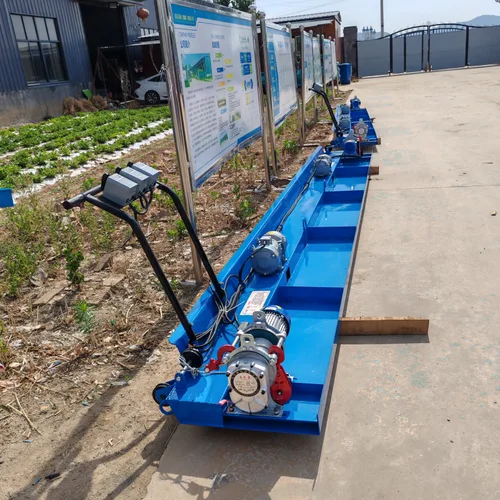

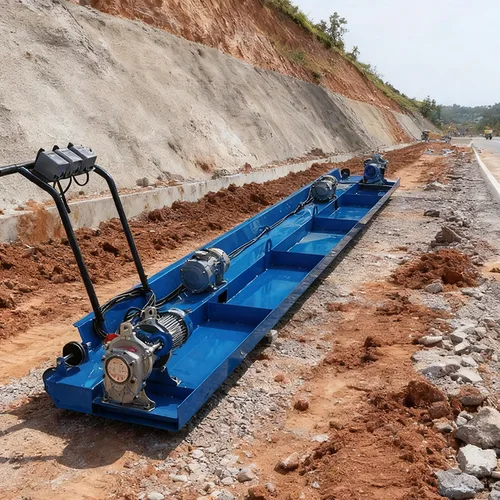

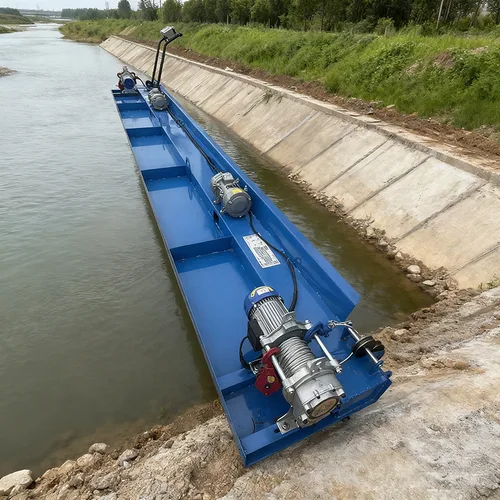

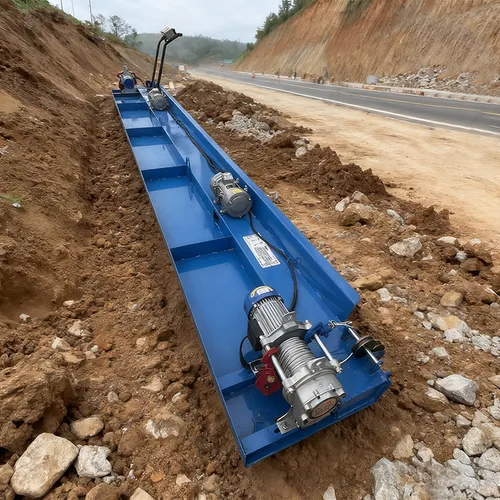

The simple slope paver is a piece of equipment specifically designed for sloping concrete construction in riverbank protection, water conservancy dams, and other similar projects. It features a blue frame structure and is equipped with two winches and a vibrating module. Through upper and lower sliding molds, it vibrates and discharges the concrete, completing the slope paving operation.
$3500.00
Play

Shandong Yahui Mechanical Equipment Manufacturing Co., Ltd.

View Supplier
Registration Date August 2, 2019
Number of Employees 50-100
Factory Area 6,000 m²
Annual Sales 30 Million RMB
Main Products Canal Forming Machine, Curb Stone Forming Machine, Paver, Crawler Carrier, Crawler Lift Platform, Crawler Chassis, Underwater Dredging Robot, Crawler Fire Fighting Robot, Lawn Mower, Skid Steer Loader, Crawler Transporter
Target Markets Belt & Road Countries, Europe, America & Global Markets
Details
Specifications
Product name
Simple slope paver
Travel Motor
380v1.5kw*2
Hoisting Motor
380v1.5kw*2
Vibration Motor
380v1.5kw*2
Machine Length
3000-6000mm
Machine Width
600mm
Machine Height(Including handrails)
1000mm
Height without handrails
400mm
Production Capacity
100-200²/h
Machine Weight
240kg
  • Simple slope paver
  • Simple slope paver
  • Simple slope paver
  • Simple slope paver
  • Simple slope paver
  • Simple slope paver

Description
