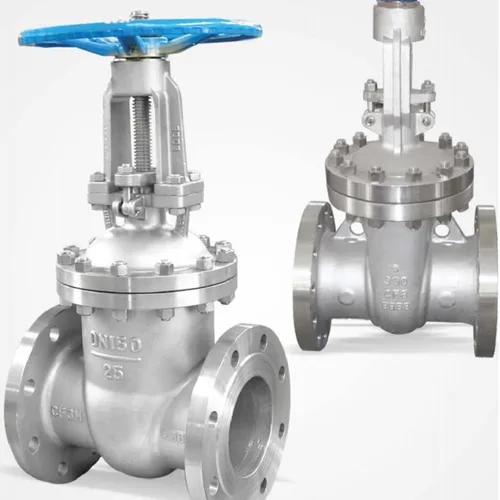

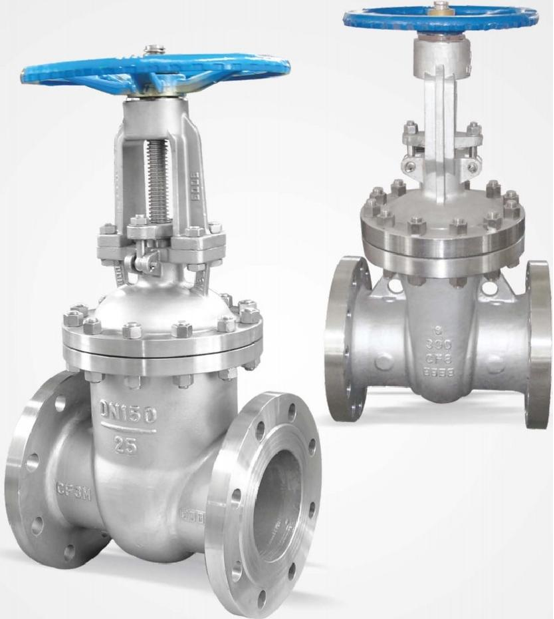

Gate Valve for Water Supply & HVAC Systems, GB Standard DN15-700, Strong Working Condition Adaptability & Stable Operation

This GB standard gate valve is produced in strict accordance with multiple national standards. It is available in cast steel / stainless steel. The valve body and sealing parts are corrosion and wear resistant. Adopting bidirectional sealing design, it features low flow resistance and flexible opening & closing. Widely used in petrochemical, water supply, HVAC and other industrial pipelines for water, steam, oil and chemical media. Stable quality, customization and bulk supply are available.
$200.00 - 15000.00
Shandong Shengyuan Industrial Equipment Co., Ltd.

Shandong Shengyuan Industrial Equipment Co., Ltd.

Main Products: New support products, lithium battery monorail hoist, mining support equipment, hydraulic power machinery and components, alloy castings, valves, hydraulic motor
View Supplier
Year Established Established in 1997
Main Products New support products, lithium battery monorail hoist, mining support equipment, hydraulic power machinery and components, alloy castings, valves, hydraulic motor
Employees 101-500 People
Factory Area > 50,000 m²
Annual Revenue Above US$50 Million
Main Markets Southeast Asia / Middle East & North Africa
Details
Specifications
Trade Information
This GB standard cast steel / stainless steel gate valve is manufactured in accordance with multiple national standards. Two material options are available. Core parts are corrosion and wear resistant. Equipped with flange connection and bidirectional sealing structure, it has low flow resistance, smooth operation and reliable sealing. Suitable for water, steam, oil and chemical media, widely used in petrochemical, municipal water supply, HVAC and other industrial pipeline systems. Sturdy structure and easy maintenance make it a high-quality device for industrial fluid control.

🔥GB Standard Gate Valve In Stock! Cast Steel / Stainless Steel Optional
✅Made under full GB standards, reliable quality and leak-proof sealing
✅Flange connection & bidirectional sealing, low flow resistance & easy operation
✅Corrosion & wear resistant, suitable for various industrial fluid pipelines
Customization available, favorable price for bulk orders. Welcome your inquiry!
Body
WCB / 200Cr18Ni19
Wedge
WCB+STL / 200Cr18Ni19
Stem
2Cr13 / 0Cr18Ni19
Gasket
304+Graphite / PTFE
Stud
35CrMoA / 0Cr18Ni19
Nut
45 / 0Cr18Ni19
Bonn
WCB / 200Cr18Ni19
Stem packing
Graphite / PTFE
Cross pin
35 / 35
Cotter pin
20 / 25
Gland
WCB / 200Cr18Ni19
Live bolts
35CrMoA / 0Cr18Ni19
Support
WCB / 200Cr18Ni19
Bearing
Bearing Steel / Bearing Steel
Stem nut
Assembly / ZCuAl10Fe3
Oil Cup
35 / 35
Gland nut
35 / 35
Pin nut
35 / 35
Handwheel
QT400 / QT400
Pressure Rating
PN4.0MPa
Size Range
DN15 - DN700
MOQ
1 Pieces
  • Gate Valve for Water Supply & HVAC Systems, GB Standard DN15-700, Strong Working Condition Adaptability & Stable Operation

Description

This GB standard cast steel / stainless steel gate valve is manufactured in accordance with multiple national standards. Two material options are available. Core parts are corrosion and wear resistant. Equipped with flange connection and bidirectional sealing structure, it has low flow resistance, smooth operation and reliable sealing. Suitable for water, steam, oil and chemical media, widely used in petrochemical, municipal water supply, HVAC and other industrial pipeline systems. Sturdy structure and easy maintenance make it a high-quality device for industrial fluid control.

🔥GB Standard Gate Valve In Stock! Cast Steel / Stainless Steel Optional
✅Made under full GB standards, reliable quality and leak-proof sealing
✅Flange connection & bidirectional sealing, low flow resistance & easy operation
✅Corrosion & wear resistant, suitable for various industrial fluid pipelines
Customization available, favorable price for bulk orders. Welcome your inquiry!
