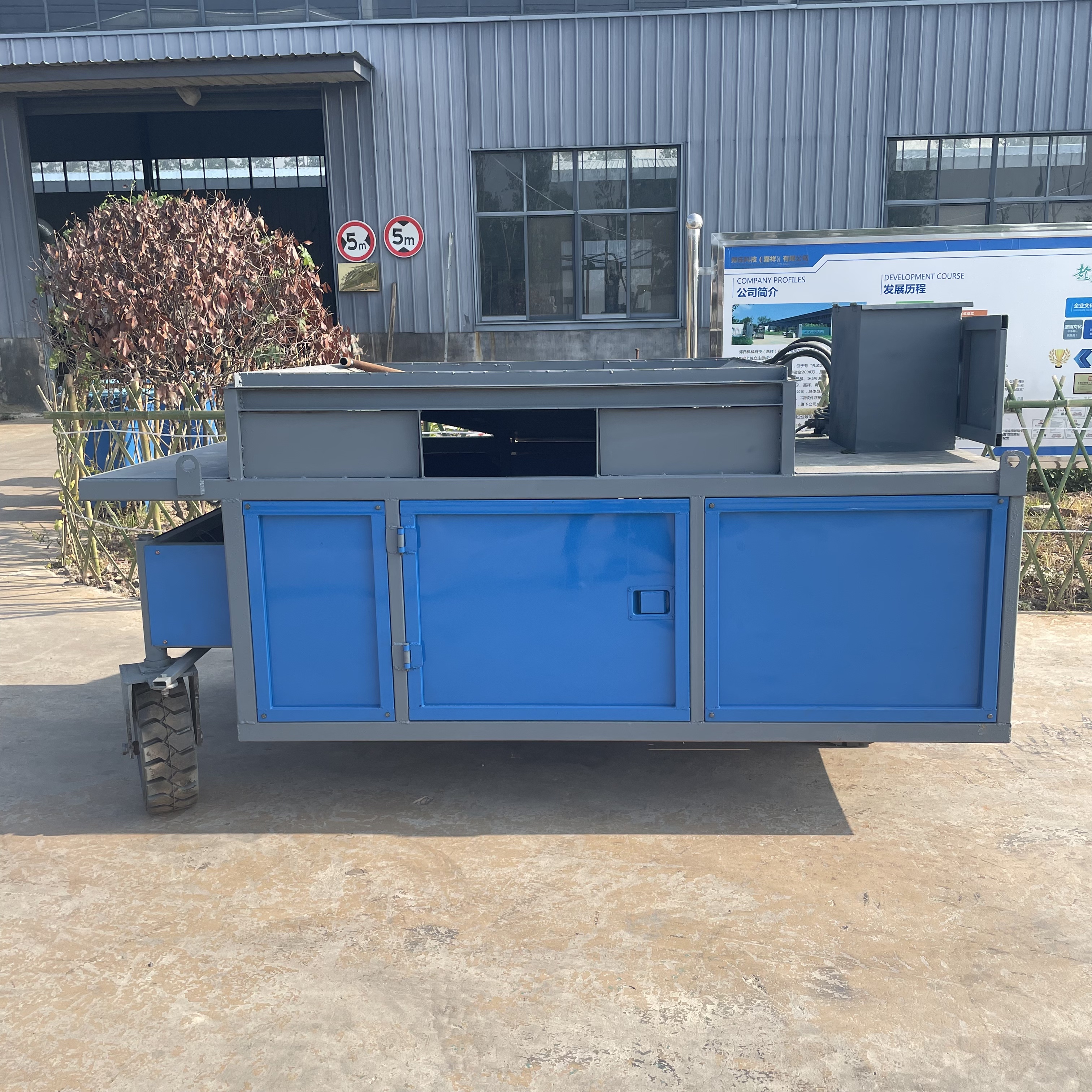

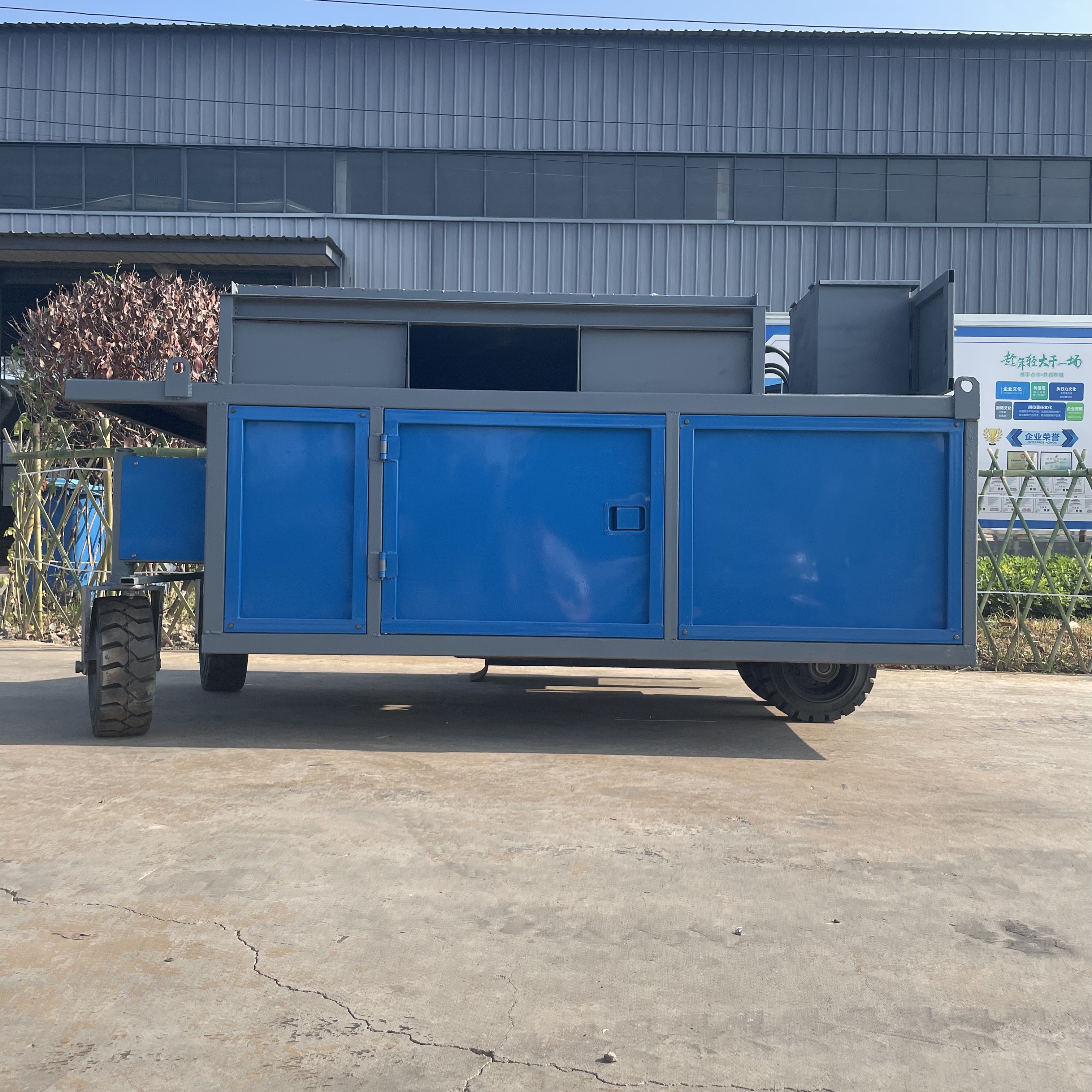

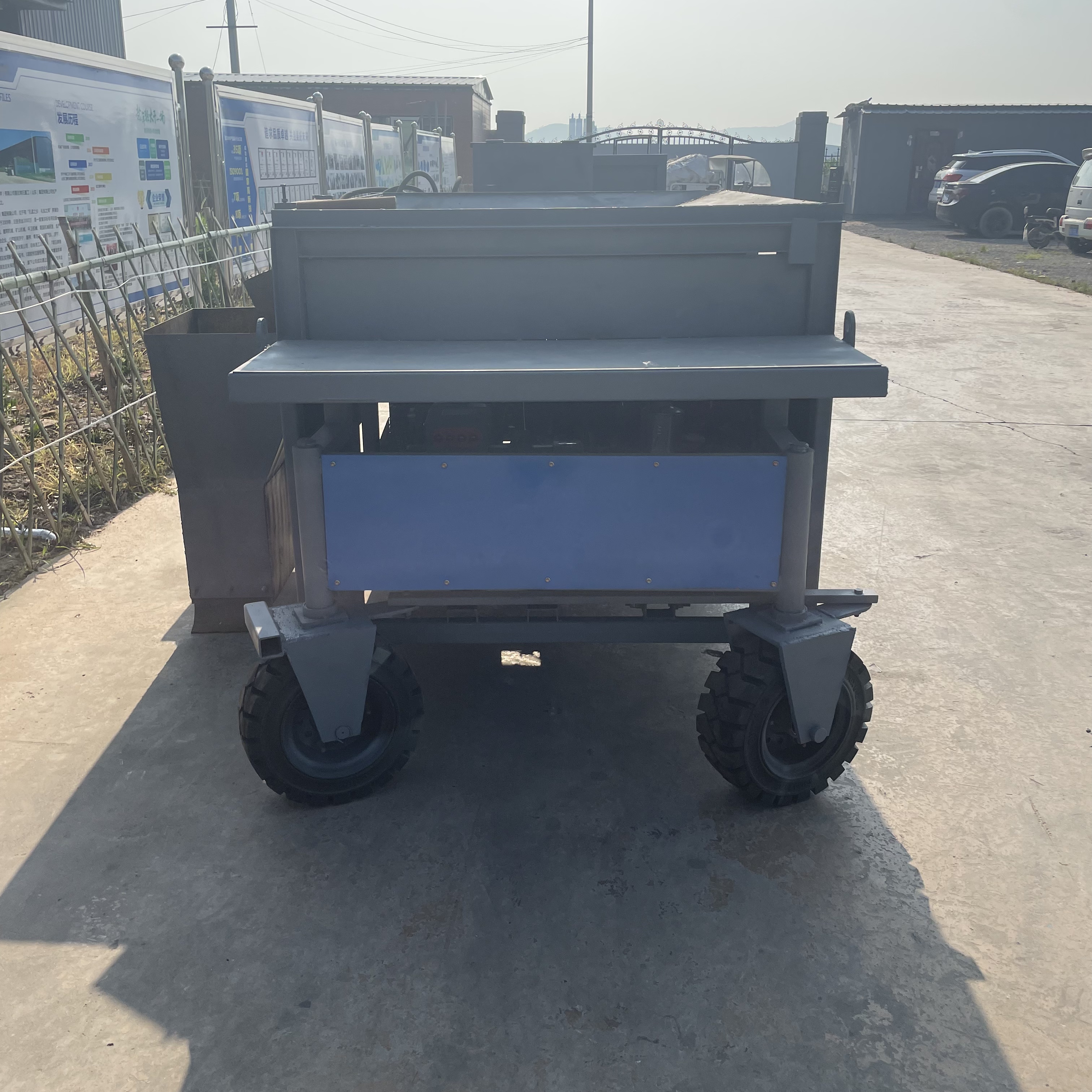

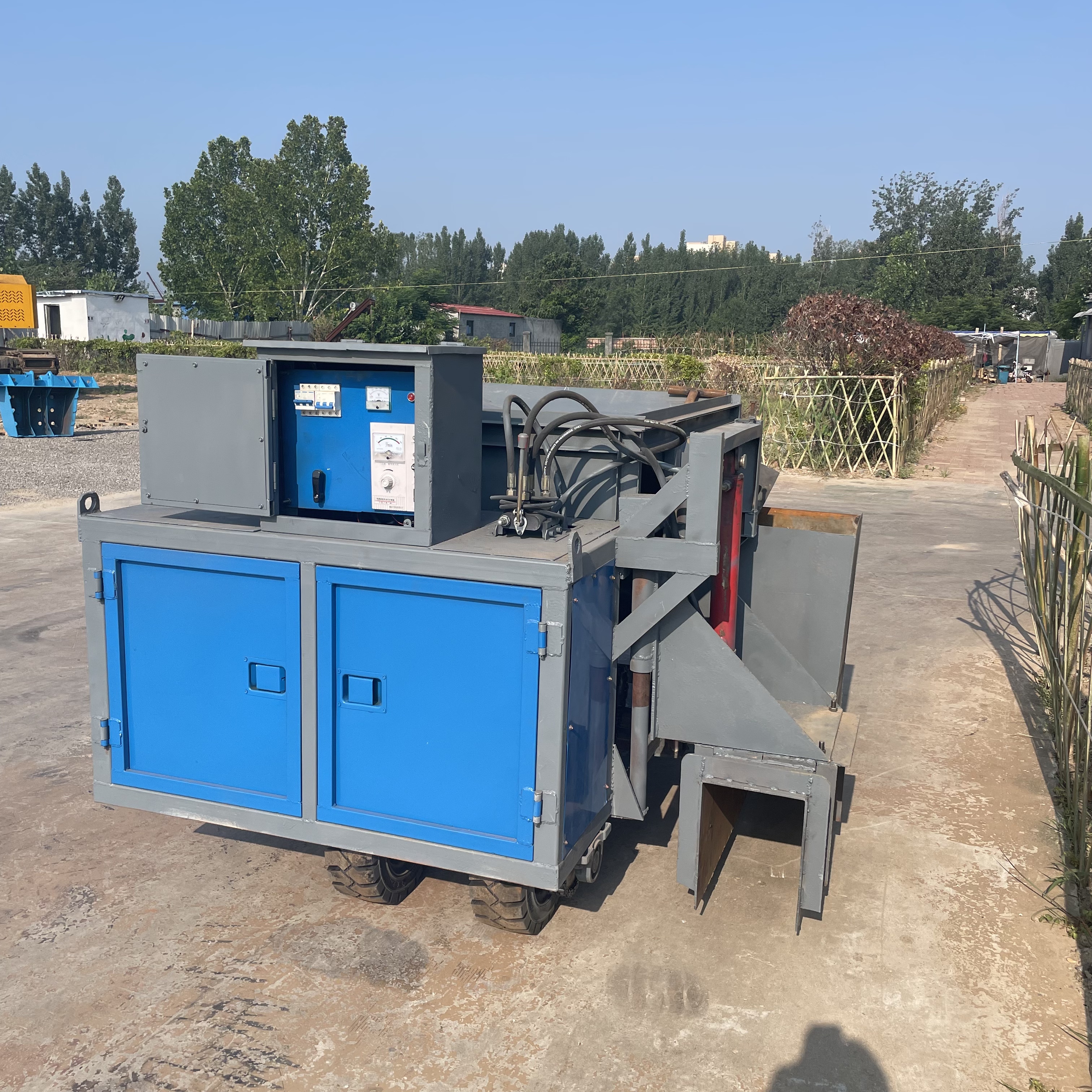

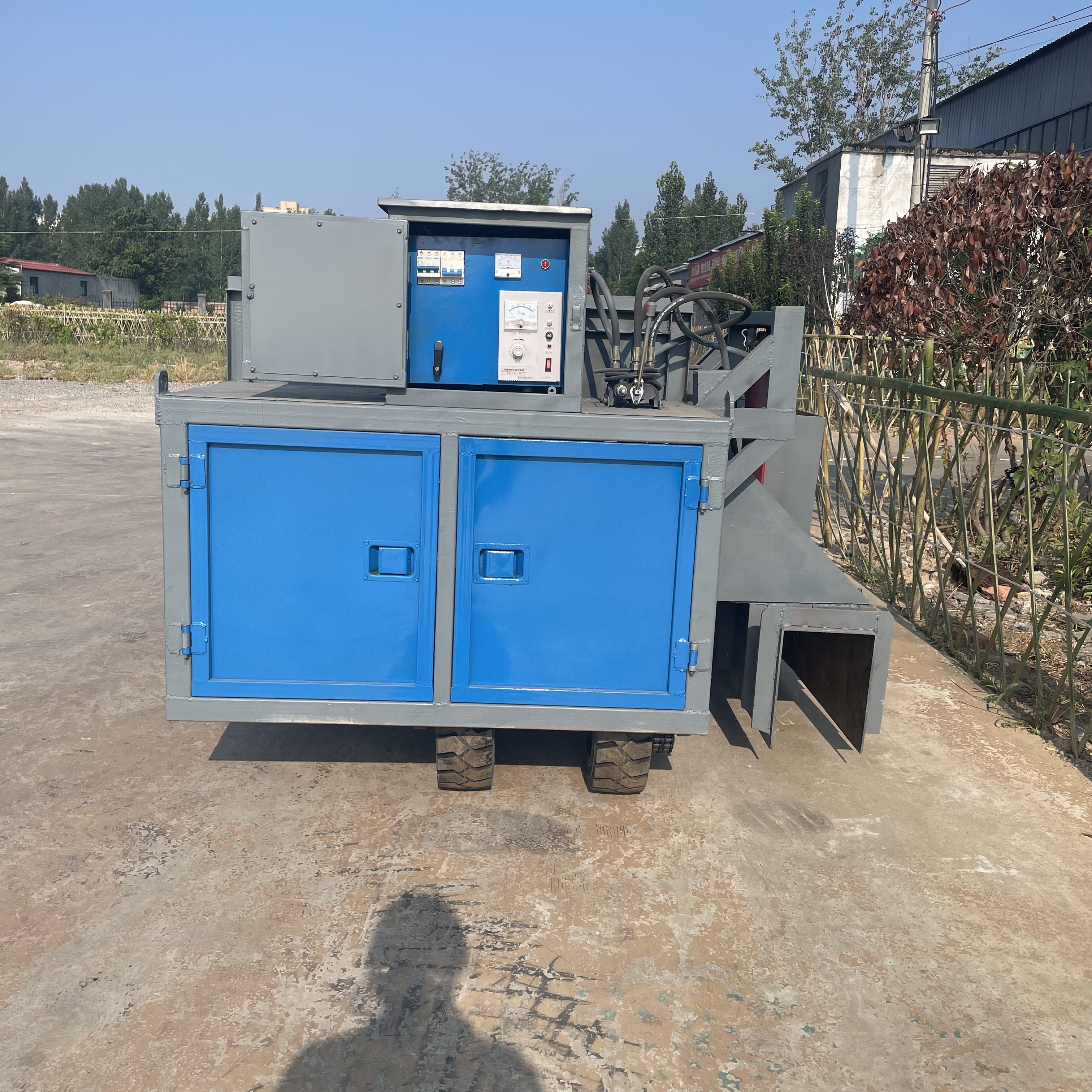

600 Type Self-propelled Curb Forming Machine

600 type self-propelled curb forming machine is advanced special equipment for on-site cast-in-place forming of road curb stones. It adopts self-propelled design with independent high-power power system, flexible movement on construction site without external traction equipment. Equipped with precise control system, it can adjust key parameters such as forming speed and material feeding. Stable and efficient operation, greatly improving construction efficiency and forming quality of curb stones.
$5100.00
Send Message Contact Supplier
Play

Shandong Yahui Mechanical Equipment Manufacturing Co., Ltd.

Main Products: Canal Paver, Curb Paver
View Supplier
Year Established Established in 2019
Main Products Canal Paver, Curb Paver
Employees 51-100 People
Factory Area 5,000-10,000 m²
Annual Revenue US$1 Million - US$5 Million
Main Markets North America / Europe / Middle East & North Africa / Latin America
Details
Specifications
Trade Information
This machine is a large self-propelled slip-form curb cast-in-place equipment, equipped with a 1115 diesel engine and a 15kw high-power generator set for powerful power output. It adopts vibrator compaction technology with hydraulically liftable and adjustable molds, and is fitted with 400mm diameter solid engineering tires for stable and wear-resistant traveling performance. It can complete one-step forming casting for extra-wide curbs, water barriers and edge stones with a forming height ≤400mm and width ≤800mm. The working speed is adjustable from 0 to 12.5 meters per minute. Its steering control supports automatic operation via computer sensors and intelligent mobile phone control, delivering a high level of intelligence. It is ideal for cast-in-place construction of wide curbs on municipal main roads, expressways and large industrial parks.
Overall Dimension
2800×1500×1100mm
Machine Weight
1500kg
Vibrating Mode
Vibrating Rod Compaction
Model
600 Type Self-propelled Curb Forming Machine
Matching Power
1115 Diesel Engine (15kw Generator Set)
Applicable Curb Size
Height ≤400mm, Width ≤800mm
Tire Specification
400mm Diameter Solid Engineering Tire
Working Speed
0-12.5m/min
Direction Control
Computer Sensor Control / Mobile Phone Control (Optional)
MOQ
1 Pieces
  • 600 Type Self-propelled Curb Forming Machine
  • 600 Type Self-propelled Curb Forming Machine
  • 600 Type Self-propelled Curb Forming Machine
  • 600 Type Self-propelled Curb Forming Machine
  • 600 Type Self-propelled Curb Forming Machine
  • 600 Type Self-propelled Curb Forming Machine

Description

This machine is a large self-propelled slip-form curb cast-in-place equipment, equipped with a 1115 diesel engine and a 15kw high-power generator set for powerful power output. It adopts vibrator compaction technology with hydraulically liftable and adjustable molds, and is fitted with 400mm diameter solid engineering tires for stable and wear-resistant traveling performance. It can complete one-step forming casting for extra-wide curbs, water barriers and edge stones with a forming height ≤400mm and width ≤800mm. The working speed is adjustable from 0 to 12.5 meters per minute. Its steering control supports automatic operation via computer sensors and intelligent mobile phone control, delivering a high level of intelligence. It is ideal for cast-in-place construction of wide curbs on municipal main roads, expressways and large industrial parks.
