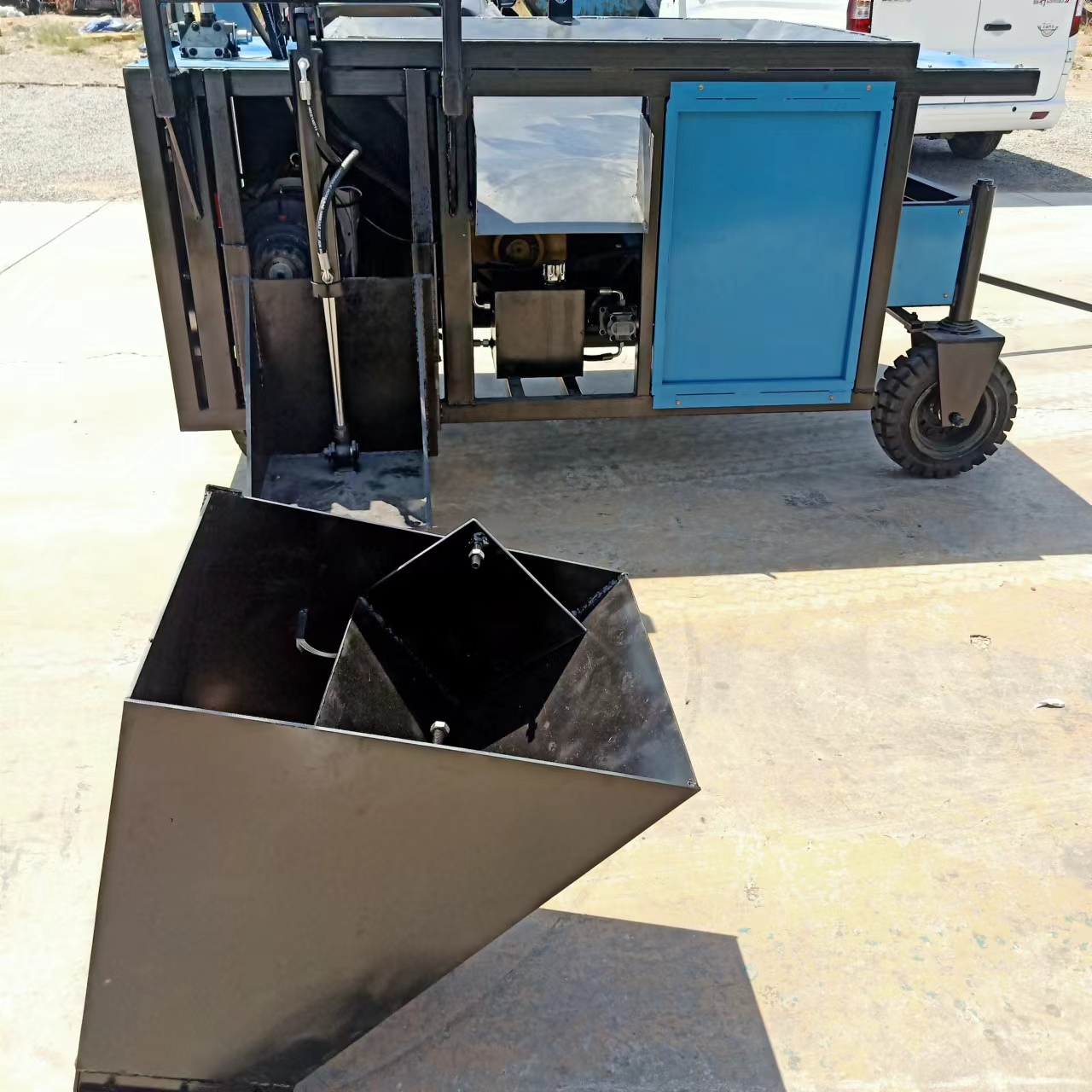

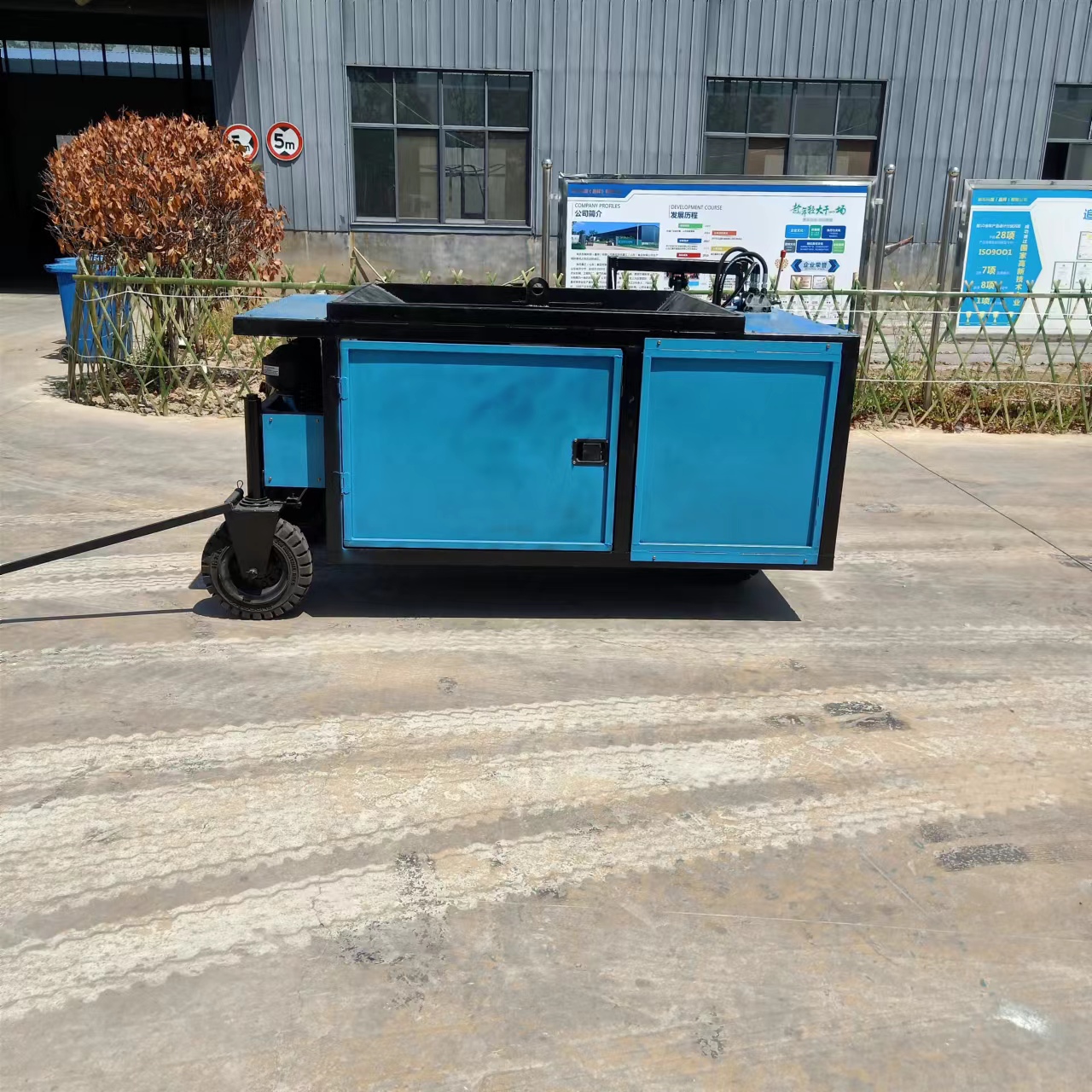

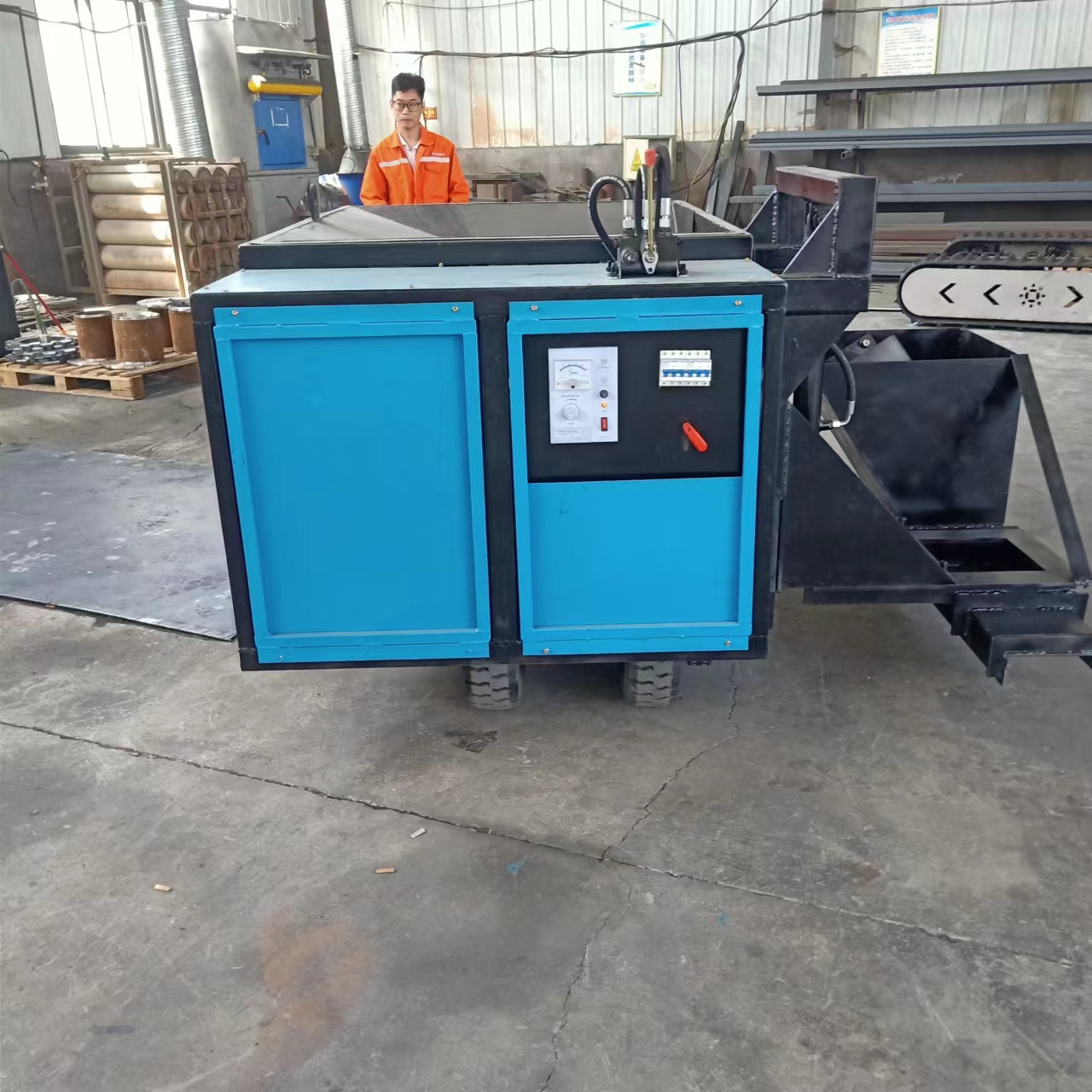

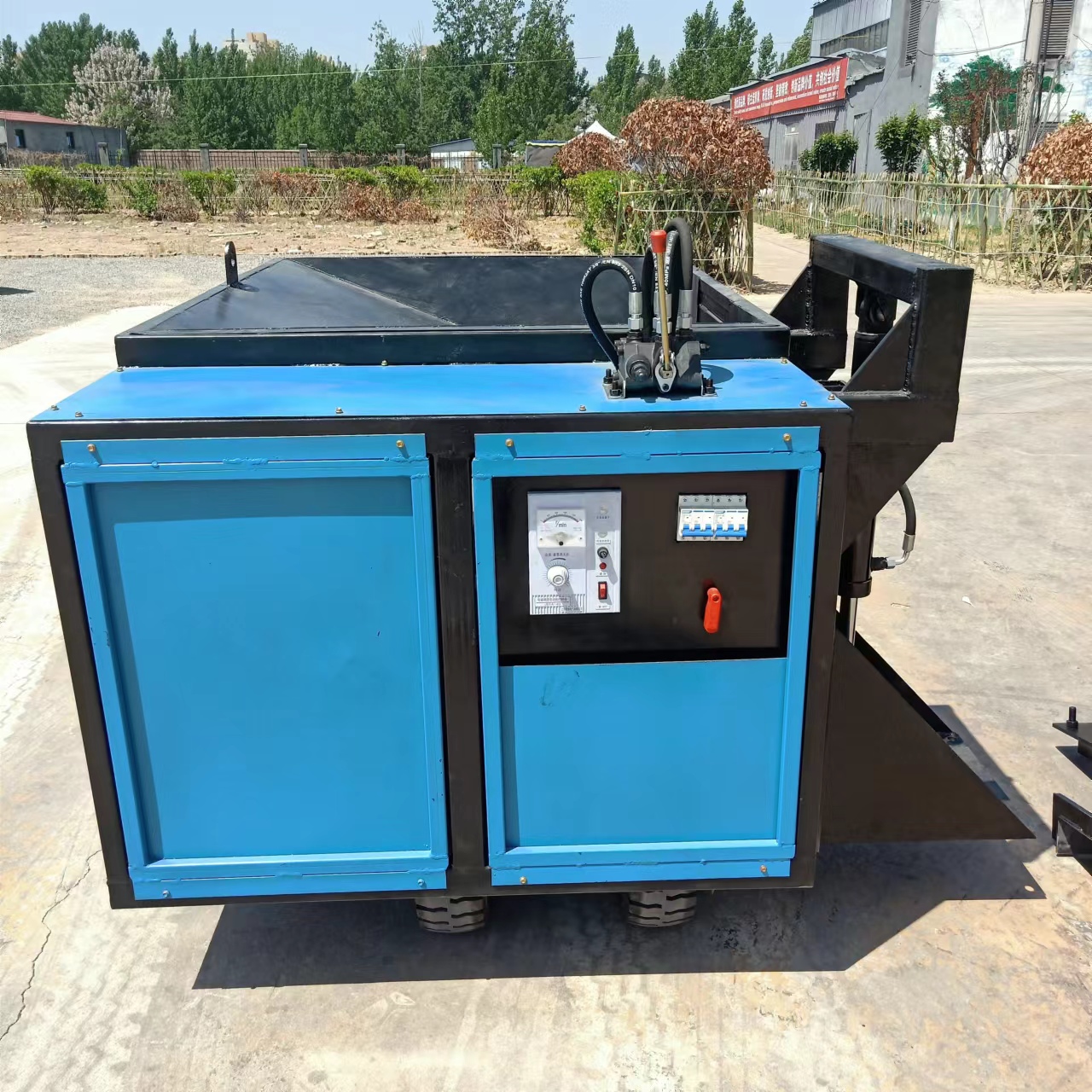

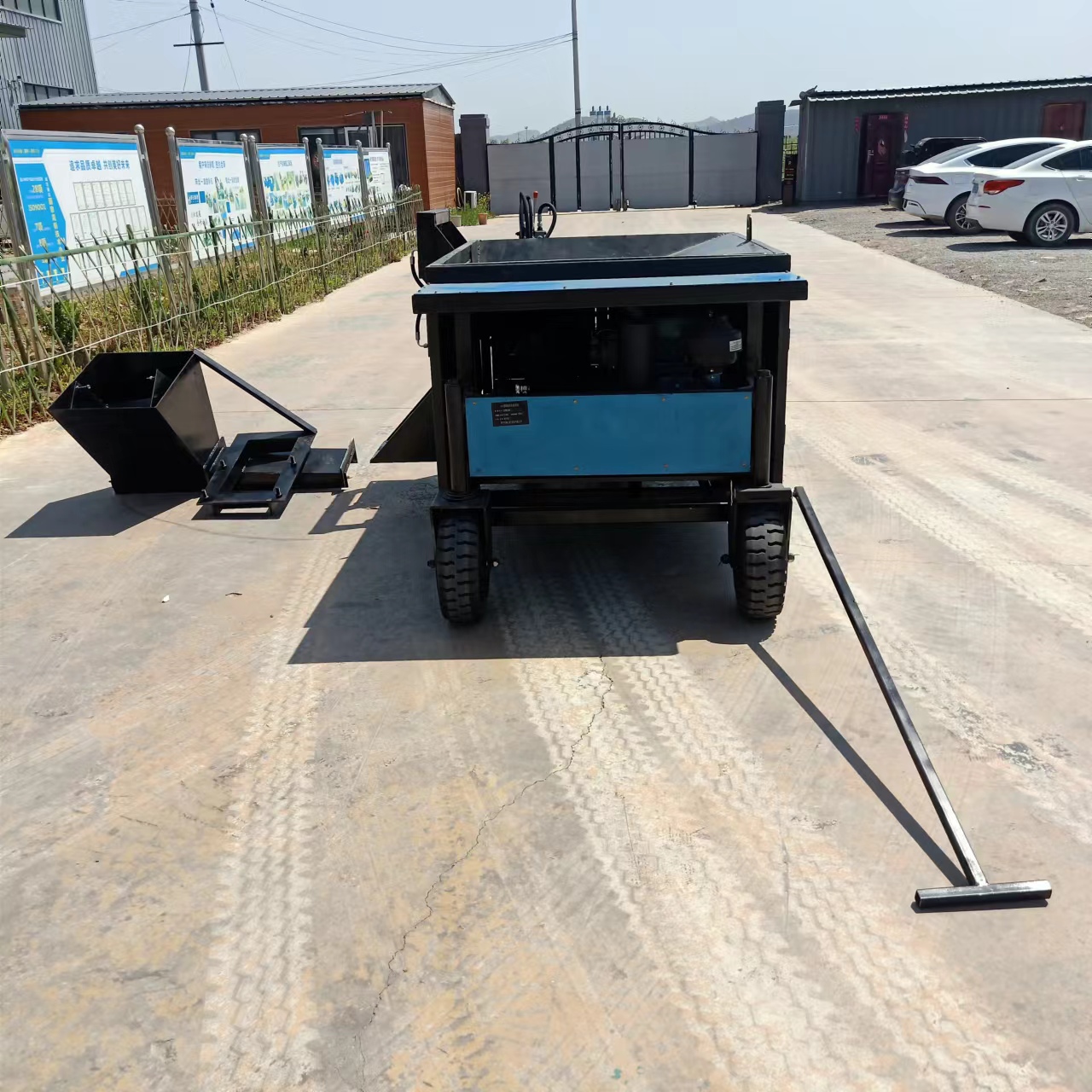

400 Type Self-propelled Curb Forming Machine

400 type self-propelled curb slipform forming machine adopts diesel power self-propelled design. It completes on-site extrusion & vibration cast-in-place forming of curb stones, road water barriers at one time. No prefabrication or demoulding handling required. Hydraulic lifting mould, solid engineering tire walking, with dense high-strength forming and high construction efficiency. Suitable for large-scale curb cast-in-place construction of municipal roads, highways and rural roads.
$4200.00
Send Message Contact Supplier
Play

Shandong Yahui Mechanical Equipment Manufacturing Co., Ltd.

Main Products: Canal Paver, Curb Paver
View Supplier
Year Established Established in 2019
Main Products Canal Paver, Curb Paver
Employees 51-100 People
Factory Area 5,000-10,000 m²
Annual Revenue US$1 Million - US$5 Million
Main Markets North America / Europe / Middle East & North Africa / Latin America
Details
Specifications
Trade Information

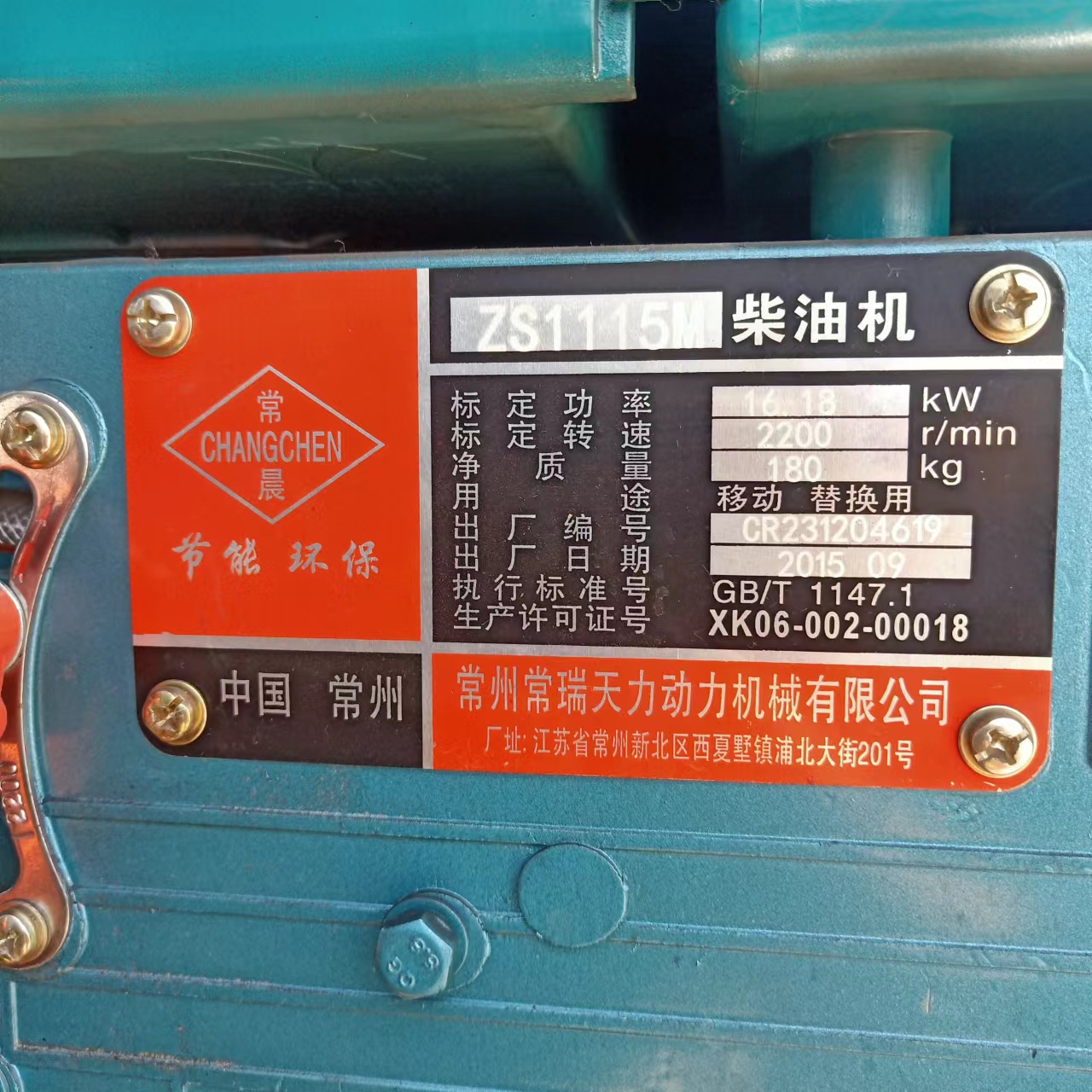

This machine is a self-propelled slip-form curb paver powered by Model 1100 diesel engine and 10kW generator set, delivering strong and stable power. It adopts vibrator rod compaction technology with hydraulically liftable and adjustable molds, and features manual steering control. Equipped with 400mm-diameter solid engineering tires, it runs steadily and resists abrasion.
It can finish one-step cast-in-place forming for various curbs and water barriers with forming height ≤400mm and width ≤600mm. The working speed is adjustable from 0 to 12.5 m/min. The self-propelled design enables convenient mobile construction. The finished products feature smooth, dense surface and long service life, making it special equipment for curb construction on large roads.
Overall Dimension
2280×1280×1100mm
Machine Weight
1200kg
Vibrating Mode
Vibrating Rod Compaction
Model
400 Type Self-propelled Curb Forming Machine
Matching Power
1100 Diesel Engine (10kw Generator Set)
Applicable Curb Size
Height ≤400mm, Width ≤600mm
Tire Specification
400mm Diameter Solid Engineering Tire
Mould Lifting Mode
Hydraulic Lifting
Working Speed
0-12.5m/min
Direction Control
Manual Control
MOQ
1 Pieces
  • 400 Type Self-propelled Curb Forming Machine
  • 400 Type Self-propelled Curb Forming Machine
  • 400 Type Self-propelled Curb Forming Machine
  • 400 Type Self-propelled Curb Forming Machine
  • 400 Type Self-propelled Curb Forming Machine
  • 400 Type Self-propelled Curb Forming Machine

Description

This machine is a self-propelled slip-form curb paver powered by Model 1100 diesel engine and 10kW generator set, delivering strong and stable power. It adopts vibrator rod compaction technology with hydraulically liftable and adjustable molds, and features manual steering control. Equipped with 400mm-diameter solid engineering tires, it runs steadily and resists abrasion.
It can finish one-step cast-in-place forming for various curbs and water barriers with forming height ≤400mm and width ≤600mm. The working speed is adjustable from 0 to 12.5 m/min. The self-propelled design enables convenient mobile construction. The finished products feature smooth, dense surface and long service life, making it special equipment for curb construction on large roads.
