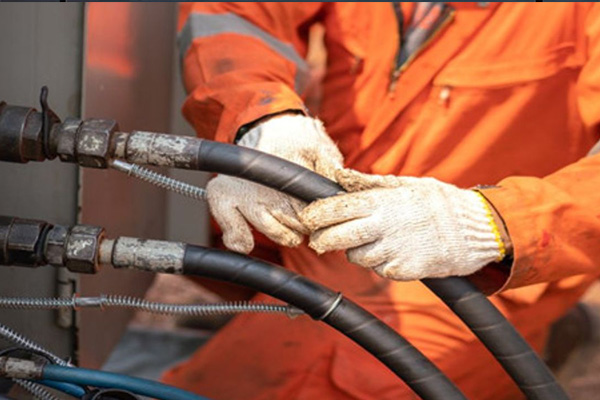

A hydraulic hose looks simple. Rubber tube, steel wires, rubber cover. How complicated can it be?
Complicated enough. Because that hose has to do a lot. It has to hold pressure without bursting. It has to flex without cracking. It has to handle heat, oil, and weather. And it has to do all of that for years without failing.
The standards exist because engineers figured out that not all hoses are created equal. A hose that works fine for low-pressure return lines will blow apart on a high-pressure circuit. A hose that handles petroleum oil might swell up and fail with synthetic fluid. A hose that's fine in a warm shop can get brittle and crack in the cold.
The standards tell you what the hose is built for. Ignore them and you're guessing. And guessing with hydraulics gets expensive fast.
Standards aren't just a name on a sticker. They cover a whole list of specifications:
Every standard spells all of this out. So when you see SAE 100R2AT stamped on a hose, you know exactly what you're getting.
SAE (Society of Automotive Engineers)
This is the American standard. It's dominant in North America and on American-made equipment . The SAE J517 standard covers hydraulic hoses, and it's what most people in the US know.
SAE hoses have names like 100R1, 100R2, 100R12 . The numbers tell you something about the construction—how many wire braids, whether it's braided or spiral, what pressure it's rated for.
If your equipment came from North America, or if you're working on American-brand machines, SAE is probably what you need.
EN (European Norm)
This is the European standard, and it's heavily influenced by the old German DIN standards . EN hoses have names like 1SN, 2SN, 4SP, 4SH .
The naming is simple: the number tells you how many layers of steel wire it has. 1SN is one braid. 2SN is two braids. 4SP and 4SH are four spirals—higher pressure, more flexible.
If you're dealing with European equipment—German, Italian, whatever—EN is what the machine was built around.
ISO (International Organization for Standardization)
ISO was supposed to be the great unifier. One standard that everyone could agree on . It overlaps with both SAE and EN, but it has its own numbering system.
ISO 1436 covers the same ground as SAE 100R1 and 100R2. ISO 3862 covers the four-spiral hoses. And ISO 18752 is a newer standard that grades hoses by performance rather than construction—useful for modern high-pressure systems .
If your equipment comes from multiple countries, or if you're dealing with international projects, ISO is the safe bet.
SAE 100R1 vs. EN 1SN vs. ISO 1436
These are basically the same hose. One steel braid. Medium pressure. If you have an SAE R1 hose and you need a replacement, an EN 1SN or ISO 1436 will work in most cases. Not always—sometimes the fitting compatibility is different—but the hose itself is equivalent.

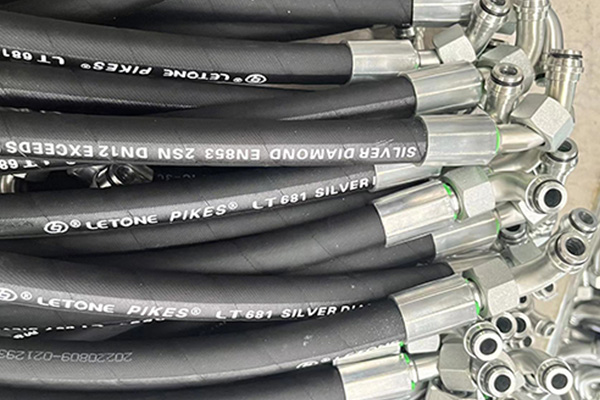

SAE 100R2 vs. EN 2SN vs. ISO 1436
Same thing here. Two steel braids. Higher pressure than single braid. These are the workhorses of the hydraulic world. If you don't know what you need, chances are it's one of these.
EN 4SP and 4SH
These are four-spiral hoses. Higher pressure, better flexibility. SAE has equivalents in the 100R12 and 100R13 standards, but the naming is different. Four-spiral hoses are for the heavy stuff—excavators, mining equipment, anything that needs serious pressure.
ISO 18752
This is the new kid on the block. Instead of classifying hoses by construction (one braid, two braid, spiral), it classifies them by performance. Grades A through D, with D being the highest pressure and pulse rating. This makes it easier to pick a hose based on what the system needs, not just how it's built.
Where is the equipment from? Where is it going?
If you're replacing a hose, look at the printing on the old one. It'll say SAE 100R2, or EN 2SN, or ISO 1436. Match it. Don't guess.
Every standard has pressure ratings. Figure out what your system runs at. Then pick a hose rated for at least that pressure. Not close. At least.
The hose standard also determines the fitting style. SAE hoses often use different fittings than EN hoses. Even if the hose itself is equivalent, the fittings might not swap. If you're mixing and matching, check compatibility.
Cold? Hot? Outdoor? Oil? Chemical? The standard tells you what the hose can handle, but you have to look. Some covers are better for abrasion. Some inner tubes handle certain fluids better. If the environment is tough, pick a hose built for it.
An SAE R2 hose and an EN 2SN hose are functionally equivalent. But an SAE fitting on an EN hose? Not always a fit. If you're not sure, ask. A hose that doesn't seal is a hose that leaks. And a leaking hydraulic hose at 3,000 psi is a hazard.
Here's the short version for when you're staring at a busted hose trying to figure out what to buy:
The right hose keeps the system running. The wrong hose fails. And when hydraulics fail, it's messy, expensive, and nobody's happy. Know the standards. Pick the right one. Move on.
A: Sometimes. The hose itself might be equivalent, but the fittings are different. Check compatibility before you swap .
A: Braided hoses have wire braids woven around the tube. Spiral hoses have steel wires wound in layers. Spiral handles higher pressure and better flexibility, but it's more expensive .
A: A newer standard that grades hoses by performance (Grade A through D) instead of construction. Easier to match to system requirements .
A: In real systems, pressure isn't constant. It pulses. A hose that can handle steady pressure might fail under repeated pulses. Standards test for this .
A: Generally yes, but check the manufacturer's specs. There can be minor differences in dimensions or performance .
A: Worst case, the hose blows. Best case, it doesn't fit or it fails prematurely. Neither is good .
