100+ ton Excavator - Official Technical Overview & Datasheet

EXECUTIVE SUMMARY The Global Heavy Machinery 100+ ton excavator series (Model GHX-1200) represents a paradigm shift in mass excavation efficiency for mining, quarrying, and large-scale infrastructure. Engineered to outperform conventional 90-ton class machines by 35% in material moved per hour, this machine integrates a high-flow, load-sensing hydraulic system with a Tier 4 Final or EU Stage V powerplant. Whether extracting overburden in open-pit mines or handling aggregates in mega-quarries, the GHX-1200 delivers sustained productivity under continuous duty cycles. Built on a foundation of ultra-high-tensile steel and modular component architecture, the GHX-1200 minimizes unplanned downtime through condition-based monitoring and globally sourced service parts. The combination of a reinforced undercarriage, a high-rigidity boom/arm package, and an intelligent swing-priority valve translates directly into lower cost per ton. For operators, a FOPS/ROPS certified, pressurized cab and a 10-inch high-resolution touch interface ensure fatigue-free shifts in extreme ambient temperatures from -40°C to +50°C.

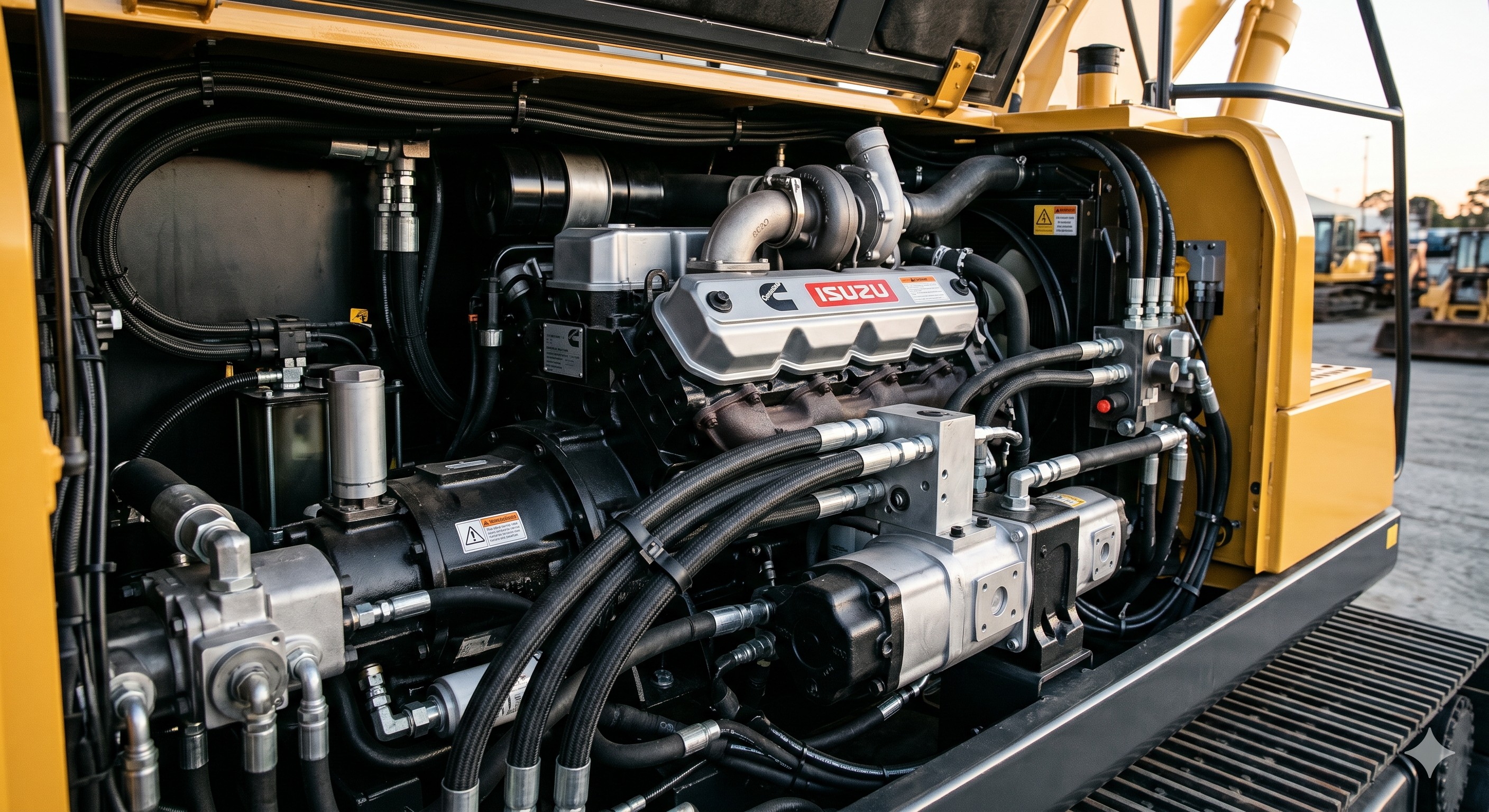

STRUCTURAL INTEGRITY & POWERTRAIN The chassis, boom, and arm employ JIS G3141 / EN 10025 grade 690 MPa high-tensile steel with cast steel nodal joints, achieving a structural life of 25,000 hours under severe digging conditions. The upper frame incorporates stress-relieved box-section fabrication and a bolt-on swivel joint guard. The undercarriage uses sealed and lubricated track chains with 750 mm triple-grouser shoes, designed for 12,000-hour wear life. The engine is a 6-cylinder, turbocharged, air-to-air aftercooled diesel: either a Cummins QSK23 (600 hp / 448 kW @ 1900 rpm) or an Isuzu 6WG1 (585 hp / 436 kW). Both configurations meet EPA Tier 4 Final / EU Stage V with SCR + DOC + DPF aftertreatment. The hydraulic system is a closed-center, load-sensing, variable-displacement piston pump with a maximum flow of 2 x 400 L/min at 34.3 MPa (4970 psi). Boom/arm regeneration circuits reduce cycle times by 12% during lowering and dump actions. KEY FEATURES & OPERATOR COMFORT - Advanced Electro-Hydraulic Control System (E-H): Fully proportional joysticks with 7 customizable work modes (Rock, Heavy Lifting, Grading, Eco, Breaker, Ripping, Trenching). Includes automatic idle and engine speed deceleration when hydraulic demand drops below 5%. - ROPS/FOPS Level II Certified Cab: Pressurized (ISO 10263), with 15% larger glass area, integrated polycarbonate window guards, and heated/air-suspended cloth seat with lumbar support. Noise level at operator ear ≤ 70 dB(A). - 10-inch High-Visibility Touchscreen Display: Real-time telemetry, fuel consumption, filter life percentage, hydraulic oil temperature, and 360-degree object detection radar integration (ISO 15998 compliant). - Modular Cooling Package: Swing-out, reverse-fan optional cooling system with dual-plane radiators and hydraulic oil cooler. Enables ambient operation up to 52°C without derating. Automatic fan reversal every 15 minutes. - Smart Auto-Lube System: Programmable centralized greasing for all bucket pins, swing bearing, and track adjusters. Reduces daily service time to under 5 minutes and extends bushing life by 200%. COMPLIANCE & SAFETY STANDARDS All Global Heavy Machinery 100+ ton excavators are designed and certified to ISO 9001:2024 (Quality Management), ISO 14001 (Environmental), and ISO 45001 (Occupational Health & Safety). Engine compliance includes EPA Tier 4 Final, EU Stage V, and China Non-Road Stage IV. Safety certifications cover ROPS/FOPS per ISO 12117-2:2023, overhead guard impact per ISO 10262, and secondary exit/emergency lowering system per ISO 2867. Additionally, the machine carries CE marking (2006/42/EC Machinery Directive) and meets Australian AS 2958.1 for mining haul-road compatibility. TECHNICAL SPECIFICATIONS All values are based on standard heavy-duty bucket (5.2 m³ heaped) and SAE J1098 conditions. Operating weight includes full fuel, lubricants, operator (75 kg), and standard tooling.
