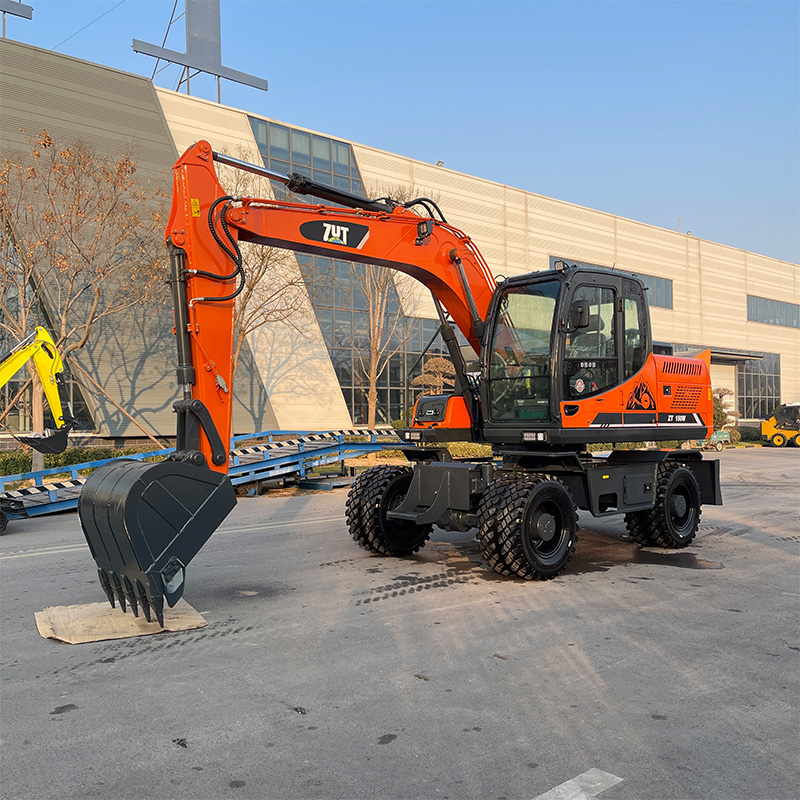

ZT150W - 15 Ton Wheeled Excavator

Name: ZT150W - 15 Ton Wheeled Excavator
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

ZT150 Multi-functional Wheeled Excavator

1. Mobility: The wheeled chassis design allows the ZT150 to travel quickly on roads, eliminating the need for trailers and enabling rapid movement between different construction sites, thus improving work efficiency.

2. Multi-functionality: It can be equipped with various attachments, such as buckets, grapples, and breakers, allowing one machine to perform multiple tasks including excavation, loading, demolition, and breaking, broadening its applicability.

3. Wide range of applications: Suitable for municipal construction, road engineering, pipeline construction, landscaping projects, and other fields, especially on paved roads or in situations requiring frequent movement, making it more suitable than tracked excavators.

$60000.00 - 120000.00

Send Message Contact Supplier

Shandong Zhongjue Heavy Industry Co., Ltd.

View Supplier

Established 2015

Area 20000m²

Foreign Trade Experience 10 years

Export Countries More than 100 countries

Annual Sales Over 130 million US dollars

Main Products Full hydraulic wheel excavators, small and medium-sized crawler excavators, skid steer loaders, CNC rebar processing equipment, dredging and demolition robots, customized excavator modifications

Application Fields Landscaping, agricultural production, municipal engineering, water conservancy construction, civil construction

Certifications ISO9001, ISO14001, EU CE Certification

Main Export Markets Central Asia, Russia, Southeast Asia, Africa, Europe, America

Details

Specifications

Specifications
Total weight(kg)	12800
Volume of Bucket(m³)	0.5
Configuration

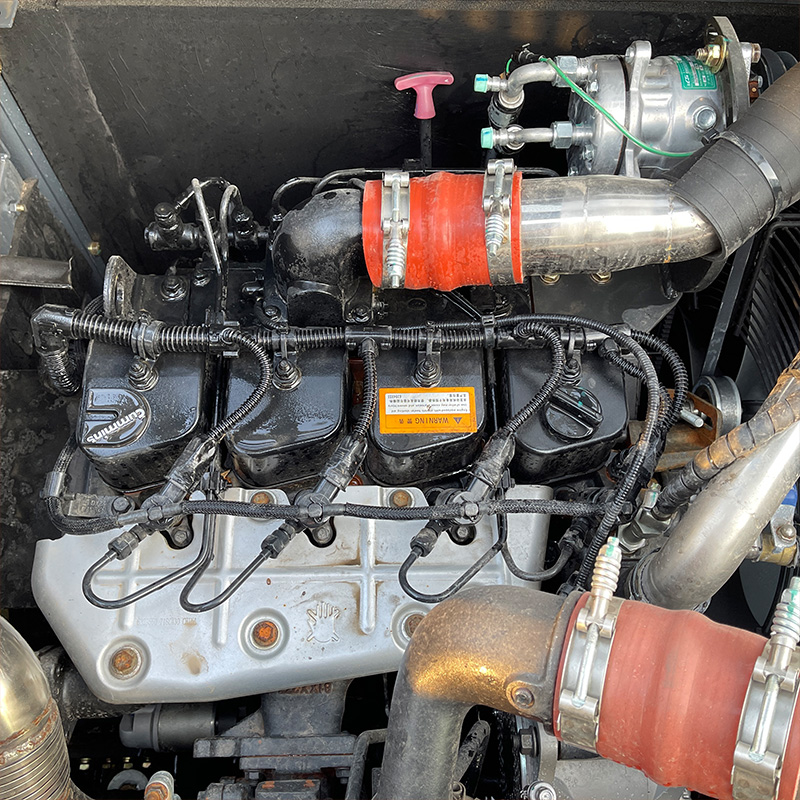

Engine	Brand	Cummins
	Model	B3.9CS4 130C(four-cylinder)
	Power(KW)	96
	Displacement(mL)	3900
	Rotational speed	2500

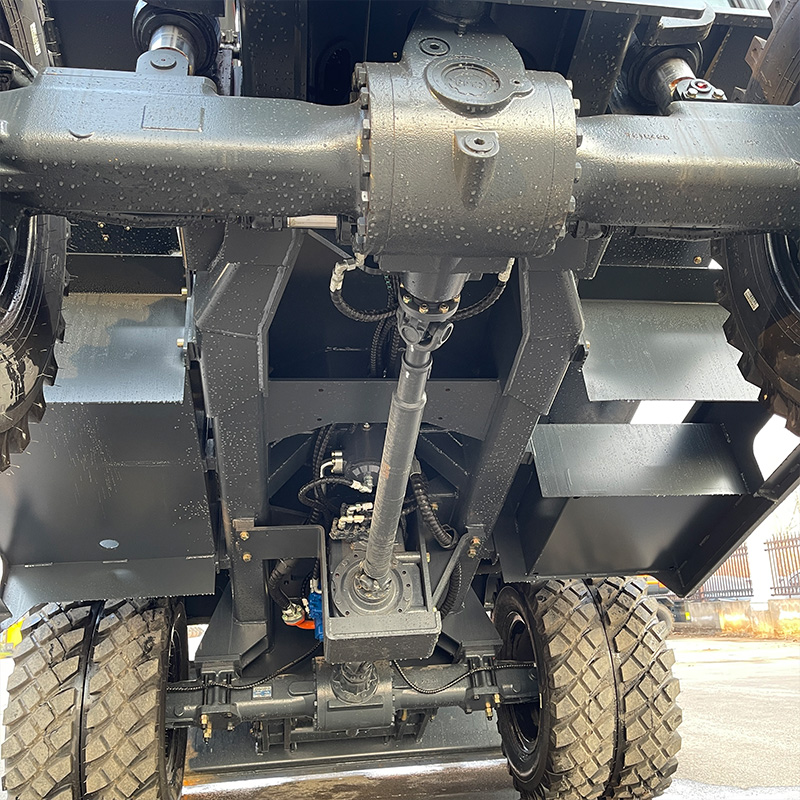

Drive axle	Fully hydraulic wet brake axle
Gearbox	Continuously variable transmission

Performance
Swing speed(rpm)	12.5
Travel speed(km/hr)	35-10
Gradeability(°)	30
Drive unit and brake

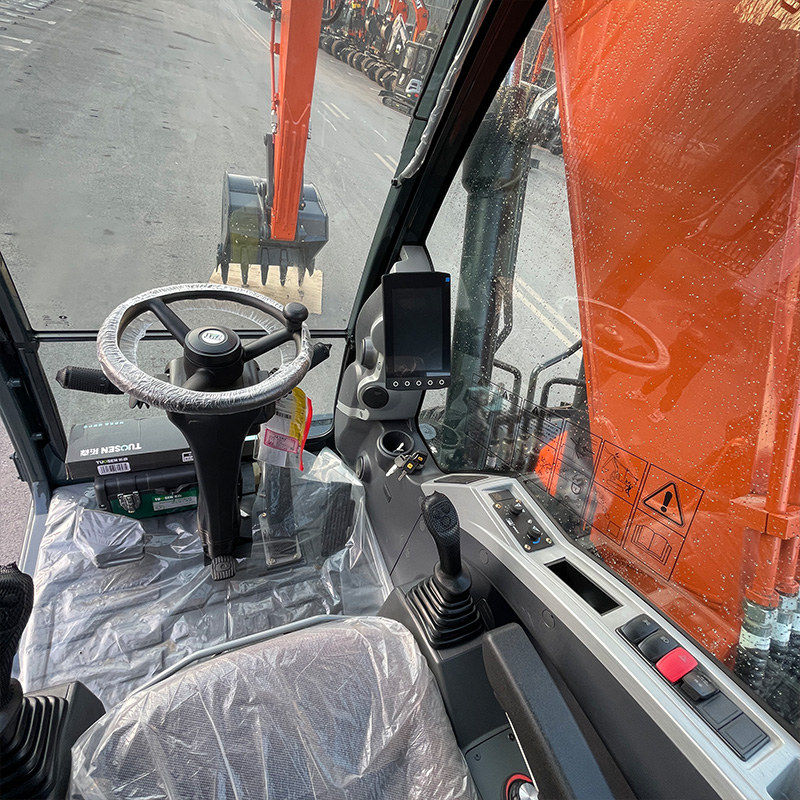

Steering control	Steering wheel
Drive type	Hydraulics
Travel motor type	Axial piston hydraulic motor
Service brake	Hydraulic braking
Parking brake	Wet multi-disc braking
Tank capacity
Fuel tank(L)	210
Hydraulic oil tank(L)	130
Max digging force(ISO)
Bucket(kN)	62.5
Stick(kN)	85
Operating range(mm)
Transport Length	7232
Transport Width	2500
Transport Height	3428
Turning Radius	2278
Wheelbase	2650
Wheel Track	1942
Max Digging Radius	7722
Max Digging Depth	4600
Max Digging Height	8334
Max Unloading Height	6190
Turntable Ground Clearance	1274

Model

ZT150W

Engine

B3.9CS4 130C(four-cylinder)

Weight

12800kg

Description

Specifications
Total weight(kg)	12800
Volume of Bucket(m³)	0.5
Configuration
Engine	Brand	Cummins
	Model	B3.9CS4 130C(four-cylinder)
	Power(KW)	96
	Displacement(mL)	3900
	Rotational speed	2500
Drive axle	Fully hydraulic wet brake axle
Gearbox	Continuously variable transmission

Performance
Swing speed(rpm)	12.5
Travel speed(km/hr)	35-10
Gradeability(°)	30
Drive unit and brake
Steering control	Steering wheel
Drive type	Hydraulics
Travel motor type	Axial piston hydraulic motor
Service brake	Hydraulic braking
Parking brake	Wet multi-disc braking
Tank capacity
Fuel tank(L)	210
Hydraulic oil tank(L)	130
Max digging force(ISO)
Bucket(kN)	62.5
Stick(kN)	85
Operating range(mm)
Transport Length	7232
Transport Width	2500
Transport Height	3428
Turning Radius	2278
Wheelbase	2650
Wheel Track	1942
Max Digging Radius	7722
Max Digging Depth	4600
Max Digging Height	8334
Max Unloading Height	6190
Turntable Ground Clearance	1274
