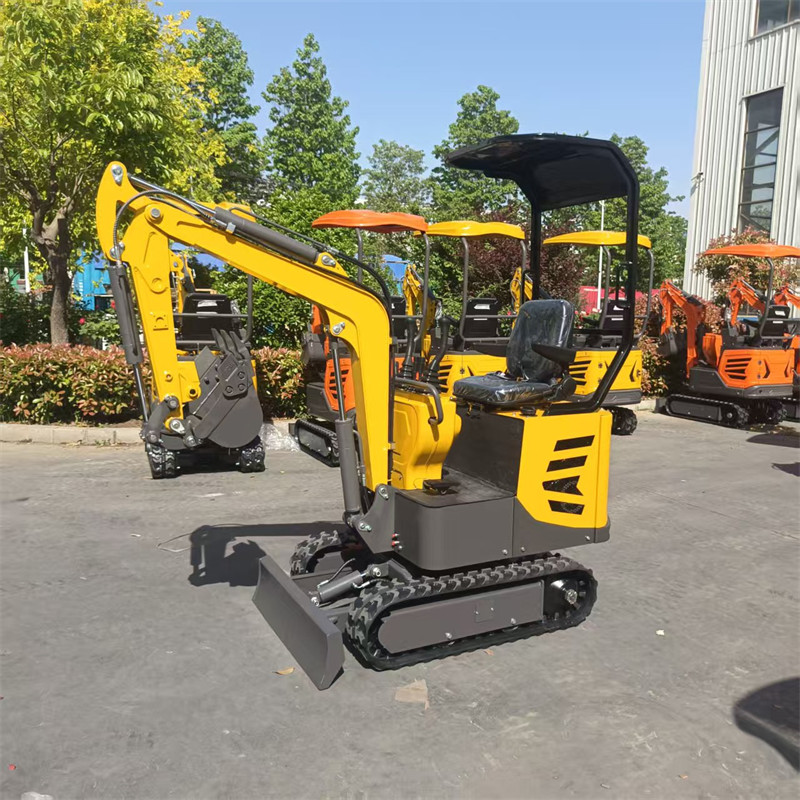

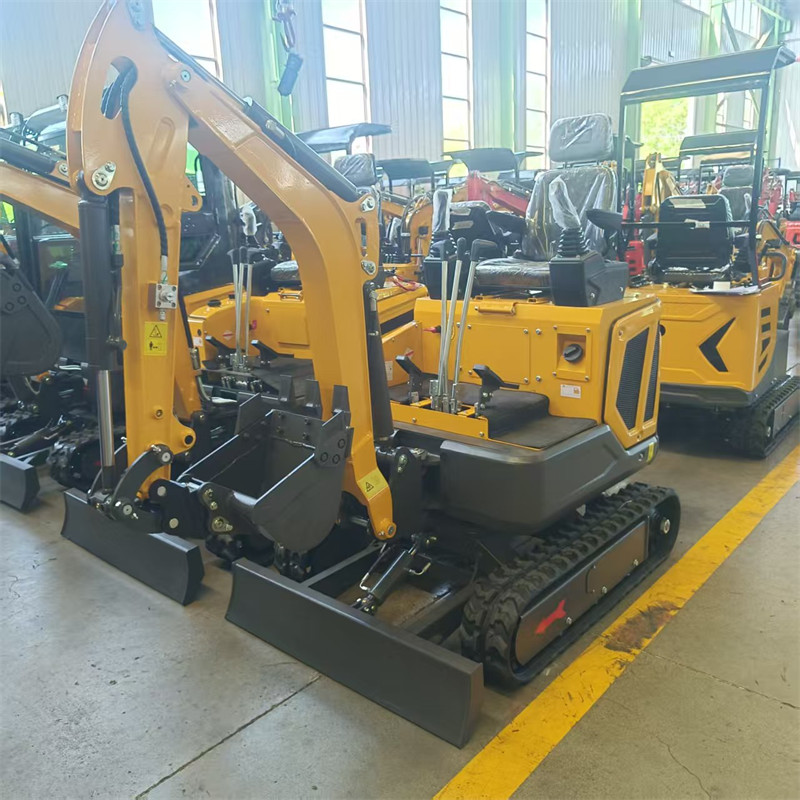

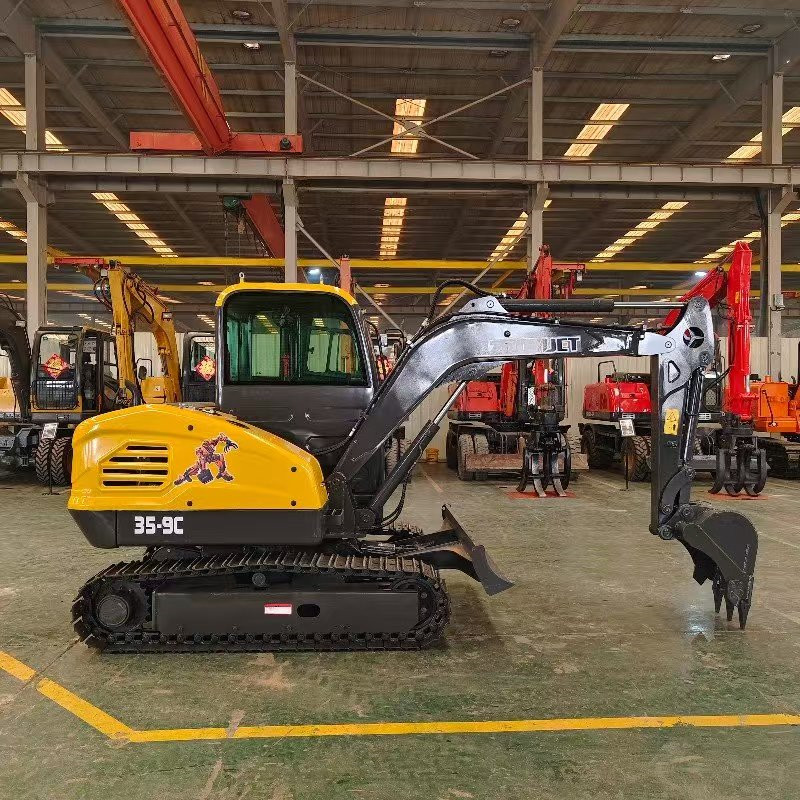

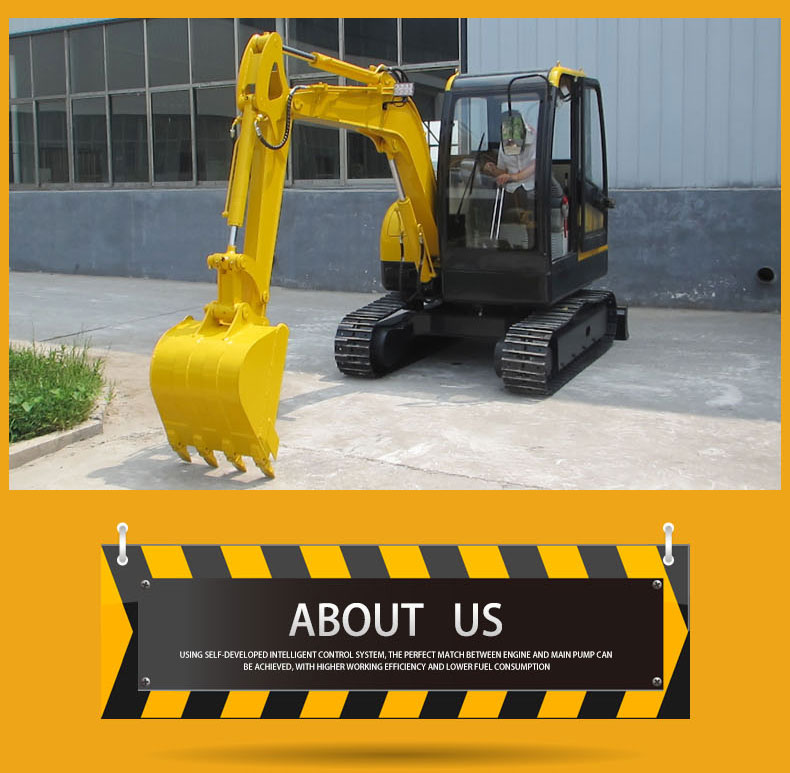

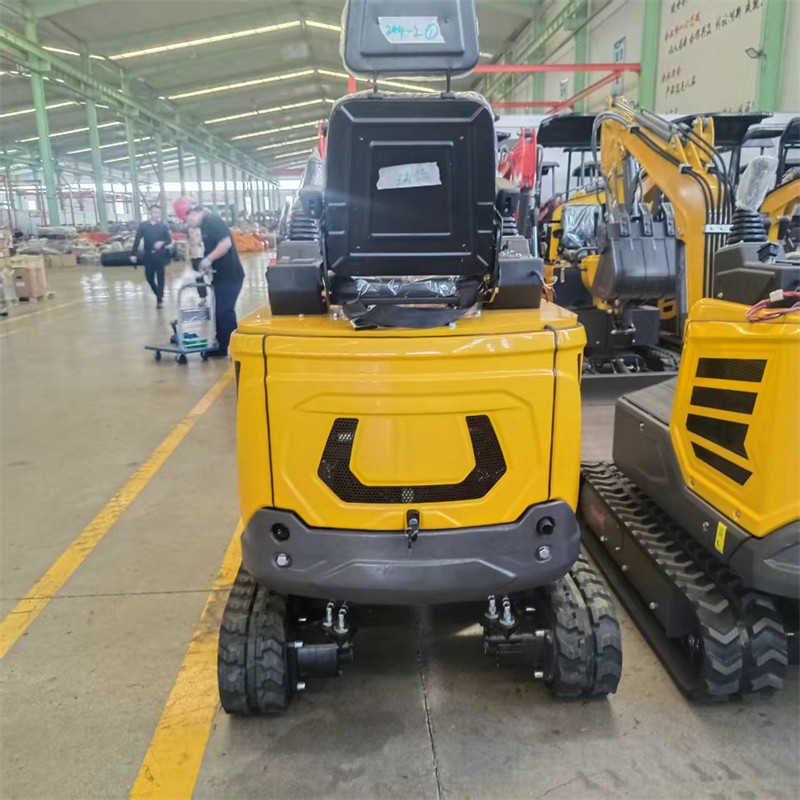

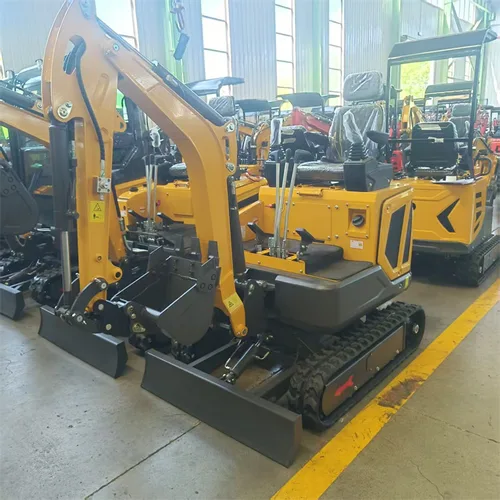

ZJ40 3.6 Ton Mini Crawler Excavator for Landscaping & Municipal Works

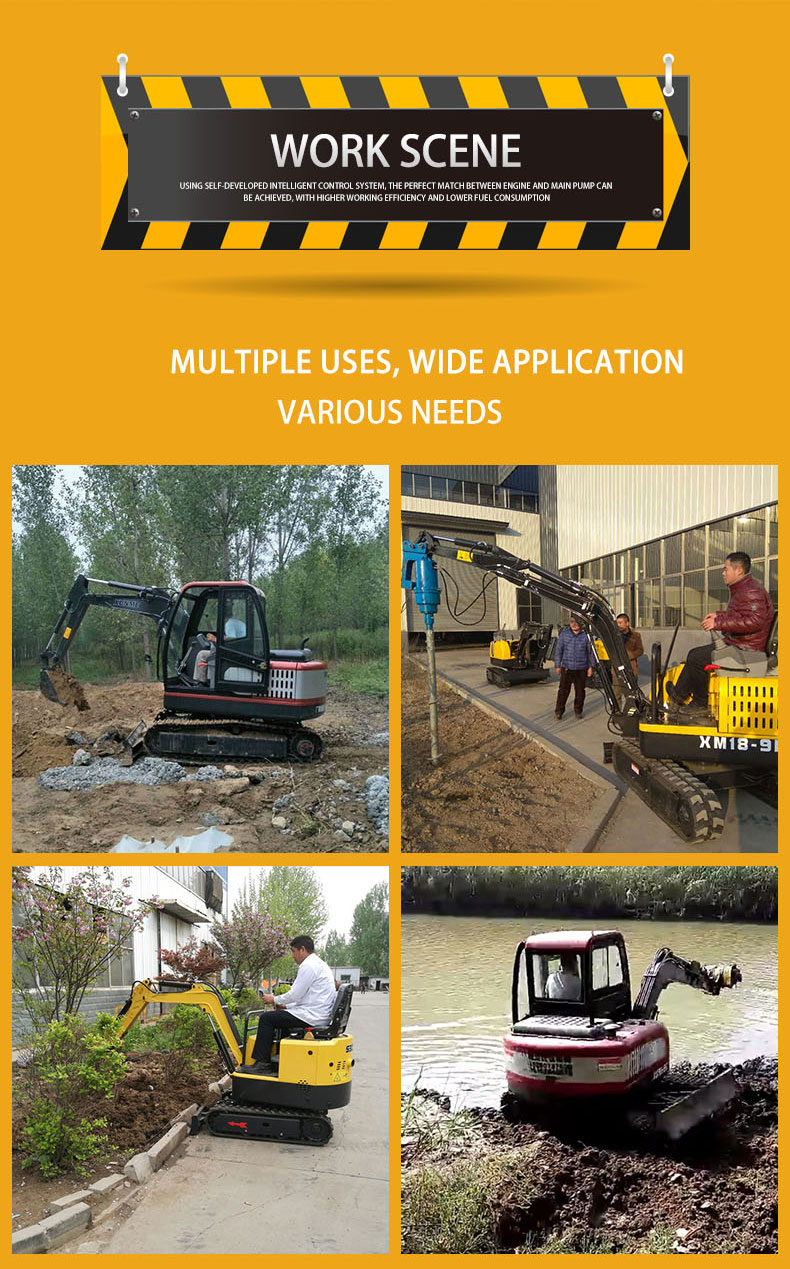

ZJ40 3.6 ton mini crawler excavator has an operating weight of 3600kg and 0.26m³ bucket. It adopts load-sensitive hydraulic system, intelligent control, high efficiency and energy saving, with stable performance and easy operation. Widely used in landscaping, municipal maintenance, farmland, rural construction and small engineering projects.
$1000.00 - 2000.00
Send Message Contact Supplier
Shandong Zhongjue Heavy Industry Co., Ltd.

Shandong Zhongjue Heavy Industry Co., Ltd.

Main Products: Excavator, Skid Steer Loader
View Supplier
Year Established Established in 2015
Main Products Excavator, Skid Steer Loader
Employees 101-500 People
Factory Area 10,000-50,000 m²
Annual Revenue Above US$50 Million
Main Markets Europe / Southeast Asia / South Asia / Africa
Details

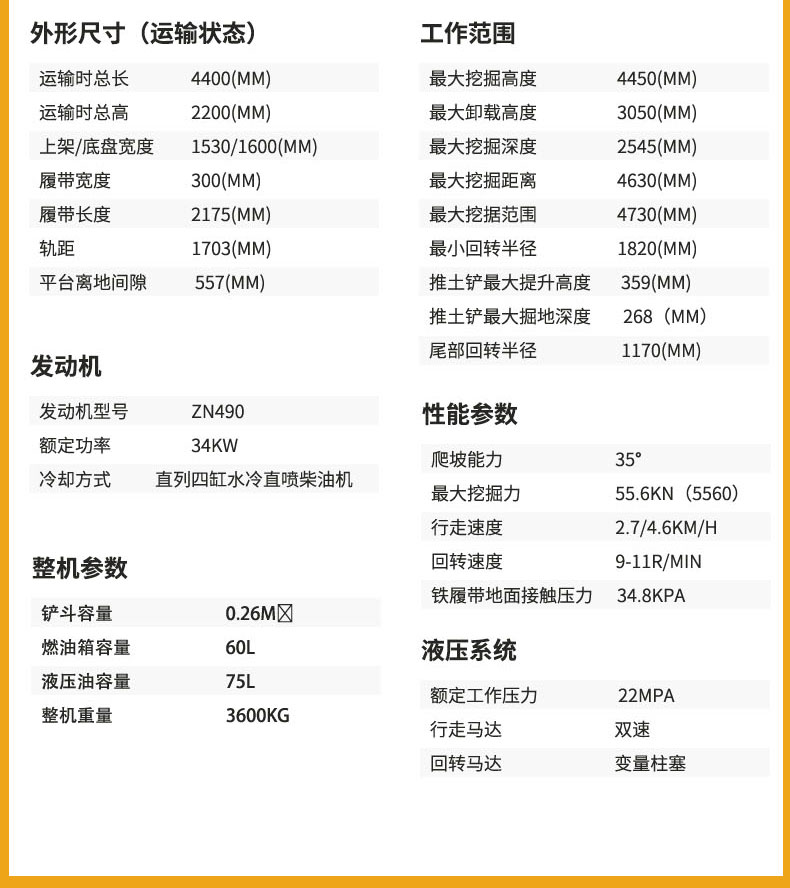

Specifications
Product Name
ZJ40 CRAWLER EXCAVATOR
Overall Length(erm lowered)
4400(MM)
Overall Height
2200(MM)
width
1530/1600(MM)
Track width
300(MM)
Total track length
2175(MM)
Track gauge
1703(MM)
Platform ground clearance
557(MM)
Max.Digging Height
4450(MM)
Max.Dumping Height
3050(MM)
Max.Digging Depth
2545(MM)
Maximum digging distanc
4630(MM)
Max.Digging radius
4730(MM)
Minimum radius of gyration
1820(MM)
Maximum lifting height of earth shovel
359(MM)
The maximum digging depth of dozer
268（MM）
Min Tail swing radius
1170(MM)

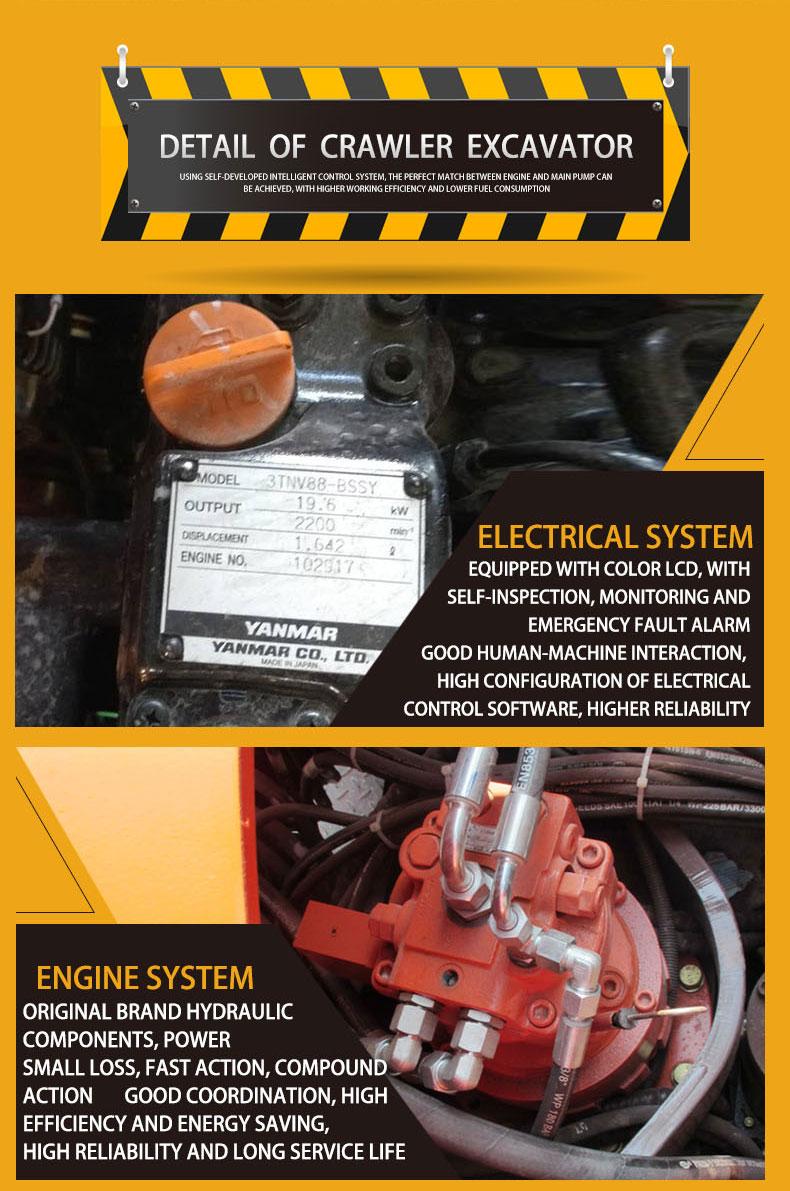

Engine Model
Changchai ZN490 / Laidong 490 / Yanmar 3TVN-88
power
34KW/19.6KW
Cooling method
water-cooling Diesel engine
Operating Pressure
22mpa
Walking motor
Two speed plunger
Rotary motor
Variable plunger
The main pump
32cc Plunger 32cc
Flow
99/MIN
Climbing ability
35°
Maximum digging force （ISO）
55.6KN（5560）
Travel speed
2.7/4.6km/h
Unit swing speed
9-11r/min
Rail contact pressure on the ground
34.8kpa [ 0.355kgf/cm ² ]
（SAE）Bucket Capacity
0.26m³
Fuel reservoir
60L
Hydraulic tank capacity
75L
Operating Weight
3600kg
