Xinguo Heavy Industry 6.3 Ton Truck Mounted Crane with 5-section Boom 16.5m Lifting Height

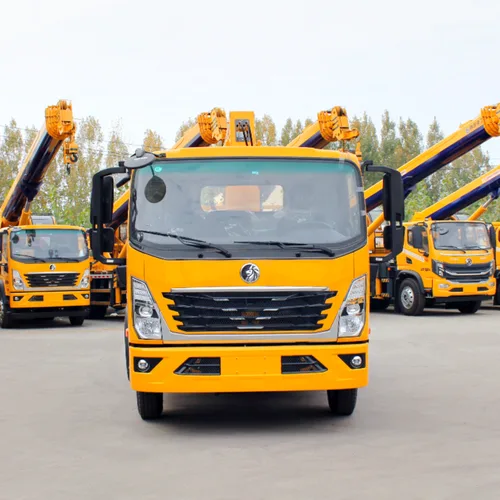

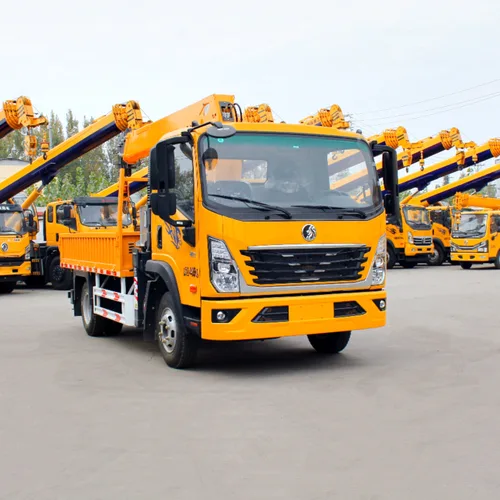

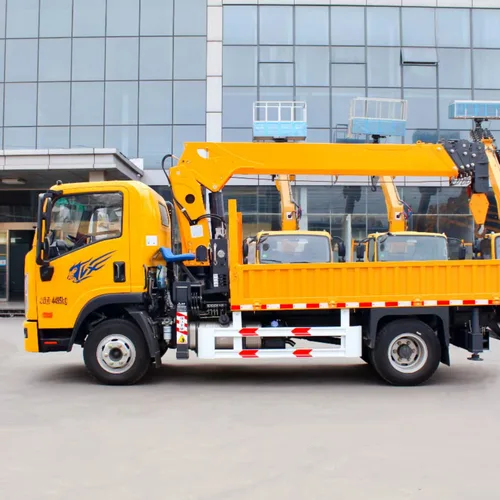

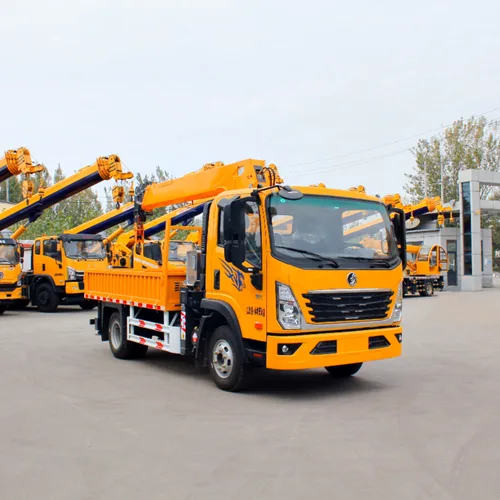

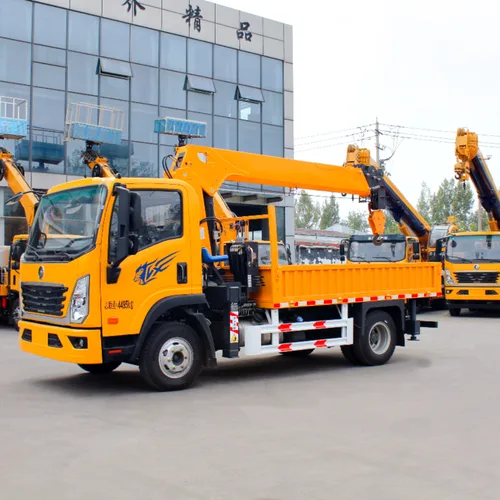

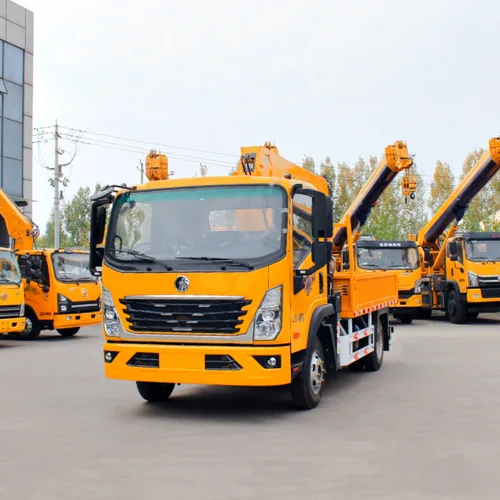

Xinguo Heavy Industry 6.3-ton truck mounted crane is based on the Sinotruk Wangpai V30X chassis, equipped with a 5-section extended boom with a maximum lifting height of 16.5m. It integrates lifting and transportation functions for multi-purpose use. Compact and with wide working radius, it is suitable for urban and rural short-distance lifting transportation, construction site material handling and equipment loading/unloading, an efficient equipment for small and medium engineering transportation.
$18000.00 - 22000.00
Send Message Contact Supplier
Jining Xinguo Intelligent Manufacturing Co., Ltd.

Jining Xinguo Intelligent Manufacturing Co., Ltd.

View Supplier
Registration Date December 19, 2025
Number of Employees 50+
Factory Area 5,000+ m²
Annual Sales 60 Million+ RMB
Main Products Cranes, Truck Cranes, 3-in-1 Cranes, Custom-Built Cranes
Target Markets Domestic, Middle East, Southeast Asia, Africa
Details
Specifications
This 6.3-ton truck mounted crane is equipped with Sinotruk Wangpai V30X wide-body cab and 160hp engine with sufficient power and compliance, matched with Fast high/low speed gearbox for smooth operation and stable driving. The chassis adopts double-layer frame with strong load capacity, equipped with H-type full-surround outriggers with 5200mm transverse span and 3400mm longitudinal span for stable operation.
The 5-section extended boom has a maximum lifting height of 16.5m, working radius of 14.5m and 360° full rotation. The hydraulic system has a rated flow of 40L/min and working pressure of 22Mpa, with stable operation and upper/lower dual control modes. The flatbed can be extended from 3400mm×2200mm to 4500mm×2200mm to meet different cargo transportation needs, exempt from purchase tax with high cost performance.
Model
XGZ5042XJXCD6
Chassis
Sinotruk Wangpai V30X
Engine
YCF25160-66A / 160HP
Gearbox
Fast 8J50TA high/low speed
Rear Axle
6.0T self-adjusting rear axle / 5.286
Crane Capacity
6.3 ton
Boom Sections
5-section extended boom
Max Lifting Height
16.5 meters
Max Working Radius
14.5 meters
Outrigger Span
5200mm transverse / 3400mm longitudinal
Control Mode
Upper/lower dual control
Flatbed Size
3400-4500mm × 2200mm (extendable)
  • Xinguo Heavy Industry 6.3 Ton Truck Mounted Crane with 5-section Boom 16.5m Lifting Height
  • Xinguo Heavy Industry 6.3 Ton Truck Mounted Crane with 5-section Boom 16.5m Lifting Height
  • Xinguo Heavy Industry 6.3 Ton Truck Mounted Crane with 5-section Boom 16.5m Lifting Height
  • Xinguo Heavy Industry 6.3 Ton Truck Mounted Crane with 5-section Boom 16.5m Lifting Height
  • Xinguo Heavy Industry 6.3 Ton Truck Mounted Crane with 5-section Boom 16.5m Lifting Height
  • Xinguo Heavy Industry 6.3 Ton Truck Mounted Crane with 5-section Boom 16.5m Lifting Height

Description

This 6.3-ton truck mounted crane is equipped with Sinotruk Wangpai V30X wide-body cab and 160hp engine with sufficient power and compliance, matched with Fast high/low speed gearbox for smooth operation and stable driving. The chassis adopts double-layer frame with strong load capacity, equipped with H-type full-surround outriggers with 5200mm transverse span and 3400mm longitudinal span for stable operation.
The 5-section extended boom has a maximum lifting height of 16.5m, working radius of 14.5m and 360° full rotation. The hydraulic system has a rated flow of 40L/min and working pressure of 22Mpa, with stable operation and upper/lower dual control modes. The flatbed can be extended from 3400mm×2200mm to 4500mm×2200mm to meet different cargo transportation needs, exempt from purchase tax with high cost performance.
