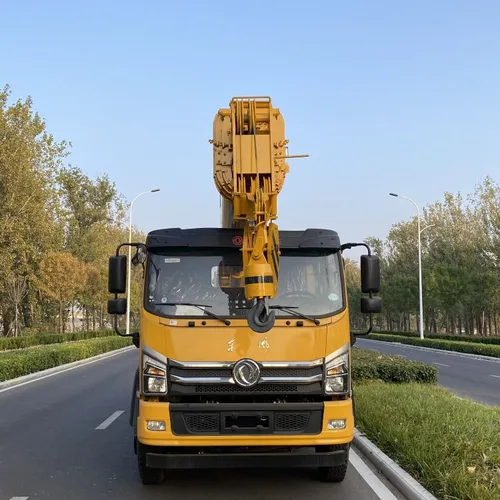

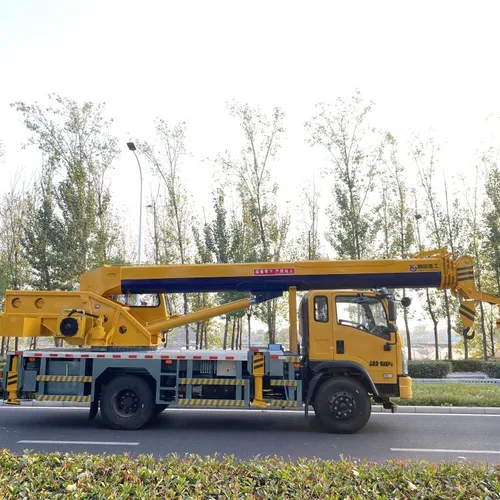

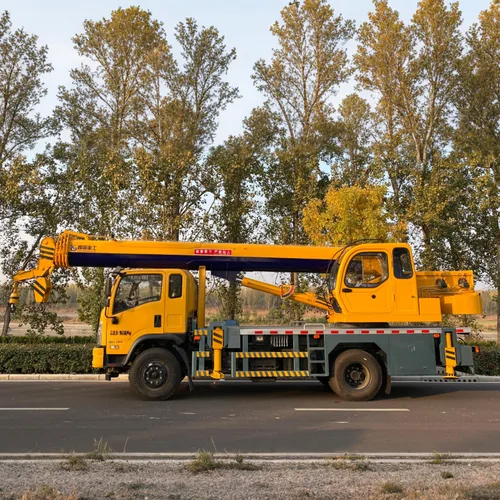

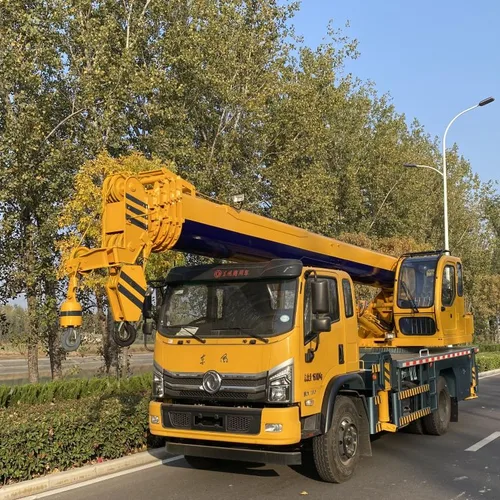

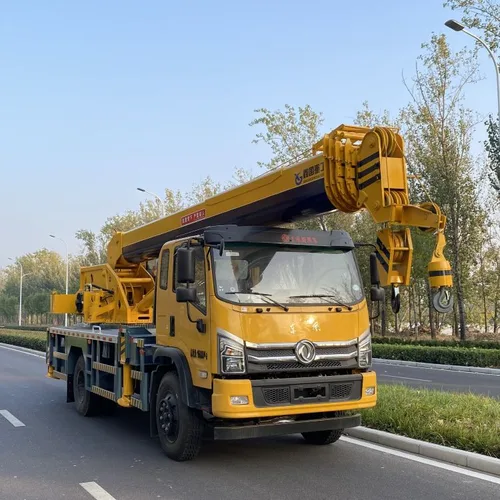

Xinguo Heavy Industry 12 Ton Truck Crane with 5-section Boom 31m Lifting Height

Xinguo Heavy Industry 12-ton truck crane is built on the Dongfeng commercial vehicle chassis, equipped with a 7m 5-section U-shaped single-plate boom with a maximum lifting height of 31m. It adopts a full hydraulic drive system with strong power and stable operation. Suitable for municipal engineering, factory hoisting, road and bridge construction, landscaping and other medium and large lifting scenarios, with various optional configurations, it is an efficient and reliable engineering lifting equipment.
$18000.00 - 22000.00
Send Message Contact Supplier
Jining Xinguo Intelligent Manufacturing Co., Ltd.

Jining Xinguo Intelligent Manufacturing Co., Ltd.

View Supplier
Registration Date December 19, 2025
Number of Employees 50+
Factory Area 5,000+ m²
Annual Sales 60 Million+ RMB
Main Products Cranes, Truck Cranes, 3-in-1 Cranes, Custom-Built Cranes
Target Markets Domestic, Middle East, Southeast Asia, Africa
Details
Specifications
This 12-ton truck crane is built on the Dongfeng commercial vehicle chassis, powered by a 165hp Yuchai engine with sufficient power and low fuel consumption, reaching a driving speed of 89Km/h for flexible transfer. The upper structure is equipped with a 7m 5-section U-shaped single-plate boom with a maximum lifting height of 31m, and the outrigger span is 6.75m×4.60m for stable operation.
The hydraulic system adopts inclined-axis winch and planetary reducer, with lifting speed up to 120-110m/min and slewing speed 0-2rpm for precise control. Equipped with 50/40/32cc engine pump as standard, with optional motor pump for multiple power options. The crane is equipped with rear telescopic frame, dual-side operation, negative angle device, electronic throttle, XCMG hook and air cushion seat, and optional computer torque limiter, electric air conditioner, camera, etc., ensuring safe and comfortable operation to meet various lifting requirements.
Model
XGZ5160JQZEQ6
Chassis
Dongfeng Commercial Vehicle
Max Lifting Capacity
12000kg / 12 ton
Boom
7m 5-section U-shaped single-plate boom
Max Lifting Height
31 meters
Outrigger Span
6.75m × 4.60m
Engine
Yuchai 121KW/165HP
Max Speed
89Km/h
Gearbox
Fast 8-speed
Slewing Bearing
QW1120.32
Reducer
Planetary Reducer
Cabin
Luxury Operation Cabin
Gross Weight
16000Kg
  • Xinguo Heavy Industry 12 Ton Truck Crane with 5-section Boom 31m Lifting Height
  • Xinguo Heavy Industry 12 Ton Truck Crane with 5-section Boom 31m Lifting Height
  • Xinguo Heavy Industry 12 Ton Truck Crane with 5-section Boom 31m Lifting Height
  • Xinguo Heavy Industry 12 Ton Truck Crane with 5-section Boom 31m Lifting Height
  • Xinguo Heavy Industry 12 Ton Truck Crane with 5-section Boom 31m Lifting Height

Description

This 12-ton truck crane is built on the Dongfeng commercial vehicle chassis, powered by a 165hp Yuchai engine with sufficient power and low fuel consumption, reaching a driving speed of 89Km/h for flexible transfer. The upper structure is equipped with a 7m 5-section U-shaped single-plate boom with a maximum lifting height of 31m, and the outrigger span is 6.75m×4.60m for stable operation.
The hydraulic system adopts inclined-axis winch and planetary reducer, with lifting speed up to 120-110m/min and slewing speed 0-2rpm for precise control. Equipped with 50/40/32cc engine pump as standard, with optional motor pump for multiple power options. The crane is equipped with rear telescopic frame, dual-side operation, negative angle device, electronic throttle, XCMG hook and air cushion seat, and optional computer torque limiter, electric air conditioner, camera, etc., ensuring safe and comfortable operation to meet various lifting requirements.
