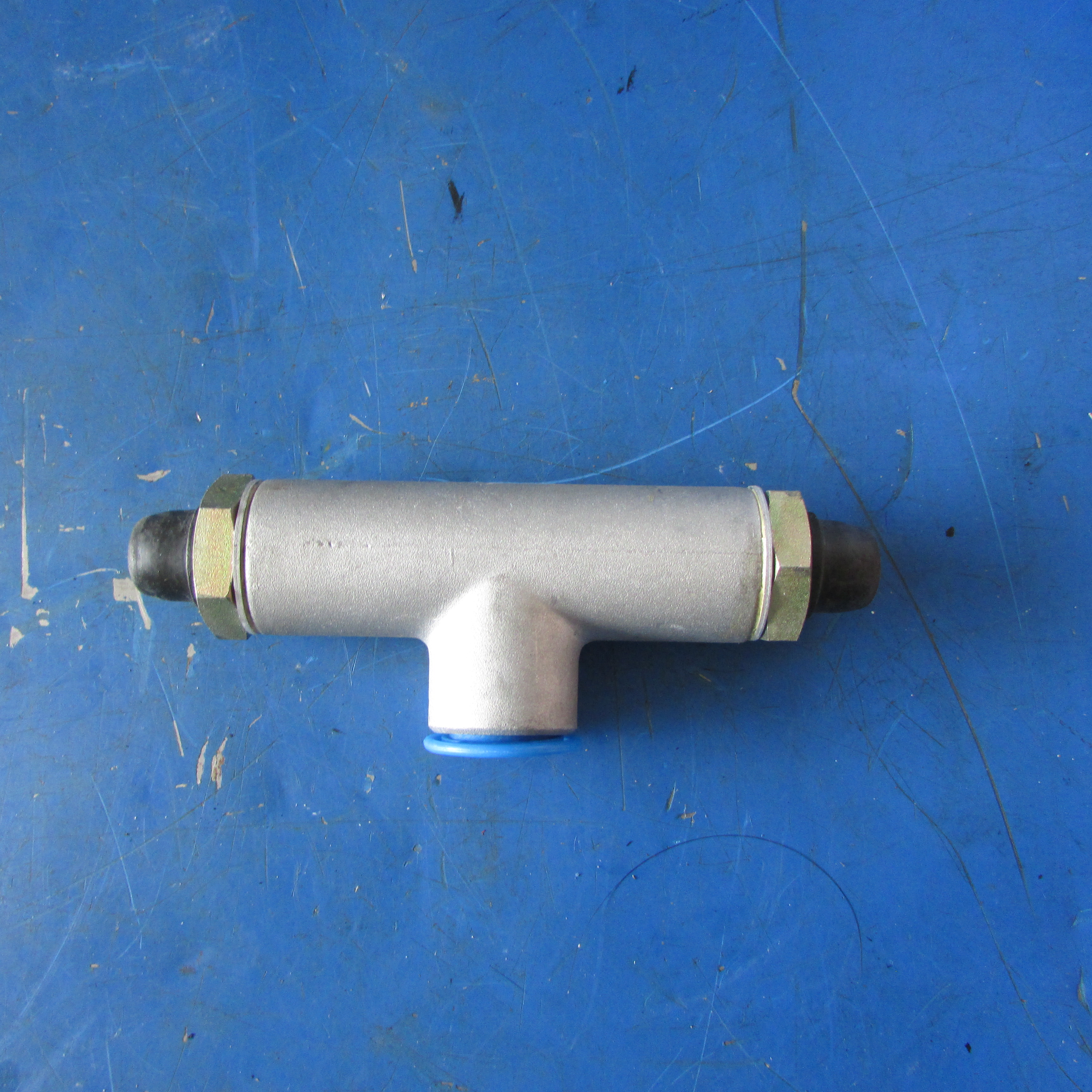

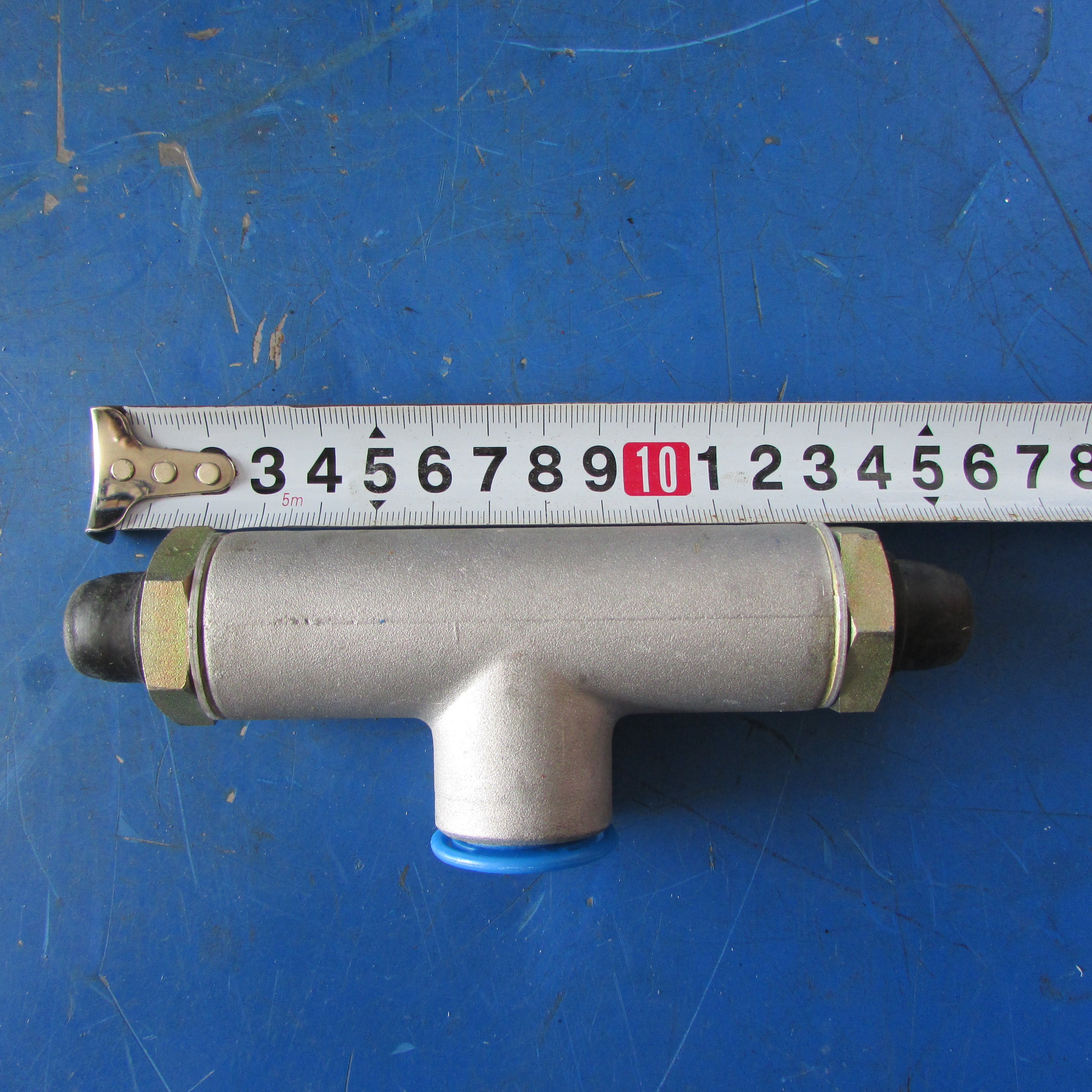

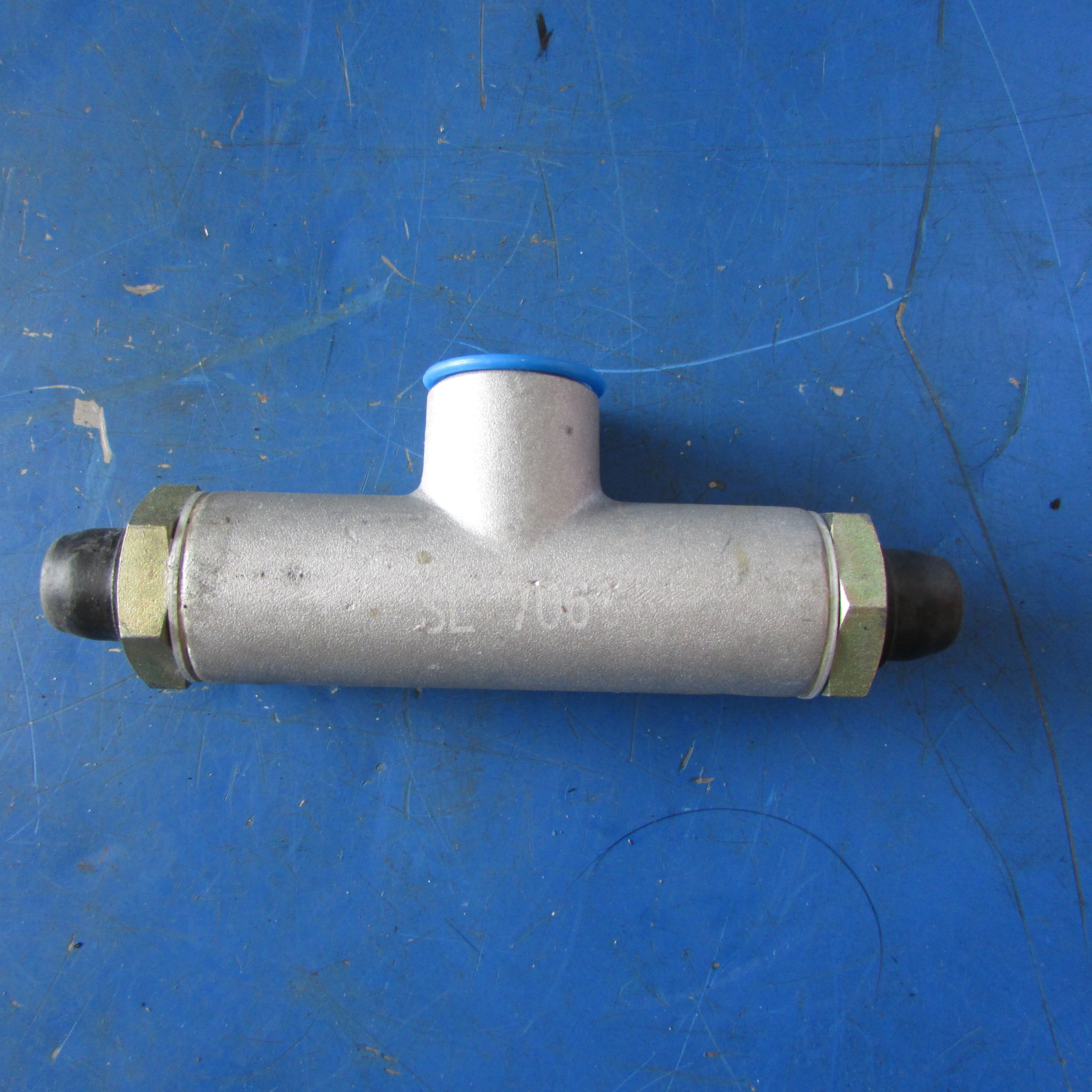

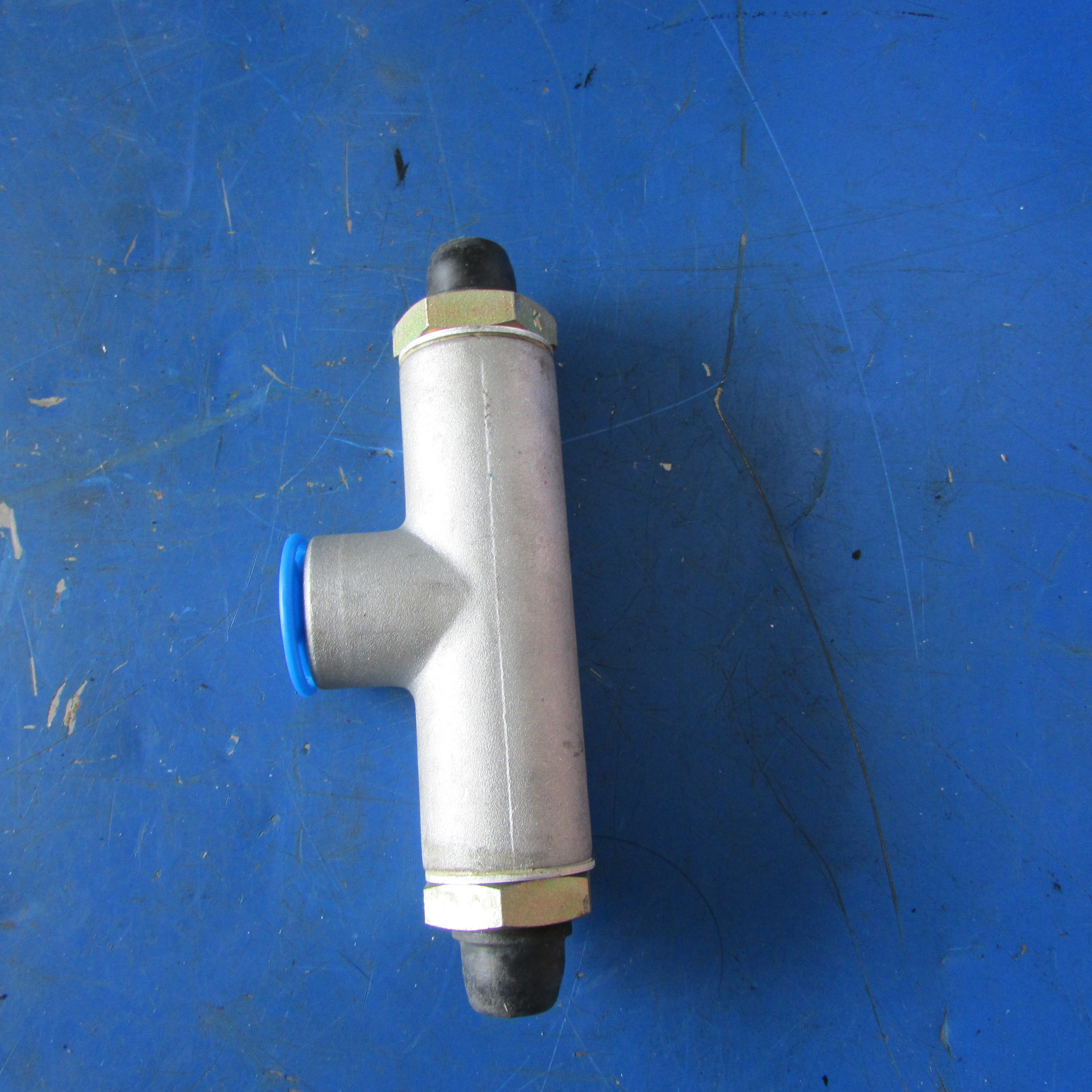

XCMG XZ560 3-Way Air Valve 800901306 XG560-3527002 | T-Joint Valve

Name: XCMG XZ560 3-Way Air Valve 800901306 XG560-3527002 | T-Joint Valve
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

This 3-Way Air Valve / T-Joint Valve Assembly (PN 800901306 / Drawing XG560-3527002) is a pneumatic circuit component engineered for XCMG XZ560 rotary drilling rigs, commonly deployed in the machine's brake air system or auxiliary pneumatic controls. It functions as a diverter/selector valve—directing compressed air between inlet, outlet, and exhaust ports to control actuator engagement (e.g., spring-applied brake release, auxiliary cylinder actuation). The valve body is machined from high-strength alloy with precision-bored ports and a hardened spool/poppet (depending on actuation type—manual lever or pilot), ensuring zero creep and positive shutoff under continuous cycling. Factory-set internal clearances match OEM flow and pressure ratings, and the unit installs directly into the existing air-line tee position with standard tube fittings—no re-flaring or adapter sleeves required.

$10.00

Send Message Contact Supplier

Xuzhou Hengming Machinery Equipment Co., Ltd.

Main Products: Full range of XCMG original spare parts

View Supplier

Year Established Established in 2008

Main Products Full range of XCMG original spare parts

Employees Less than 50 People

Factory Area 1,000-5,000 m²

Annual Revenue US$1 Million - US$5 Million

Main Markets Europe / Middle East & North Africa / Africa

Details

Trade Information

✅ Type: 3-Way pneumatic valve / T-joint valve assembly
✅ Application: XCMG XZ560 rotary drill (brake air / auxiliary pneumatic circuit)
✅ Cross Ref: 800901306 / XG560-3527002
✅ Body: Machined alloy, corrosion-resistant finish
✅ Actuation: Manual lever / pilot (confirm per application)
✅ Install: Drop-in to OEM tee position, standard push-in/tube ports

MOQ

2 Pieces

Description

✅ Type: 3-Way pneumatic valve / T-joint valve assembly
✅ Application: XCMG XZ560 rotary drill (brake air / auxiliary pneumatic circuit)
✅ Cross Ref: 800901306 / XG560-3527002
✅ Body: Machined alloy, corrosion-resistant finish
✅ Actuation: Manual lever / pilot (confirm per application)
✅ Install: Drop-in to OEM tee position, standard push-in/tube ports
