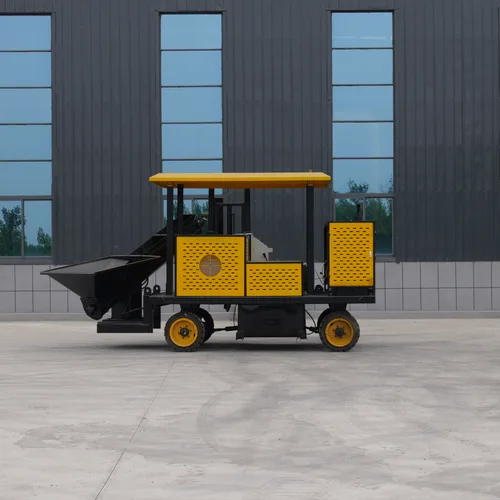

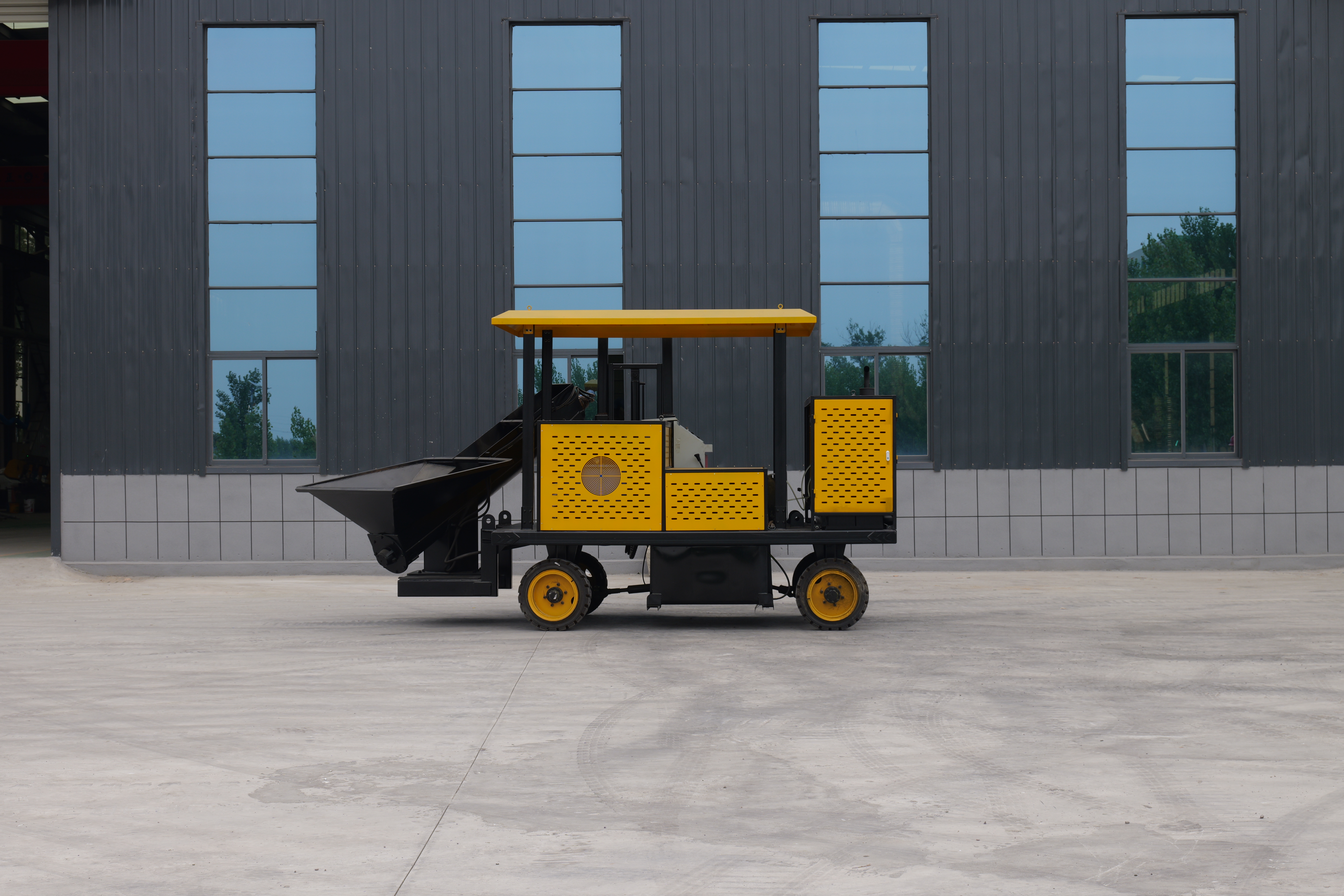

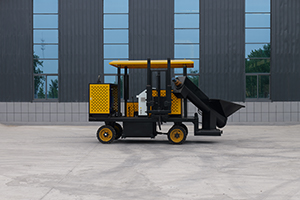

Wheel Concrete Slipform Machine, Dual-use Slipform Paver for Curb & Water Channel

Name: Wheel Concrete Slipform Machine, Dual-use Slipform Paver for Curb & Water Channel
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

This wheel-type canal slipform machine is a 4 rubber wheel self-propelled cast-in-place molding equipment, equipped with front loading bucket & hydraulic vibration forming system. By replacing molds, it can construct U-channels, trapezoidal drainage ditches, road curbs and anti-collision walls. It eliminates traditional formwork assembling & dismantling work, boosts construction efficiency by 60%, supports single-person operation, widely used in municipal & farmland water conservancy projects.

$1877.77

Send Message Contact Supplier

Shandong Yirun Environmental Protection Equipment Co., Ltd.

Main Products: Fuel & gas burners, biomass pellet burners, steam boilers, thermal oil boilers, fuel & gas steam generators, biomass pellet steam generators

View Supplier

Year Established Established in 2017

Main Products Fuel & gas burners, biomass pellet burners, steam boilers, thermal oil boilers, fuel & gas steam generators, biomass pellet steam generators

Employees 51-100 People

Factory Area 10,000-50,000 m²

Annual Revenue US$1 Million - US$5 Million

Main Markets Southeast Asia / Africa

Details

Specifications

Trade Information

Flexible Wheel Transfer: Rubber 4 wheels will not scratch asphalt or cement pavement. It can move short distances on factory & municipal roads without trailers, cutting transfer costs.
Integrated Feeding & Forming: Front auto bucket collects & conveys concrete, built-in spiral mixer + high-frequency vibrator ensures dense concrete without honeycomb surface, finished surface smooth without secondary finishing.
Multi-mold Compatibility: Fast replaceable forming molds, suitable for farm irrigation channels, municipal drainage ditches, road shoulders and anti-collision walls, one machine covers multiple construction types.
Full-auto Hydraulic Control: Full hydraulic walking, steering, lifting & leveling. Optional laser leveling system keeps straight trench lines with construction error ≤5mm.
Labor Cost Reduction: Traditional formwork casting requires 5-8 workers, while this machine only needs 1-2 operators with mixer truck feeding, daily output reaches 300~500 meters channel.
Durable & Low Maintenance: Thickened steel body, national standard brand hydraulic core parts, universal spare parts easy to purchase, 2-year whole machine warranty.

Walking Mode

4 rubber wheel self-propelled

Power Unit

490 Diesel Engine, 65KW

Driving System

Full hydraulic variable drive

Forming Speed

6~15 meters per hour

Applicable Channel Width

300~2000mm (Custom mold available)

Applicable Channel Depth

200~1500mm (Custom mold available)

Vibration Frequency

1500 times/min

Auto Leveling

Hydraulic reference leveling (Laser leveling optional)

Operation Mode

Cabin manual + wireless remote dual mode

Total Machine Weight

2600 KG

Overall Dimension

4200×1800×2200 mm

Matching Molds

U-channel / Trapezoidal ditch / Curb / Gutter multi-spec

Applicable Concrete

C20-C30 Commercial & Mix-on-site Concrete

MOQ

1 Pieces

Description

Flexible Wheel Transfer: Rubber 4 wheels will not scratch asphalt or cement pavement. It can move short distances on factory & municipal roads without trailers, cutting transfer costs.
Integrated Feeding & Forming: Front auto bucket collects & conveys concrete, built-in spiral mixer + high-frequency vibrator ensures dense concrete without honeycomb surface, finished surface smooth without secondary finishing.
Multi-mold Compatibility: Fast replaceable forming molds, suitable for farm irrigation channels, municipal drainage ditches, road shoulders and anti-collision walls, one machine covers multiple construction types.
Full-auto Hydraulic Control: Full hydraulic walking, steering, lifting & leveling. Optional laser leveling system keeps straight trench lines with construction error ≤5mm.
Labor Cost Reduction: Traditional formwork casting requires 5-8 workers, while this machine only needs 1-2 operators with mixer truck feeding, daily output reaches 300~500 meters channel.
Durable & Low Maintenance: Thickened steel body, national standard brand hydraulic core parts, universal spare parts easy to purchase, 2-year whole machine warranty.
