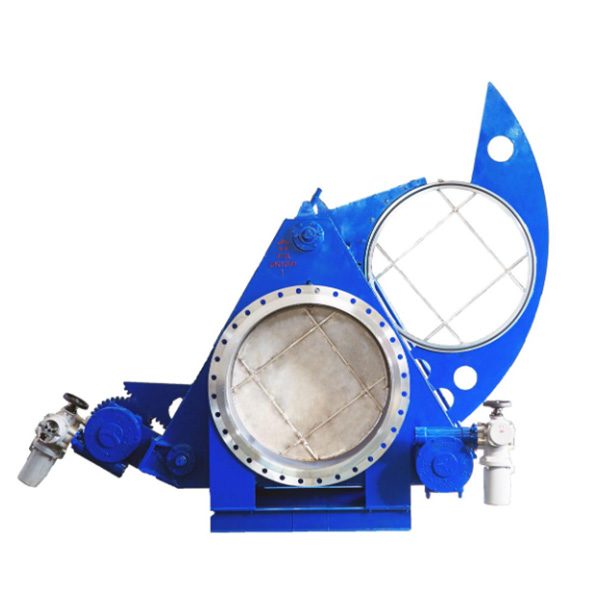

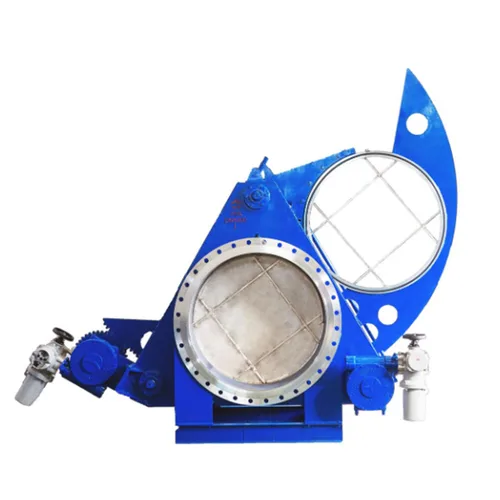

Three-Point Quick Opening Blind Plate | DN150-DN1600 Pipeline Blind for Large Bore Low Pressure Applications

The three-point quick opening blind plate is designed for large-bore low-pressure pipeline plugging operations. It allows one operator to loosen the valve body and rotate the blind plate into place via electric actuator, completing the operation in 3-5 minutes. Optional electric, pneumatic or hydraulic actuators are available for safer and more efficient operation. Suitable for gas and liquid media, it meets GB/T9119-2010 standards, ideal for refining, chemical, cement industries and more.
Shandong Weiheng Valve Technology Co., Ltd.

Shandong Weiheng Valve Technology Co., Ltd.

View Supplier
Registered Capital 10.88 million RMB
Date of Establishment April 24, 2006
Staff Size 60–100 persons
Address Linzi District, Zibo City, Shandong Province
Business Scope: Processing and sales of valves, pipe fittings, high-pressure bolts, filters, and mechanical accessories; sales of plastic and rubber products, electromechanical equipment, and building materials. (For projects subject to approval in accordance with the law, business activities may be carried out only after approval by the relevant departments.)
Monthly capacity 300–1000 sets
Details
Specifications

Product Overview

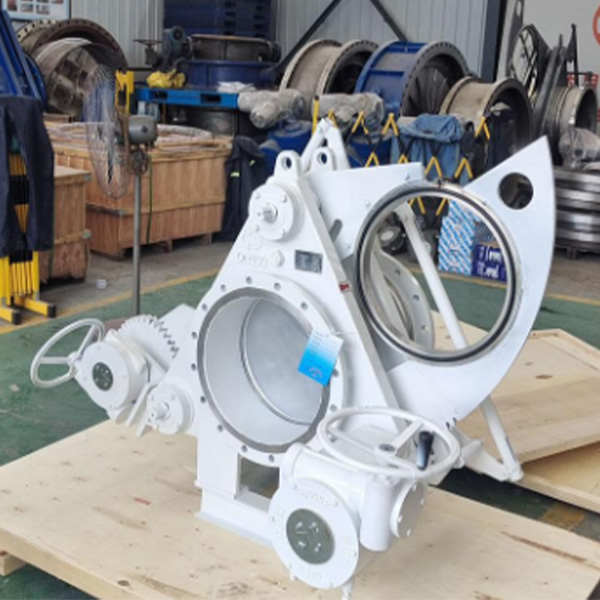

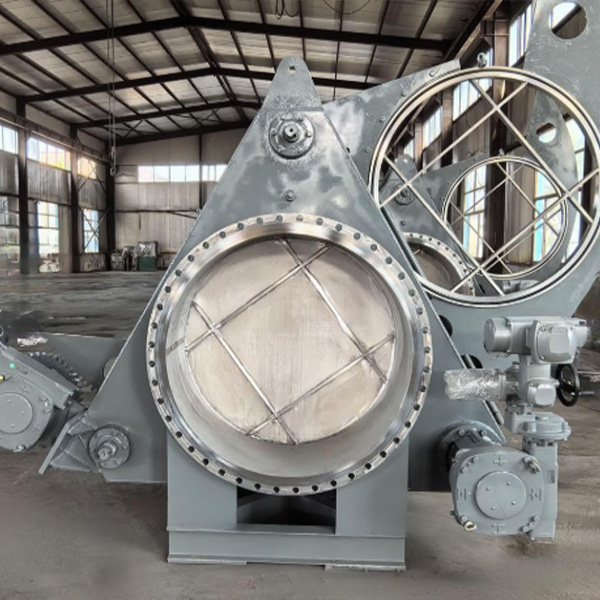

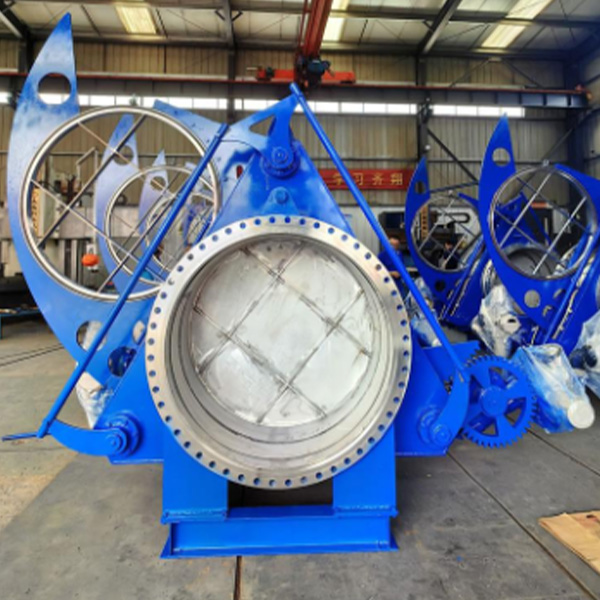

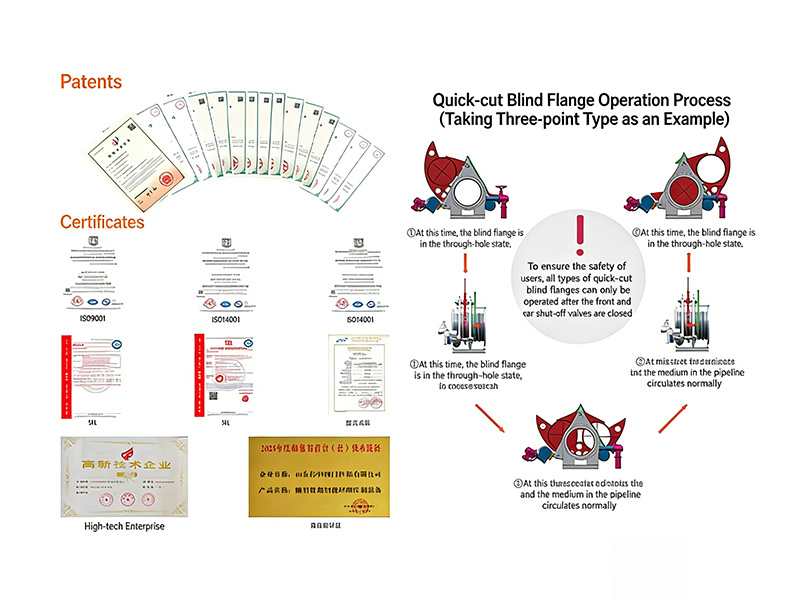

The three-point quick opening blind plate is a specialized pipeline fitting for large-bore low-pressure pipeline plugging operations. It features a three-point clamping structure and a quick-switch mechanism, enabling one operator to complete the blind plate insertion/removal within 3-5 minutes. With optional electric, pneumatic or hydraulic actuators, it offers enhanced safety and efficiency, making it ideal for frequent maintenance and isolation tasks in large-diameter process pipelines.

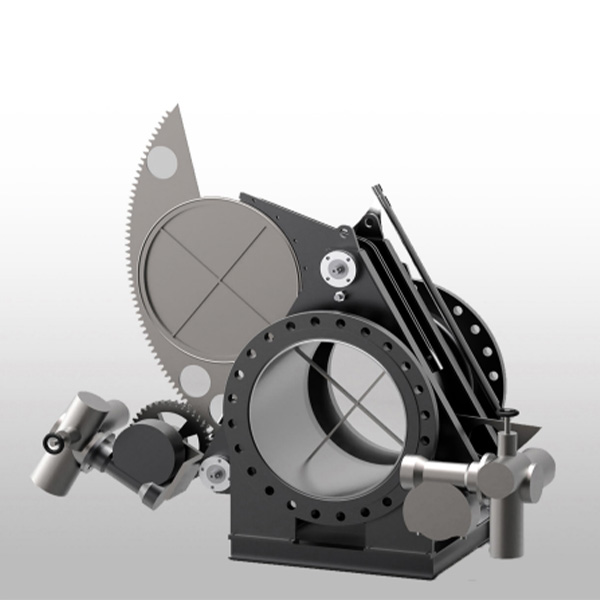

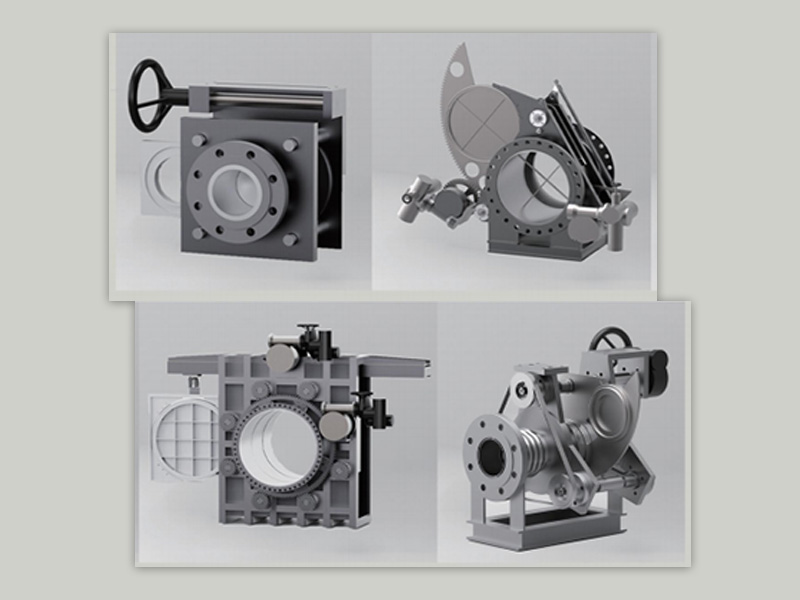

Core Structure & Components

  • Travel Plate Actuator: Drives the blind plate to slide in and out, realizing pipeline on-off.
  • Support Base: Provides stable support for the entire mechanism.
  • Clamp Release Actuator: Loosens the clamping force to allow blind plate rotation.
  • Movable/Fixed Blind Body: Forms the main sealing structure with the sliding blind plate.
  • Pulley & Linkage Mechanism: Guides the blind plate movement and transmits torque.
  • Screw Pair: Converts rotary motion to linear motion for precise position adjustment.

Key Advantages

  • Large Bore Adaptability: Covers DN150-DN1600, suitable for large-diameter low-pressure pipelines.
  • Quick Operation: Completes plugging in 3-5 minutes, significantly reducing downtime.
  • Multiple Drive Options: Supports manual, electric, pneumatic and hydraulic actuation to meet different site requirements.
  • Safe & Efficient: Replaces manual operation, reducing labor intensity and operational risks.
  • Reliable Sealing: Adopts high-performance sealing materials, ensuring zero leakage under design conditions.
  • Customizable: Supports custom sizes, materials and flange standards to meet project-specific needs.

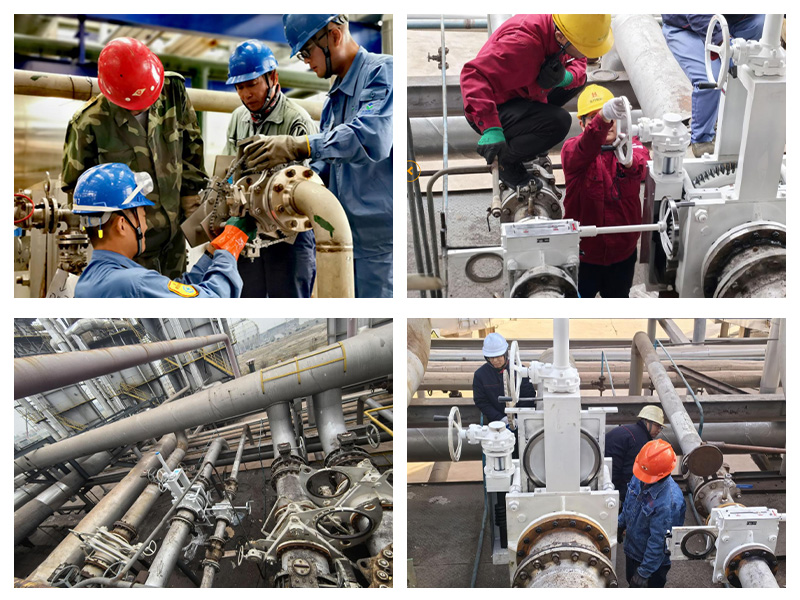

Application Industries

  • Refining Industry: Ethylene furnaces, coke removal lines, steam pipelines, separator isolation, flare gas lines, etc.
  • Chemical Industry: Reactor blowdown ports, chemical cleaning isolation devices, regenerated gas pipelines, transfer pipelines, mixed medium pipelines, etc.
  • Cement Industry: Finished product pipelines, oil depot tanks, petrochemical storage tanks, natural gas storage tanks, loading/unloading stations, etc.

Why Choose This Three-Point Quick Opening Blind Plate?

  • Efficient Maintenance: Minimizes large-diameter pipeline downtime and improves production efficiency.
  • Safe Operation: Multiple actuator options reduce manual operation risks in hazardous environments.
  • Large Bore Compatibility: Covers DN150-DN1600, meeting the needs of large-scale industrial pipelines.
  • Compliant: Meets national and international standards, ensuring compatibility and reliability.
  • Long Service Life: High-quality materials and robust three-point clamping design extend the product’s service life.

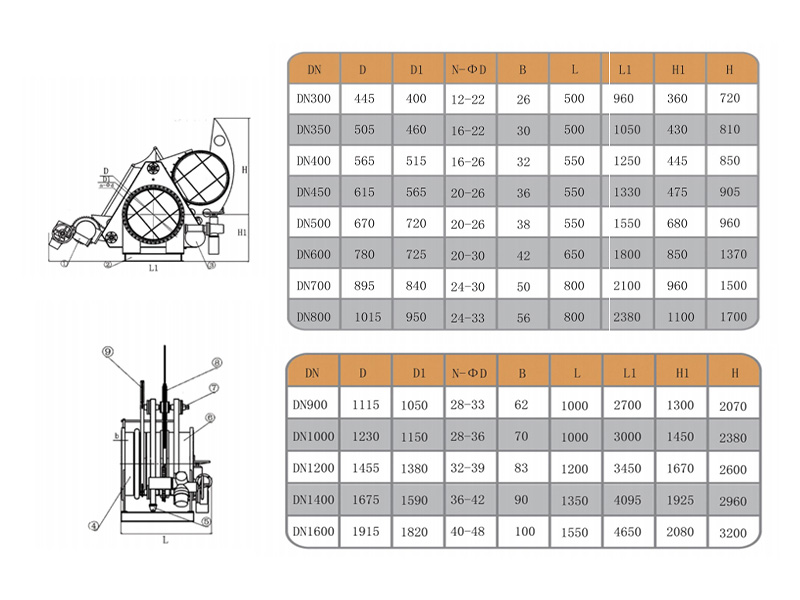

Nominal Diameter
DN150–DN1600
Nominal Pressure
PN1–PN2.5
Design Temperature
-20℃ ~ +245℃
Applicable Medium
Gas, liquid, etc.
Body Material
Carbon steel, stainless steel, special materials (duplex steel, titanium alloy, etc.)
Blind Plate Material
Carbon steel, stainless steel, special materials (duplex steel, titanium alloy, etc.)
Sealing Material
Rubber, silicone rubber, fluorine rubber, etc.
Drive Mode
Manual, electric, pneumatic, hydraulic
Flange Standard
GB/T9119-2010 PN10
