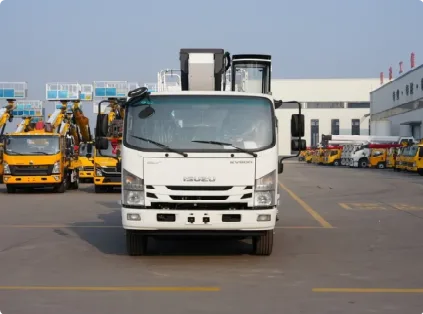

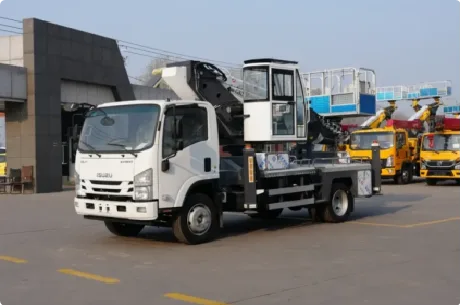

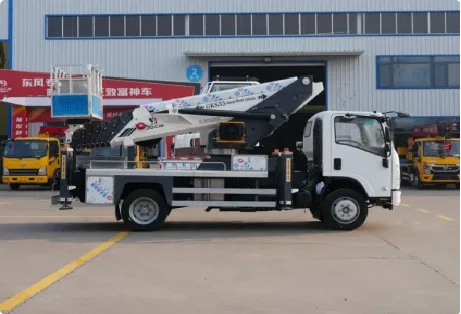

Telescopic Boom 35m Aerial Lift Truck With Wireless Remote Control For Building Maintenance

Name: Telescopic Boom 35m Aerial Lift Truck With Wireless Remote Control For Building Maintenance
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

JQCM 35m telescopic aerial work vehicle on ISUZU chassis, equipped with 140HP diesel engine and 5-section synchronous telescopic boom, max working height 35m. Aluminum aerial basket with rated capacity 200kg, 360° continuous slewing. Fitted with X-type independently adjustable hydraulic outriggers, wireless remote control & emergency manual hydraulic system. Suitable for wall cleaning, municipal emergency repair, power maintenance and factory installation aerial works. Single unit or full container bulk export available with one-stop customs, inspection & certificate of origin service.

$0.15 - 148148.00

Send Message Contact Supplier

Jining Jiaqing Special Vehicle (Group) Co., Ltd.

Main Products: Truck cranes, truck-mounted cranes, aerial work vehicles, self-propelled aerial work vehicles

View Supplier

Year Established Established in 2015

Main Products Truck cranes, truck-mounted cranes, aerial work vehicles, self-propelled aerial work vehicles

Employees 101-500 People

Factory Area 10,000-50,000 m²

Annual Revenue US$10 Million - US$50 Million

Main Markets Southeast Asia / Middle East & North Africa

Details

Specifications

Trade Information

Lightweight ISUZU dedicated chassis, flexible transit on urban & rural roads
Light engineering ISUZU chassis with curb weight only 4495kg, 3300mm wheelbase fits narrow urban streets and residential roads. 140HP diesel engine delivers sufficient power with max speed 95km/h, 200mm ground clearance enables smooth access to construction sites, residential zones and municipal roads for high transfer efficiency.
5-section synchronous telescopic boom, 35m ultra-high reach for multi-story buildings
5-section synchronous extended boom offers max working height 35m and horizontal radius 15m, ideal for wall cleaning, billboard installation and power line maintenance within 12 floors. Smooth synchronous extension without jamming, wear-resistant anti-bending boom steel keeps stable shape during long aerial operation.
X-type independent adjustable 4 outriggers, auto hydraulic leveling anti-rollover
Front & rear X-type independent hydraulic telescopic legs with 3800mm transverse span and 6400mm longitudinal span, single leg height adjustable for fast leveling on uneven ground. Automatic hydraulic leveling system with oil circuit lock keeps legs fixed during operation to eliminate rollover risks, complying with international municipal aerial safety standards.
Aluminum aerial basket with wireless remote control for long-distance easy operation
Lightweight aluminum work basket with 200kg rated capacity, ±90° left-right rotation to adjust working angle. Equipped with wireless remote controller supporting ground & basket dual operation mode, eliminating frequent up-and-down movement for flexible work on narrow building exteriors.
Dual control + emergency manual hydraulic system, safety backup under power failure
Dual local hydraulic levers for outrigger and lifting control, plus independent emergency manual hydraulic pump. In case of sudden power cut or engine failure, manual hydraulic release retracts boom and legs to avoid personnel stranded at height, greatly improving aerial operation safety factor.
One-stop full export supporting service
①Original technical data booklet, aerial work factory inspection report, dual-language vehicle operation & maintenance manual delivered with each unit;
②Whole vehicle rust removal & cleaning protection, anti-rust wrapping for boom and outriggers, reinforced wooden frame packaging for sea shipment;
③Full set wearable spare parts including hydraulic pump, oil seals, steel wire rope and remote receiver can be consolidated in one container for supplementary export;
④One-stop service for aerial equipment customs declaration, certificate of origin and equipment inspection official documents.

Chassis Brand

ISUZU / FAW Jiefang Chassis

Overall Dimension

569522803130mm

Wheelbase

3300mm

Vehicle Weight

4495kg

Engine Power

140HP

Min Ground Clearance

200mm

Max Driving Speed

95km/h

Outrigger Type

Front & Rear X-type Independently Adjustable Hydraulic Legs

Transverse Span

3800mm

Longitudinal Span

6400mm

Extension & Retract Time

100s

Cab Spec

Single Row 2-seat Cab

Max Working Height

35m

Max Working Radius

15m (200kg Load)

Rated Basket Capacity

200kg

Basket Rotation Angle

±90°

Material & Size

Aluminum Alloy 18007001050mm

Boom Extension Time

Extend 100s / Retract 110s

Slewing Speed

1 Circle / 100s

Slewing Mode

360° Continuous Unlimited Rotation

Boom Type

5-section Synchronous Telescopic Boom

PTO Operation

Manual PTO Control

Control System

Stepless Speed Regulation Electro-hydraulic System

Leveling Device

Automatic Hydraulic Leveling System

Operation Mode

Dual Hydraulic Levers For Leg & Lifting + Wireless Remote Control

Emergency Device

Emergency Manual Hydraulic Pump, Full Hydraulic Manual Emergency Operation

MOQ

1 Pieces

Description

Lightweight ISUZU dedicated chassis, flexible transit on urban & rural roads
Light engineering ISUZU chassis with curb weight only 4495kg, 3300mm wheelbase fits narrow urban streets and residential roads. 140HP diesel engine delivers sufficient power with max speed 95km/h, 200mm ground clearance enables smooth access to construction sites, residential zones and municipal roads for high transfer efficiency.
5-section synchronous telescopic boom, 35m ultra-high reach for multi-story buildings
5-section synchronous extended boom offers max working height 35m and horizontal radius 15m, ideal for wall cleaning, billboard installation and power line maintenance within 12 floors. Smooth synchronous extension without jamming, wear-resistant anti-bending boom steel keeps stable shape during long aerial operation.
X-type independent adjustable 4 outriggers, auto hydraulic leveling anti-rollover
Front & rear X-type independent hydraulic telescopic legs with 3800mm transverse span and 6400mm longitudinal span, single leg height adjustable for fast leveling on uneven ground. Automatic hydraulic leveling system with oil circuit lock keeps legs fixed during operation to eliminate rollover risks, complying with international municipal aerial safety standards.
Aluminum aerial basket with wireless remote control for long-distance easy operation
Lightweight aluminum work basket with 200kg rated capacity, ±90° left-right rotation to adjust working angle. Equipped with wireless remote controller supporting ground & basket dual operation mode, eliminating frequent up-and-down movement for flexible work on narrow building exteriors.
Dual control + emergency manual hydraulic system, safety backup under power failure
Dual local hydraulic levers for outrigger and lifting control, plus independent emergency manual hydraulic pump. In case of sudden power cut or engine failure, manual hydraulic release retracts boom and legs to avoid personnel stranded at height, greatly improving aerial operation safety factor.
One-stop full export supporting service
①Original technical data booklet, aerial work factory inspection report, dual-language vehicle operation & maintenance manual delivered with each unit;
②Whole vehicle rust removal & cleaning protection, anti-rust wrapping for boom and outriggers, reinforced wooden frame packaging for sea shipment;
③Full set wearable spare parts including hydraulic pump, oil seals, steel wire rope and remote receiver can be consolidated in one container for supplementary export;
④One-stop service for aerial equipment customs declaration, certificate of origin and equipment inspection official documents.
