suspension trailersuspension

suspension trailersuspension

USD $88.00 / Pieces

Min. Order: 10 Pieces

Supported Trade Terms:
FOB
Lead Time:
15 days
Supply Ability:
8,888 Pieces per Month
Shipping Port:
shandong
Send Inquiry

Product Features & Applications

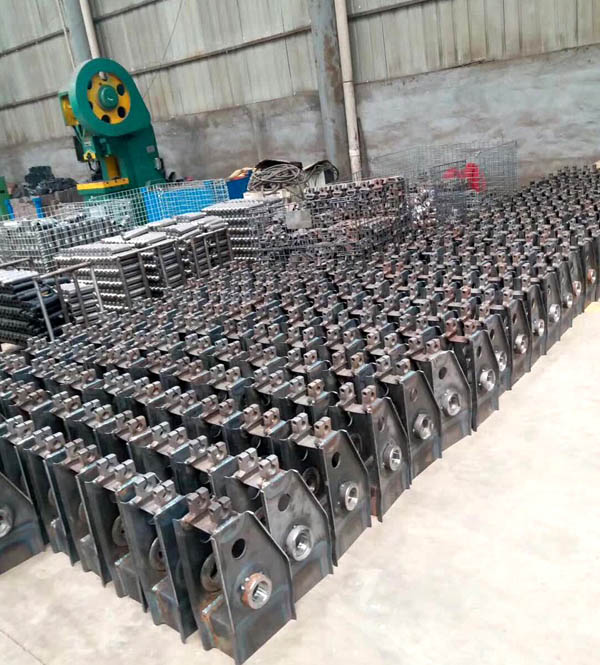

The suspension hanger bracket is a key load‑bearing welded structural part for semi‑trailer mechanical suspension systems. It is mounted on the trailer main frame, working together with leaf springs, U‑bolts, balance beams and rubber bushings. It bears vertical loads, braking forces and lateral impact forces during vehicle operation, fixing and supporting the whole suspension assembly. It is widely fitted on cargo semi‑trailers, flatbed trailers, dump trailers and other heavy‑duty transport vehicles.

  1. Main Welded Bracket Body: Thick‑plate welded construction, forms the main load‑bearing frame.
  2. Bushing Mounting Boss: Precision machined bore for installing rubber suspension bushings, connects to balance arm.
  3. Mounting Holes: Bolt holes for fastening to the trailer chassis frame.

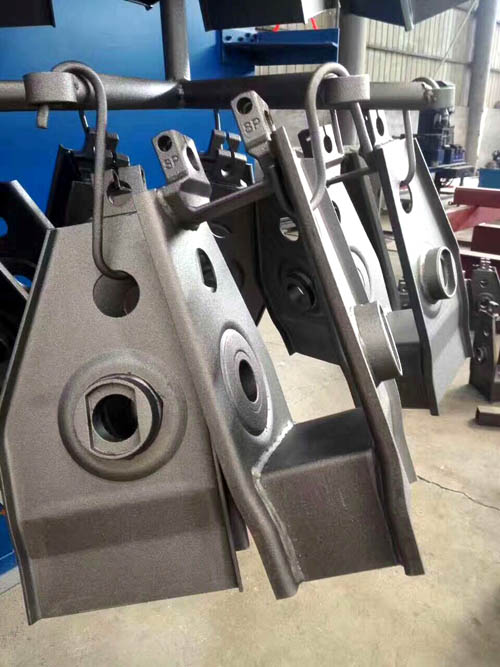

  4. Lifting Hanging Lugs: Processing‑purpose hanging holes for painting and surface treatment (as shown in picture, marked “SP”).
  5. Reinforcing Ribs: Built‑in reinforcing structures to improve overall rigidity and anti‑deformation performance under heavy load.

Material & Manufacturing Technology

  1. Raw Material: High‑strength thick‑weldable steel plate, good weldability, high tensile strength, excellent impact resistance for heavy‑load conditions.
  2. Key Production Processes:
    ‑ Laser cutting: Precise cutting of steel plate blanks.
    ‑ Robotic welding: Automatic welding to guarantee weld strength and consistency.
    ‑ Machining: Precision boring for bushing mounting holes to ensure fitting accuracy.
    ‑ Surface shot blasting: Remove scale, improve coating adhesion.
    ‑ Spray‑painting finish: Anti‑rust and anti‑corrosion coating, adapts to harsh road environments with mud, water and salt spray.

Main Functions

  1. Load‑Bearing Support: Transfer cargo and vehicle weight from frame to leaf‑spring suspension system.
  2. Force Transmission: Transfer braking, driving and lateral shear forces during travel.
  3. Positioning & Fixing: Secure suspension assembly, restrict balance‑arm movement range, maintain correct axle spacing.
  4. Shock‑load Resistance: Absorb partial impact loads from rough road surfaces, protect connected suspension components.

Application Scenarios

Semi‑trailers, flat‑bed trailers, stake trailers, tipper trailers, heavy‑duty logistics transport vehicles. Matches mechanical leaf‑spring suspension systems.

Advantages & Disadvantages

✅ Advantages
  1. Thick‑plate reinforced welding structure, high strength, resistant to heavy load and impact.
  2. Precision‑machined bushing bore for good bushing fit, reduces abnormal wear.
  3. Reliable welding quality, anti‑corrosion surface treatment, long service life.
  4. Standard dimensional parameters, easy for aftermarket replacement.
⚠️ Disadvantages
  1. Severe long‑term overloading may cause weld cracking or bracket deformation.
  2. Bushing hole will wear if rubber bushing fails and is not replaced timely.

Installation & Maintenance Notes

  1. Check brackets regularly for weld cracks, deformation and paint peeling. Replace immediately if structural damage occurs.
  2. Ensure all mounting bolts are tightened to specified torque during installation.
  3. Inspect inner bushing wear frequently. Replace worn bushings in time to avoid damage to the bracket bore.
  4. Avoid continuous severe overloading, which will greatly shorten the service life of suspension brackets.
  5. Keep the bracket surface intact; touch‑up paint for chipped areas to prevent rust corrosion.
