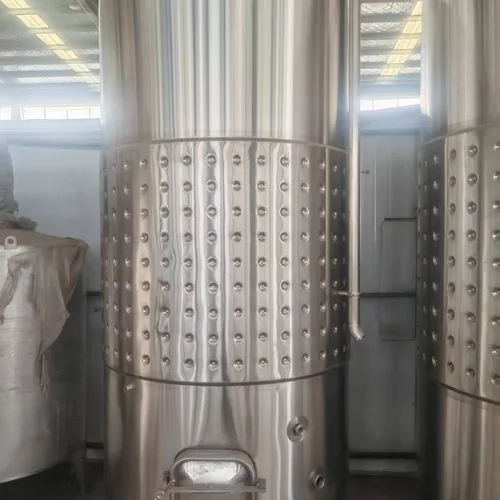

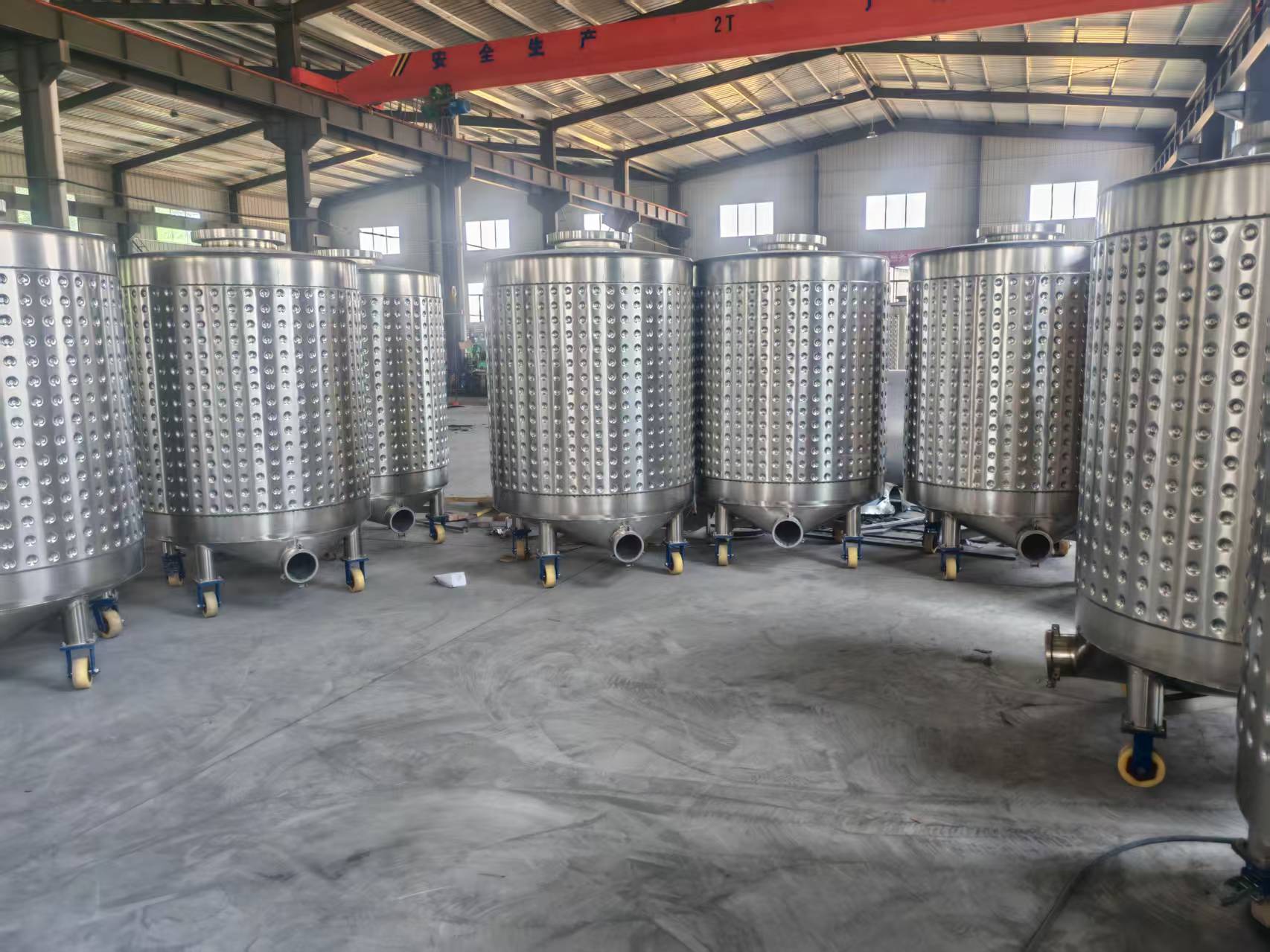

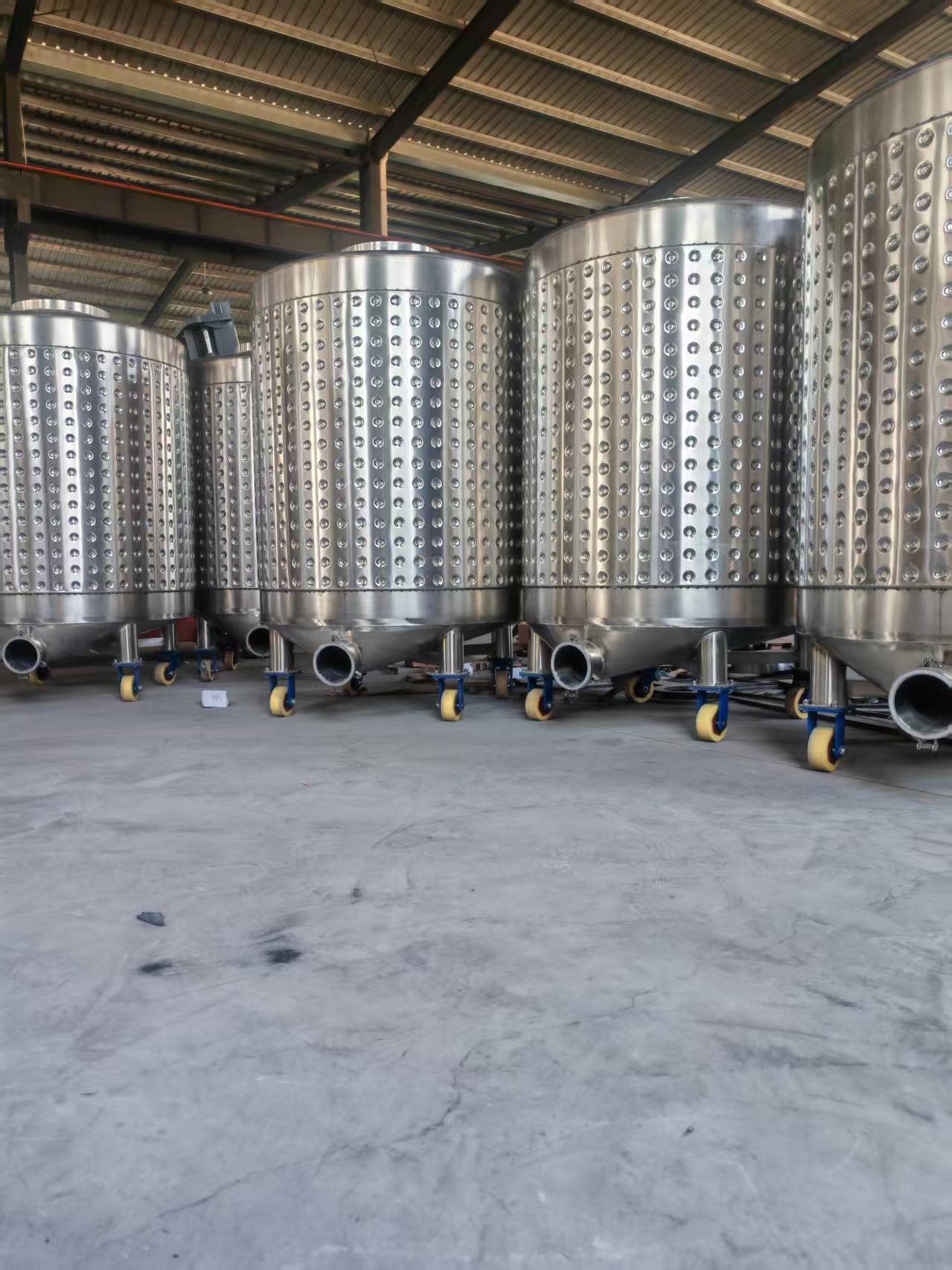

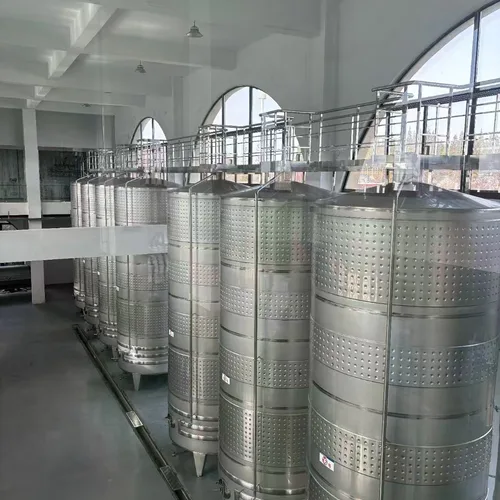

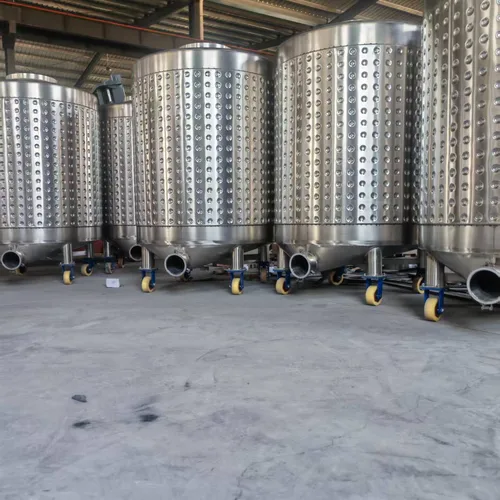

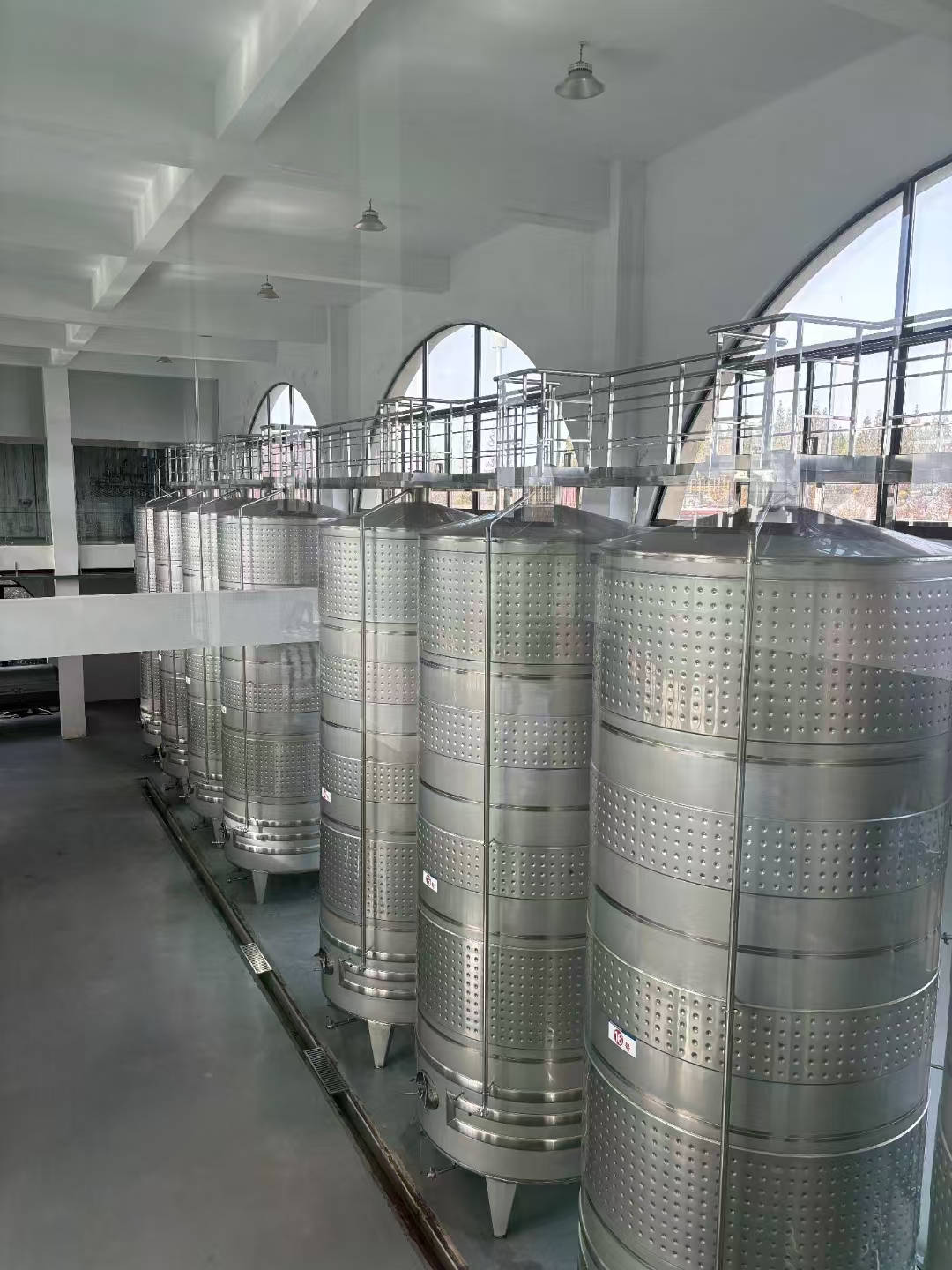

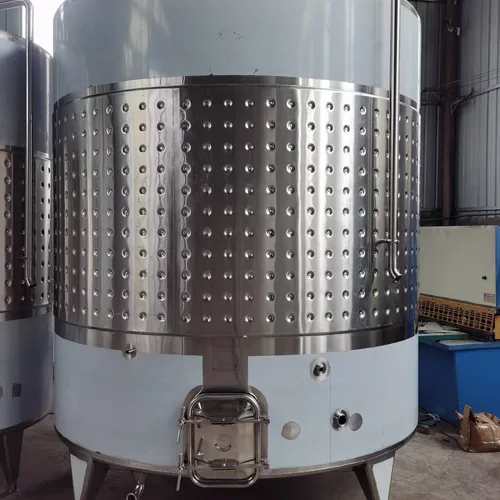

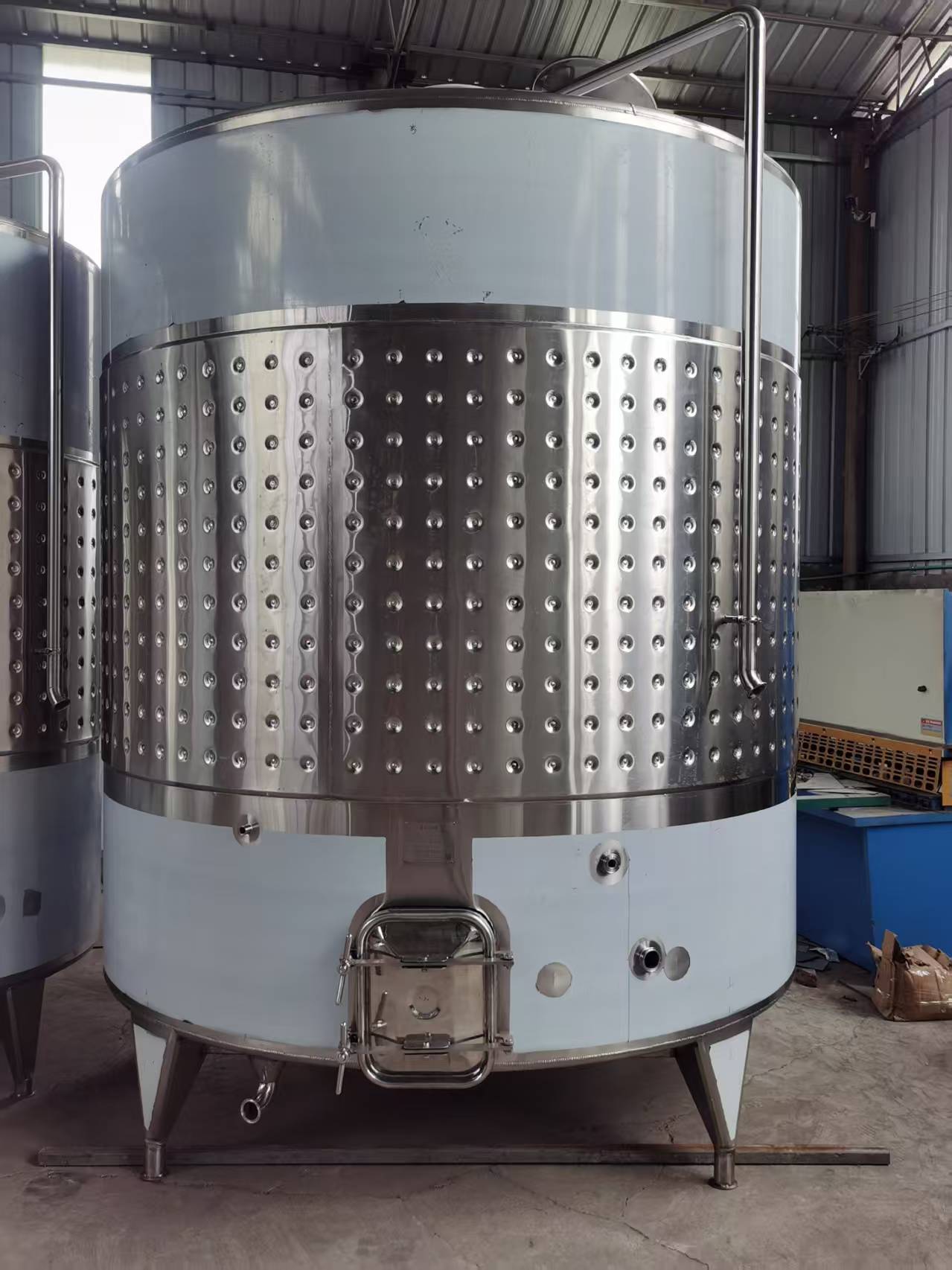

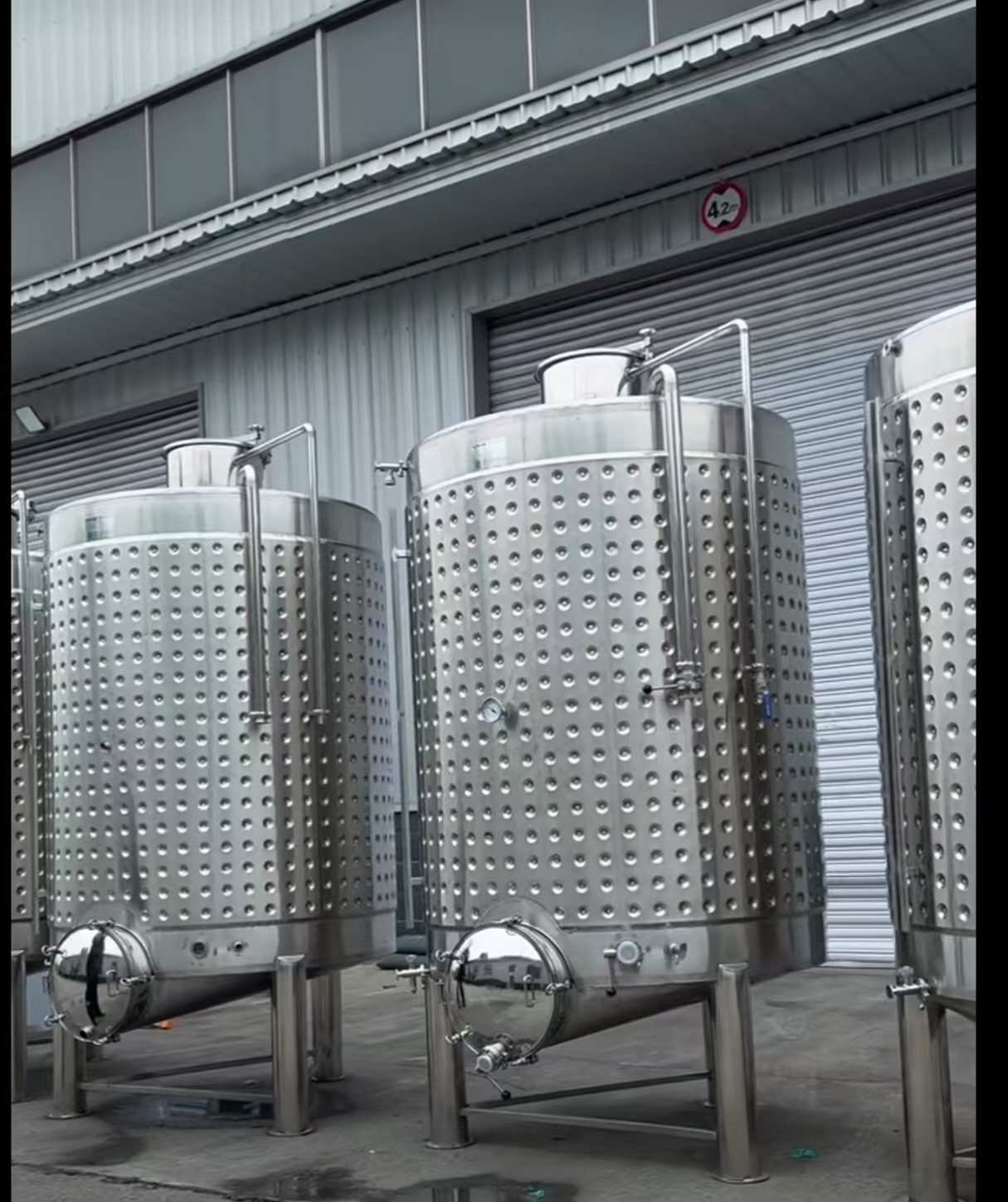

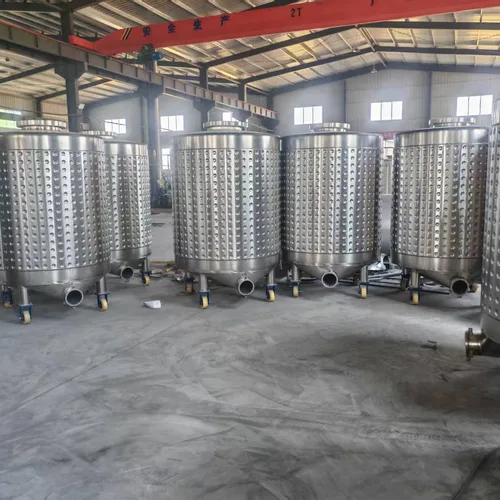

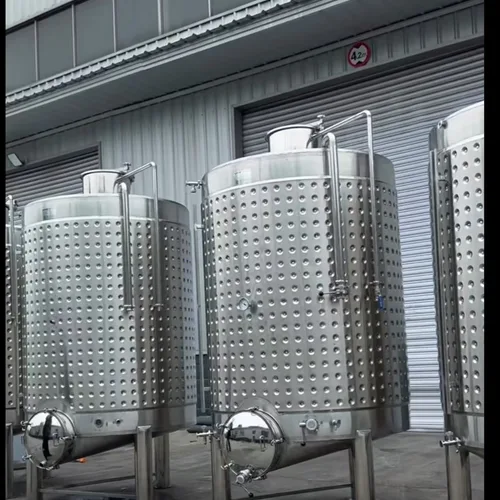

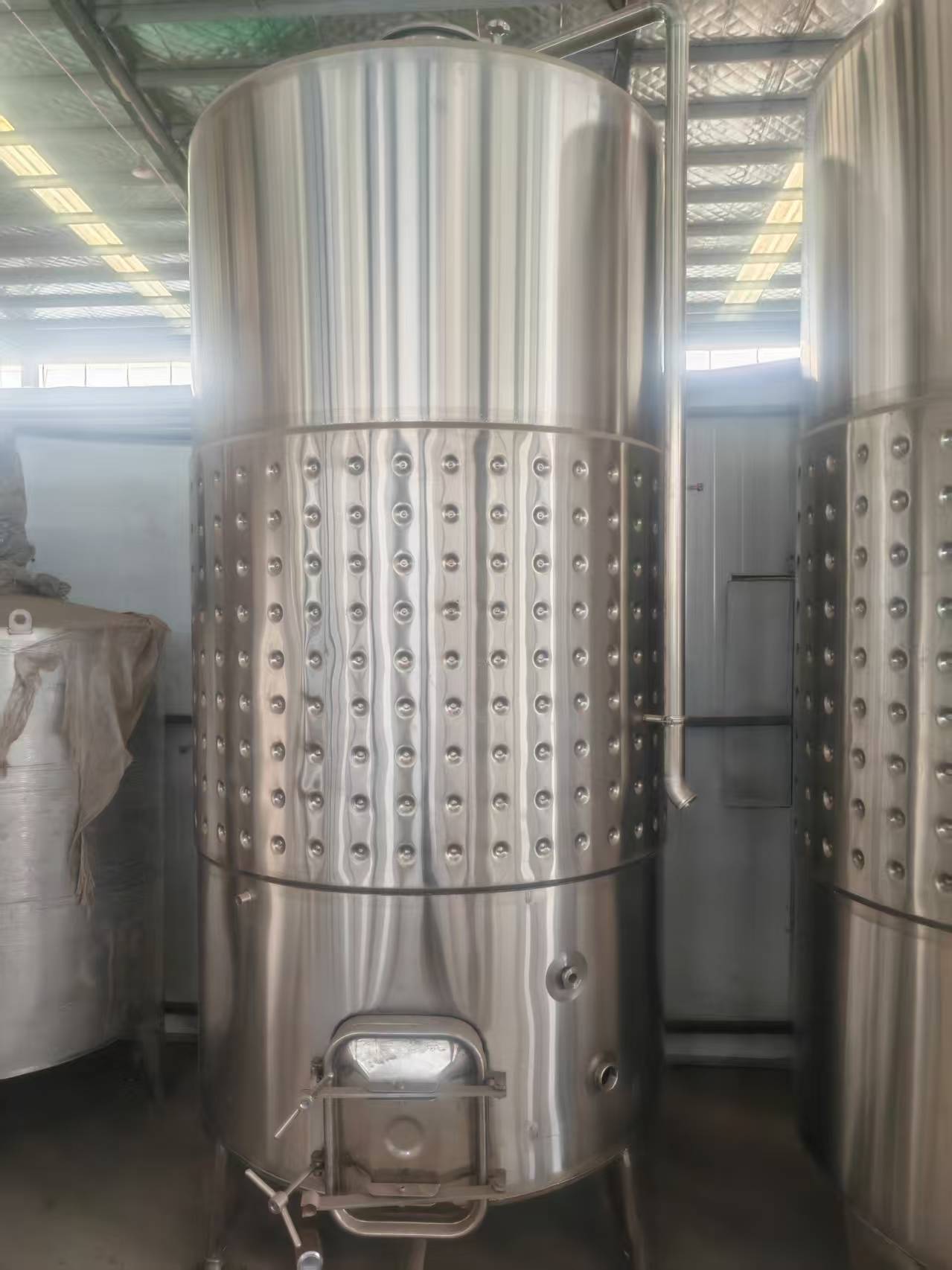

Stainless Steel Constant Temperature Fermentation Tank, Winery Wine Storage Vessel, Jacketed Cooling Wine Tank

Name: Stainless Steel Constant Temperature Fermentation Tank, Winery Wine Storage Vessel, Jacketed Cooling Wine Tank
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

This jacketed constant temperature fermentation tank is made of food-grade SUS304 stainless steel, equipped with double-layer water cooling jacket for precise temperature control, ideal for grape wine and fruit wine fermentation & aging. Mirror polished inner wall without sanitary dead corners, sealed structure to avoid liquid oxidation. Matched with manhole, liquid level gauge, ladder and drain outlet. Custom volume from 500L to 100 tons, fully compliant with winery GMP sanitary standards.

$881.40

Send Message Contact Supplier

Qufu Jiucheng Machinery Equipment Co., Ltd.

Main Products: Stainless steel storage tanks, fermentation tanks, blending tanks, emulsifying tanks, mixing tanks and other stainless steel storage & fermentation vessels

View Supplier

Year Established Established in 2018

Main Products Stainless steel storage tanks, fermentation tanks, blending tanks, emulsifying tanks, mixing tanks and other stainless steel storage & fermentation vessels

Employees Less than 50 People

Factory Area 1,000-5,000 m²

Annual Revenue US$5 Million - US$10 Million

Main Markets Southeast Asia / Middle East & North Africa

Details

Specifications

Trade Information

1. Product Overview

Jacketed constant temperature stainless steel fermentation tank is integrated special equipment for wineries and fruit wine factories. Double-layer tank structure with outer polyurethane insulation and inner water circulation jacket, which can feed cold/hot water to realize precise temperature control within 0-30℃. Conical bottom design facilitates wine residue discharge, quick-open top manhole for feeding and cleaning. Optional stirring system, liquid level monitor and CIP cleaning system, integrates fermentation, aging and storage functions, suitable for grape wine, blueberry wine, cider and other fruit wine brewing processes.

2. Core Advantages

✅ Precise Temperature Control: Double water cooling jacket with insulation layer stabilizes fermentation temperature and improves fruit wine flavor;

✅ Food Sanitary Standard: SUS304 stainless steel inner wall mirror polished Ra≤0.8μm, no material residue, easy to clean, compliant with winery GMP regulations;

✅ Sealed Aging Performance: Flange silicone sealing isolates air to prevent wine oxidation and volatilization, extend aging cycle;

✅ Multi-function Integration: One tank realizes fermentation, static clarification and storage, reduce equipment investment and save workshop space;

✅ Customizable Structure: Volume, jacket size, ladder platform, valves and pipelines can be customized, suitable for indoor and outdoor installation;

✅ Durable & Low Maintenance: Thickened stainless steel plate integral welding, conical bottom fully discharges residue, sight glass for real-time wine observation.

3. Application Scenarios

Fruit Wine Brewing: Constant temperature fermentation and aging for grape wine, blueberry wine, cider, mulberry wine;
Liquor Storage: Sealed storage and static clarification of Baijiu, rice wine, millet wine;
Food & Beverage: Temperature controlled fermentation and temporary storage of fruit juice, syrup, fermented drinks;
Small Winery: Complete fermentation & storage supporting equipment for medium and small distilleries.

Tank Material

SUS304 Food Grade Stainless Steel (SUS316L Optional)

Effective Volume

500L / 1000L / 2000L / 5m³ / 10m³ / 20m³ / 50m³ Customizable

Jacket Structure

Double Water Cooling Heating Jacket, 50mm Polyurethane Insulation Layer

Temperature Control Range

0℃ ~ 30℃

Inner Polishing Finish

Mirror Polished Ra ≤ 0.8μm

Tank Bottom

60° Conical Bottom for Residue Discharge

Standard Fittings

Quick-open Manhole, Sight Glass, Liquid Level Gauge, CIP Cleaning Ball, Drain Outlet, Stainless Steel Ladder & Platform

Sealing Material

Food Grade Silicone Rubber

Plate Thickness

3mm~6mm Thickened Stainless Steel Plate

Compliance Standard

GMP Winery Sanitation Standard, ISO Food Vessel Standard

MOQ

1 Pieces
