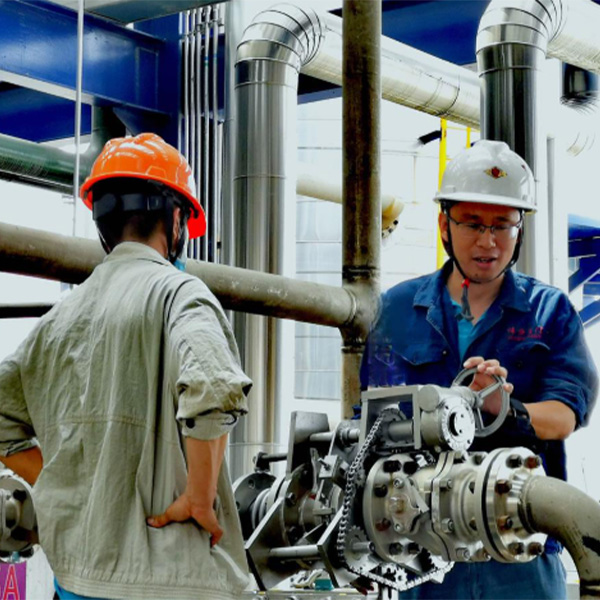

Small Quick Opening Blind Plate | DN50-DN300 Manual/Electric Pipe Blind for Gas & Liquid Pipeline

The small quick opening blind plate is designed for small-bore pipeline blind plate plugging operations. It allows one operator to loosen the left/right valve body and rotate the blind plate into place via manual mechanism, completing the operation in 3-5 minutes. An electric actuator is optional for safer and more efficient operation. Suitable for gas and liquid media, it meets GB/T9119-2010 standards, ideal for refining, chemical, cement industries and more.
Shandong Weiheng Valve Technology Co., Ltd.

Shandong Weiheng Valve Technology Co., Ltd.

View Supplier
Registered Capital 10.88 million RMB
Date of Establishment April 24, 2006
Staff Size 60–100 persons
Address Linzi District, Zibo City, Shandong Province
Business Scope: Processing and sales of valves, pipe fittings, high-pressure bolts, filters, and mechanical accessories; sales of plastic and rubber products, electromechanical equipment, and building materials. (For projects subject to approval in accordance with the law, business activities may be carried out only after approval by the relevant departments.)
Monthly capacity 300–1000 sets
Details
Specifications

Product Overview

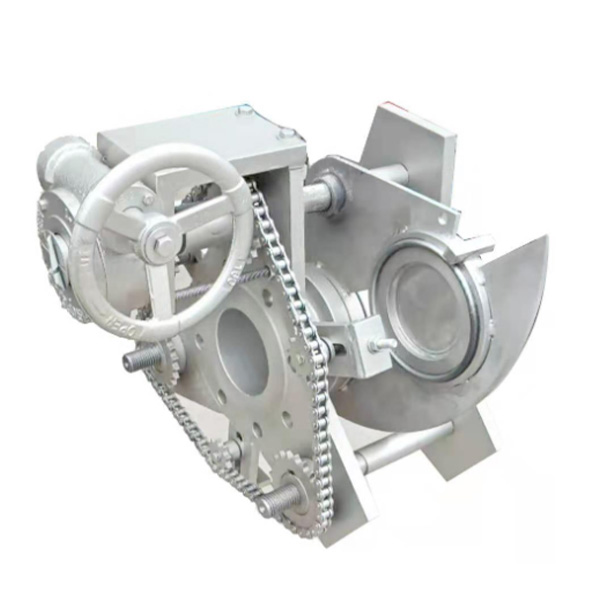

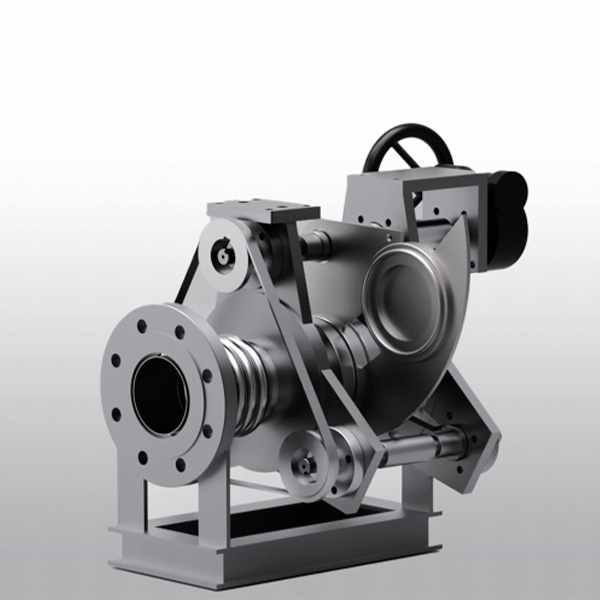

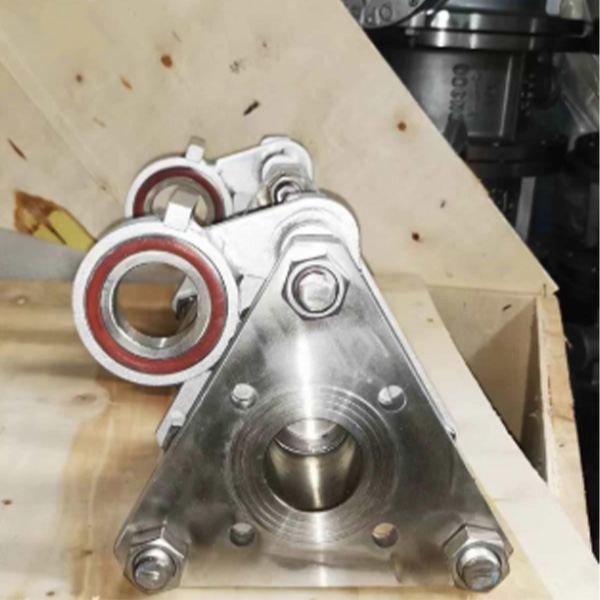

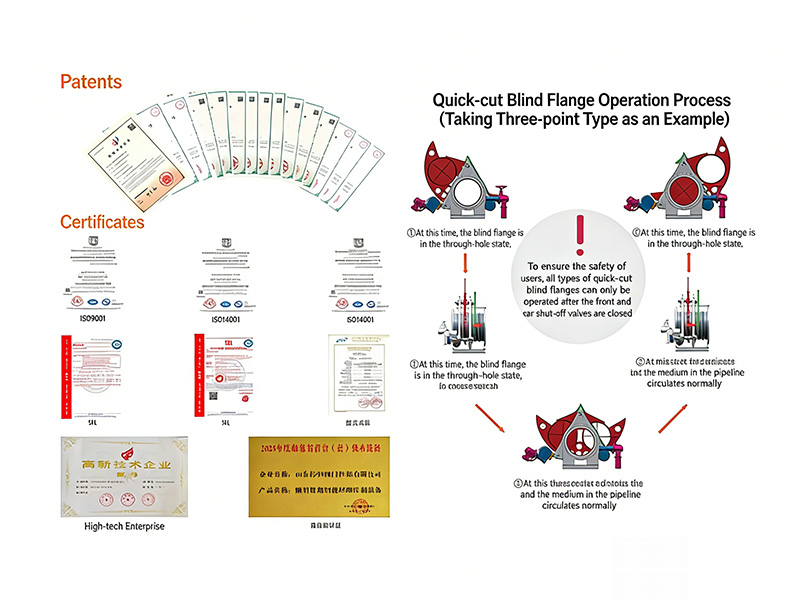

The small quick opening blind plate is a specialized pipeline fitting for small-bore pipeline plugging operations. It features a compact structure and quick-switch mechanism, enabling one operator to complete the blind plate insertion/removal within 3-5 minutes. With optional electric actuation, it offers enhanced safety and efficiency, making it ideal for frequent maintenance and isolation tasks in process pipelines.

Core Structure & Components

  • Handwheel / Chain Wheel Set: For manual operation to adjust and lock the blind plate position.
  • Screw Pair: Transmits torque to loosen the valve body and rotate the blind plate.
  • Left/Right Valve Body: Forms the main sealing structure with the blind plate.

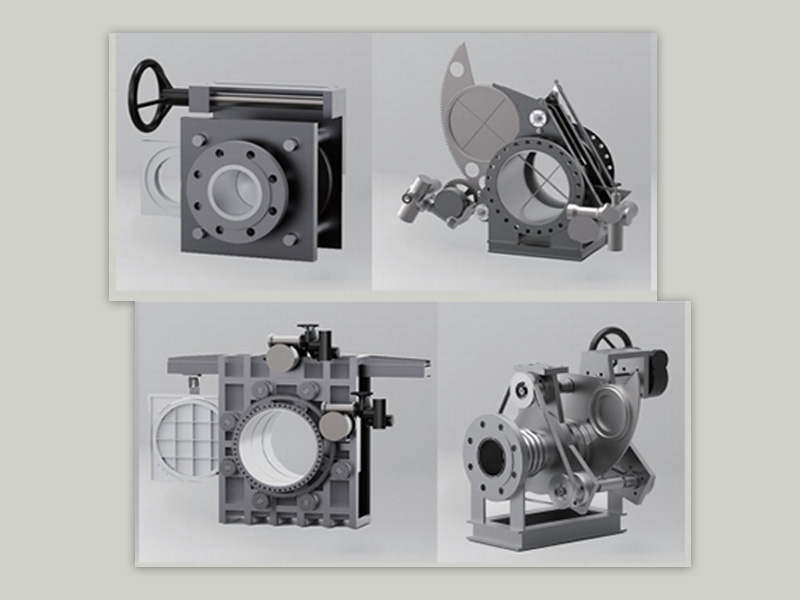

  • Sliding Blind Plate: The core component for pipeline isolation and opening.
  • Bellows Compensator: Absorbs thermal expansion and ensures sealing reliability.

Key Advantages

  • Quick Operation: Completes plugging in 3-5 minutes, significantly reducing downtime.
  • Labor Saving: Only one operator required, lowering labor costs.
  • Flexible Drive: Supports manual and electric actuation to meet different site requirements.
  • Wide Compatibility: Suitable for gas, liquid, and mixed media, with customizable materials.
  • Reliable Sealing: Adopts high-performance sealing materials, ensuring zero leakage under design conditions.

Application Industries

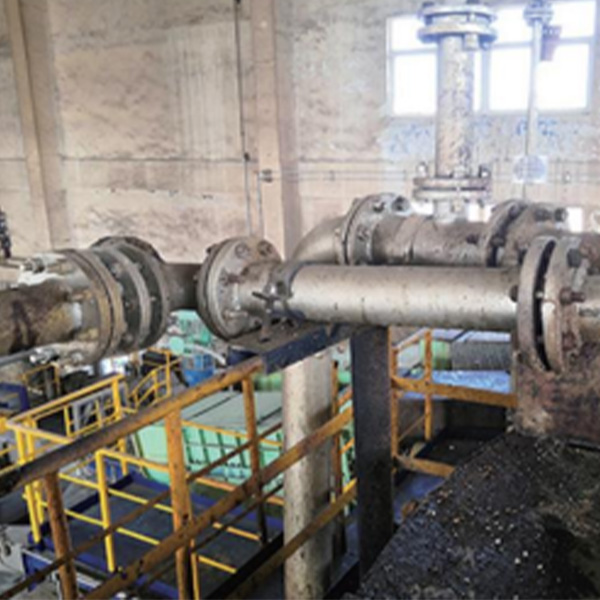

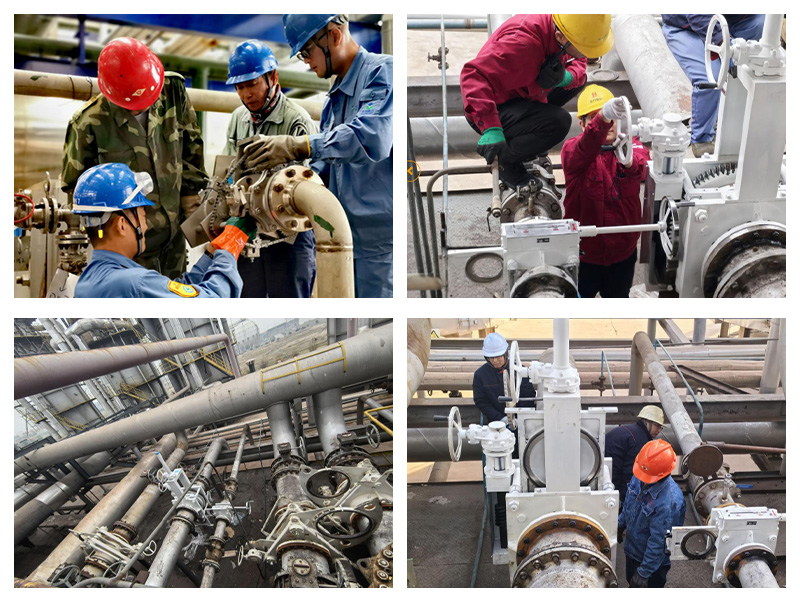

  • Refining Industry: Ethylene furnaces, coke removal lines, steam pipelines, separator isolation, flare gas lines, etc.
  • Chemical Industry: Reactor blowdown ports, chemical cleaning isolation devices, regenerated gas pipelines, transfer pipelines, mixed medium pipelines, etc.
  • Cement Industry: Finished product pipelines, oil depot tanks, petrochemical storage tanks, natural gas storage tanks, loading/unloading stations, etc.

Why Choose This Small Quick Opening Blind Plate?

  • Efficient Maintenance: Minimizes pipeline downtime and improves production efficiency.
  • Safe Operation: Optional electric actuation reduces manual operation risks in hazardous environments.
  • Customizable: Supports custom sizes, materials, and flange standards to meet project-specific needs.
  • Compliant: Meets national and international standards, ensuring compatibility and reliability.
  • Long Service Life: High-quality materials and robust design extend the product’s service life.





Nominal Diameter
DN50–DN300
Nominal Pressure
PN1–PN6
Design Temperature
-20℃ ~ +245℃
Applicable Medium
Gas, liquid, etc.
Body Material
Carbon steel, stainless steel, special materials (duplex steel, titanium alloy, etc.)
Blind Plate Material
Carbon steel, stainless steel, special materials (duplex steel, titanium alloy, etc.)
Sealing Material
Silicone rubber, fluorine rubber, PTFE, etc.
Drive Mode
Manual, electric
Flange Standard
GB/T9119-2010 PN10
