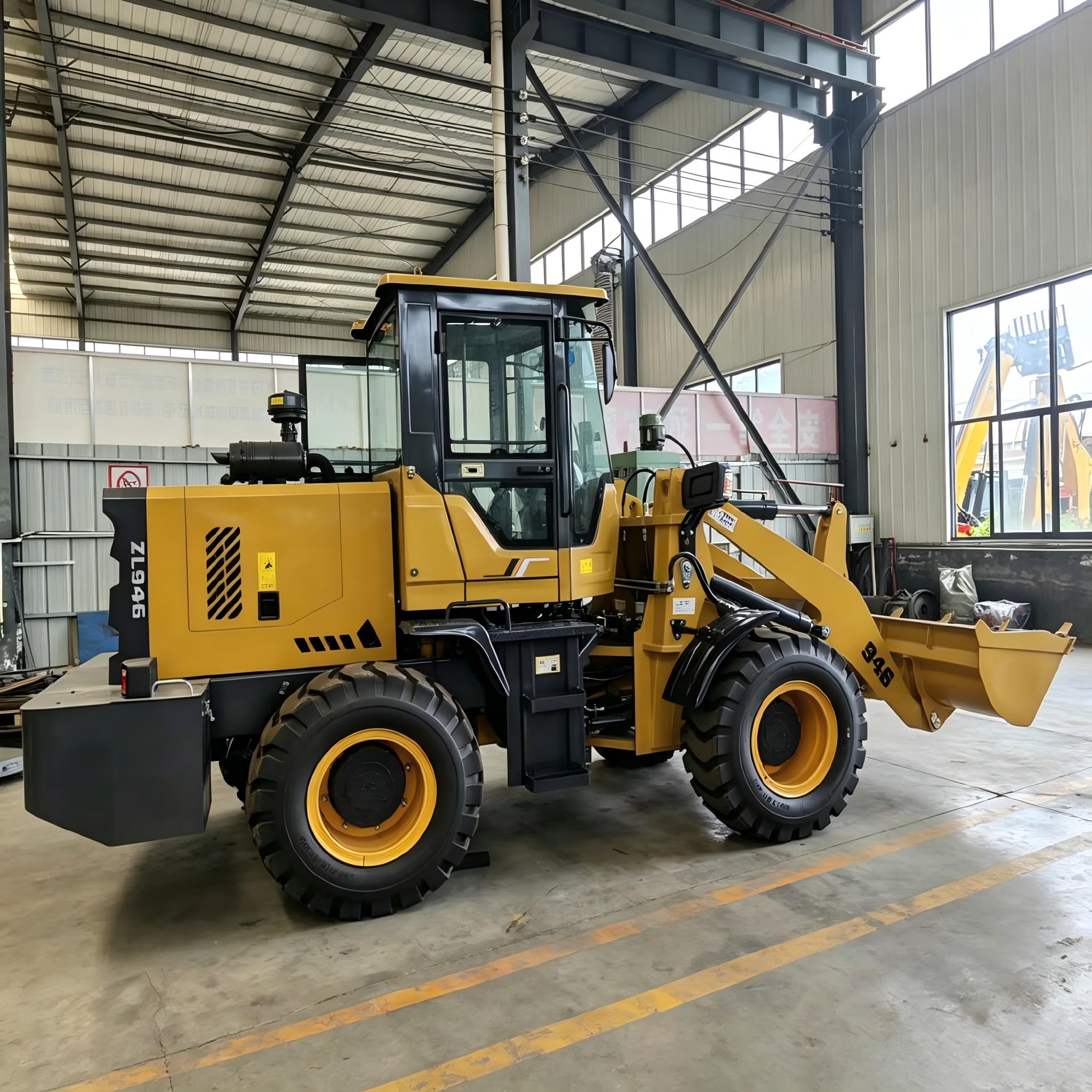

SHENTUI ZL946 2 Ton Wheel Loader | 76kW Weifang Turbo Engine, 0.8m³ Bucket, 3600mm Dump Height | Heavy Duty Front End Loader for Construction, Farming & Material Handling

Product Highlights

The SHENTUI ZL946 stands out in the 2-ton wheel loader class with its combination of power, durability, and operator-focused design. At its heart sits a Weifang 4102 turbocharged diesel engine—4 cylinders, water-cooled, four-stroke—that delivers a solid 76kW of rated power. This engine is matched with a 265 integrated hydraulic torque converter that provides automatic transmission, meaning smoother gear changes, less operator fatigue, and better fuel efficiency across a full workday.

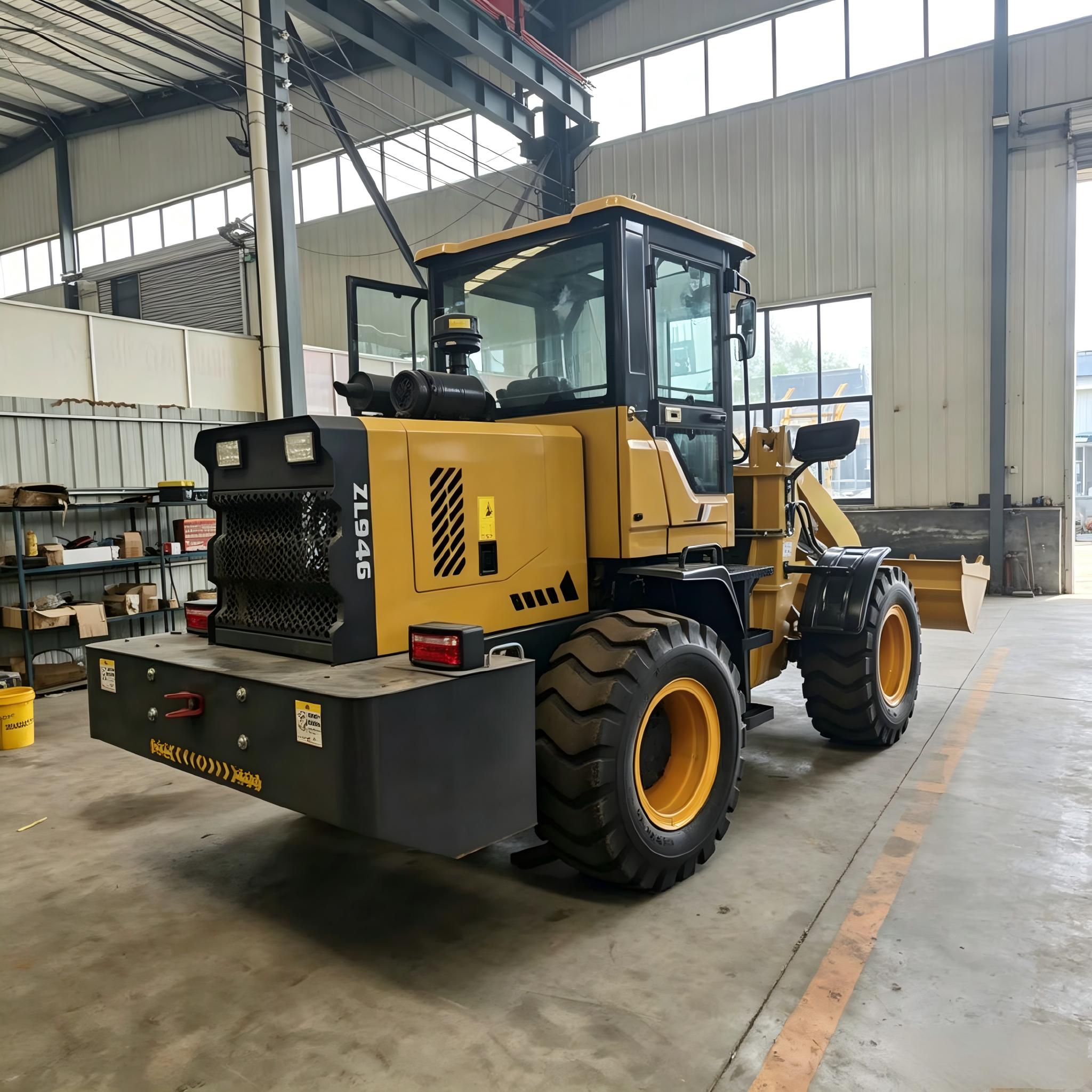

The machine is built to handle serious material handling tasks. With a rated load of 2000kg and a bucket capacity of ≥0.8m³, it moves sand, gravel, soil, grain, and light mining materials with ease. The hydraulic system operates at 16MPa, giving you fast cycle times and precise bucket control. When it comes to loading high-sided trucks or hoppers, the ≥3600mm dump height and ≥700mm dump reach give you the clearance and accuracy you need.

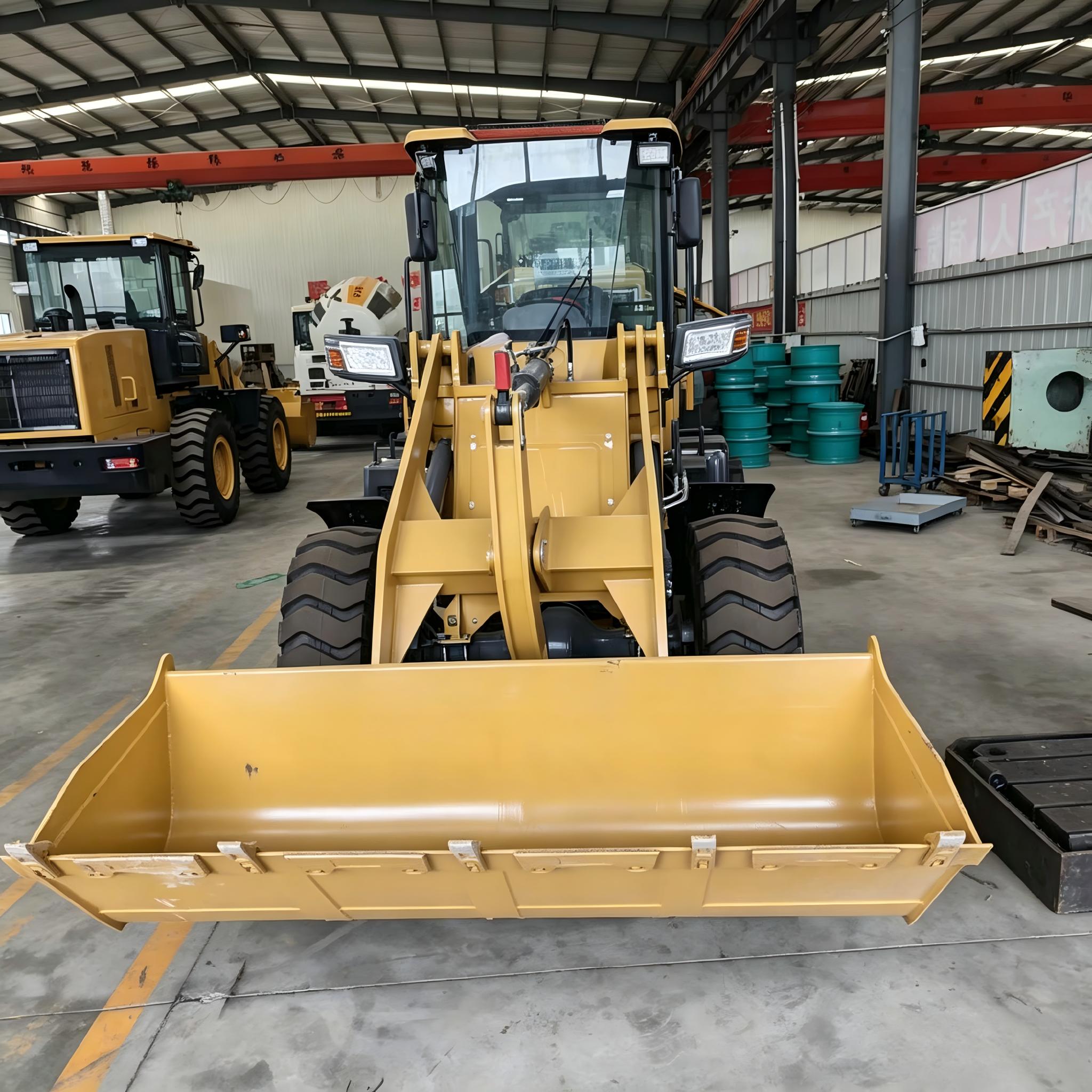

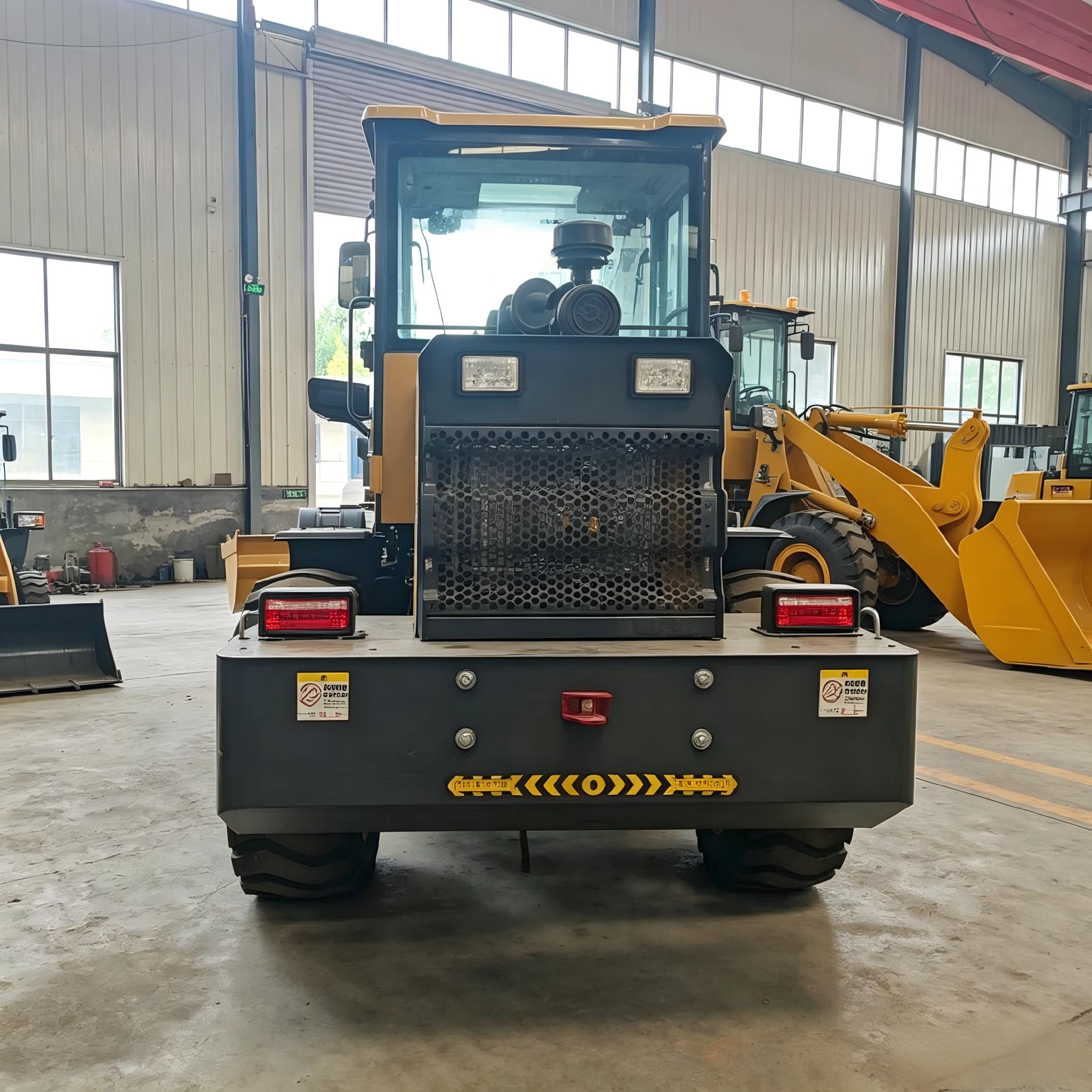

Durability is engineered into every component. The counterweight and engine hood are both integrated stamped pieces, eliminating weak weld points and improving impact resistance. The drive axle comes from Dazhong Wheel Hub (Jinchi) with single-stage planetary reduction, delivering reliable torque to the 16/70-20 tires. With a minimum ground clearance of ≥300mm and a maximum gradeability of 30°, this loader keeps working when the terrain gets rough.

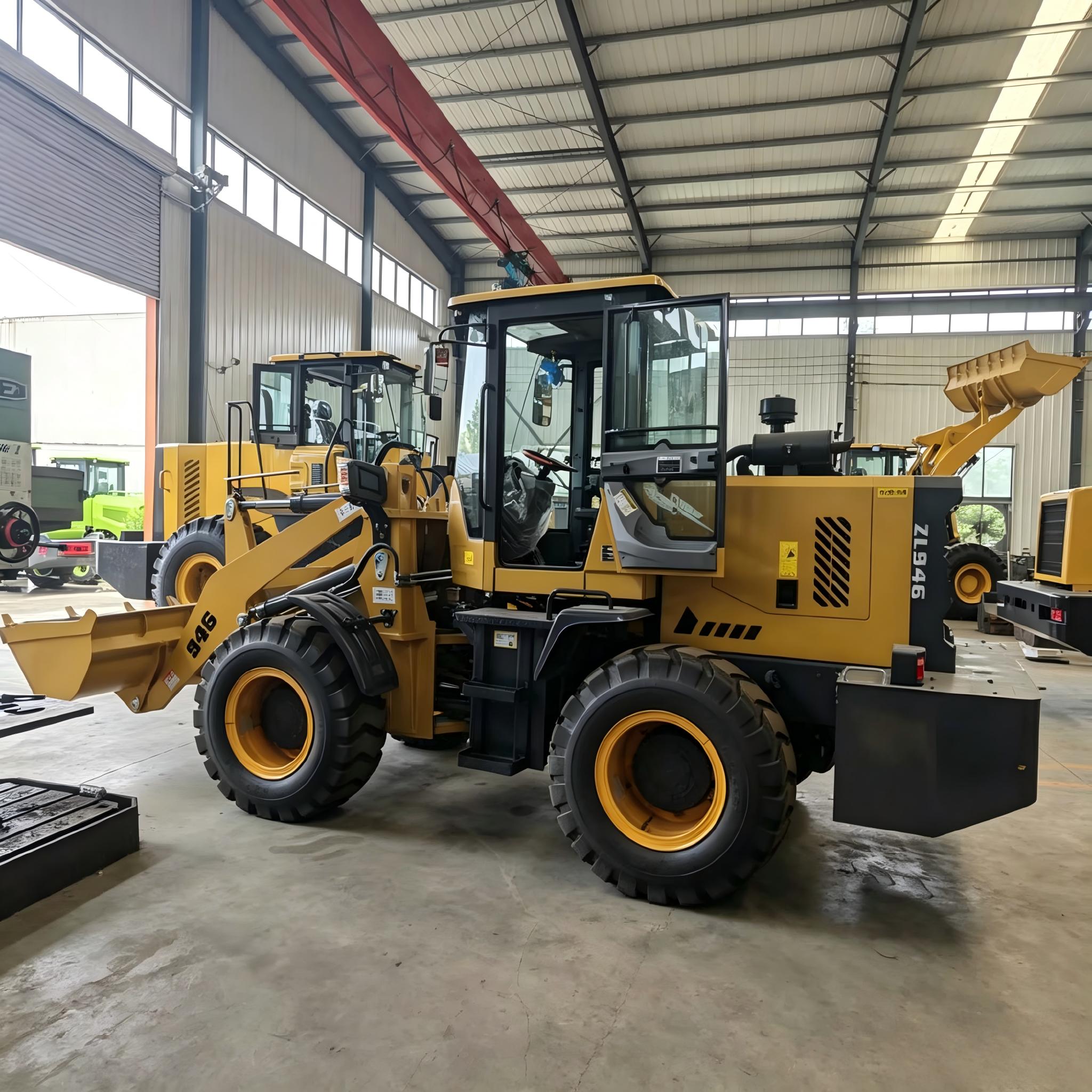

Operator comfort hasn't been overlooked either. The ZL946 comes with a deluxe soft-pack cab that reduces noise and vibration, keeping the driver fresh and focused during long shifts. Single-lever joystick control puts hydraulic functions at your fingertips, while the air-over-hydraulic booster service brakes and manual caliper disc parking brake provide confident stopping power in all conditions.

Technical Specifications

Applications

The LANDNEO ZL946 is a true multi-purpose machine that adapts to a wide range of industries and job sites:

• Construction Sites: Loading sand, gravel, crushed stone, and demolition debris into dump trucks; backfilling foundations and trenches.

• Agriculture: Handling grain, silage, manure, and feed in barns, feedlots, and grain storage facilities.

• Mining & Quarrying: Light ore removal, overburden handling, and stockpile management at smaller mining operations.

• Warehousing & Logistics: Moving palletized materials, clearing loading docks, and maintaining yard areas.

• Landscaping & Municipal Work: Spreading topsoil, moving mulch, clearing snow, and general site maintenance.

With its compact overall size (approximately 5.75~5.8m long and 2.03~2.08m wide) and 6500mm minimum turning radius, the ZL946 maneuvers confidently in tight urban job sites while still offering the power and reach for larger rural projects. It's a loader that doesn't force you to choose between capability and accessibility.

Packaging and Delivery

Each SHENTUI ZL946 wheel loader is prepared for global shipment with export-grade packaging. The machine is treated with anti-rust and anti-corrosion protection, then secured within heavy-duty steel frames or wooden crating to prevent damage during ocean freight. All moving parts are immobilized, and the cab is fitted with protective film to keep it pristine upon arrival.

Standard delivery time is 15 to 30 working days after order confirmation, depending on your destination port and shipping schedule. Full documentation, including the bill of lading, packing list, and machine certificate, is provided with each shipment. For customers requiring expedited delivery or specific port arrangements, please contact our sales team to discuss available options.

After-sales Service

LANDNEO stands behind every ZL946 with a comprehensive after-sales support package designed to minimize downtime and keep your operation running smoothly. We offer a 12-month warranty covering the powertrain and hydraulic system, with extended warranty options available upon request.

Our global service network provides remote technical diagnostics, online troubleshooting, and rapid spare parts dispatch. A full inventory of maintenance parts—including filters, seals, hydraulic components, and brake parts—is maintained to ensure quick turnaround. We also provide downloadable operator manuals, maintenance schedules, and video guides to help your team handle routine servicing with confidence. For more complex issues, our technical team is available via phone, email, or video call to guide your local mechanics through repairs.

FAQ

Q1: What engine does the SHENTUI ZL946 wheel loader use?
A: The ZL946 is powered by a Weifang 4102 turbocharged diesel engine with 4 cylinders, water-cooled, four-stroke, rated at 76kW. It's known for reliability and fuel efficiency under sustained heavy loads.

Q2: What is the maximum dump height and reach of the LANDNEO ZL946?
A: The ZL946 offers a dump height of ≥3600mm and a dump reach of ≥700mm, making it well-suited for loading high-sided trucks, grain hoppers, and concrete mixers.

Q3: What type of transmission does the ZL946 have?
A: It features a 265 integrated hydraulic torque converter with automatic transmission, which provides smooth shifting and reduces operator fatigue during long working hours.

Q4: What are the overall dimensions of the SHENTUI ZL946?
A: The overall dimensions are approximately 5750~5800mm in length, 2030~2080mm in width, and 2760~2900mm in height, with a minimum turning radius of 6500mm.

Q5: What is the operating weight of the machine?
A: The operating weight is ≥1.8 tons, giving the ZL946 a stable footprint for heavy lifting while remaining agile in confined spaces.

Q6: What after-sales support does LANDNEO provide?
A: LANDNEO offers a 12-month warranty on the powertrain and hydraulic system, along with global spare parts supply, remote technical support, and comprehensive maintenance documentation to keep your loader working at peak performance.
