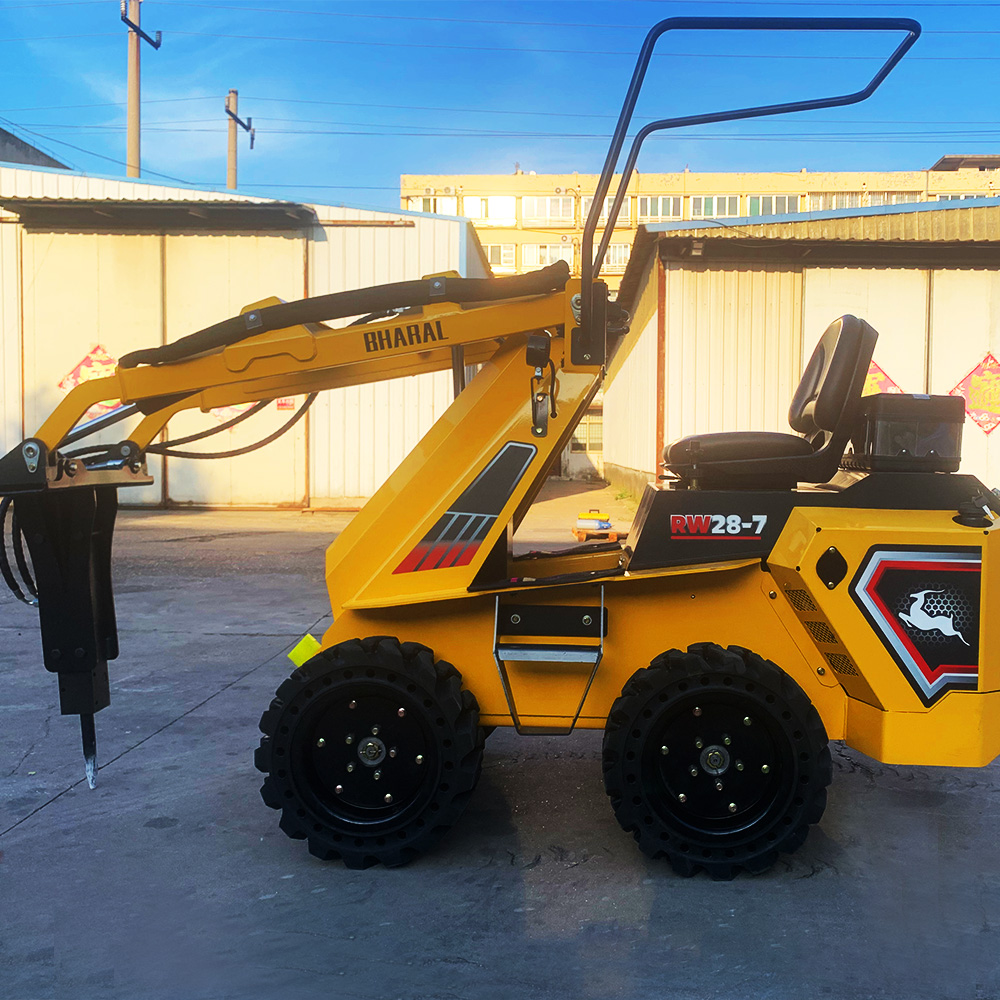

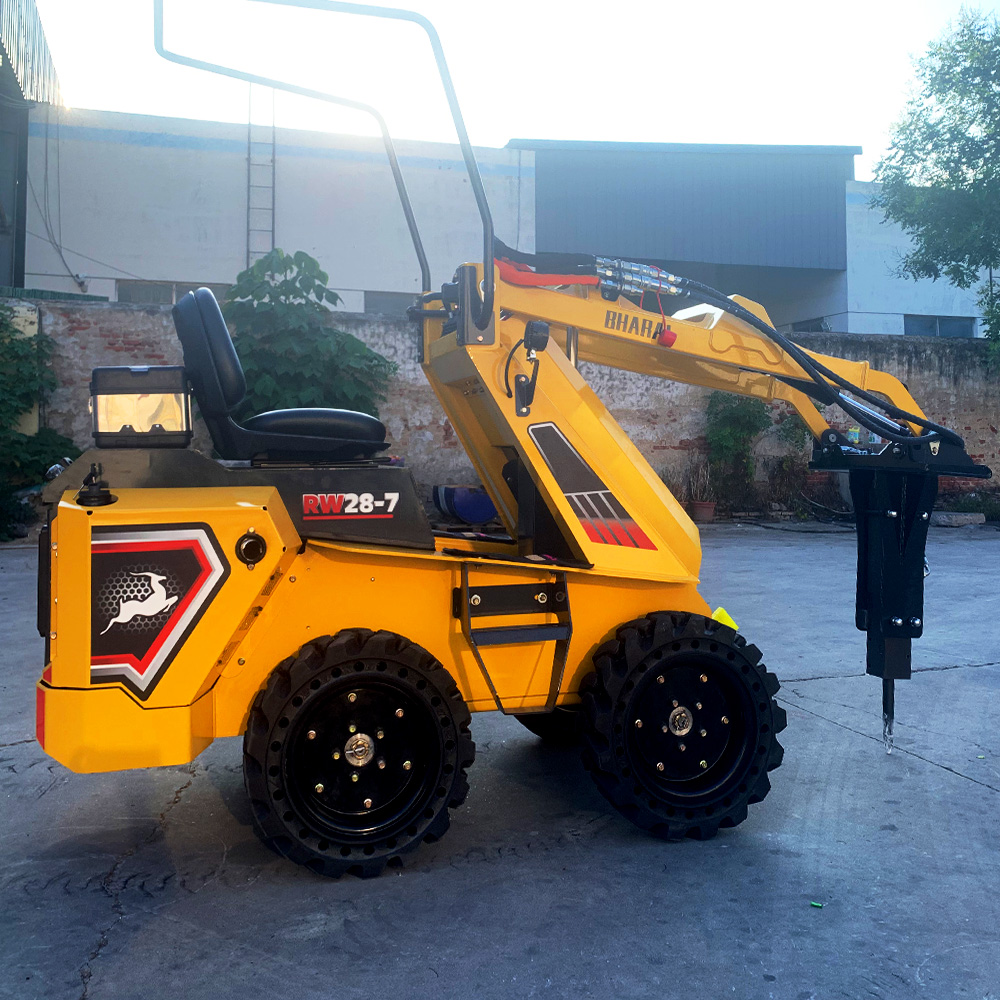

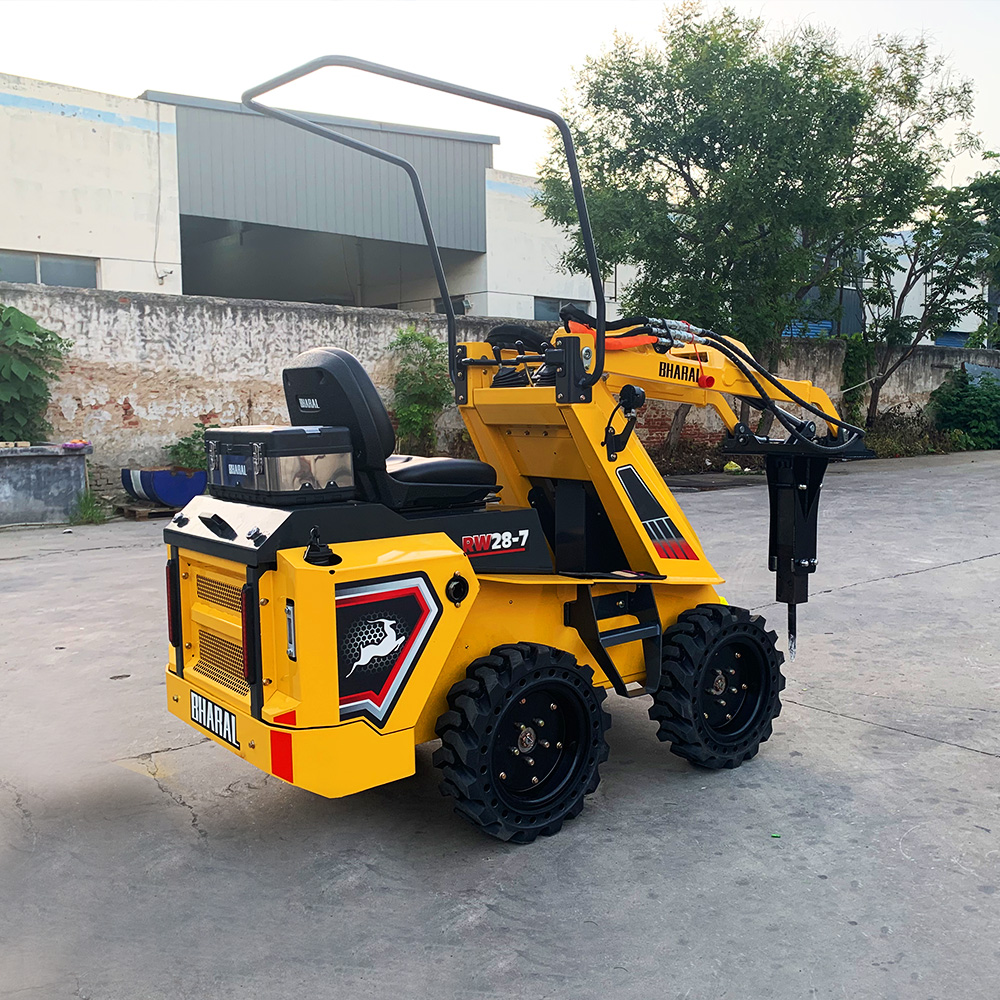

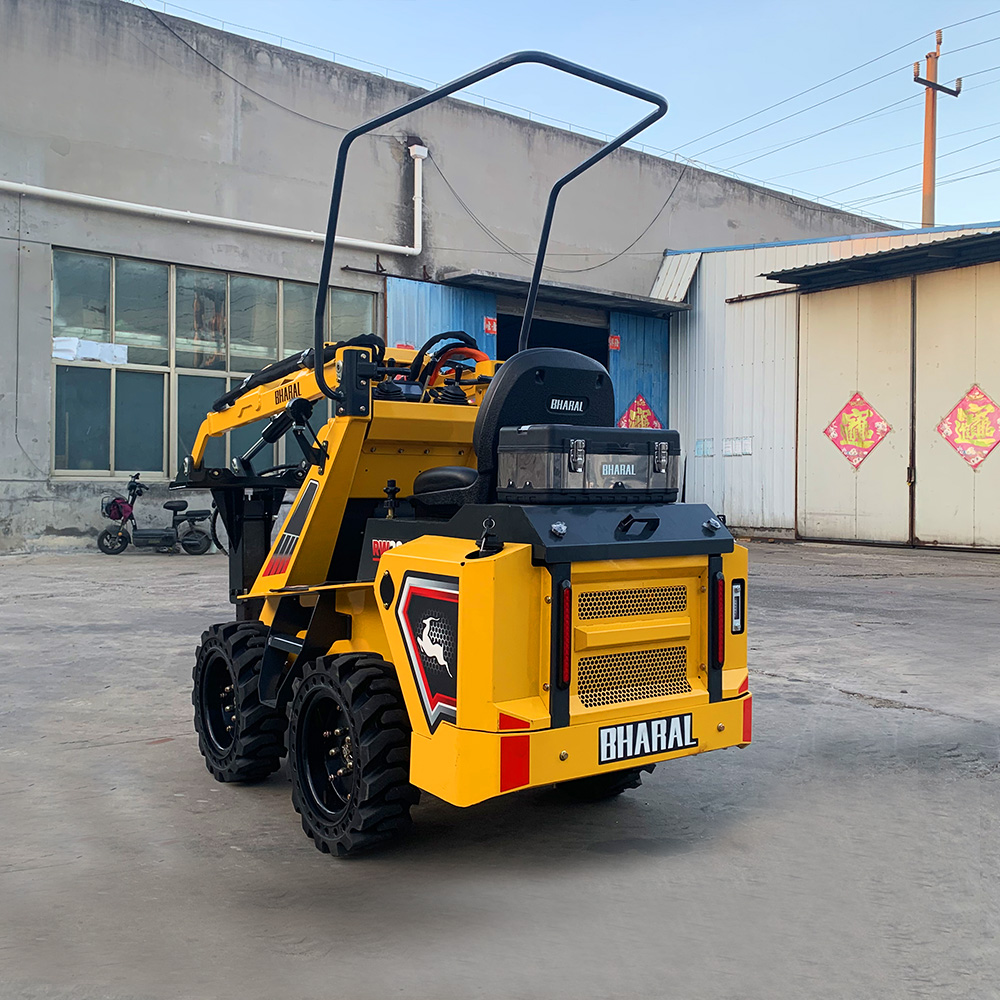

The RW28-7 Mini Skid Steer Loader is a compact wheel-type compact utility loader engineered for confined job sites.
This EPA certified mini skid steer loader delivers powerful performance for landscaping, farm maintenance, residential construction, snow removal, warehouse material handling and backyard renovation.
Powered by a 23HP ZONSENROTO 292 twin-cylinder gasoline engine, this small skid steer loader meets EPA and Euro V emission standards, eligible for North America & European market import. The machine supports multiple interchangeable attachments including standard dirt bucket, snow blower, sweeper, mower, paving cutter, making it a highly versatile compact wheel loader.
With compact overall dimension, tight turning radius and stable lifting performance, RW28-7 mini skid steer works efficiently in greenhouses, garden yards, narrow alleys and indoor renovation sites where large loaders cannot access.

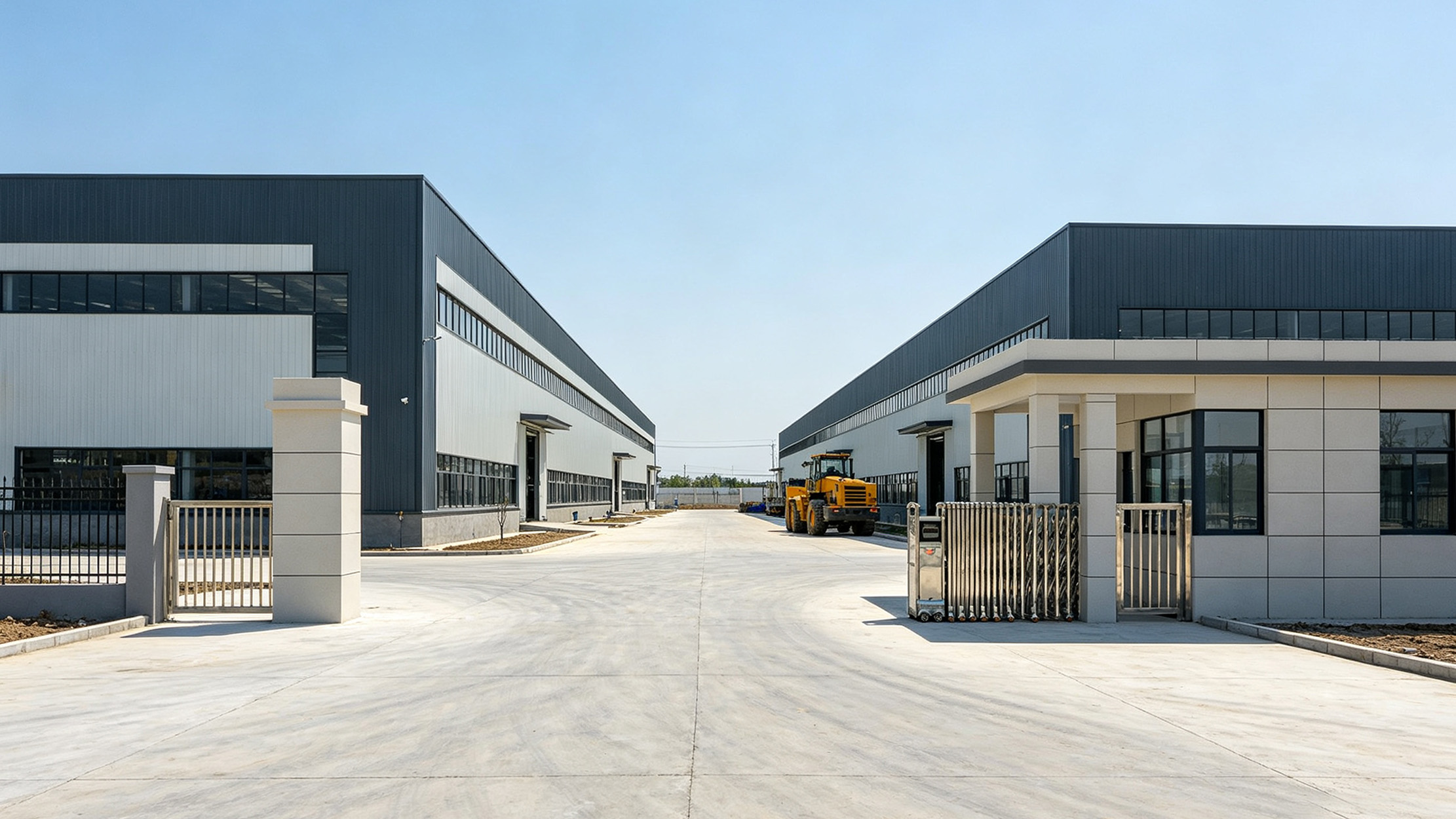

Jining Hejia Electromechanical Equipment Co., Ltd.
Founded on October 17, 2019, Jining Hejia Electromechanical Equipment Co., Ltd. is located in Rencheng District, Jining City, Shandong Province, the well-known base for construction machinery industry in China.
We specialize in the supply of construction machinery, mainly including mini skid steer loaders, compact engineering equipment, construction machinery, general mining machinery and machinery spare parts.
We provide one-stop services including equipment supply, customized machine production, optional attachments, on-site installation, equipment rental and after-sales maintenance. Our machines are widely adopted in landscaping, municipal works, mining, construction, water conservancy projects, farms, greenhouses and property maintenance.
Our product range also covers hardware & electromechanical products, metal materials, rubber sealing parts, thermal insulation & waterproof materials, safety equipment and labor protection supplies. Benefiting from Jining complete construction machinery industrial chain, we strictly control product quality and deliver cost-effective machinery and professional technical support for global buyers.
We offer custom machines, technical consultation and export service for overseas orders. We aim to be your trusted one-stop supplier for construction machinery.
1. Core Power Configuration
- Power Options: Standard ZONSENROTO 23HP dual-cylinder gasoline engine, optional KOOP 292 engine, complying with EPA & Euro V emission standards for EU/US export and domestic access. Rated power 16.8kW, hydraulic system working pressure 20MPa, sufficient power with good fuel economy.
- Tank Capacity: 20L fuel tank + 20L hydraulic tank for long continuous operation and fewer refueling stops.
- Travel System: Max speed 7km/h with 23*8.5-12 vacuum tires, great passing performance on gravel and paved roads.

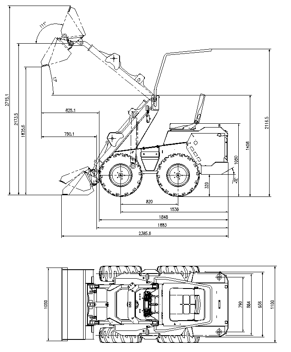

2. Dimension & Trafficability
Overall width 1100mm, front max turning radius only 1660mm, easy access to narrow lanes, courtyards and indoor work areas. Ground clearance 320mm for small obstacle crossing. Total length 2385mm, working height 2715mm, dumping height 2173mm matching regular truck loading. Wheel track 936mm, bucket width 1050mm, dumping reach 825mm, multi-angle tipping design ensures thorough unloading.
3. Control & Electric System
Mature mechanical control structure with low failure rate and easy maintenance, friendly for new operators. Single power output is smooth and stable. 4.3-inch touchscreen displays working status and fault alarms in real time. The electric system supports synchronous operation of 2+ attachments to greatly improve working efficiency.
4. Multi-attachment Application Scenarios

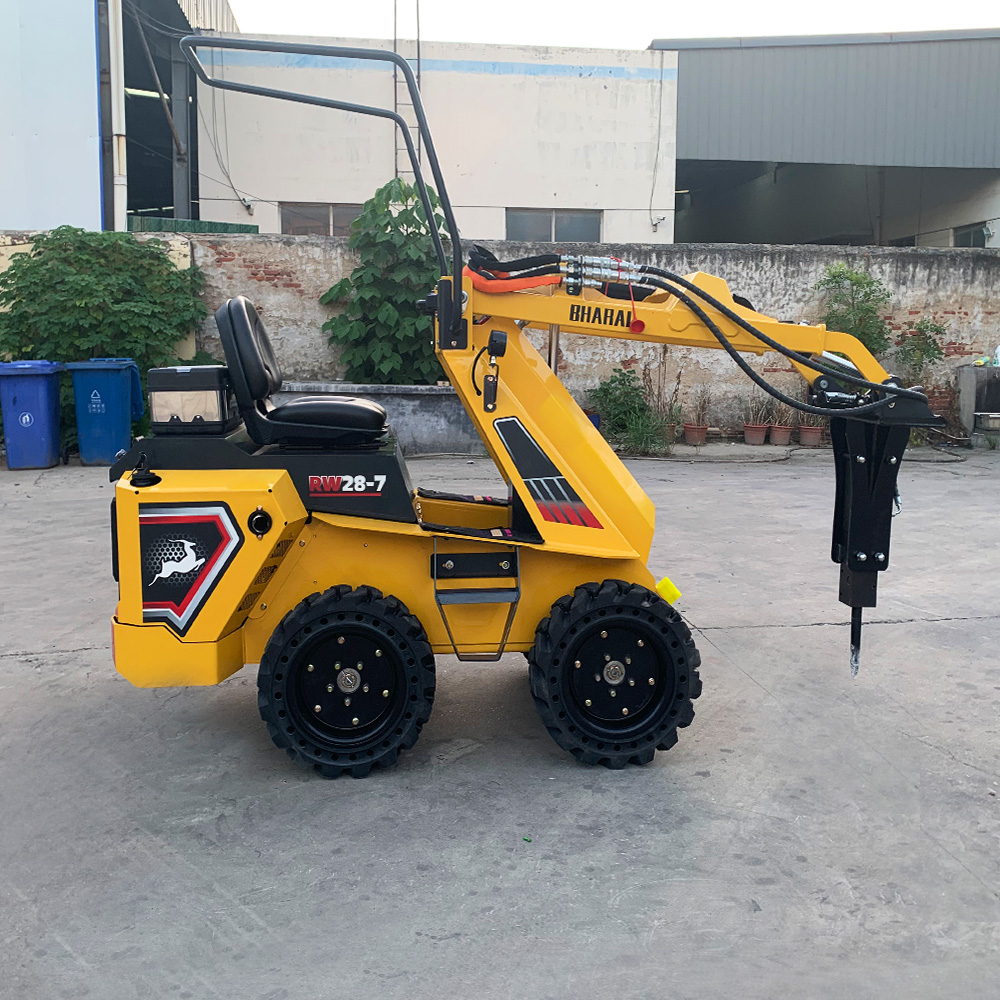

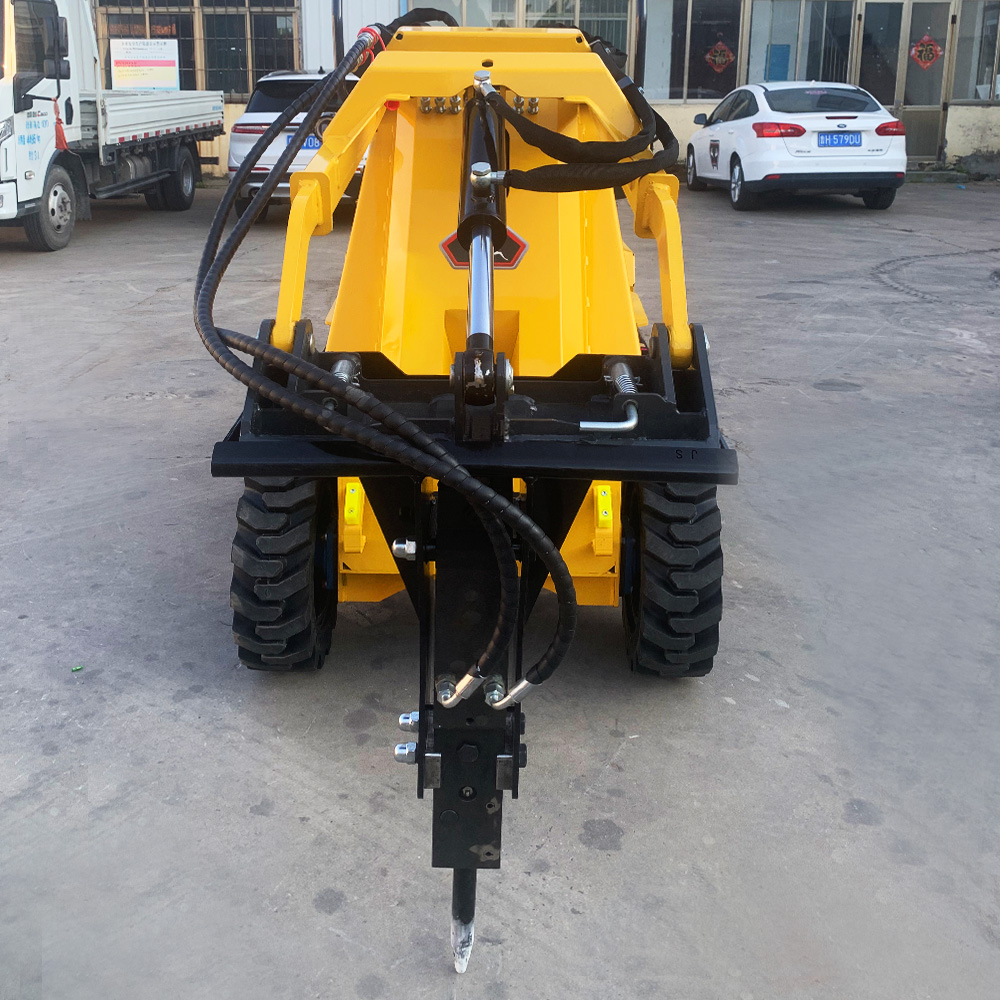

Quick-change interface fits buckets, snow push plates, rotary sweepers, snow blowers, breakers and more attachments:
①Municipal: road snow removal, pavement maintenance, muck transfer; ②Garden & Yard: site grading, waste clearing; ③Small Construction: earth leveling, short-distance loading; ④Agriculture: greenhouse work, forage transfer.
5. Quality & Export Advantages
1050kg operating weight and 550kg tipping load provide high load safety margin. Reinforced frame resists bumping for long service life. Wear-resistant puncture-proof vacuum tires. Complete EPA/Euro V certifications simplify customs clearance. We provide FOB USD quotation, customs documents and customized attachment packages.
Technical Specification
|
|
| Model |
RW28-7 Mini Skid Steer Loader |
| Operating Weight |
1050 Kg |
| Rated Operating Capacity |
360 Kg |
| Tipping Load |
550 Kg |
| Max Travel Speed |
7 Km/h |
| Engine |
ZONSENROTO 292 Twin-cylinder Gasoline Engine (23HP) |
| Engine Power |
16.8kW / 6000rpm |
| Emission Standard |
EPA Certified, Euro V |
| Control Mode |
Mechanical Operation, Single Hydraulic Output |
| Display |
4.3-inch Touch Screen |
| System Working Pressure |
20 MPa |
| Fuel Tank Capacity |
20 L |
| Hydraulic Oil Tank Capacity |
20 L |
| Tire Spec |
23*8.5-12 Vacuum Tire |
| Overall Length (with bucket) |
2385 mm |
| Overall Length (without bucket) |
1885 mm |
| Overall Width |
1100 mm |
| Overall Height |
2115 mm |
| Max Working Height |
2715 mm |
| Dumping Height |
2173 mm |
| Ground Clearance |
320 mm |
Application Scenarios
- Landscaping & garden maintenance
- Residential backyard construction & renovation
- Snow removal, snow blowing, street cleaning
- Farm, orchard & greenhouse material transport
- Property maintenance, municipal small engineering
- Warehouse, factory indoor material handling
- Road repair, pavement cleaning
Q1: Is this RW28-7 skid steer loader EPA certified for USA market?
A1: Yes. Equipped with ZONSENROTO 292 23HP twin-cylinder gasoline engine with EPA & Euro V emission certification, can be imported to United States, Canada and European countries.
Q2: How many attachments can this mini skid steer support?
A2: The single hydraulic output system supports attachments that require 2 or more simultaneous movements. We supply full series attachments for optional purchase.
Q3: What is the rated load capacity of RW28-7?
A3: Rated operating capacity is 360kg, tipping load reaches 550kg, stable for daily landscaping and construction tasks.
Q4: Can the machine work on lawn without heavy damage?
A4: Equipped with 238.5-12 wide vacuum tires, lower ground pressure, suitable for lawn and turf work.
