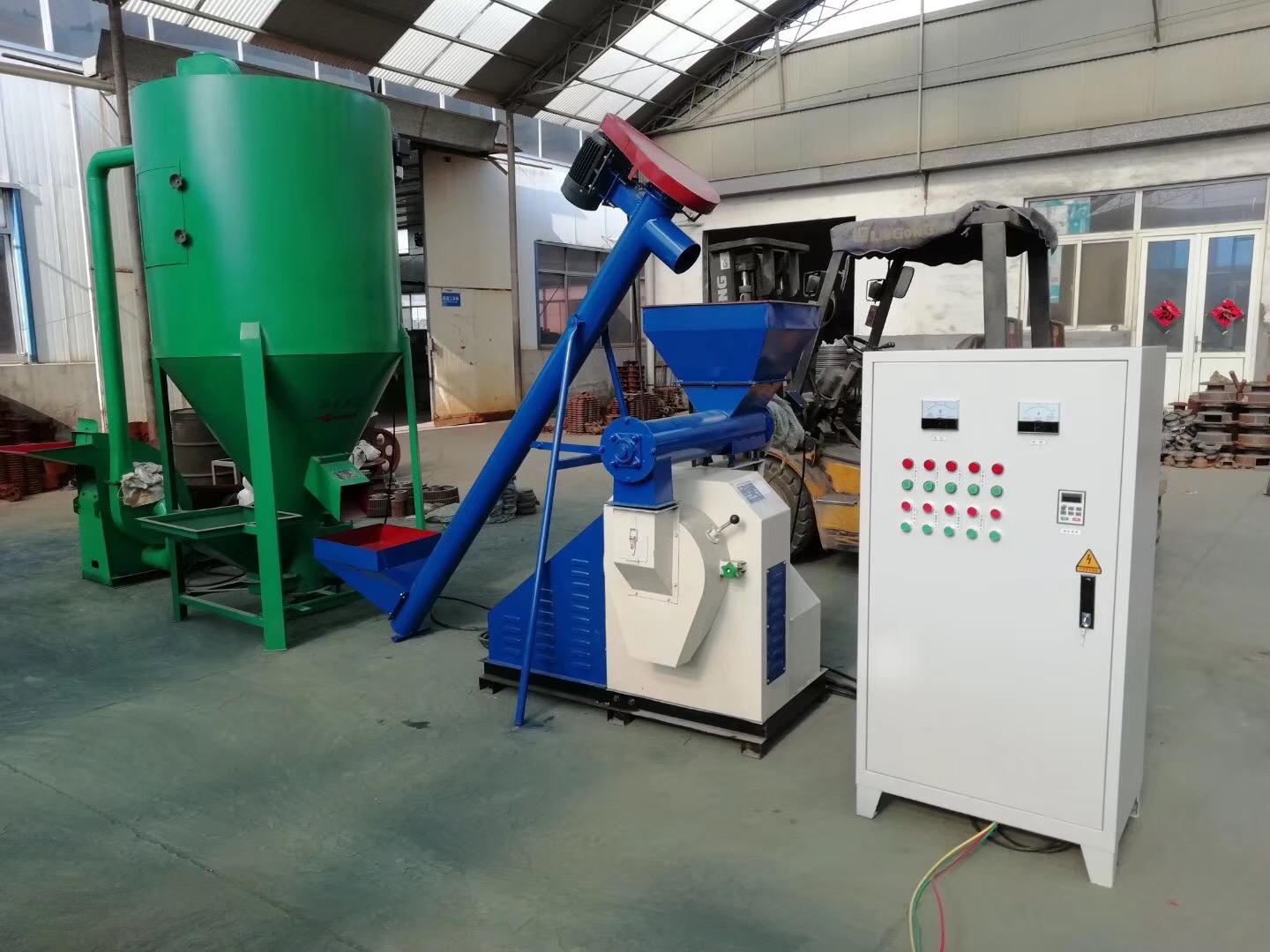

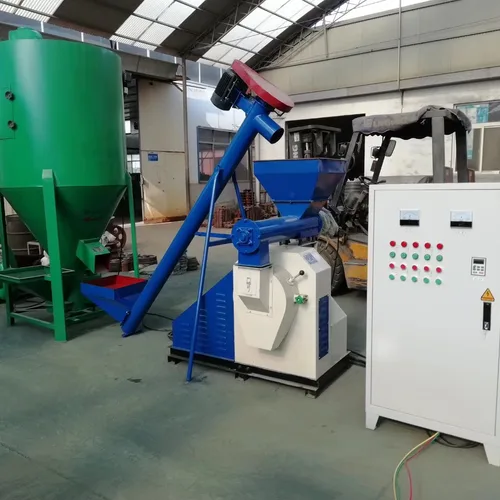

This equipment consists of a hammer mill, vertical mixer, screw conveyor and ring die pellet mill. The pellet products are suitable for chickens, ducks, geese, fish and rabbits, making it professional equipment for most breeding users.
1.9FQ50-28 Hammer Mill: equipped with 15KW motor and feeding pipe.
2.9FH1000 Vertical Mixer: 2 cubic meters large mixing cylinder, matched with 4-stage 3KW reducer, discharge port with dust collector.
3.Screw Conveyor: diameter 140mm, length 3m, driven by 1.1KW 6-stage motor.
4.250 Ring Die Pellet Mill: inner die diameter 250mm, driven by 30KW 4-stage motor, output: 800–1200 kg/h.
5.Matching Electric Control Cabinet: main motor with star-delta starter, feeder speed controlled by frequency converter.
