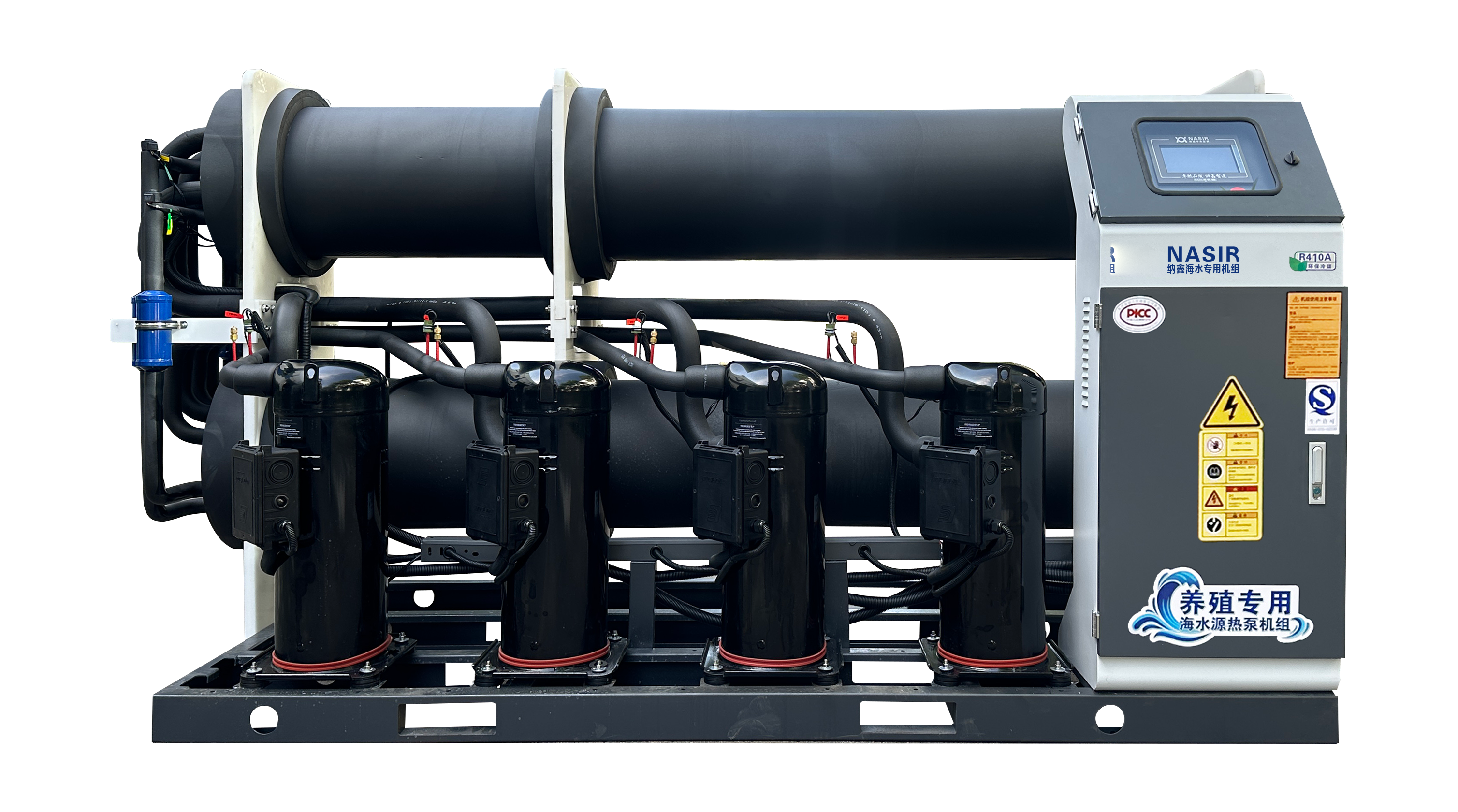

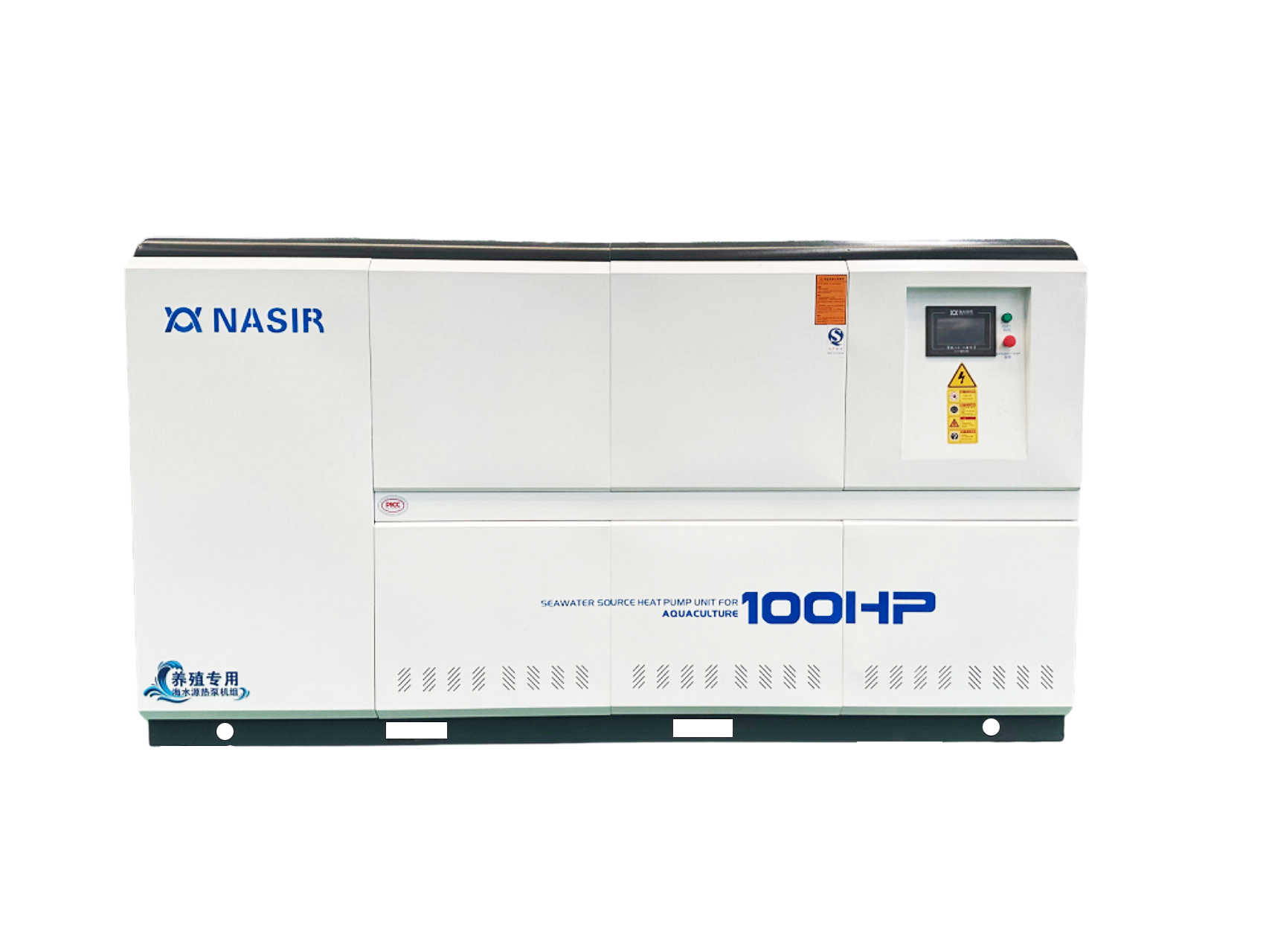

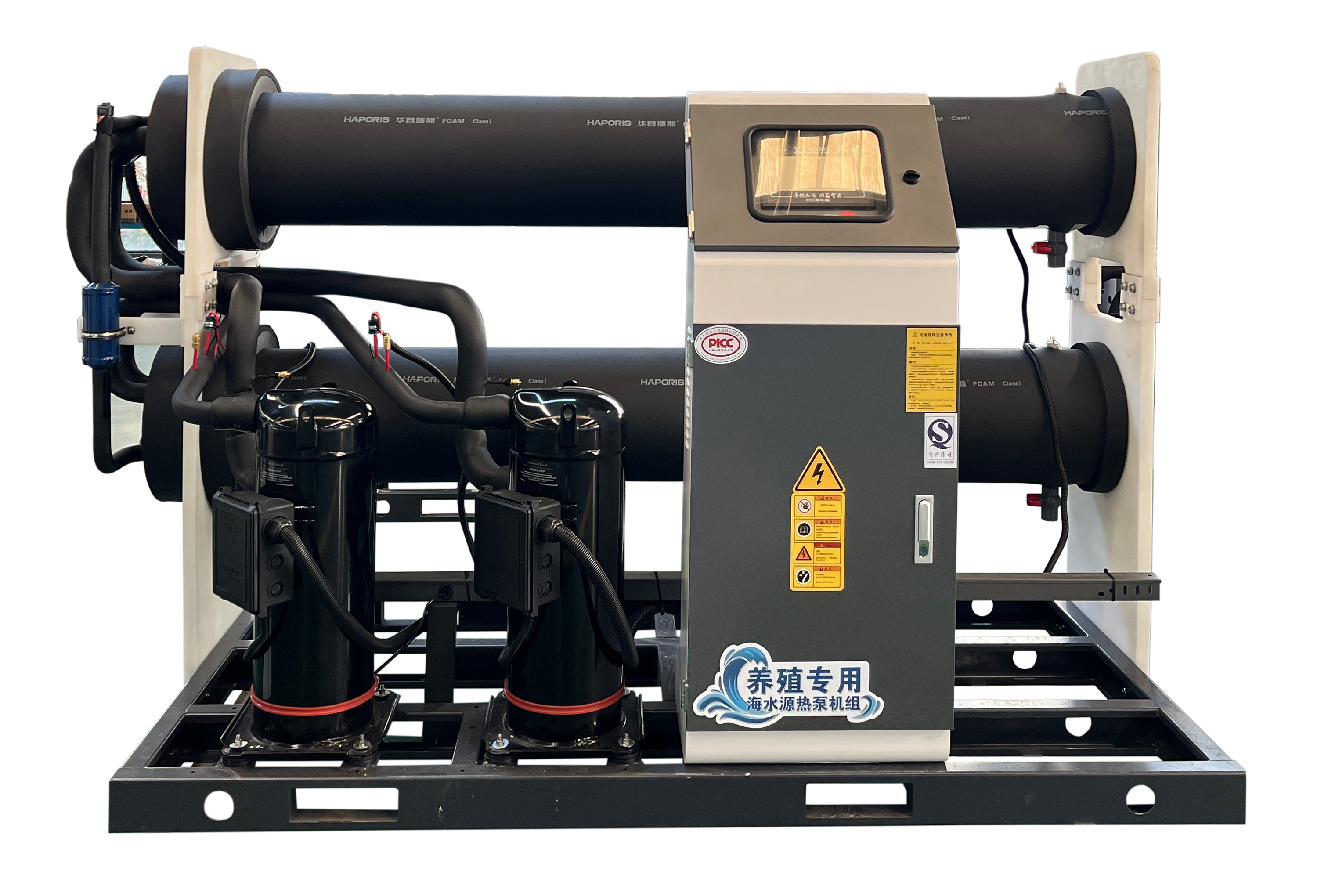

NXHR Series Seawater Source Heat Pump Unit for Aquaculture
Min. Order: 1 Unit
- Power Range:
- 18.7~153.2kW
- Water Temp Rise:
- 5℃
- Water Flow Rate:
- 15~130 m³/h
- Model:
- NXR-80~800HS / Single/Double Titanium Unit
Product Features & Applications
NXHR series seawater source heat pump extracts heat from seawater, providing both heating in winter and cooling in summer for aquaculture ponds, delivering constant water temperature for industrial farming systems with low energy consumption and zero pollution.
Unit Advantages
- High Efficiency & Energy Saving: Utilizes seawater heat with low operating cost and high COP.
- Safe & Reliable: Multi-protection design for stable operation and low failure rate.
- Durable: Titanium alloy heat exchanger resistant to seawater corrosion for long service life.
- Modular Design: Flexible combination for wide applications and easy expansion.
- Smart Cloud Control: Supports remote monitoring and centralized management with high automation.
- Self-Adjusting Temperature: Flexible outlet water temperature adjustment for different aquaculture needs.
- Touchscreen Control: Intuitive interface for simple and smart operation.
- High Water Temperature: Max outlet temperature up to 85℃ for versatile scenarios.
- Wide Temperature Range: Ultra-wide hot/cold water range to meet various working conditions.
- Enhanced Heat Transfer: Shell-and-tube continuous spiral baffle + C&S heat exchanger for improved efficiency.
- Precise Control: Electronic expansion valve for precise throttling and temperature control.
- Flexible Installation: Compact design saves floor space with strong adaptability.
- Eco-Friendly: No groundwater consumption or pollutant emissions.
Applications
Technical Specifications
- Power Range
- 18.7~153.2kW
- Water Temp Rise
- 5℃
- Water Flow Rate
- 15~130 m³/h
- Model
- NXR-80~800HS / Single/Double Titanium Unit
- Temp Control Accuracy
- ±0.1℃
- Max Outlet Temp
- 85℃
- Heat Exchanger Type
- Shell-and-tube continuous spiral baffle + C&S heat exchanger
- Throttling Method
- Electronic expansion valve
- Control Method
- Touchscreen control + smart cloud control system
- Applications
- Circulation heating /direct heating /aquaculture water insulation /pond coil heat exchange
