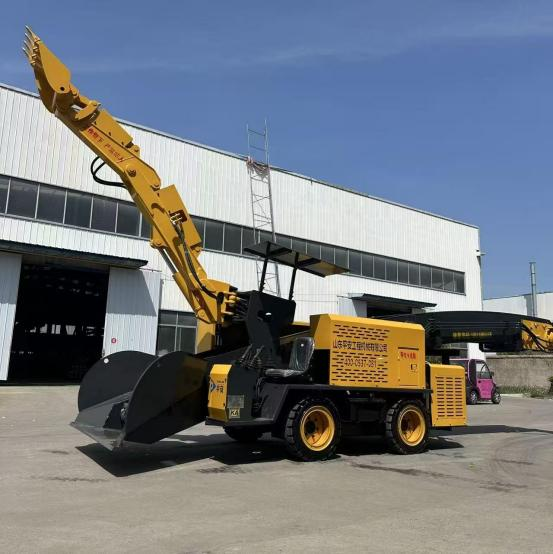

Model 80 Wheeled Mucking Loader with Scraper Conveyor, For Tunnel/Underground Mucking

This is the Model 80 Wheeled Mucking Loader with Scraper Conveyor, a high-efficiency mucking equipment purpose-built for mining tunnels and tunneling scenarios. Featuring a wheeled travel system and scraper conveyor structure, it enables integrated excavation and conveying operations with a loading capacity of approximately 80m³/h, suitable for tunnel cross-sections ≥2.2m×2.2m. Offering flexible mobility, high mucking efficiency, and convenient operation, it is the ideal solution for small-to-medium tunneling and underground tunnel mucking operations.
$19028.66
Send Message Contact Supplier
Shandong Ping'an Construction Machinery Co., Ltd.

Shandong Ping'an Construction Machinery Co., Ltd.

View Supplier
Registration Date July 21, 2021
Number of Employees 55
Factory Area 10,000 m²
Annual Sales 200 Million RMB
Main Products Mucking loaders, crushing trolleys, roadheaders, rock drills, excavators, loaders
Target Markets Global mining equipment market
Details
Specifications

1. Basic Product Information

The Model 80 Wheeled Mucking Loader with Scraper Conveyor is a mining mucking equipment integrating excavation and conveying. With an operating weight of 8.6 tons and dimensions of 5800×1700×1650mm, it is suitable for tunnel cross-sections ≥2.2m×2.2m with a loading capacity of approximately 80m³/h. It efficiently completes mucking operations in mining tunnels and tunneling, making it a common equipment for small-to-medium tunneling projects.

2. Core Configuration and Performance Features

  • Wheeled Travel System: Wheeled chassis with a minimum turning radius of 4500mm, two adjustable travel speeds (high/low), excellent terrain adaptability, and the ability to climb ≤15° slopes on hard ground, suitable for flexible movement in small-to-medium tunnels.
  • Excavation and Conveying System: Digging width ≥4800mm, digging reach ≥1000mm, paired with a scraper conveyor to directly transport excavated slag to the designated location, enabling integrated excavation and conveying to reduce manual handling and improve mucking efficiency.
  • Hydraulic and Power System: Rated working pressure of 16/25MPa with a total motor power of 22/30KW, providing stable power output suitable for long-duration high-intensity mucking operations. Hydraulic pilot control offers light operation feel for precise control of the excavation arm.
  • Flexible Working Range: Max swing angle of ±50°, with customizable discharge height and reach, adapting to different mucking scenarios and reducing equipment movements to improve efficiency.

3. Application Scenarios

  • Mining Tunnels: Mucking operations after excavation in small-to-medium mining tunnels;
  • Tunneling: Mucking in small tunnels, water diversion tunnels, and cable trenches;
  • Other Scenarios: Slag cleaning operations in small engineering and municipal pipe network construction.

4. Operation and Maintenance Recommendations

  • Inspect tire pressure, hydraulic oil level, and temperature before operation; grease the scraper chains.
  • Stabilize the equipment during excavation to avoid tipping from one-sided forces; never overload when excavating large materials.
  • Regularly replace hydraulic oil and filters, and inspect hydraulic hoses for wear to prevent leaks.
  • Clean accumulated material on the scraper chains regularly and apply grease to prevent blockages and wear.
Product Model
Model 80 Wheeled Mucking Loader with Scraper Conveyor
Operating Weight
8.6 Tons
Overall Dimensions
5800×1700×1650mm
Loading Capacity
≈80 Cubic Meters Per Hour
Travel System
Wheeled Travel, Min Turning Radius 4500mm
Travel Speed
High: 4.5m/min; Low: 2m/min
Gradeability
≤15° (On Hard Ground)
Ground Clearance
210mm
Digging Width
≥4800mm
Digging Reach
≥1000mm (From Bucket Edge)
Digging Height
≥1800~2700mm
Digging Depth
≥550mm
Discharge Height
1350~1700mm (Customizable)
Discharge Reach
1700mm (Customizable)
Swing Angle
±50°
Rated Working Pressure
16/25MPa
Total Motor Power
22/30KW
Max Material Size
810×580×500mm
Applicable Cross-Section
≥2.2m×2.2m
Application Scenarios
Mining Tunnel Mucking, Tunneling Mucking, Small Engineering Mucking Operations
  • Model 80 Wheeled Mucking Loader with Scraper Conveyor, For Tunnel/Underground Mucking

Description

1. Basic Product Information

The Model 80 Wheeled Mucking Loader with Scraper Conveyor is a mining mucking equipment integrating excavation and conveying. With an operating weight of 8.6 tons and dimensions of 5800×1700×1650mm, it is suitable for tunnel cross-sections ≥2.2m×2.2m with a loading capacity of approximately 80m³/h. It efficiently completes mucking operations in mining tunnels and tunneling, making it a common equipment for small-to-medium tunneling projects.

2. Core Configuration and Performance Features

  • Wheeled Travel System: Wheeled chassis with a minimum turning radius of 4500mm, two adjustable travel speeds (high/low), excellent terrain adaptability, and the ability to climb ≤15° slopes on hard ground, suitable for flexible movement in small-to-medium tunnels.
  • Excavation and Conveying System: Digging width ≥4800mm, digging reach ≥1000mm, paired with a scraper conveyor to directly transport excavated slag to the designated location, enabling integrated excavation and conveying to reduce manual handling and improve mucking efficiency.
  • Hydraulic and Power System: Rated working pressure of 16/25MPa with a total motor power of 22/30KW, providing stable power output suitable for long-duration high-intensity mucking operations. Hydraulic pilot control offers light operation feel for precise control of the excavation arm.
  • Flexible Working Range: Max swing angle of ±50°, with customizable discharge height and reach, adapting to different mucking scenarios and reducing equipment movements to improve efficiency.

3. Application Scenarios

  • Mining Tunnels: Mucking operations after excavation in small-to-medium mining tunnels;
  • Tunneling: Mucking in small tunnels, water diversion tunnels, and cable trenches;
  • Other Scenarios: Slag cleaning operations in small engineering and municipal pipe network construction.

4. Operation and Maintenance Recommendations

  • Inspect tire pressure, hydraulic oil level, and temperature before operation; grease the scraper chains.
  • Stabilize the equipment during excavation to avoid tipping from one-sided forces; never overload when excavating large materials.
  • Regularly replace hydraulic oil and filters, and inspect hydraulic hoses for wear to prevent leaks.
  • Clean accumulated material on the scraper chains regularly and apply grease to prevent blockages and wear.
