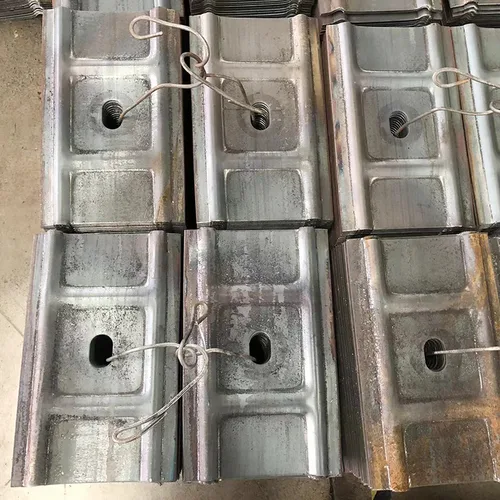

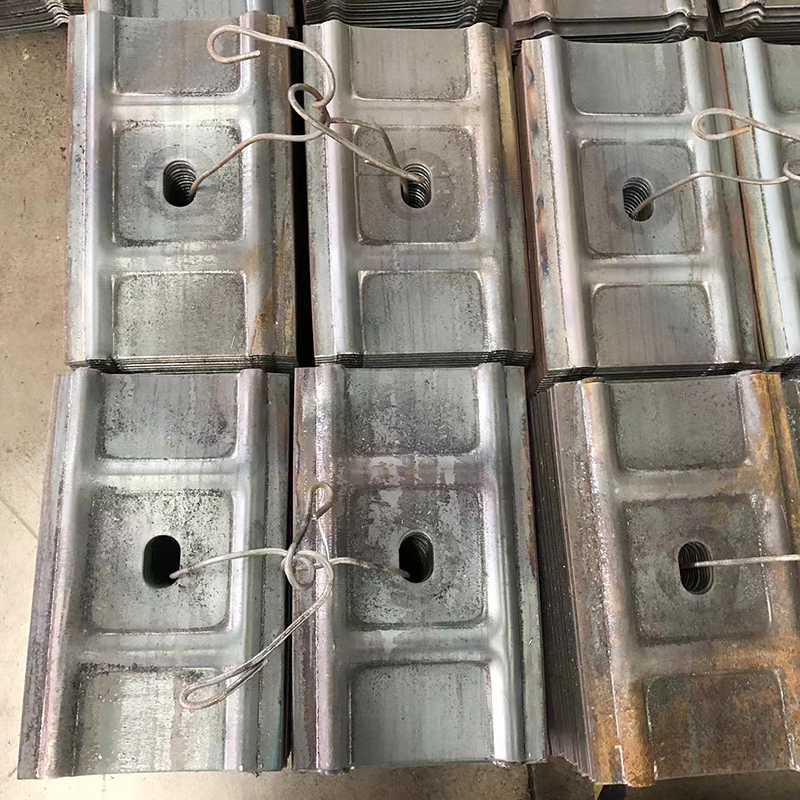

Mining Grid-Type Support Plate Production Line

Mining Grid-Type Support Plate Production Line

USD $80000.00 - $280000.00 / Sets

Min. Order: 1 Sets

Power supply:
380 V working voltage
Total power:
approx. 30 kW (hydraulic press 22 kW, feeding system 8 kW)
Equipment dimensions:
approx. 10 m (L) × 4 m (W)
Processable specification:
450×280×5 mm (custom mold)
Supported Trade Terms:
FOBCIFEXWCFRDDPDAP
Lead Time:
60 days
Supply Ability:
1 Sets per Month
Shipping Port:
qingdao/Khorgos
Send Inquiry

Product Features & Applications

The production line adopts advanced all-digital control technology and is controlled by a Programmable Logic Controller (PLC). All precision components are driven by servo motors via servo drivers, ensuring high production accuracy and efficiency. All feeding devices can be pre-loaded with materials, reducing waiting time and enabling uninterrupted production.Compared with traditional production lines, this equipment offers significantly improved automation, along with features such as safety, high efficiency, high precision, and low failure rates.

I. Overall Process Flow

  • Overhead crane places coiled sheets onto the pay‑off rack → Leveling machine → Servo feeder → Hydraulic forming → Roller discharge

II. Equipment Operating Environmental Conditions

  • Installation location: Indoor site

  • Altitude: < 1000 m

  • Ambient operating temperature: –15°C to +40°C

III. Main Technical Parameters (matched with a 400T high‑speed hydraulic press)

  • Power supply: 380 V working voltage

  • Total power: approx. 30 kW (hydraulic press 22 kW, feeding system 8 kW)

  • Equipment dimensions: approx. 10 m (L) × 4 m (W)

  • Processable specification: 450×280×5 mm (custom mold)

  • Equipment efficiency: approx. 1500 pieces per 8‑hour shift

  • Operators required: 1 person per set

IV. Main Components

The guard plate production line mainly consists of: pay‑off rack, leveling machine, servo feeder, press, one set of molds, finished product roller conveyor, electrical control cabinet, etc.

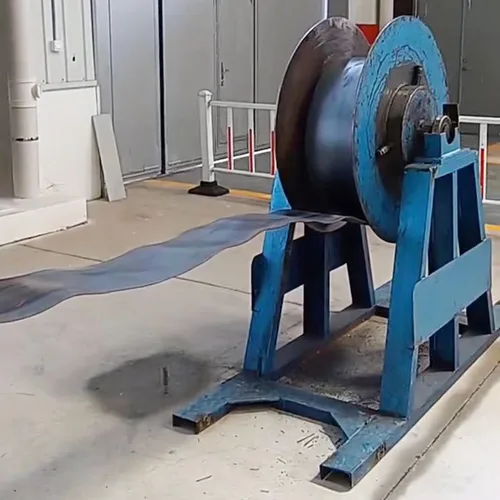

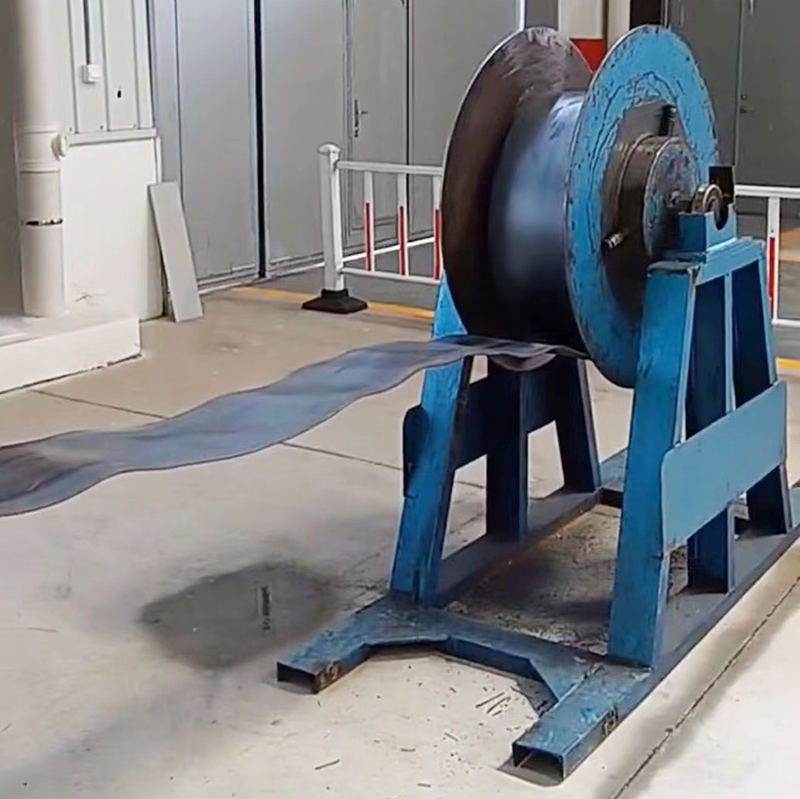

(1) Pay‑off Rack
An overhead crane or forklift places coiled sheets onto the pay‑off rack. The rack can hold a full coil of strip steel. It has no driving mechanism; the strip steel is pulled out by the leveling machine.

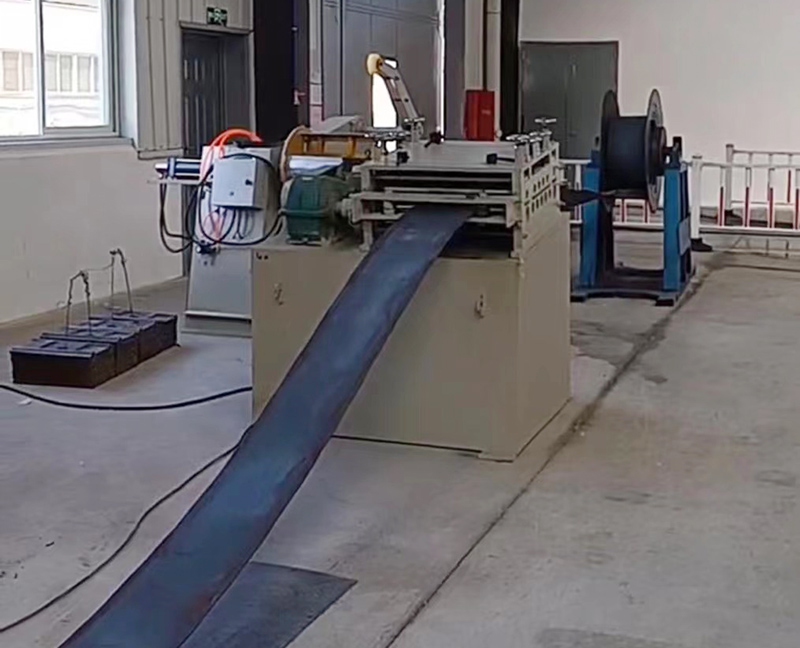

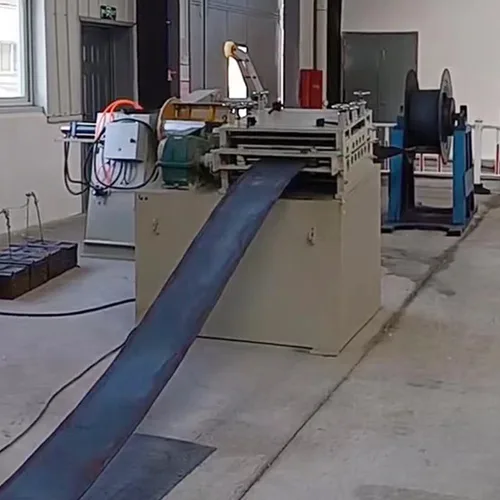

(2) Leveling Machine
This equipment uses opposing leveling rollers to flatten and eliminate internal stress in the material. It is used to straighten and correct the material before stamping, thereby improving the quality of stamped parts and reducing the defect rate.
Advantage: Two major functions – leveling and straightening – are integrated into one machine, significantly saving floor space.

(3) Servo Feeder
It offers high feeding accuracy, with manual/automatic switching capability and programmable feeding lengths. Compared with other mechanical feeders, the servo feeder is more convenient and easier to operate in terms of adjustment and control.

(4) Mold
The mold is of the type that performs punching and forming first, followed by shearing.

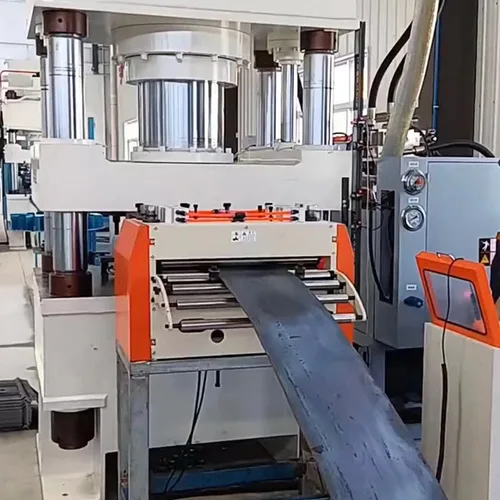

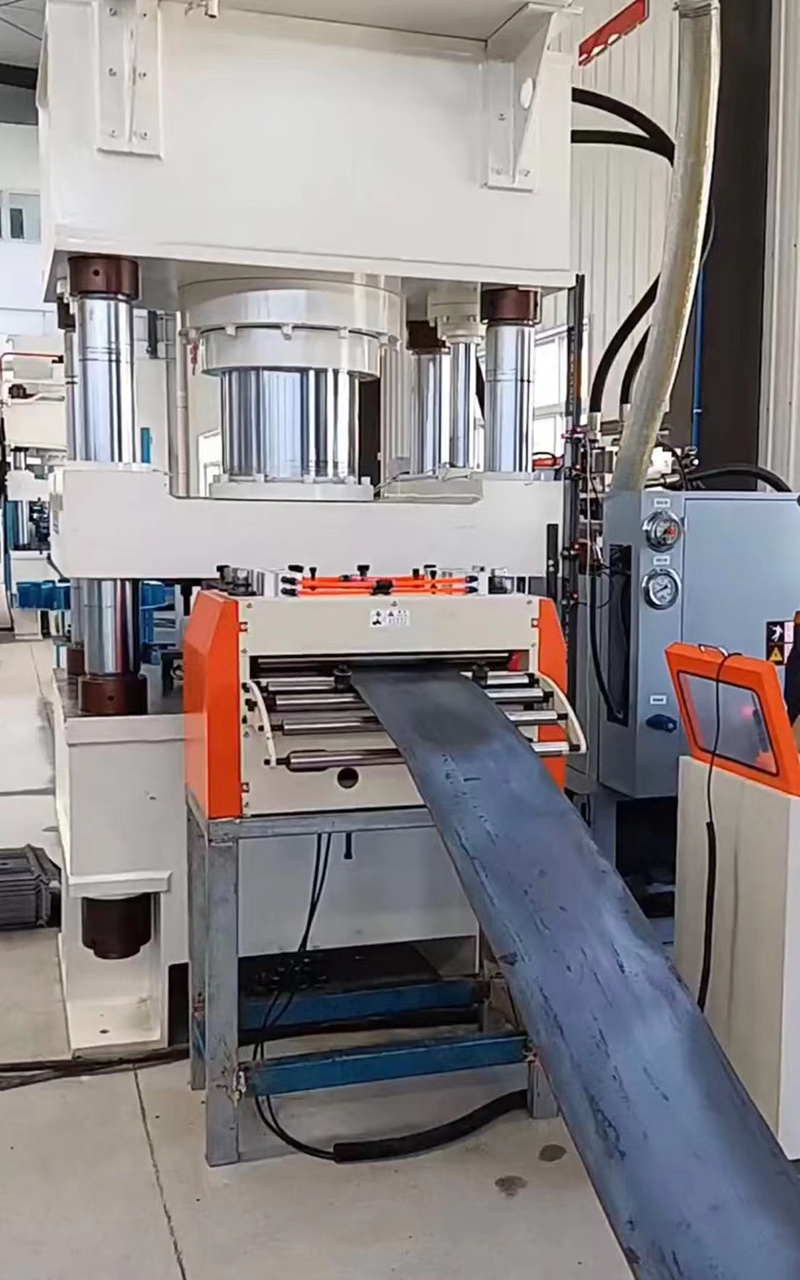

(5) Press
The press is a 400T high‑speed press, model YL32‑400.

(6) Finished Product Roller Conveyor Device
The roller device consists of roller mechanisms and a roller frame. The rollers are designed with a certain slope so that after the finished guard plate is ejected, it slides down along the inclined rollers.

(7) Electrical Control Cabinet
It contains main electrical components such as a PLC module, frequency converters, etc., all from well‑known domestic and international brands.

VII. Electrical Components Used

No. Component Brand Model
1 PLC Xinje XC2‑14T‑E
2 Three‑phase AC servo transformer Shanghai Wencheng BS‑2500
3 AC contactor Delixi CJX2s‑1810
4 Relay TNIDO HH52PL
