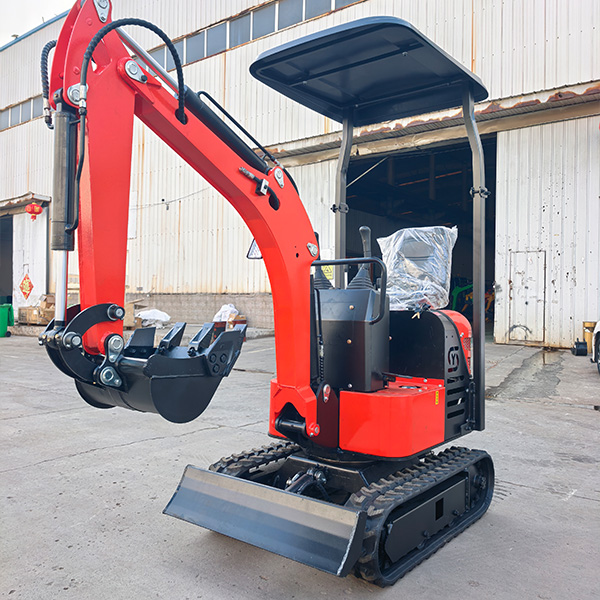

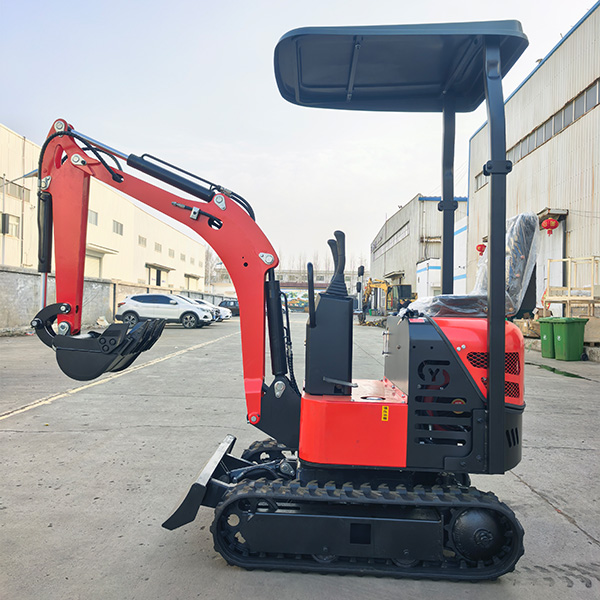

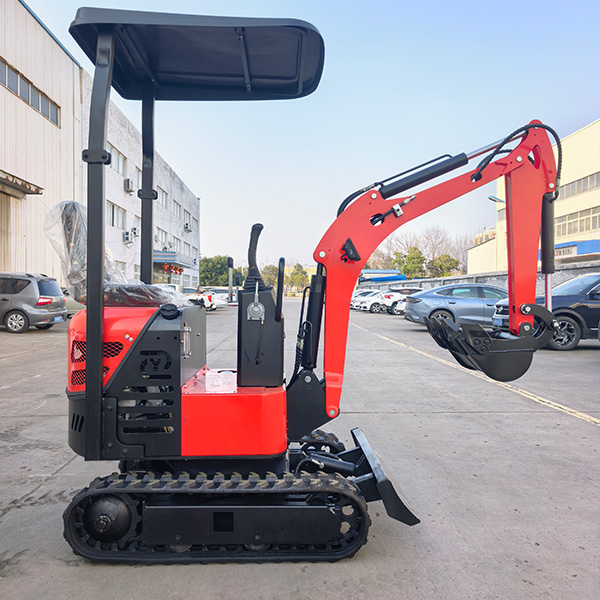

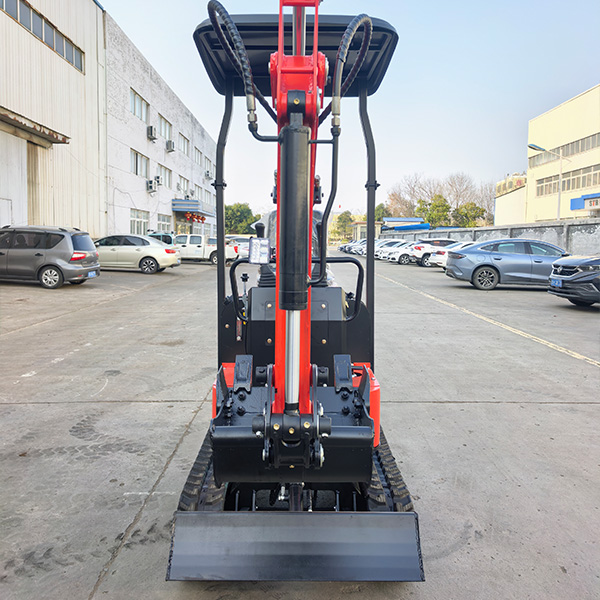

K08 Mini Excavator | 0.8 Ton Compact Digger with Yanmar Engine
Model: K08
Min. Order: 1 Unit
- Operating weight:
- 820 kg
- Bucket capacity:
- 0.03 m³
- Bucket width:
- 400 mm
- Working device form:
- Backhoe
Product Features & Applications
The K08 Mini Excavator is a 0.8-ton compact digger powered by a reliable Yanmar 192 engine. With an operating weight of 820kg, it features zero-tail swing design, easy operation, and built-in oil pipes for efficient performance. Certified by EPA and CE, this mini excavator offers a max digging depth of 1600mm, 2400mm digging height, and 17.5L hydraulic oil tank capacity, ideal for landscaping, construction, and small-scale earthmoving projects.
K08 0.8 Ton Mini Excavator – Compact & Powerful for All Small Projects

Key Performance & Hydraulic System

Excellent Structural Design & Comfort

Wide Application & Certification

Why Choose Our K08 Mini Excavator?

- Stable Yanmar engine with low fuel consumption
- Zero tail swing for narrow-space operation
- EPA & CE certified for global market
- Compact size, easy transportation and maintenance
- High cost performance suitable for rental and personal use

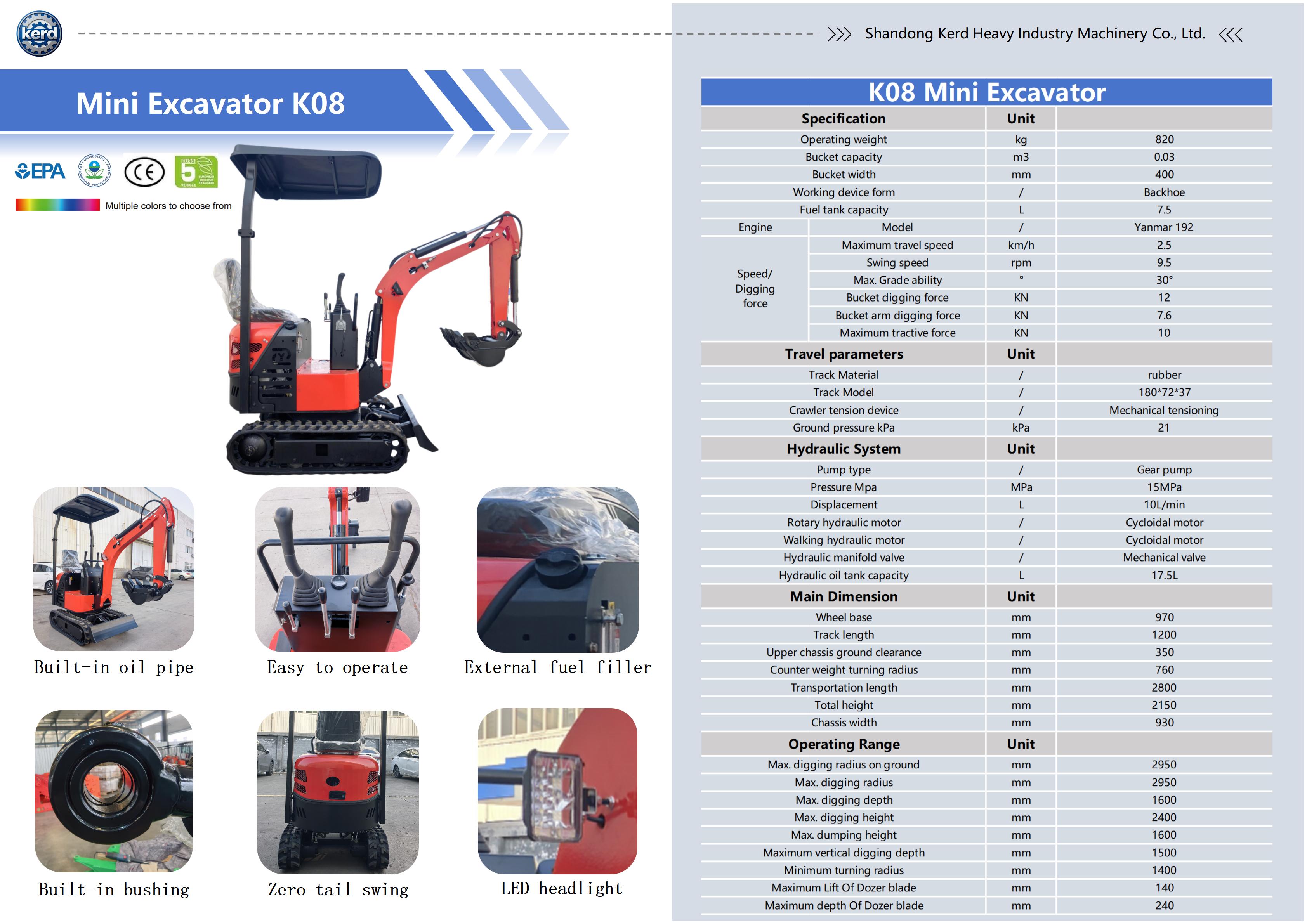

Technical Specifications
- Operating weight
- 820 kg
- Bucket capacity
- 0.03 m³
- Bucket width
- 400 mm
- Working device form
- Backhoe
- Fuel tank capacity
- 7.5 L
- Engine Model
- Yanmar 192
- Max. travel speed
- 2.5 km/h
- Swing speed
- 9.5 rpm
- Max. Grade ability
- 30°
- Bucket digging force
- 12 KN
- Bucket arm digging force
- 7.6 KN
- Maximum tractive force
- 10 KN
- Track Material
- rubber
- Track Model
- 1807237
- Crawler tension device
- Mechanical tensioning
- Ground pressure
- 21 kPa
- Pump type
- Gear pump
- Pressure
- 15 MPa
- Displacement
- 10 L/min
- Rotary hydraulic motor
- Cycloidal motor
- Walking hydraulic motor
- Cycloidal motor
- Hydraulic manifold valve
- Mechanical valve
- Hydraulic oil tank capacity
- 17.5 L
- Wheel base
- 970 mm
- Track length
- 1200 mm
- Upper chassis ground clearance
- 350 mm
- Counter weight turning radius
- 760 mm
- Transportation length
- 2800 mm
- Total height
- 2150 mm
- Chassis width
- 930 mm
- Max. digging radius on ground
- 2950 mm
- Max. digging radius
- 2950 mm
- Max. digging depth
- 1600 mm
- Max. digging height
- 2400 mm
- Max. dumping height
- 1600 mm
- Maximum vertical digging depth
- 1500 mm
- Minimum turning radius
- 1400 mm
- Maximum Lift Of Dozer blade
- 140 mm
- Maximum depth Of Dozer blade
- 240 mm
Trade Specifications
- Reference Price
- USD $1000.00 - $2000.00
- Minimum Order Quantity
- 1 Unit
