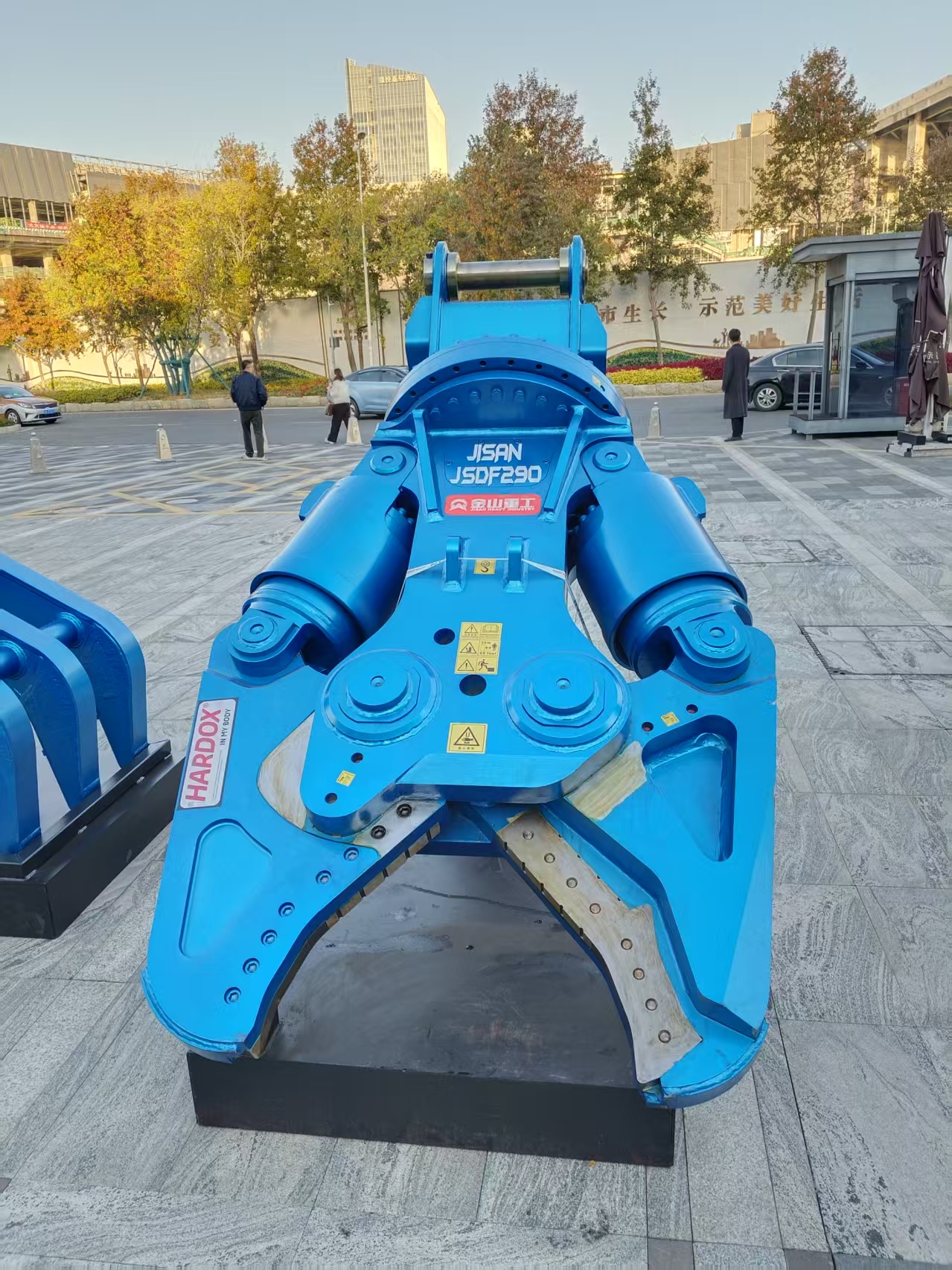

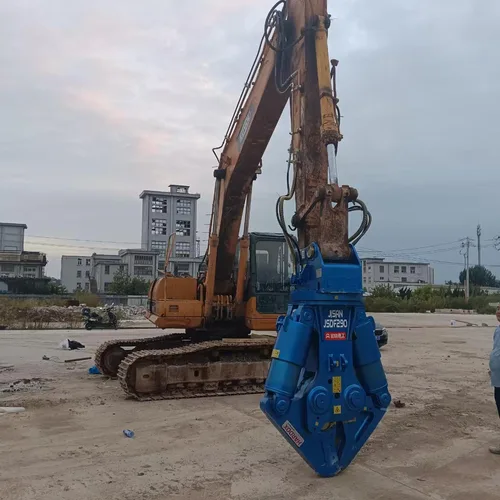

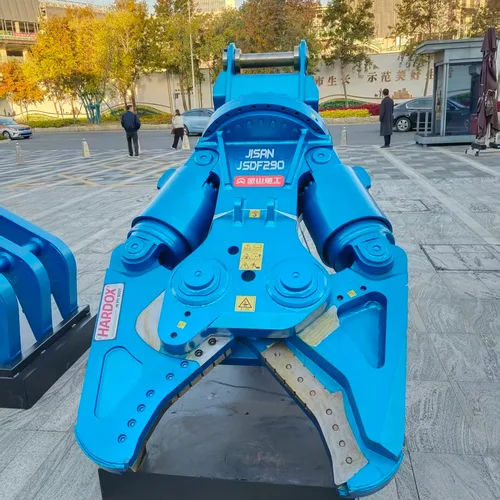

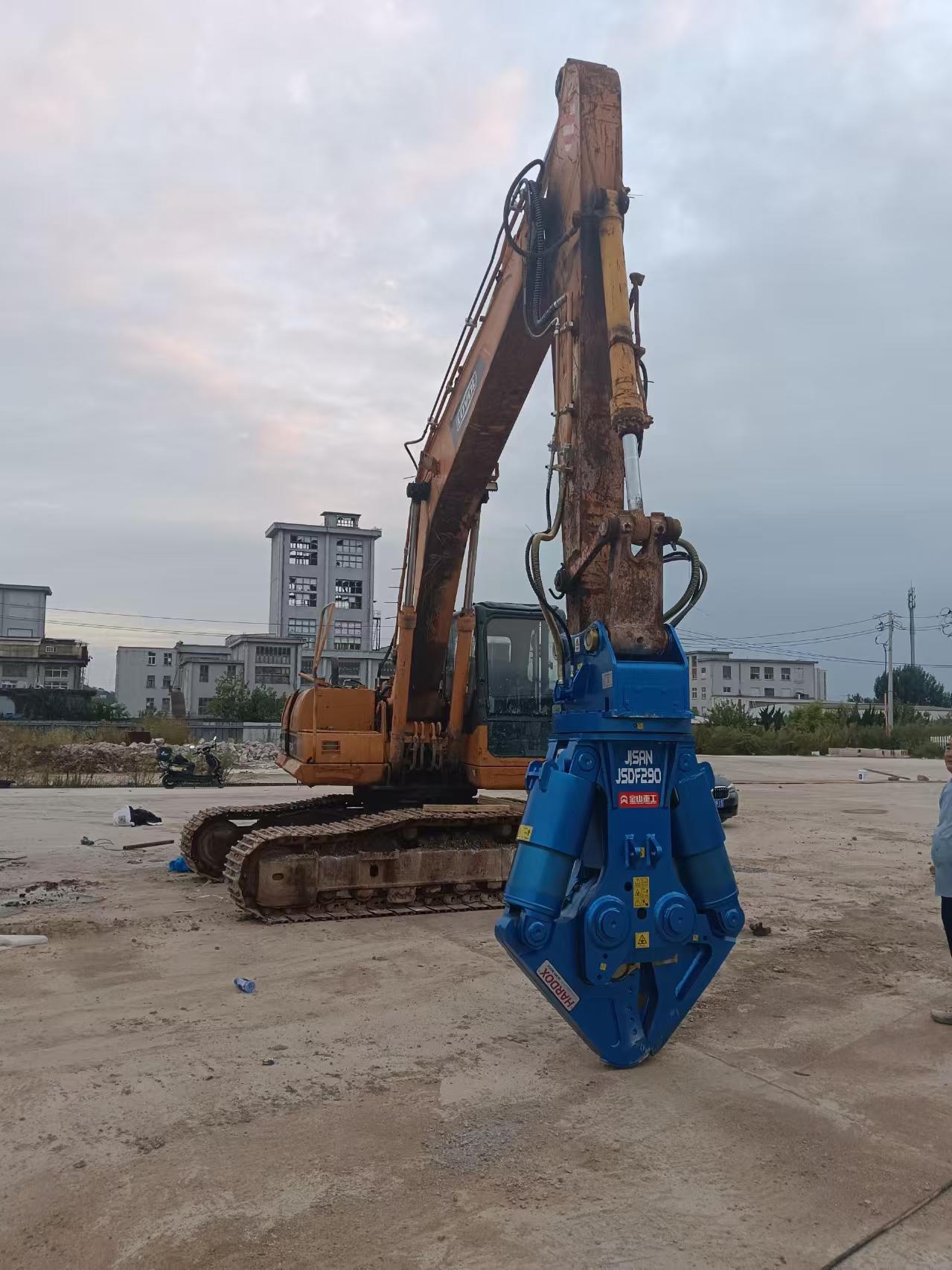

JSD F290 Double Cylinder Hydraulic Scrap Shear 2900kg Weight 690mm Opening For 20-30 Ton Excavator Scrap Metal & Car Dismantling

Name: JSD F290 Double Cylinder Hydraulic Scrap Shear 2900kg Weight 690mm Opening For 20-30 Ton Excavator Scrap Metal & Car Dismantling
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

JSD F290 heavy-duty double cylinder hydraulic scrap shear, total weight 2900kg, max jaw opening 690mm, perfectly compatible with 20~30 ton excavators. Driven by double synchronous hydraulic cylinders with powerful cutting force, equipped with thick wear-resistant alloy steel blades. Mainly used for scrap car dismantling, steel bar cutting, factory steel structure demolition, reinforced concrete breaking and steel mill scrap recycling. The whole body adopts thick cast steel with strong impact resistance and abrasion resistance. Custom connecting brackets are available to fit all brands of excavators, widely exported to scrap metal recycling & demolition projects in Central Asia and Africa.

$16296.00

Send Message Contact Supplier

Yantai Jinshan Heavy Industry Machinery Equipment Co., Ltd.

View Supplier

Year Established Established in 2009

Employees 101-500 People

Factory Area > 50,000 m²

Annual Revenue US$10 Million - US$50 Million

Main Markets North America / Europe / Southeast Asia / Oceania

Details

Specifications

Trade Information

Core Advantage Of Double Synchronous Powerful Shearing
Equipped with two large-bore synchronous hydraulic cylinders, cutting force is uniform and stable, 40% higher than single-cylinder shear. Thick steel plates, whole vehicle frames and thick steel bars can be cut off at one time. 690mm extra large jaw opening can directly grip whole I-beams and scrap car frames without segmented disassembly, greatly improving working efficiency. Built-in dust-proof wear-resistant oil seals inside cylinders avoid oil leakage under dusty demolition & steel mill harsh conditions to extend service life.
Thick Cast Steel Body & Wear-resistant Alloy Steel Blades
Integral thick cast steel body with few welding seams, excellent impact resistance and crack resistance, no deformation under long-term heavy load disassembly. Special wear-resistant alloy steel blades can be polished and repaired repeatedly, service life 3 times longer than ordinary steel blades. Widened reinforced blade seat bears even force during cutting to prevent blade collapse & breakage, suitable for high-strength scrap metal recycling.
Universal For 20~30t Excavators, Fully Custom Bracket
Standard fit for mainstream 20~30 ton excavators (Sany, XCMG, Caterpillar, Komatsu, Hyundai etc.). Custom exclusive connecting brackets based on client’s excavator brand and bucket ear size, quick installation without modifying excavator pipelines. Standard high-pressure oil ports reserved, compatible with original breaker hydraulic circuits of excavators, assembly and debugging finished within 1 hour.
Multi-scene All-round Operation
①Scrap metal recycling plant: cutting waste steel bars, I-beams, steel plates & waste containers;
②Scrap vehicle dismantling yard: integral cutting of car & truck frames, chassis and carriages;
③Demolition project: cutting factory steel structures, bridge steel bars & concrete beams;
④Mine & steel mill: fast volume reduction and recycling of leftover scraps.
Full Export Supporting Service
①CE export certificate and hydraulic component test report available;
②Anti-rust coating for whole machine, fumigated wooden frame packaging for ocean shipping;
③English installation, maintenance & troubleshooting manual supplied;
④Wearing parts (blades, oil seals, pins, hoses) can be exported separately in bulk;
⑤Custom client brand LOGO printing on body, customized hydraulic pipe joints to match overseas excavator standards.

Model

JSD F290

Total Weight

2900kg

Max Jaw Opening

690mm

Matching Excavator Weight

20~30 Ton

Driving Mode

Double Synchronous Hydraulic Cylinders

Blade Material

High Hardness Wear-resistant Alloy Steel

Body Material

Thickened Integral Cast Steel

Application

Scrap steel cutting, scrap car dismantling, reinforced concrete breaking, steel structure demolition

Custom Items

Excavator connecting bracket, pipe joint, body LOGO, thickened blade

Standard Accessories

Full set of high-pressure hoses, spare blade inserts, mounting pins

MOQ

1 Pieces

Description

Core Advantage Of Double Synchronous Powerful Shearing
Equipped with two large-bore synchronous hydraulic cylinders, cutting force is uniform and stable, 40% higher than single-cylinder shear. Thick steel plates, whole vehicle frames and thick steel bars can be cut off at one time. 690mm extra large jaw opening can directly grip whole I-beams and scrap car frames without segmented disassembly, greatly improving working efficiency. Built-in dust-proof wear-resistant oil seals inside cylinders avoid oil leakage under dusty demolition & steel mill harsh conditions to extend service life.
Thick Cast Steel Body & Wear-resistant Alloy Steel Blades
Integral thick cast steel body with few welding seams, excellent impact resistance and crack resistance, no deformation under long-term heavy load disassembly. Special wear-resistant alloy steel blades can be polished and repaired repeatedly, service life 3 times longer than ordinary steel blades. Widened reinforced blade seat bears even force during cutting to prevent blade collapse & breakage, suitable for high-strength scrap metal recycling.
Universal For 20~30t Excavators, Fully Custom Bracket
Standard fit for mainstream 20~30 ton excavators (Sany, XCMG, Caterpillar, Komatsu, Hyundai etc.). Custom exclusive connecting brackets based on client’s excavator brand and bucket ear size, quick installation without modifying excavator pipelines. Standard high-pressure oil ports reserved, compatible with original breaker hydraulic circuits of excavators, assembly and debugging finished within 1 hour.
Multi-scene All-round Operation
①Scrap metal recycling plant: cutting waste steel bars, I-beams, steel plates & waste containers;
②Scrap vehicle dismantling yard: integral cutting of car & truck frames, chassis and carriages;
③Demolition project: cutting factory steel structures, bridge steel bars & concrete beams;
④Mine & steel mill: fast volume reduction and recycling of leftover scraps.
Full Export Supporting Service
①CE export certificate and hydraulic component test report available;
②Anti-rust coating for whole machine, fumigated wooden frame packaging for ocean shipping;
③English installation, maintenance & troubleshooting manual supplied;
④Wearing parts (blades, oil seals, pins, hoses) can be exported separately in bulk;
⑤Custom client brand LOGO printing on body, customized hydraulic pipe joints to match overseas excavator standards.
