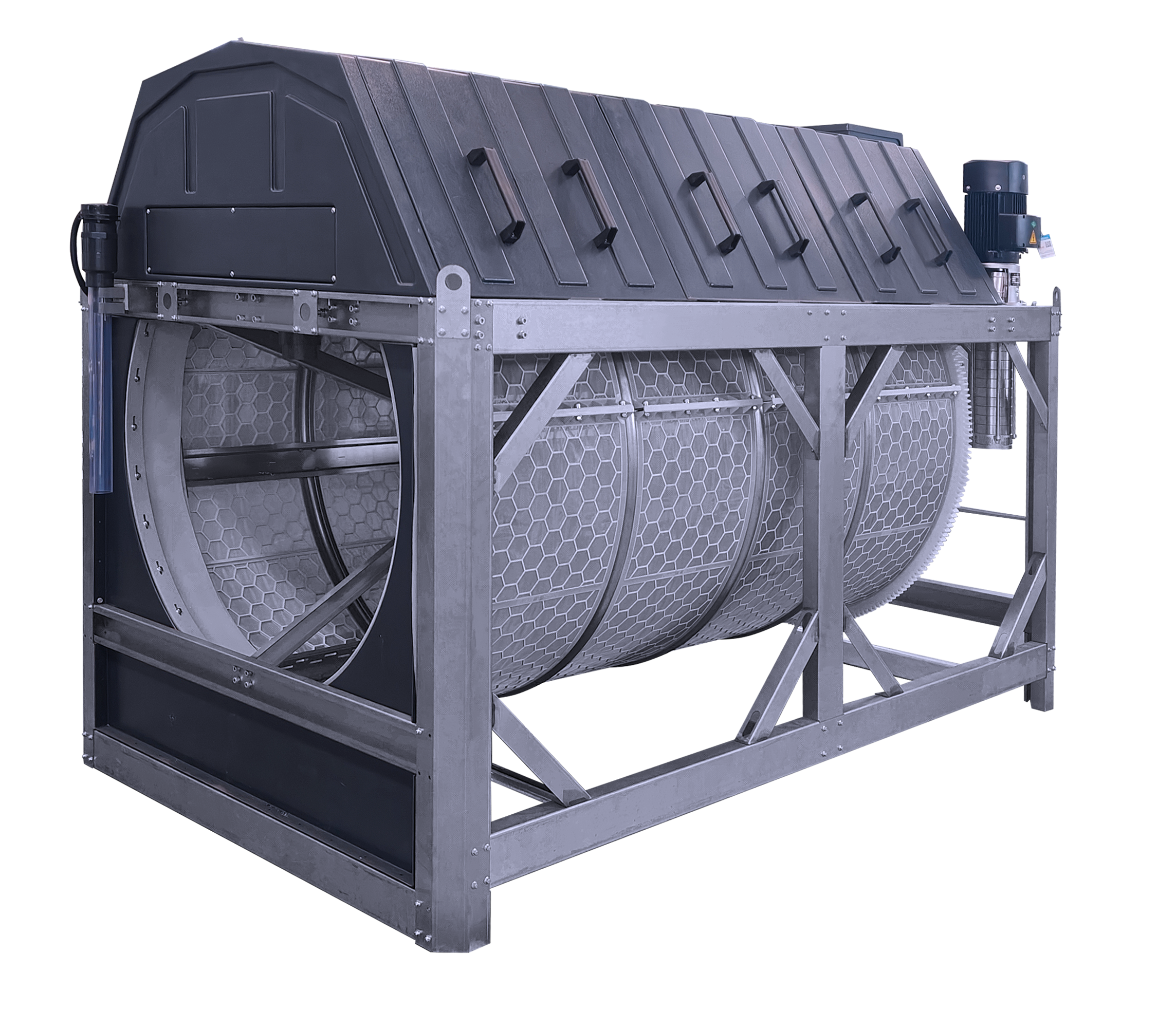

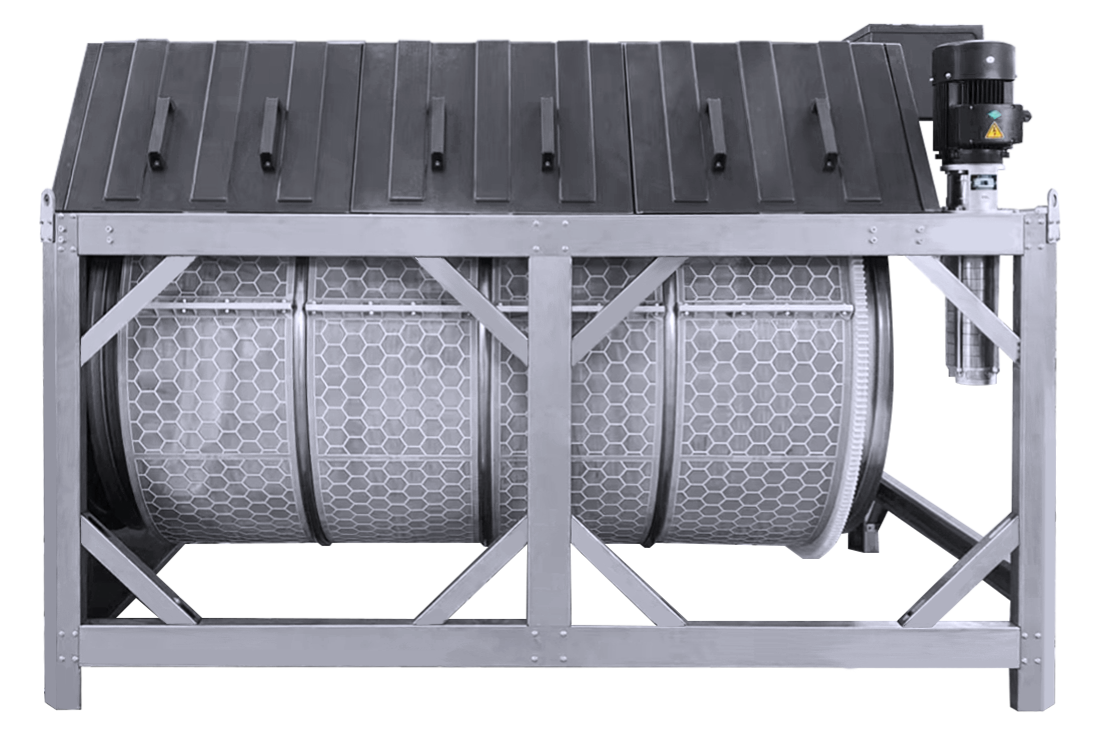

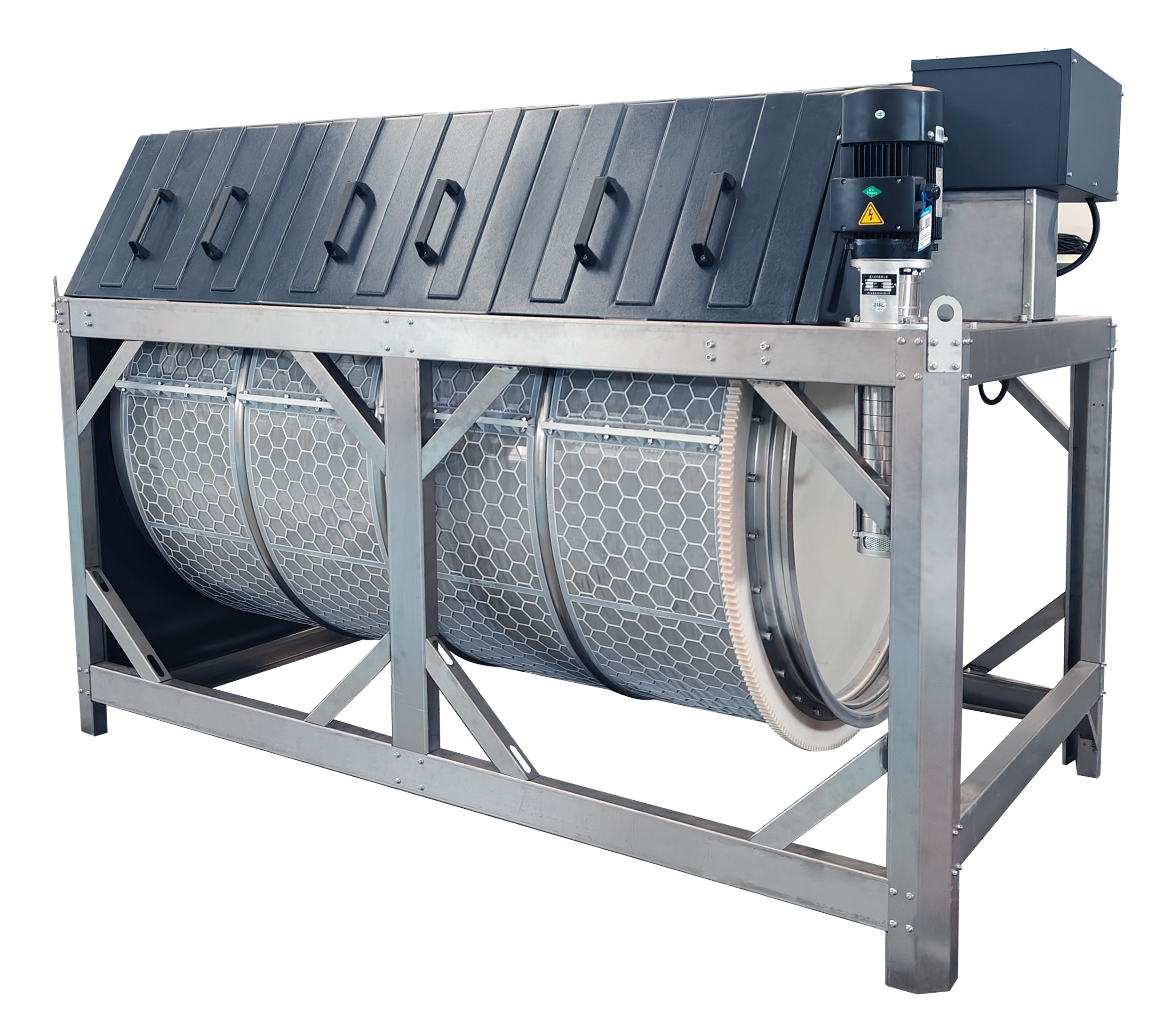

Huisen Frame Microfilter Aquaculture Drum Microfiltration Equipment

The new generation Huisen drum microfilter features a unique BeeCell filter panel for reliable and efficient water filtration and particle removal in the range of 30 to 500μm. Energy-saving and efficient with various versions and sizes, widely installed in RAS factories and fish farms across China.
$6979.00
Send Message Contact Supplier
Shandong Naxin New Energy Co., Ltd.

Shandong Naxin New Energy Co., Ltd.

View Supplier
Registration Date October 2017
Number of Employees 200
Factory Area 46,000 m²
Annual Sales 400 Million RMB
Main Products Water Source Heat Pump, Air Source Heat Pump, Low Temperature Difference Waste Heat Recovery Unit, Filter, Micro-filter, Protein Separator, Oxygen Increasing Equipment, Disinfection Equipment, Aquaculture Pond, Intelligent Bait Feeder, Fish Manure Collector; Full Life Cycle System Solutions for Modern Agriculture & Aquaculture
Target Markets Aquaculture Industry, Industrial Recirculating Aquaculture System
Details
Specifications
  • Unique Structure: The drum adopts a hanging design with four sets of support feet, ensuring more stable operation and longer service life in corrosive environments.
  • Zero Corrosion Design: The frame is made of titanium alloy, and key components such as filter discs, gears, and pressure wheels are made of glass fiber reinforced nylon to minimize corrosion risks.
  • Double-slope Sewage Collection Tank: The double-slope PP sewage tank allows backwash wastewater to flow directly into the pipeline without moving parts, eliminating clogging issues.
  • Intelligent Control System: The drive motor uses frequency conversion control to automatically monitor speed and operating status, with automatic fault protection and remote communication support.
  • High-efficiency Filter Design: The THXBee-Cell filter disc adopts a honeycomb hexagonal support grid, increasing the effective filtration area by more than 10% compared to traditional screens, improving efficiency and reducing space requirements.
Structural Style
Frame-type
Mesh Quantity
2/4/6/9/12/15/16/20/24/28/32
Anti-corrosion Method
C4 anti-corrosion (optional)
Model
HXDF-801/HXDF-802/HXDF-803/HXDF-1203/HXDF-1204/HXDF-1205/HXDF-1604/HXDF-1605/HXDF-1606/HXDF-1607/HXDF-1608
Maximum Throughput (m³/h)
80/160/240/360/480/600/760/960/1150/1350/1540
Filtering Accuracy
150 mesh - 500 mesh (25℃/125×25μm screen, customizable)
Motor Power (kW)
0.38/0.25/0.25/0.37/0.37/0.37/0.55/0.55/0.55/0.55/0.55
Cleaning Pump Power (kW)
0.75/1.1/1.5/1.5/2.2/2.2/2.2/3.0/3.0/3.0/4.0
Appearance Size (L×W×H, mm)
1260×1030×1180/1560×1030×1270/2000×1030×1400/1970×1400×1900/2410×1400×1900/2850×1400×1900/2410×1905×2340/2847×1905×2540/3284×1905×2540/3721×1905×2540/4195×1905×2440
Main Material
316L frame /titanium roller frame /glass fiber reinforced nylon
Mesh Material
316L/nylon/PET (optional)
Control Mode
Automatic high pressure backwashing
Sensor
Liquid level sensor (required)/pressure sensor (optional)/turbidity sensor (optional)
Communication Method
RS485 communication protocol (optional)
Power Supply
Standard three-phase four-wire, 380V, 50Hz (customizable)
Drive Motor Control
Frequency conversion control
Fault Alarm
Standard configuration
  • Huisen Frame Microfilter Aquaculture Drum Microfiltration Equipment
  • Huisen Frame Microfilter Aquaculture Drum Microfiltration Equipment
  • Huisen Frame Microfilter Aquaculture Drum Microfiltration Equipment

Description

  • Unique Structure: The drum adopts a hanging design with four sets of support feet, ensuring more stable operation and longer service life in corrosive environments.
  • Zero Corrosion Design: The frame is made of titanium alloy, and key components such as filter discs, gears, and pressure wheels are made of glass fiber reinforced nylon to minimize corrosion risks.
  • Double-slope Sewage Collection Tank: The double-slope PP sewage tank allows backwash wastewater to flow directly into the pipeline without moving parts, eliminating clogging issues.
  • Intelligent Control System: The drive motor uses frequency conversion control to automatically monitor speed and operating status, with automatic fault protection and remote communication support.
  • High-efficiency Filter Design: The THXBee-Cell filter disc adopts a honeycomb hexagonal support grid, increasing the effective filtration area by more than 10% compared to traditional screens, improving efficiency and reducing space requirements.
