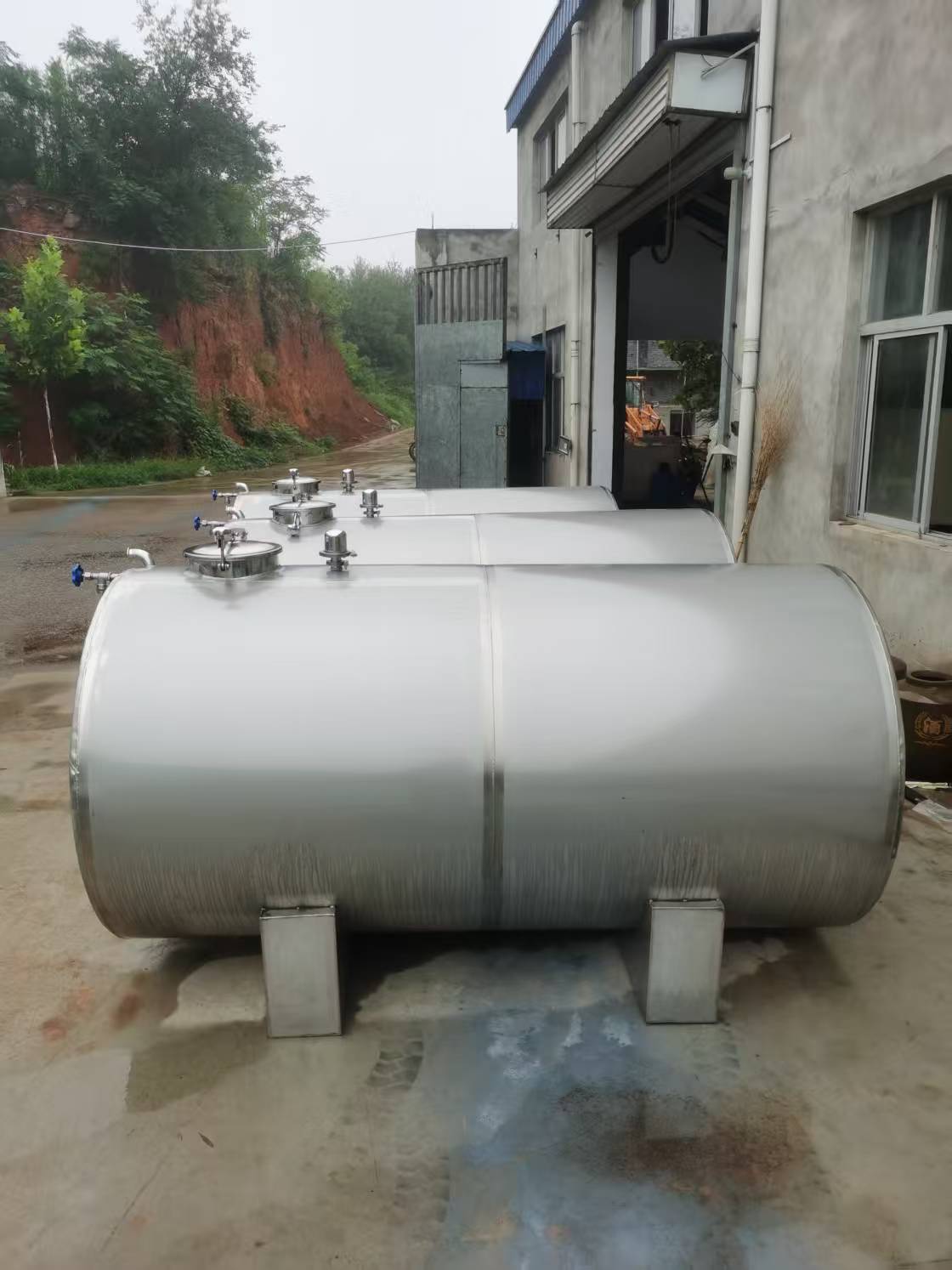

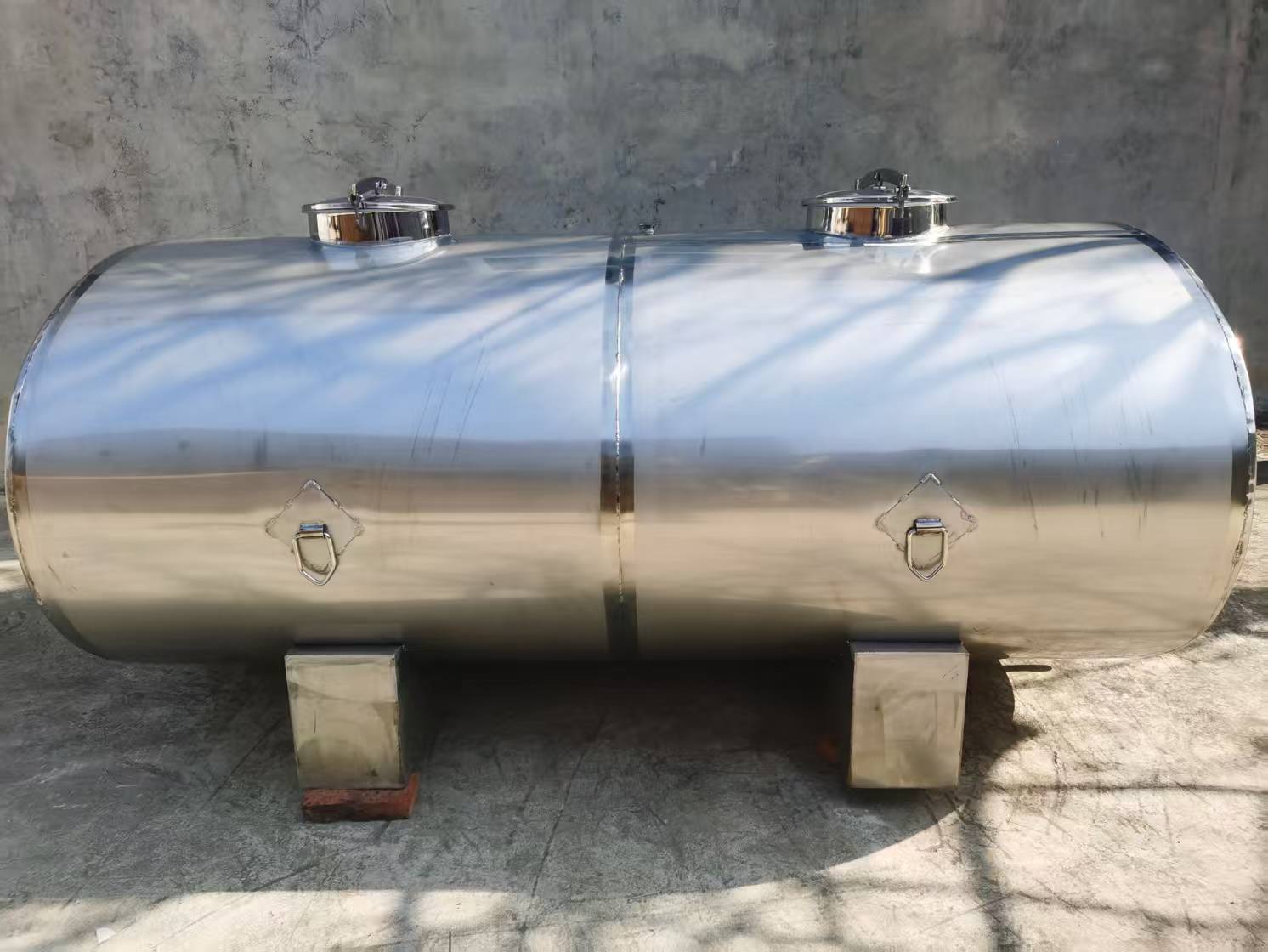

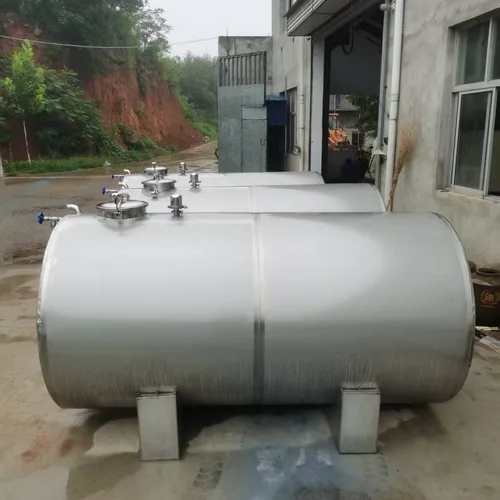

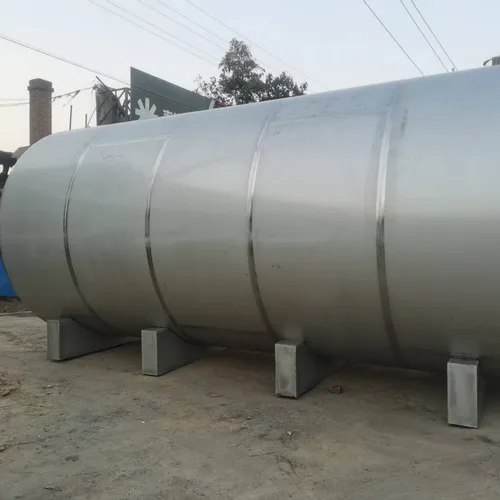

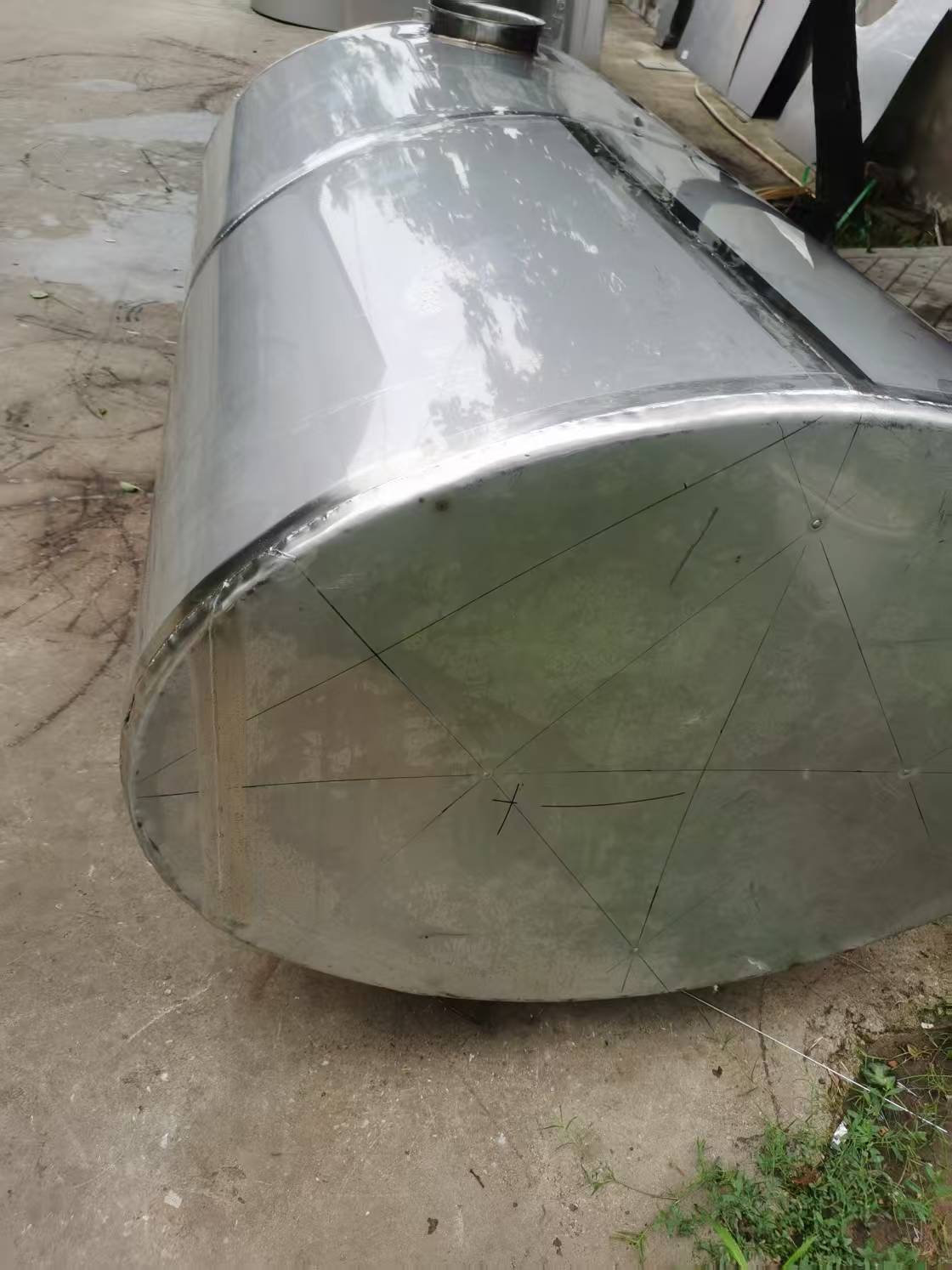

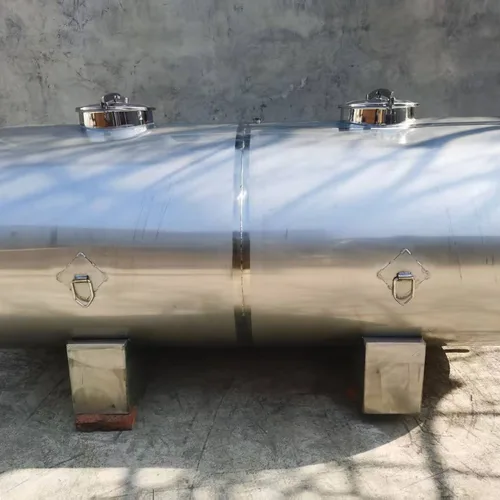

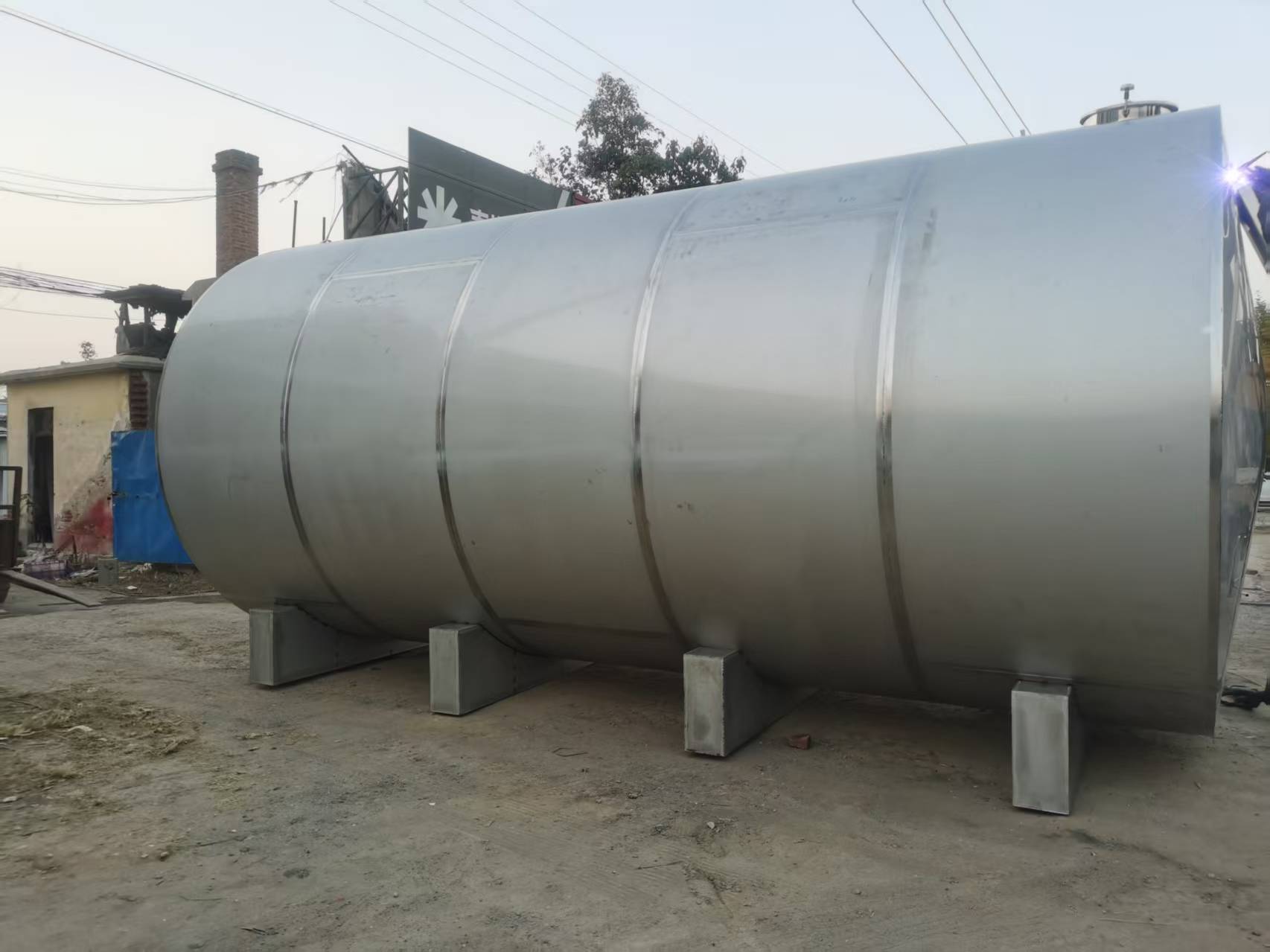

Horizontal Stainless Steel Storage Tank, Insulated Horizontal Holding Tank, Horizontal Liquid Transport Tank

USD $440.70 / Pieces

Min. Order: 1 Pieces

Tank Material:: SUS304 Food Grade Stainless Steel (SUS316L Optional)
Effective Volume:: 1m³ / 5m³ / 10m³ / 20m³ / 50m³ / 100m³ Customizable
Tank Structure:: Horizontal Cylinder + Elliptic Sealing Head
Insulation Option:: Single Layer / Double Layer 50mm Polyurethane Insulation

Send Inquiry

Product Features & Applications

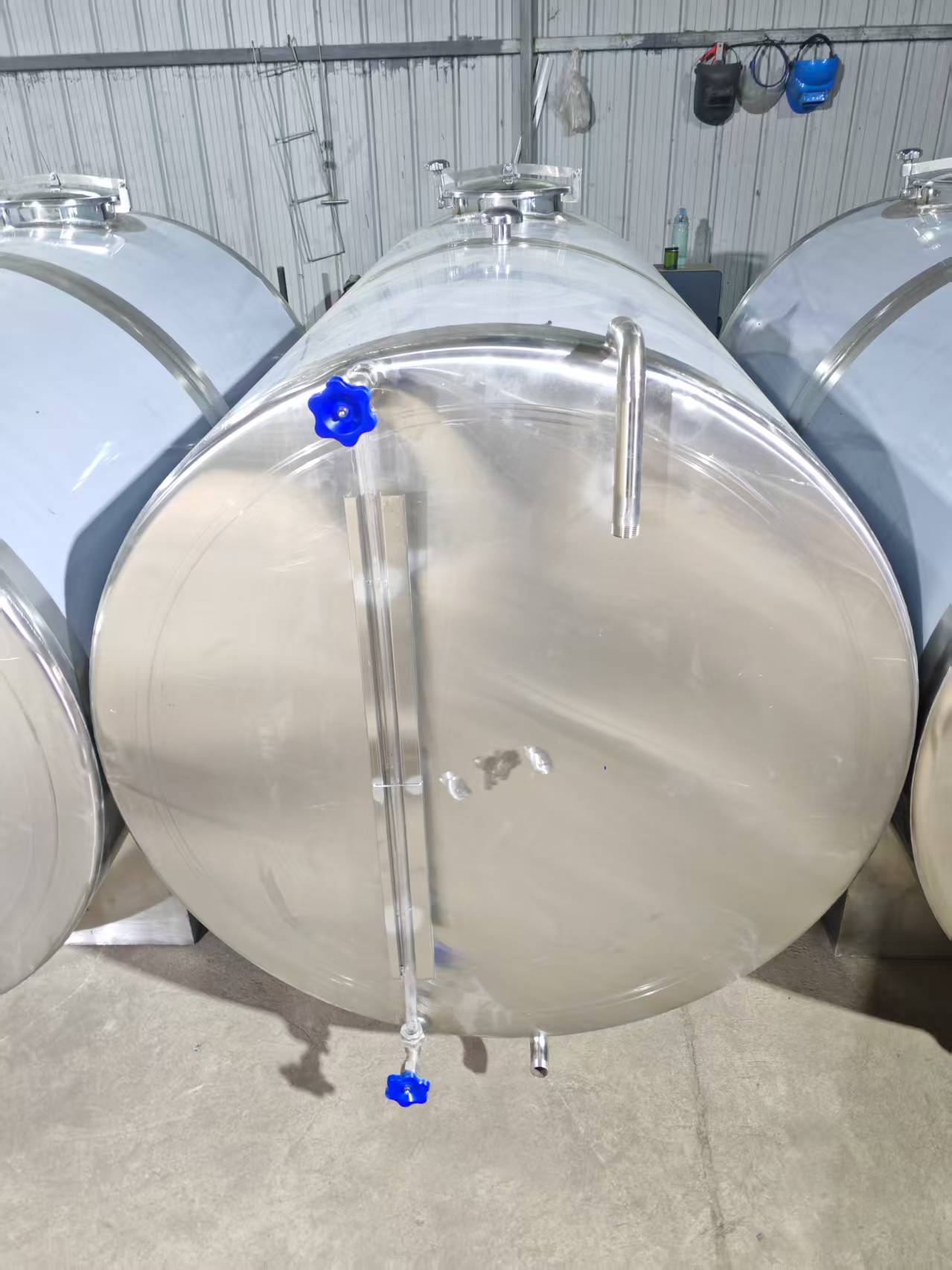

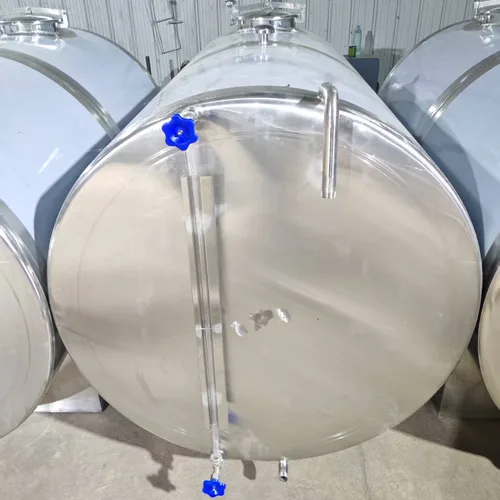

Horizontal stainless steel storage tank is integrally rolled and welded with food-grade SUS304/SUS316L stainless steel, horizontal oval structure with low height, suitable for indoor placement or underground burial. Optional polyurethane insulation layer, sealed end caps prevent liquid volatilization and oxidation, equipped with manhole, liquid level gauge, drain port and material inlet/outlet. Widely used for storage of liquor, fruit wine, edible oil and beverage liquid. Custom volume from 1 ton to 100 tons, compliant with GMP food sanitary standards.

1. Product Overview

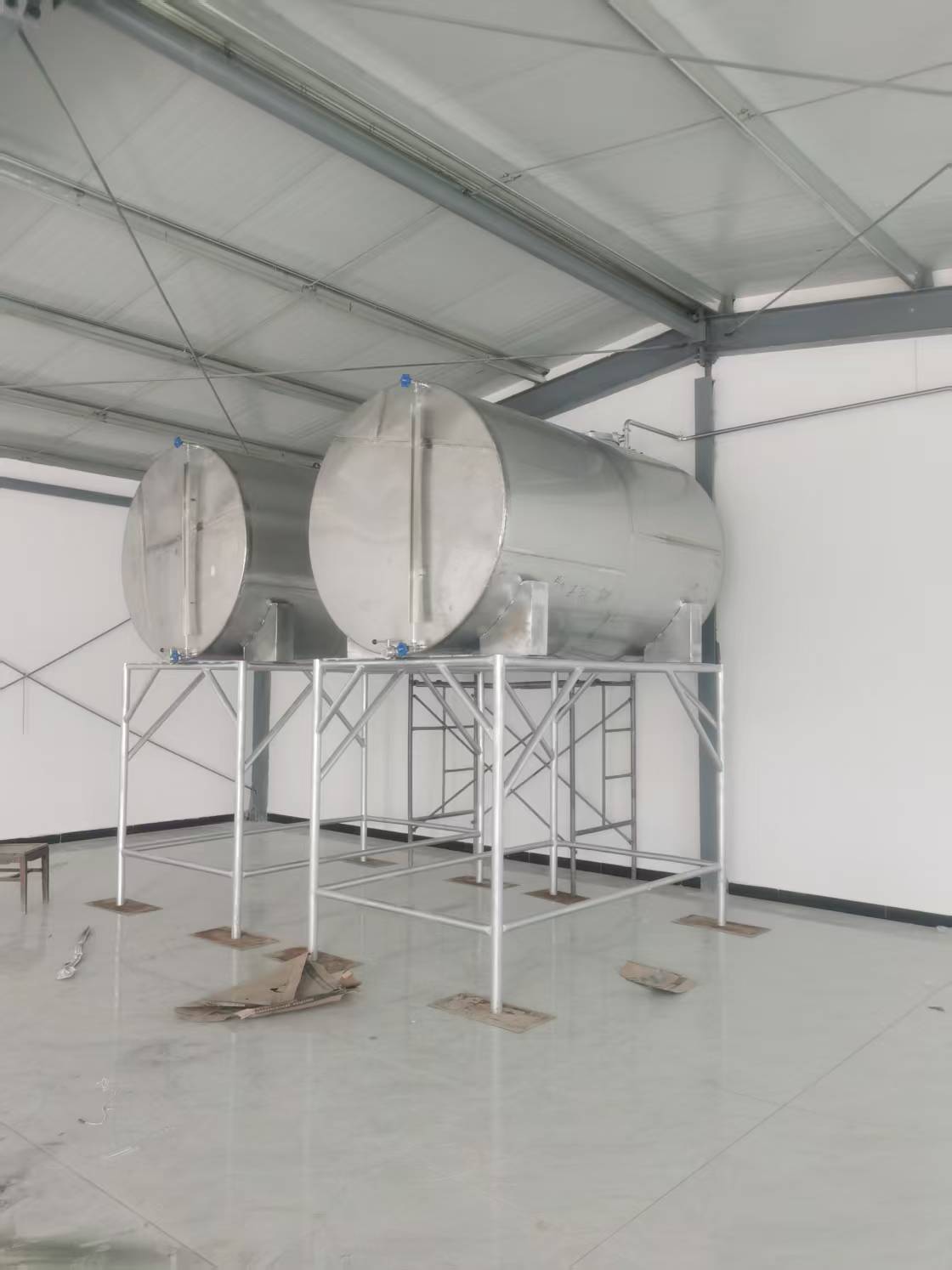

Horizontal stainless steel liquid storage tank is large-capacity horizontal storage equipment specially used in distilleries, grain oil factories and beverage factories. Horizontal cylinder + elliptical head structure with low center of gravity for stable placement, can be buried underground to save workshop space. Single-layer ordinary storage type and double-layer insulated constant temperature type are optional, with polyurethane insulation filled between double layers to keep liquid temperature stable for long-term storage. Equipped with standard pipeline ports, cleaning ports and sight glasses, it can realize static wine aging and transfer storage, ideal for mass wine storage in small and medium-sized wineries.

2. Core Advantages

✅ Space-saving Layout: Low horizontal structure, installable in low-ceiling workshops or underground cellars to improve space utilization;

✅ Underground Buried Design: Anti-corrosion polished tank body, isolate light for liquor cellar aging process;

✅ Optional Double Insulation: 50mm polyurethane insulation layer reduces temperature fluctuation and stabilizes wine flavor;

✅ Food-grade Safe Material: SUS304 stainless steel mirror polished inside and outside, resistant to alcohol and grease corrosion without material residue;

✅ Fully Sealed Fresh-keeping: Flange head with silicone seal isolates air to avoid liquor volatilization and oxidation deterioration;

✅ Customizable Sizes: Volume from 1 ton to 100 tons, plate thickness, support frame, valves and pipelines can be customized as required;

✅ Easy Maintenance: Inclined bottom drainage structure without residue dead corners, convenient for cleaning and discharging.

3. Application Scenarios

Wine Industry: Horizontal cellar storage and static clarification of Baijiu, rice wine and fruit wine;
Grain & Oil Industry: Sealed horizontal storage of peanut oil, rapeseed oil and palm oil;
Food & Beverage: Constant temperature storage and transfer of fruit juice, syrup, fresh milk and purified water;
Chemical Industry: Normal temperature temporary storage of non-corrosive water-based raw materials and daily chemical additives;
Cellar Winery: Underground buried wine tank for long-term aging of base liquor.
