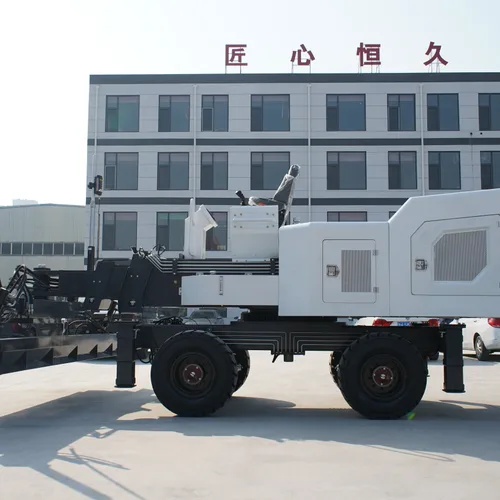

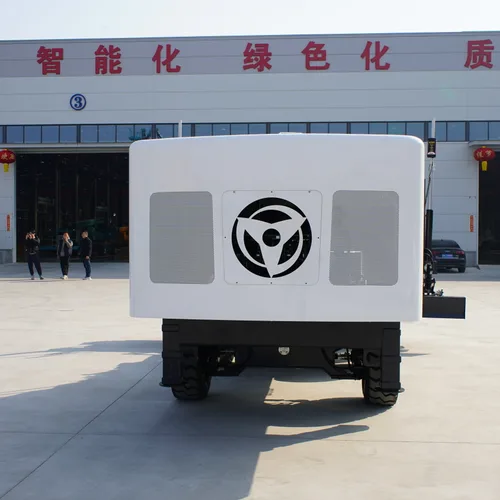

The JB60-40 Large Telescopic Boom Laser Concrete Screed is powered by a Yanmar 4TNV98T four-cylinder diesel engine with a Danfoss hydraulic system, and optional laser systems from Leica, Trimble or Topcon for automatic leveling of planes, slopes and dual slopes (3D). Equipped with a 6000mm telescopic arm and 4000mm ultra-wide vibrating plate, it features a reversible and interchangeable hydraulic auger paving design, completing large-area concrete paving, vibration, slurry lifting and leveling in one pass. Suitable for heavy-duty concrete projects such as large factories, logistics warehouses, airport runways and large squares, it is a top flagship equipment to improve precision and efficiency in large-area floor construction.
$50000.00 - 60000.00
Jining Jiubang Construction Machinery Equipment Co., Ltd.

Jining Jiubang Construction Machinery Equipment Co., Ltd.

View Supplier
Registration Date March 2, 2020
Number of Employees 700+
Factory Area About 170,000 m²
Annual Sales 300 Million RMB
Main Products Aerial Work Equipment (Core Products): Truck-mounted aerial work platforms (e.g., 56m models), new energy self-propelled aerial work platforms, etc. Special Engineering Vehicles: Telescopic boom fork loaders (multi-functional forklifts), skid steer loaders, electric forklifts, etc. Road & Forestry Machinery: Laser leveling machines, grapple saws and felling machines for forest operations, etc. Other Heavy Equipment: Cranes and other construction machinery.
Target Markets Russia, Kazakhstan, Uzbekistan, Kyrgyzstan, Saudi Arabia, Azerbaijan, Vietnam, Malaysia, etc.
Details
Specifications
Ultra-wide High-efficiency Construction: 4000mm ultra-wide screed + 6m telescopic arm provides larger single-pass coverage, with efficiency 4-5 times higher than small models, ideal for large-area floor projects like 10,000㎡ factories and airport runways to greatly shorten construction periods.
Powerful Heavy-duty Configuration: Yanmar 4TNV98T four-cylinder diesel engine with 63.9KW high power output, strong performance with optimized fuel consumption. The 140L large-capacity fuel tank provides 10-15 hours of runtime, meeting long-term high-intensity construction needs.
Danfoss Hydraulic System: Imported Danfoss hydraulic system ensures stable operation and low failure rates. Combined with one-touch four-leg self-leveling, the equipment maintains strong stability during construction with minimal flatness errors, meeting high requirements for heavy-duty industrial floors.
Flexible Construction Design: Hydraulic 4WD + multi-mode steering (front-wheel/four-wheel/crab) allows flexible movement even in narrow site areas. The reversible hydraulic auger is easy to clean and maintain, with interchangeable left/right design adapting to different construction directions for convenient maintenance.
3D High-precision Leveling: Equipped with imported laser systems supporting plane, slope and dual slope 3D construction. The 100-500mm leveling thickness range meets different heavy-duty floor thickness requirements, widely adapting to various large concrete project scenarios.
Model
JB60-40
Engine Model
Yanmar 4TNV98T
Engine Type
Diesel, four-cylinder
Engine Power
63.9KW / 86HP
Fuel/Hydraulic Oil Capacity
Fuel 140L (10-15h runtime) / Hydraulic Oil 200L
Hydraulic System
Danfoss
Laser System
Leica/Trimble/Topcon (optional), microcomputer laser scanning control
Control Effect
Plane/Slope/Dual Slope (3D)
Paving Method/Auger Power
Hydraulic auger paving, hydraulic motor drive
Auger Features
Reversible for easy cleaning, interchangeable left/right
Vibration Type/Force
Hydraulic Vibration / 2000N
Telescopic Arm Length
6000mm
Vibrating Screed Width
4000mm
Leveling Thickness
100-500mm
Travel Speed/Efficiency
4-8km/h, 24㎡/min
Drive/Steering
Hydraulic 4WD, front-wheel/four-wheel/crab steering
Outrigger Function
One-touch four-leg self-leveling
Tires
Solid Anti-slip & Anti-puncture Tires
Washer Flow Rate
15L/min
Dimensions/Weight
5495×4555×2630mm, 8500kg
