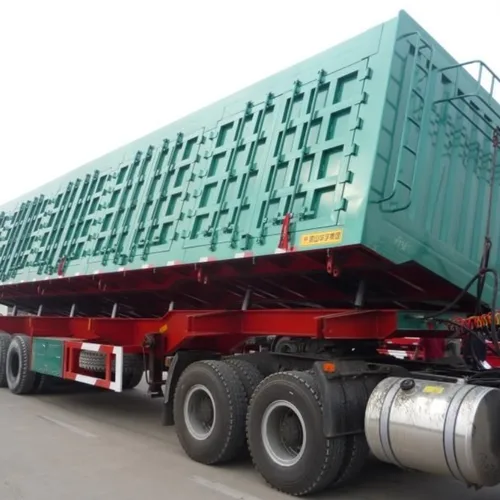

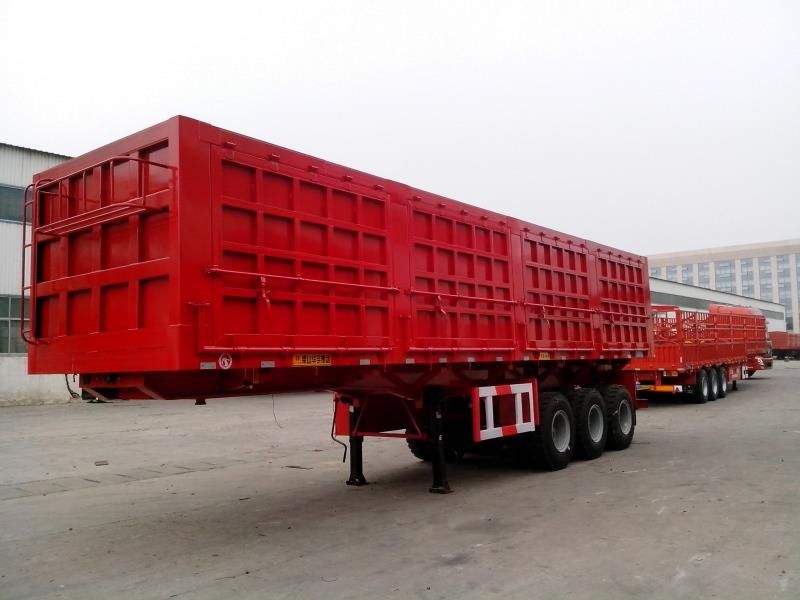

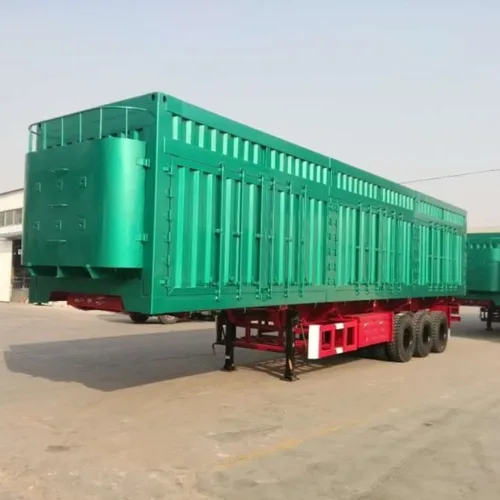

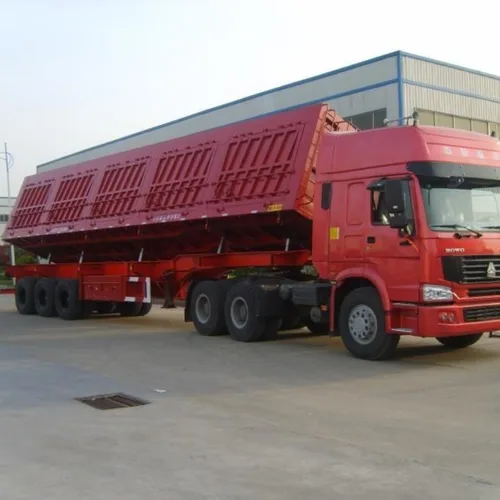

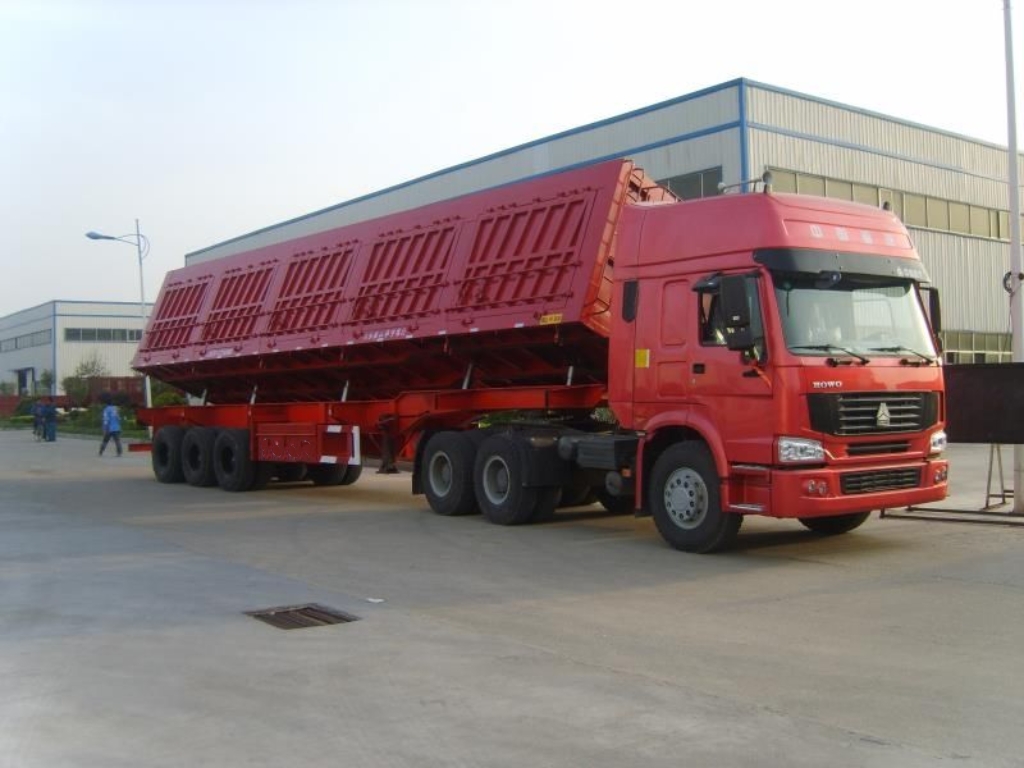

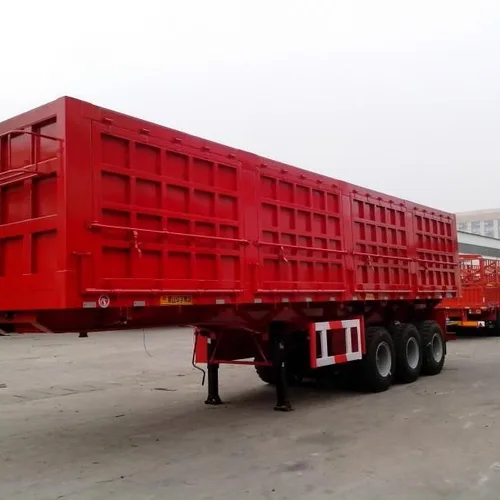

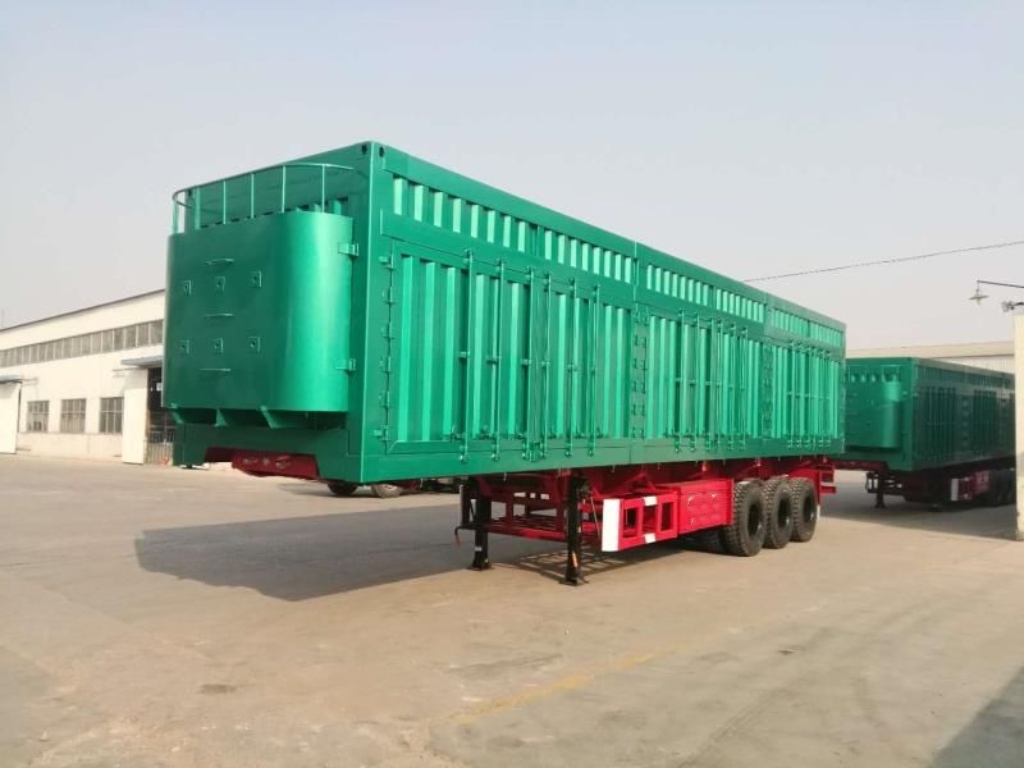

Heavy-duty Hydraulic Lifting Side Tipper Trailer Air Suspension / Mechanical Suspension Optional Customized Dimension

Name: Heavy-duty Hydraulic Lifting Side Tipper Trailer Air Suspension / Mechanical Suspension Optional Customized Dimension
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

Tri-axle side tipper dump semi-trailer, overall dimension, cargo plate thickness, suspension type and hydraulic system are all customizable. Adopts thickened high-strength wear-resistant steel cargo box with single-side hydraulic cylinder side tipping design for fast smooth unloading without material blockage. Mechanical suspension and air suspension are optional for stable heavy-load transport. Suitable for bulk engineering materials such as sand, stone, ore, coal, earthwork and construction materials, widely exported to mine & construction markets in Central Asia and Africa. Cargo box volume, body color, axle brand and lifting force can be fully customized.

$17748.00

Send Message Contact Supplier

Liangshan Yunchi Vehicle Co., Ltd.

Main Products: Container dump semi-trailers, skeleton semi-trailers, van rear-tipping semi-trailers, stake semi-trailers

View Supplier

Year Established Established in 2022

Main Products Container dump semi-trailers, skeleton semi-trailers, van rear-tipping semi-trailers, stake semi-trailers

Employees Less than 50 People

Factory Area 1,000-5,000 m²

Annual Revenue US$1 Million - US$5 Million

Main Markets Southeast Asia

Details

Specifications

Trade Information

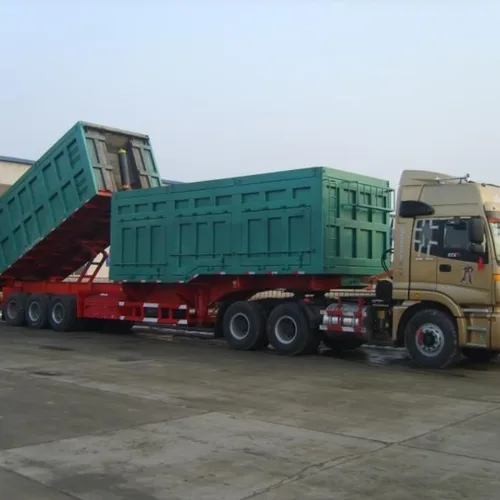

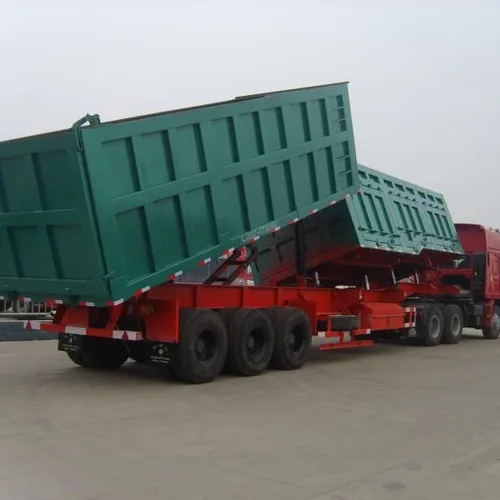

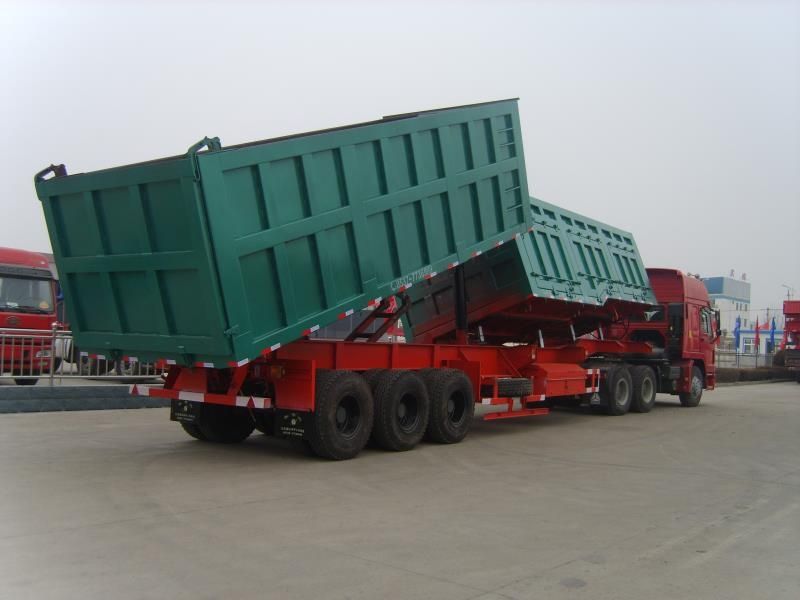

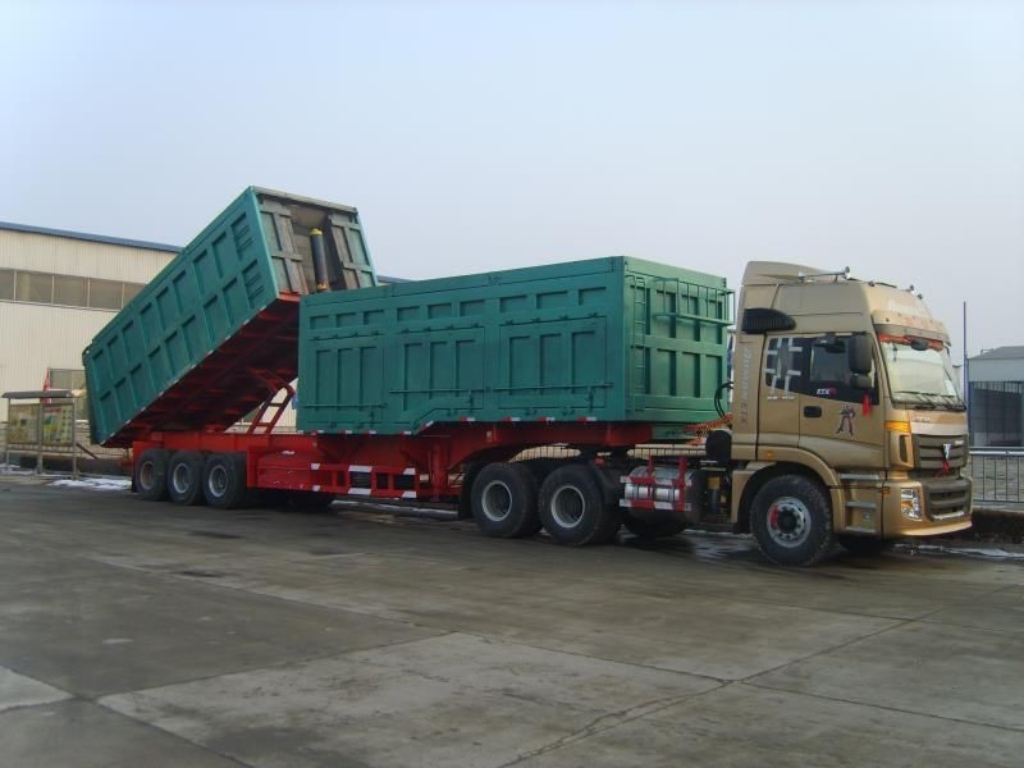

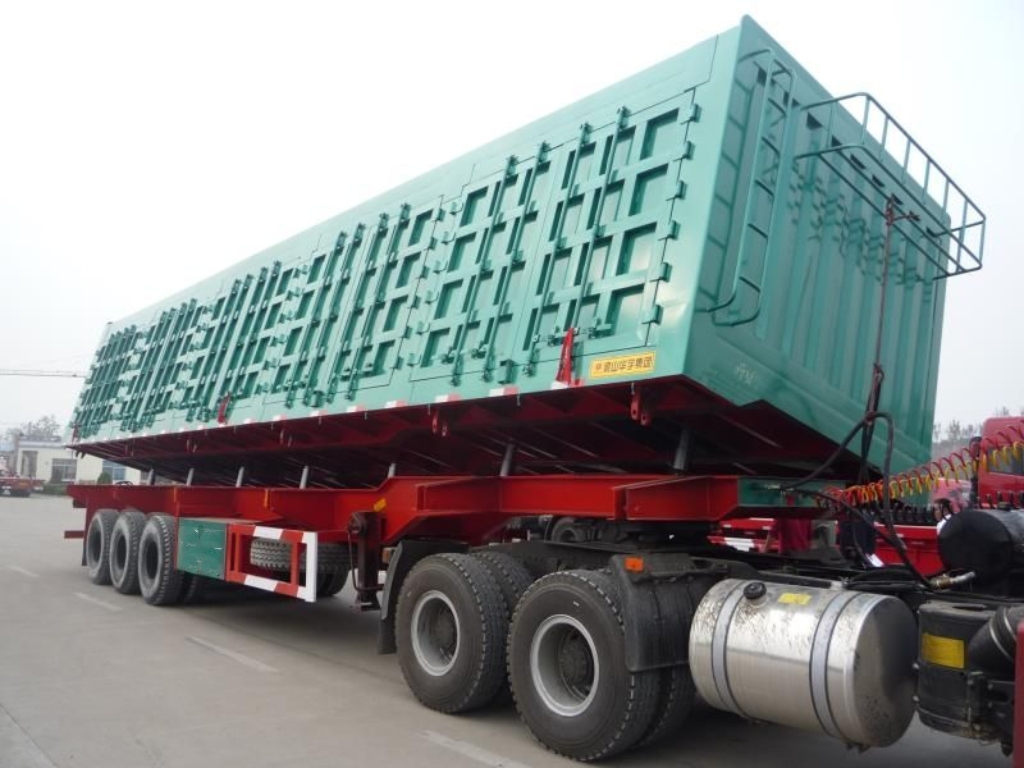

Single-side Hydraulic Side Tipping Discharge Structure
Adopts multiple groups of synchronous hydraulic cylinders on single side for large tipping angle, bulk materials such as sand, stone and earth slide off rapidly without residue or blockage. Imported Hyva hydraulic cylinder is optional with sufficient lifting power, durable and leak-proof under harsh heavy-load mine working conditions. Thickened explosion-proof hydraulic pipelines resist damage from long-distance bumping and gravel impact to extend whole vehicle service life.
High-strength Wear-resistant Heavy-duty Cargo Box Design
The cargo box is welded with high manganese wear-resistant steel plate, thickened and reinforced floor to resist ore impact and abrasion. The whole box is bent and strengthened with dense vertical & horizontal stiffeners to avoid deformation and cracking under heavy load. Sealing rubber strips installed on rear doors prevent leakage of fine sand and coal powder to meet environmental transport standards. Cargo box height and volume can be customized in accordance with local height & load limit regulations.
Tri-axle Stable Load-bearing Chassis
High-strength manganese steel through-type main beam delivers strong bending & torsion resistance. Tri-axle balanced suspension bears even force during driving without unbalanced load on mountain and rough roads under full load. Air suspension version provides excellent shock absorption to protect chassis and hydraulic system and extend spare part replacement cycle. Full vehicle standard ABS brake system ensures stable braking on downhill heavy load to avoid side rollover risks.
Full-range Personalized Customization Service
Overall dimension, cargo plate thickness, hydraulic cylinder brand, suspension type, tire spec, axle brand, body color, LOGO printing and reinforced load structure are all customizable. Cargo box volume and overall size can be adjusted to comply with local weight & height limit road regulations in Central Asia and Africa for smooth customs clearance and registration.
Core Application Scenarios
Mine ore haulage, construction site sand & earth transfer, coal powder transport, infrastructure building materials, earthwork projects and short-distance heavy transport at sand yards. Suitable for mine areas, rural dirt roads and cross-border engineering infrastructure projects with poor road conditions, it is the mainstream dump semi-trailer for engineering logistics in Central Asia and Africa.
Full Export Supporting Service
①Optional imported BPW axles, Hyva hydraulic cylinders and EBS brake system; CE export certificate and third-party load inspection report available.
②Whole vehicle fumigated wooden frame packaging for ocean shipping, 24-hour online after-sales support, separate replenishment of wearing parts such as hydraulic cylinders, axles and tires for export.
③Compatible with LHD / RHD tractor heads, adjust fifth wheel height and lighting system to meet road standards of various countries.

Axle Quantity

Tri-axle

Suspension System

Mechanical Suspension / Air Suspension

Frame Material

High-strength Manganese Steel Main Beam

Cargo Box Plate

wear-resistant manganese steel floor, 4-8mm side plate, thickness customizable

Lifting Type

Single-side Hydraulic Side Tipping

Hydraulic System

Domestic Hydraulic Cylinder / Imported Hyva Cylinder Optional

Box Volume

30-60 CBM, Volume Customizable

Standard Length

10/11/12/13m, full L/W/H customizable

Tire Spec

12.00R20 Heavy-duty Steel Tire / 385/65R22.5 Tubeless Tire Optional

Axle Brand

FUWA / Import BPW / Domestic Standard Axle Optional

Brake System

Drum Brake, ABS Anti-lock System As Standard

Rated Load Capacity

40-80 Ton Rated Load, Reinforced Load Structure Customizable

Rear Structure

Split Rear Dump Door With Sealing Strips To Prevent Material Leakage

Custom Scope

Full L/W/H, cargo plate thickness, hydraulic cylinder, suspension, body color, LOGO & reinforced load structure all customizable

MOQ

1 Pieces

Description

Single-side Hydraulic Side Tipping Discharge Structure
Adopts multiple groups of synchronous hydraulic cylinders on single side for large tipping angle, bulk materials such as sand, stone and earth slide off rapidly without residue or blockage. Imported Hyva hydraulic cylinder is optional with sufficient lifting power, durable and leak-proof under harsh heavy-load mine working conditions. Thickened explosion-proof hydraulic pipelines resist damage from long-distance bumping and gravel impact to extend whole vehicle service life.
High-strength Wear-resistant Heavy-duty Cargo Box Design
The cargo box is welded with high manganese wear-resistant steel plate, thickened and reinforced floor to resist ore impact and abrasion. The whole box is bent and strengthened with dense vertical & horizontal stiffeners to avoid deformation and cracking under heavy load. Sealing rubber strips installed on rear doors prevent leakage of fine sand and coal powder to meet environmental transport standards. Cargo box height and volume can be customized in accordance with local height & load limit regulations.
Tri-axle Stable Load-bearing Chassis
High-strength manganese steel through-type main beam delivers strong bending & torsion resistance. Tri-axle balanced suspension bears even force during driving without unbalanced load on mountain and rough roads under full load. Air suspension version provides excellent shock absorption to protect chassis and hydraulic system and extend spare part replacement cycle. Full vehicle standard ABS brake system ensures stable braking on downhill heavy load to avoid side rollover risks.
Full-range Personalized Customization Service
Overall dimension, cargo plate thickness, hydraulic cylinder brand, suspension type, tire spec, axle brand, body color, LOGO printing and reinforced load structure are all customizable. Cargo box volume and overall size can be adjusted to comply with local weight & height limit road regulations in Central Asia and Africa for smooth customs clearance and registration.
Core Application Scenarios
Mine ore haulage, construction site sand & earth transfer, coal powder transport, infrastructure building materials, earthwork projects and short-distance heavy transport at sand yards. Suitable for mine areas, rural dirt roads and cross-border engineering infrastructure projects with poor road conditions, it is the mainstream dump semi-trailer for engineering logistics in Central Asia and Africa.
Full Export Supporting Service
①Optional imported BPW axles, Hyva hydraulic cylinders and EBS brake system; CE export certificate and third-party load inspection report available.
②Whole vehicle fumigated wooden frame packaging for ocean shipping, 24-hour online after-sales support, separate replenishment of wearing parts such as hydraulic cylinders, axles and tires for export.
③Compatible with LHD / RHD tractor heads, adjust fifth wheel height and lighting system to meet road standards of various countries.
