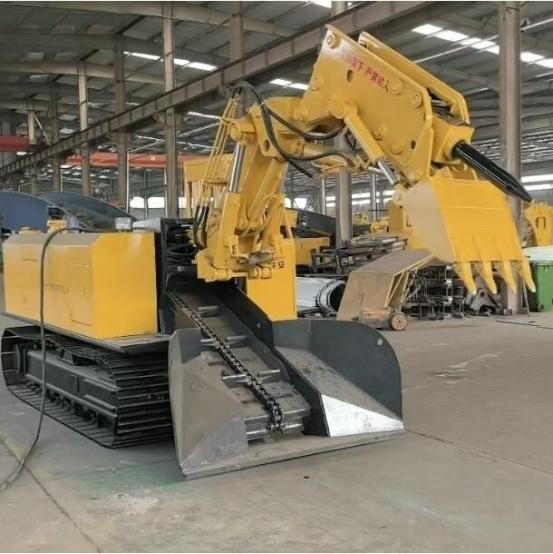

Heavy-Duty 23 Ton Breaker Trolley, Rexroth Hydraulics, 55KW Power, For Underground Tunnels

USD $74650.90 / Unit

Min. Order: 1 Unit

Product Model:: 23 Ton Class Crawler Breaker Boom System (DEHN140 Hydraulic Hammer)
Operating Weight:: Approx. 23 Tons
Max Working Radius:: 10300mm
Vertical Breaking Radius:: Max 5500mm / Min 2200mm

Send Inquiry

Product Features & Applications

This is a 23 Ton Class Crawler Breaker Boom System, a heavy-duty hydraulic breaking equipment purpose-built for mining hard rock secondary crushing, tunneling, underground tunnel demolition, and concrete demolition scenarios. With an operating weight of approximately 23 tons, it is equipped with a DEHN140 Soosan series triangular hammer adaptable to 16~25MPa working pressure, paired with Rexroth hydraulic system and 55KW power. Offering powerful breaking force, large working radius, and high efficiency, it is the ideal solution for underground tunnel and large mining hard rock breaking operations.

1. Basic Product Information

This 23 Ton Class Crawler Breaker Boom System has an operating weight of approximately 23 tons, a maximum working radius of 10.3 meters, and a maximum vertical breaking radius of 5.5 meters. Equipped with a DEHN140 Soosan series triangular hammer, it is a heavy-duty breaking equipment purpose-built for mining hard rock, tunneling, and underground tunnel demolition, capable of efficiently crushing 0-50MPa hard rock and thick concrete structures.

2. Core Configuration and Performance Features

Heavy-Duty Breaking System: The DEHN140 Soosan series triangular hammer with a Φ140mm chisel and impact frequency of 460~780bpm adapts to 16~25MPa working pressure, delivering powerful breaking force for efficient crushing of hard rock and thick concrete, with far higher efficiency than traditional small breakers.
Large Radius Work Arm: 2100mm boom and 1850mm arm with a maximum working radius of 10.3 meters and vertical breaking height of 5.5 meters, suitable for large-span and deep foundation demolition operations, reducing equipment movements.
Hydraulic and Power System: Rexroth series main pump and main valve paired with a 55KW main pump motor (diesel engine optional for dual power), providing powerful and stable power output with max system pressure 28MPa and flow 200L/min. Equipped with a 0.8KW air cooler and 3KW hydraulic oil heater, it adapts to harsh conditions such as high/low temperatures and dusty environments.
Chassis and Control: Komatsu series undercarriage with excellent terrain adaptability for stable travel on muddy and uneven mine surfaces. Hydraulic pilot control offers light operation feel for precise control of breaker impact frequency and position, with wide 作业 coverage.

3. Application Scenarios

Mining: Secondary crushing of hard rock in open-pit mines and large ore blocks in underground mines;
Tunneling: Hard rock crushing in tunnel boring, roadway widening, and rock trimming before support;
Construction: Large concrete building demolition, thick foundation breaking, and pile head crushing;
Roads: Old road surface removal and subgrade hard rock excavation in reconstruction projects;
Other Scenarios: Heavy-duty demolition operations in confined spaces and factory interiors.

4. Operation and Maintenance Recommendations

Inspect crawler tension, hydraulic oil level, and temperature before operation; grease the breaker chisel.
Stabilize the equipment during breaking to avoid tipping from one-sided forces; never dry-fire the breaker.
Regularly replace hydraulic oil and filters, and inspect hydraulic hoses for wear to prevent leaks.
Preheat the hydraulic oil with the heater before operation in cold weather, and start the breaker only when the oil temperature is normal.
Regularly inspect the wear of the breaker chisel and replace it promptly to maintain breaking efficiency.
