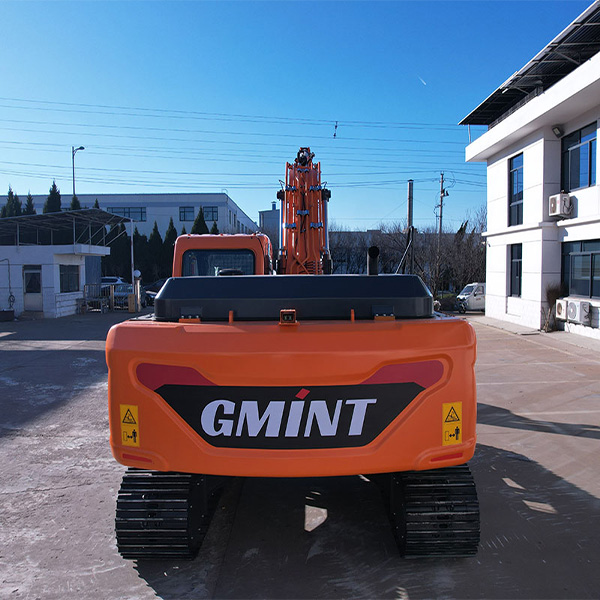

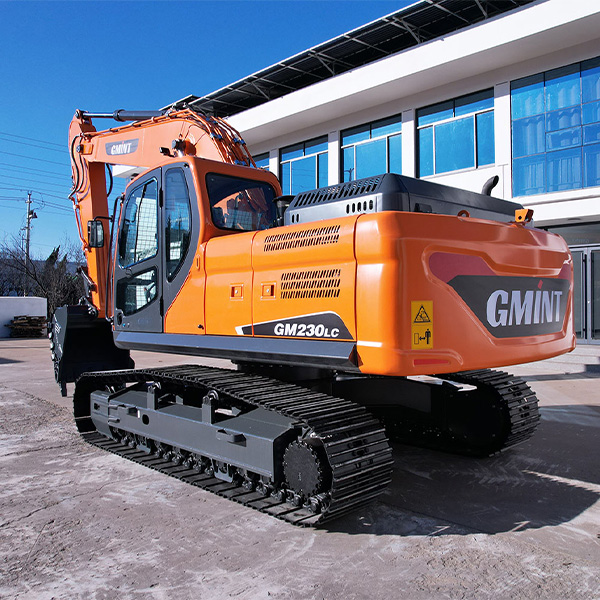

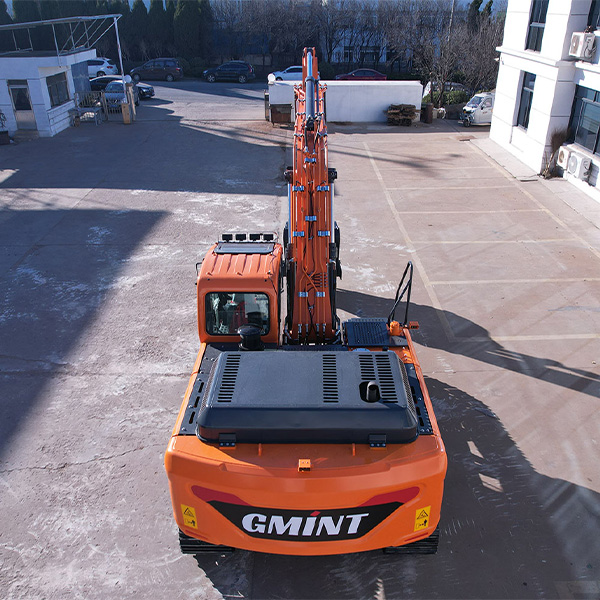

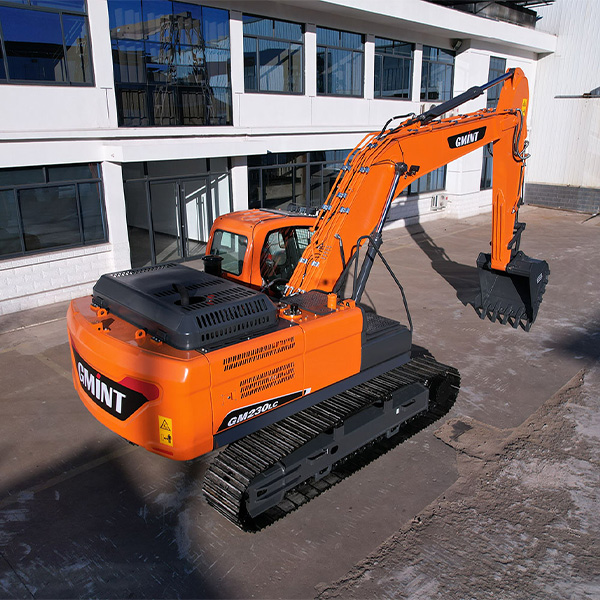

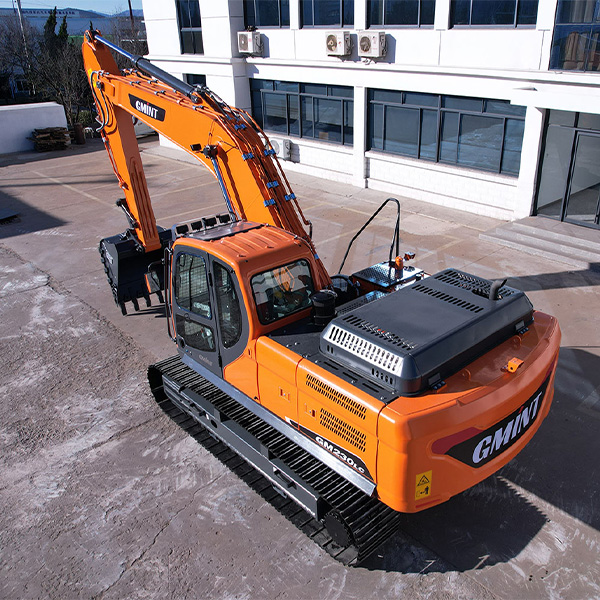

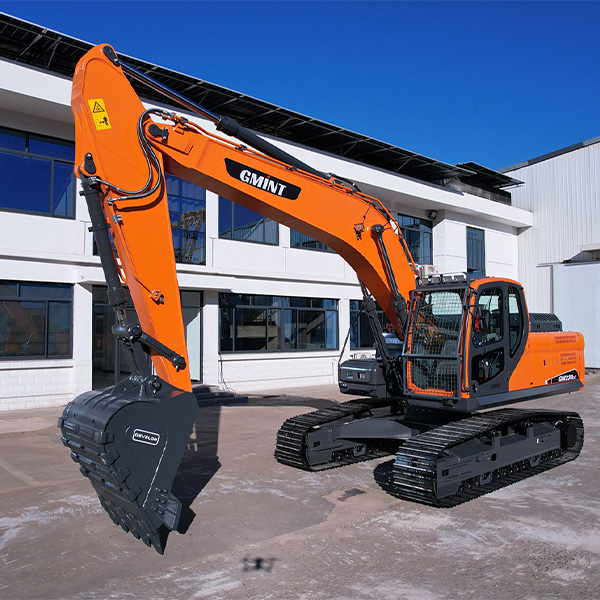

GMINT 230 Large Excavator | 23-Ton Hydraulic Crawler Excavator with Cummins Engine

The GMINT 230 large excavator is a 23-ton heavy-duty crawler excavator powered by a Cummins 6BTA5.9 engine, delivering 133kW of power. Equipped with Kawasaki hydraulic system and Doosan travel motor, it features a 1.1m³ bucket capacity, 6627mm maximum digging depth, and reliable performance for mining, construction, and earthmoving projects.
$50000.00 - 55000.00
Send Message Contact Supplier
Yantai Guanming International Trade Co., Ltd.

Yantai Guanming International Trade Co., Ltd.

View Supplier
Company Registration Year 2016
Total Number of Employees More than 50
Factory Area More than 5,000 square meters
Main Markets South America, Africa, the Middle East, Central Asia, Europe, the United States and other countries and regions
Details
Specifications

Product Overview

The GMINT 230 large excavator is a 23-ton heavy-duty crawler excavator designed for demanding construction, mining, and earthmoving projects. Powered by a reliable Cummins 6BTA5.9 engine, it delivers 133kW of strong power, paired with a Kawasaki hydraulic system and Doosan travel motor for smooth, efficient operation. With a 1.1m³ bucket capacity and 6627mm maximum digging depth, it offers excellent productivity and reliability in harsh working environments.

Core Advantages

  • Powerful Performance: Cummins engine provides strong power for heavy-load operations and steep slope climbing.
  • Reliable Hydraulic System: Kawasaki hydraulic components ensure precise control and stable operation.
  • Durable Structure: Heavy-duty chassis and track system, suitable for long-term use in harsh construction sites.
  • Large Working Range: 6627mm maximum digging depth and 9911mm maximum digging distance, meeting various construction needs.
  • Global Accessibility: Spare parts support for Cummins, Kawasaki, Doosan components worldwide, easy maintenance.

Application Scenarios

This large excavator is widely used in:
  • Mining & Quarrying: Ore excavation, loading, and site leveling.
  • Construction Engineering: Foundation digging, earthmoving, and demolition.
  • Infrastructure Projects: Road construction, pipeline laying, and water conservancy projects.
  • Landscaping: Large-scale site grading and material handling.

Why Choose the GMINT 230 Excavator?

  • 23-Ton Heavy-Duty Class: Balanced power and maneuverability for medium-to-large construction projects.
  • Top-Tier Component Configuration: Cummins engine + Kawasaki hydraulics, ensuring long-term reliability.
  • Large Bucket & Deep Digging: High productivity, reducing construction time and labor costs.
  • Easy Maintenance: Global common parts, low maintenance cost and downtime.
  • Compliant Emission: Meets China Phase II emission standards, suitable for global market access.
Model
230
Working weight
23000 kg
Bucket capacity
1.1 m³
Bucket digging force
144.1 kN
Slewing speed
10.7 rpm
Climbing force
35 %
Boom length
5700 mm
Arm length
2900 mm
Engine model
CUMMINS 6BTA5.9
Power (KW)
133 kW
Rated speed
2000 rpm
Emission
China Phase II
Travel motor model
Doosan
Track length (mm)
4440 mm
Track ground length (mm)
3645 mm
Track gauge (mm)
2400 mm
Travel speed
5.9/3.1 Km/h
Ground pressure ratio
46 kPa
Number of supporting wheels
18
Training wheels
4
Number of track shoes
98
Hydraulic pump model
Kawasaki
Slewing motor model
Sunjin
Main control valve model
KYB
Rated flow
2*212 L/min
Working pressure
32.3/34.3 MPa
Diesel tank capacity (L)
356 L
Hydraulic oil tank capacity (L)
205 L
Total length (mm)
9600 mm
Total width (mm)
2990 mm
Total height (mm)
3000 mm
Counterweight ground clearance (mm)
1105 mm
Minimum ground clearance (mm)
480 mm
Tail swing radius (mm)
2840 mm
Track width
3230 mm
Track shoe width (mm)
600 mm
Turntable width (mm)
2760 mm
Minimum swing radius (mm)
3577 mm
Maximum height at minimum swing radius (mm)
6900 mm
Counterweight height (mm)
2155 mm
Ground length (when transporting) (mm)
3645 mm
Maximum digging height
9650 mm
Maximum unloading height
6783 mm
Maximum digging depth
6627 mm
Maximum vertical wall digging depth (mm)
3935 mm
2.5m digging depth
6445 mm
Maximum digging distance
9911 mm
Maximum digging distance at ground level
9735 mm
  • GMINT 230 Large Excavator | 23-Ton Hydraulic Crawler Excavator with Cummins Engine
  • GMINT 230 Large Excavator | 23-Ton Hydraulic Crawler Excavator with Cummins Engine
  • GMINT 230 Large Excavator | 23-Ton Hydraulic Crawler Excavator with Cummins Engine
  • GMINT 230 Large Excavator | 23-Ton Hydraulic Crawler Excavator with Cummins Engine
  • GMINT 230 Large Excavator | 23-Ton Hydraulic Crawler Excavator with Cummins Engine
  • GMINT 230 Large Excavator | 23-Ton Hydraulic Crawler Excavator with Cummins Engine

Description

Product Overview

The GMINT 230 large excavator is a 23-ton heavy-duty crawler excavator designed for demanding construction, mining, and earthmoving projects. Powered by a reliable Cummins 6BTA5.9 engine, it delivers 133kW of strong power, paired with a Kawasaki hydraulic system and Doosan travel motor for smooth, efficient operation. With a 1.1m³ bucket capacity and 6627mm maximum digging depth, it offers excellent productivity and reliability in harsh working environments.

Core Advantages

  • Powerful Performance: Cummins engine provides strong power for heavy-load operations and steep slope climbing.
  • Reliable Hydraulic System: Kawasaki hydraulic components ensure precise control and stable operation.
  • Durable Structure: Heavy-duty chassis and track system, suitable for long-term use in harsh construction sites.
  • Large Working Range: 6627mm maximum digging depth and 9911mm maximum digging distance, meeting various construction needs.
  • Global Accessibility: Spare parts support for Cummins, Kawasaki, Doosan components worldwide, easy maintenance.

Application Scenarios

This large excavator is widely used in:
  • Mining & Quarrying: Ore excavation, loading, and site leveling.
  • Construction Engineering: Foundation digging, earthmoving, and demolition.
  • Infrastructure Projects: Road construction, pipeline laying, and water conservancy projects.
  • Landscaping: Large-scale site grading and material handling.

Why Choose the GMINT 230 Excavator?

  • 23-Ton Heavy-Duty Class: Balanced power and maneuverability for medium-to-large construction projects.
  • Top-Tier Component Configuration: Cummins engine + Kawasaki hydraulics, ensuring long-term reliability.
  • Large Bucket & Deep Digging: High productivity, reducing construction time and labor costs.
  • Easy Maintenance: Global common parts, low maintenance cost and downtime.
  • Compliant Emission: Meets China Phase II emission standards, suitable for global market access.
