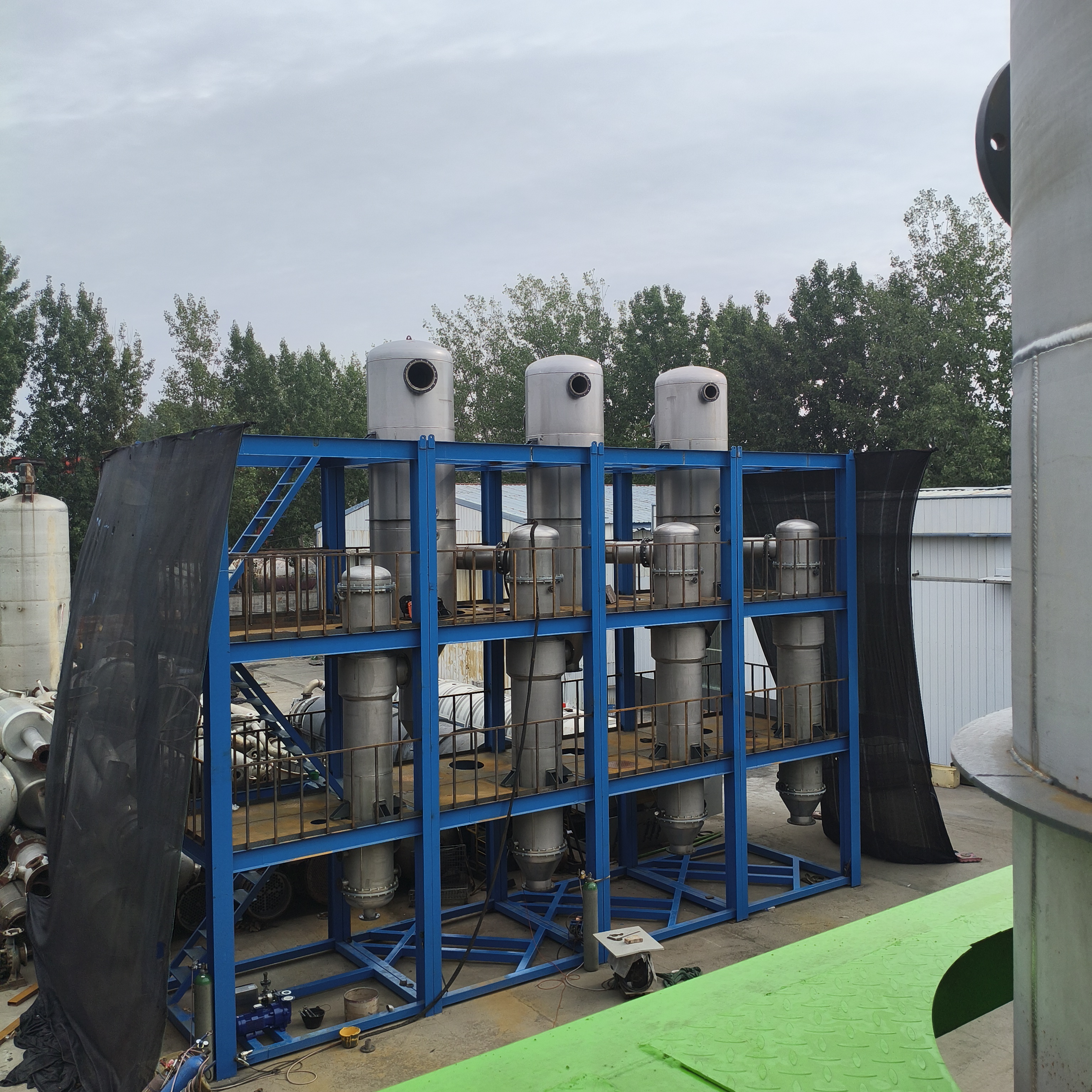

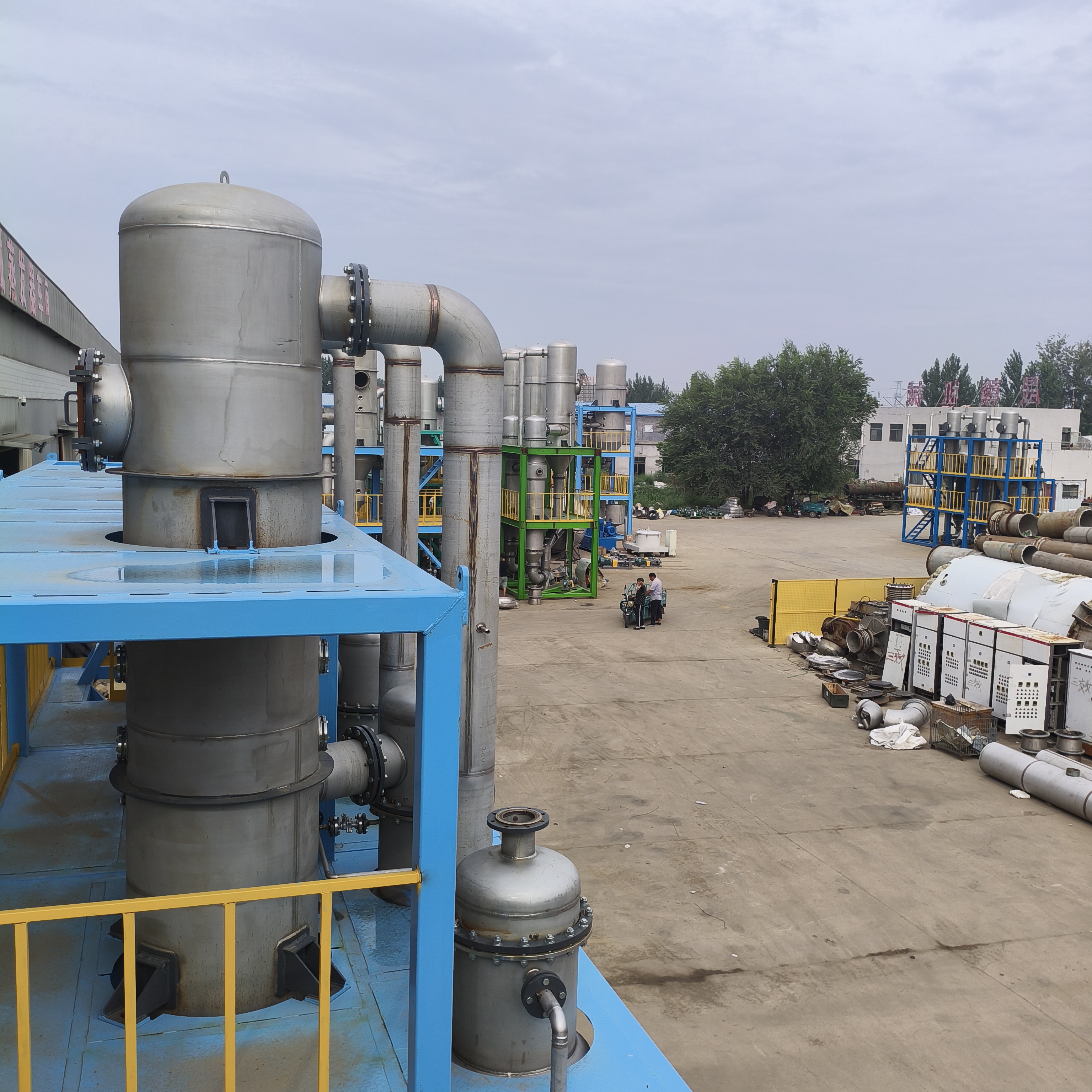

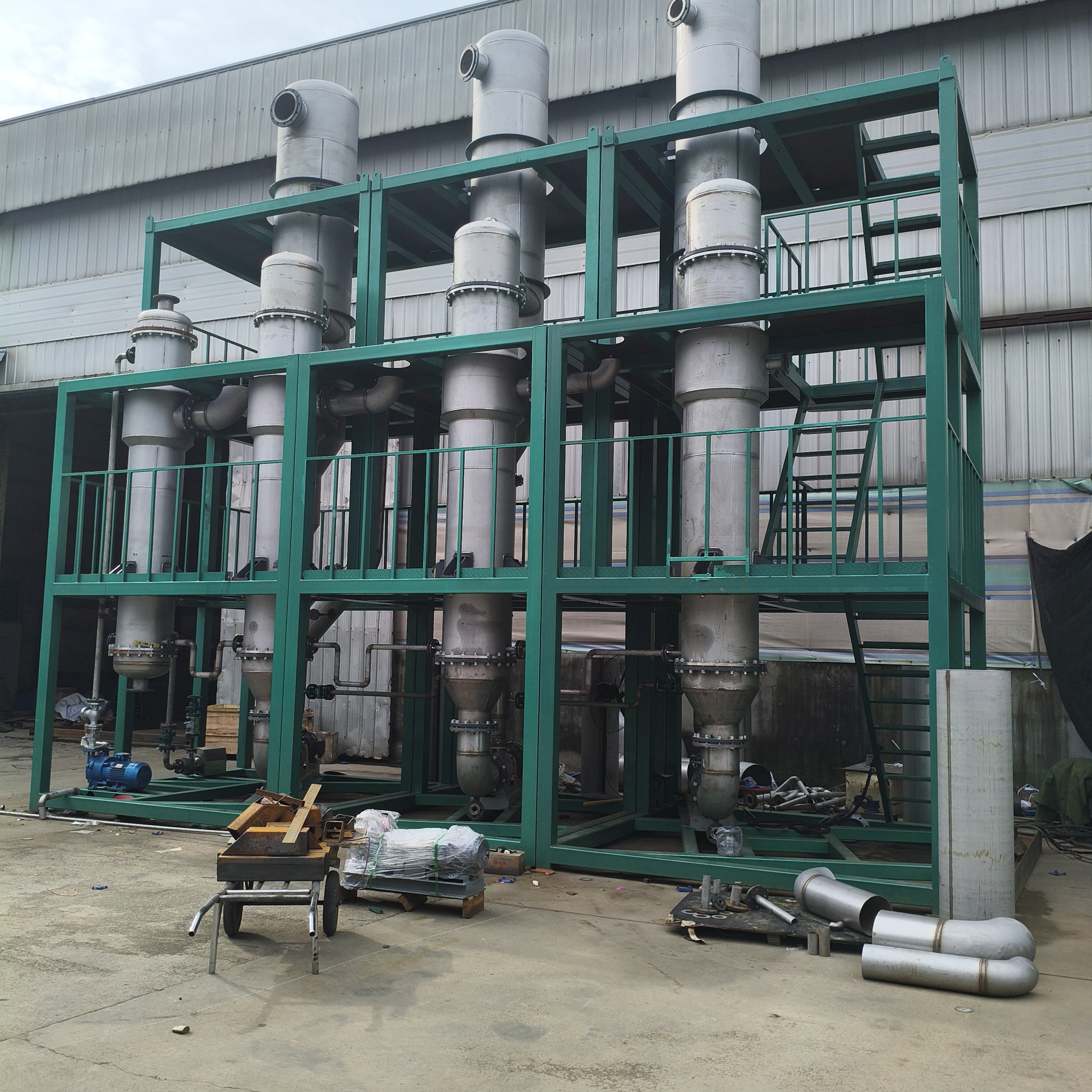

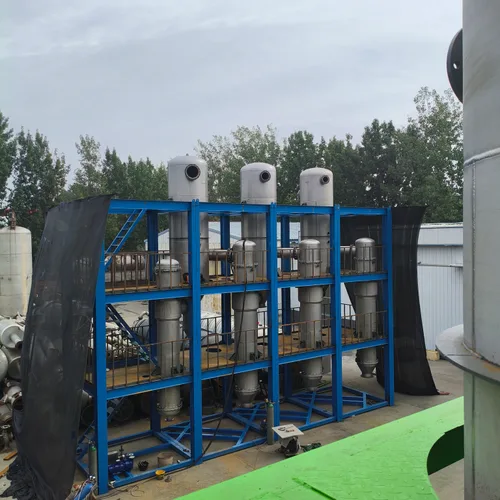

Forced Circulation Evaporator for High-viscosity & Crystallizing Materials, Concentration Equipment for Food/Pharmaceutical/Environmental Industries

Name: Forced Circulation Evaporator for High-viscosity & Crystallizing Materials, Concentration Equipment for Food/Pharmaceutical/Environmental Industries
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

This forced circulation evaporator relies on a circulation pump to drive high-speed forced flow of materials in heat exchange tubes, breaking the flow rate limit of natural circulation. Designed specifically for high-concentration, high-viscosity, scaling and crystallizing industrial liquids, the equipment consists of a heating chamber, separation chamber, circulation pump, inlet/outlet pipelines and automatic control system. Materials circulate rapidly in the tubes for heat exchange, with uniform heating and high evaporation efficiency. Widely used in chemical wastewater treatment, brine salt extraction, food syrup concentration, traditional Chinese medicine concentration, environmental wastewater zero discharge and other fields, it is the preferred evaporation equipment for industrial high-concentration material concentration.

$100000.00 - 300000.00

Send Message Contact Supplier

Liangshan Jingchang Machinery Equipment Co., Ltd.

Main Products: Reactor, Storage Tank, Condenser, Centrifuge

View Supplier

Year Established Established in 2024

Main Products Reactor, Storage Tank, Condenser, Centrifuge

Employees 51-100 People

Factory Area 5,000-10,000 m²

Annual Revenue US$1 Million - US$5 Million

Main Markets Southeast Asia / Middle East & North Africa / Africa

Details

Specifications

Efficient Anti-scaling, Suitable for Complex Materials

Forced circulation flow breaks the natural circulation flow rate limit, with materials scouring the heat exchange tube walls at high speed, greatly reducing scaling and crystal adhesion, making it the preferred evaporation equipment for scaling and crystallizing liquids.

✅ High-efficiency Treatment for High-concentration/viscosity Materials

The circulation pump forces high-viscosity and high-concentration materials to flow rapidly, with uniform heating to avoid local overheating. Evaporation efficiency is far higher than natural circulation evaporators, meeting the concentration needs of high-concentration chemical liquids.

✅ Modular Design, Multi-effect Options for Energy Saving

Supports single-effect, double-effect, triple-effect and other multi-effect configurations, customizable according to processing capacity and energy consumption needs. Multi-effect evaporation fully utilizes secondary steam heat to significantly reduce energy consumption.

✅ Full-process Automatic Control, Stable and Reliable

Equipped with a complete automatic control system for temperature, pressure, liquid level and flow, ensuring stable operation, reducing manual intervention and operational errors to guarantee continuous and stable evaporation.

✅ Wide Compatibility, Multi-industry Versatility

Can process various crystallizing materials such as sodium chloride, sodium sulfate and brine, suitable for chemical, environmental, food, pharmaceutical, new energy and other industries, serving as core equipment for industrial wastewater zero discharge and material concentration.

Product Name

Forced Circulation Evaporator

Applicable Materials

High-concentration, high-viscosity, scaling and crystallizing liquids

Components

Heating chamber, separation chamber, circulation pump, inlet/outlet pipelines, automatic control system

Working Principle

Circulation pump drives high-speed forced flow of materials in heat exchange tubes to enhance heat transfer

Core Advantages

Uniform heating, high evaporation efficiency, anti-scaling and anti-crystallization

Industries

Chemical wastewater treatment, brine salt extraction, food syrup concentration, TCM concentration, environmental wastewater zero discharge, etc.

Processed Materials

Sodium chloride, sodium sulfate, magnesium sulfate, calcium chloride, ammonium chloride, soda ash, sodium sulfate decahydrate, brine, etc.

Customization

Multi-effect (single/double/triple), processing capacity, material (carbon steel/stainless steel) customizable
