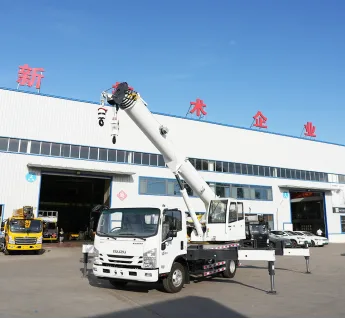

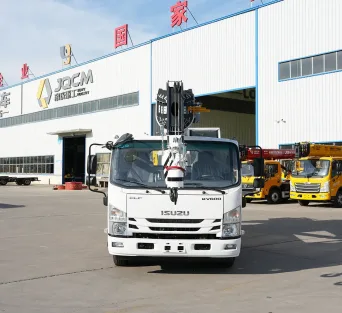

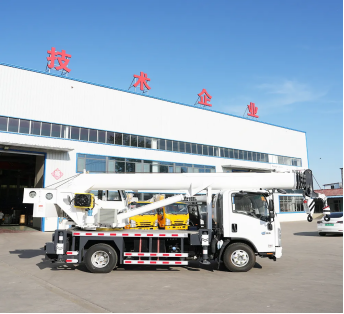

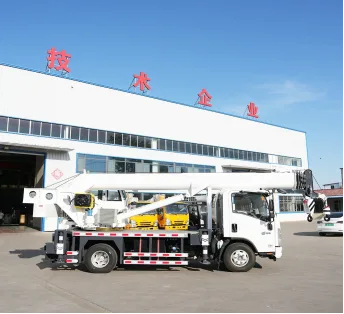

Factory JQCM 8 Ton ISUZU Truck Mounted Hydraulic Crane, Full Function Test Before Shipment

JQCM 8-ton full hydraulic truck crane based on ISUZU engineering chassis, equipped with 95kW diesel engine, 5-section synchronous telescopic main boom with max lifting height 30m. Fitted with 5 full hydraulic outriggers, double winch lifting mechanism, oil-electric dual-purpose hydraulic system and bidirectional hydraulic lock safety device. Suitable for small lifting works including urban construction, building material handling and garden engineering. Single unit or full container bulk export available with one-stop customs, inspection & certificate of origin service.
$0.15 - 148148.00
Send Message Contact Supplier
Jining Jiaqing Special Vehicle (Group) Co., Ltd.

Jining Jiaqing Special Vehicle (Group) Co., Ltd.

Main Products: Truck cranes, truck-mounted cranes, aerial work vehicles, self-propelled aerial work vehicles
View Supplier
Year Established Established in 2015
Main Products Truck cranes, truck-mounted cranes, aerial work vehicles, self-propelled aerial work vehicles
Employees 101-500 People
Factory Area 10,000-50,000 m²
Annual Revenue US$10 Million - US$50 Million
Main Markets Southeast Asia / Middle East & North Africa
Details
Specifications
Trade Information
  • Original ISUZU dedicated chassis, stable transit on urban & rural roads
    Lightweight engineering ISUZU chassis with 3300mm wheelbase, perfect for narrow village roads and short-distance construction transport. 95kW high-power diesel engine matched with high-low speed gearbox, 750-R16 heavy tires & ABS air brake deliver outstanding climbing and braking performance on muddy & steep rural roads, smooth access to all construction sites.
  • 5-section synchronous telescopic boom, 30m max height for multi-scene lifting
    5-section synchronous extended boom with 30m maximum lifting height, equipped with 8-ton main winch & 7-ton auxiliary winch dual lifting system, stably lift 1 ton at 15m working radius. Smooth synchronous extension without jamming, widely applied in factory construction, high-rise material handling, seedling transplant and small equipment hoisting.
  • 5 full hydraulic outriggers for balanced support & anti-rollover
    5 independent full hydraulic telescopic legs with transverse span 5083mm and longitudinal span 4383mm, 1.5m telescopic stroke. Evenly distribute lifting load, single leg leveling available on uneven ground. Bidirectional hydraulic lock blocks oil circuit to eliminate risks of leg pressure loss and vehicle rollover.
  • Oil-electric dual hydraulic system, continuous operation without external power
    15kw 6-pole copper core motor supports dual oil & electric drive: low-noise fuel-free operation with external power supply, diesel engine drive hydraulic pump when no grid power. Optional single/dual hydraulic pump, hydraulic power steering & secondary planetary slewing mechanism for light rotation, stable oil temperature during long shifts without overheating.
  • Complete safety devices to meet global construction safety standards
    Standard bidirectional hydraulic lock locks boom and outrigger oil circuit to avoid boom drop or leg collapse caused by pipeline rupture. Two strong working lamps on cab sides provide clear vision for night lifting. 1050mm thick slewing bearing withstands heavy torque with low wear during long-term rotation, complying with overseas site safety regulations.
  • One-stop full export supporting service
    ①Original technical data booklet, factory hydraulic & lifting performance test report, dual-language operation & maintenance manual delivered with each crane;
    ②Whole vehicle rust removal & cleaning, anti-rust wrapping for boom and outriggers, reinforced wooden frame package for sea shipment;
    ③Full wearable spare parts including hydraulic pump, winch motor, oil seals and steel wire rope can be consolidated in container for supplementary export;
    ④One-stop service for construction machinery customs declaration, certificate of origin and equipment inspection official documents.
Rated Lifting Capacity
8000kg (8 Ton)
Chassis Model
ISUZU Special Engineering Chassis
Overall Dimension
905020603060mm
Wheelbase
3300mm
Engine Model
90HP Diesel Engine, 95kW (130HP)
Gearbox
High & Low Speed Transmission
Tire Spec
750-R16
Brake System
Air Brake with ABS
Boom Structure
5 Synchronous Telescopic Sections
Total Boom Length
30m
Main Winch
8 Ton Winch
Auxiliary Winch
7 Ton Winch
Slewing Radius
2.3m
Slewing Bearing
1050mm Turntable Bearing
Driving Mode
Oil & Electric Dual-use, 15kw 6-pole Copper Core Motor
Outrigger Layout
5 Full Hydraulic Telescopic Legs
Transverse Span
5083mm
Longitudinal Span
4383mm
Protection
Bidirectional Hydraulic Lock, 2 Working Lamps
MOQ
1 Pieces
  • Factory JQCM 8 Ton ISUZU Truck Mounted Hydraulic Crane, Full Function Test Before Shipment
  • Factory JQCM 8 Ton ISUZU Truck Mounted Hydraulic Crane, Full Function Test Before Shipment
  • Factory JQCM 8 Ton ISUZU Truck Mounted Hydraulic Crane, Full Function Test Before Shipment

Description

  • Original ISUZU dedicated chassis, stable transit on urban & rural roads
    Lightweight engineering ISUZU chassis with 3300mm wheelbase, perfect for narrow village roads and short-distance construction transport. 95kW high-power diesel engine matched with high-low speed gearbox, 750-R16 heavy tires & ABS air brake deliver outstanding climbing and braking performance on muddy & steep rural roads, smooth access to all construction sites.
  • 5-section synchronous telescopic boom, 30m max height for multi-scene lifting
    5-section synchronous extended boom with 30m maximum lifting height, equipped with 8-ton main winch & 7-ton auxiliary winch dual lifting system, stably lift 1 ton at 15m working radius. Smooth synchronous extension without jamming, widely applied in factory construction, high-rise material handling, seedling transplant and small equipment hoisting.
  • 5 full hydraulic outriggers for balanced support & anti-rollover
    5 independent full hydraulic telescopic legs with transverse span 5083mm and longitudinal span 4383mm, 1.5m telescopic stroke. Evenly distribute lifting load, single leg leveling available on uneven ground. Bidirectional hydraulic lock blocks oil circuit to eliminate risks of leg pressure loss and vehicle rollover.
  • Oil-electric dual hydraulic system, continuous operation without external power
    15kw 6-pole copper core motor supports dual oil & electric drive: low-noise fuel-free operation with external power supply, diesel engine drive hydraulic pump when no grid power. Optional single/dual hydraulic pump, hydraulic power steering & secondary planetary slewing mechanism for light rotation, stable oil temperature during long shifts without overheating.
  • Complete safety devices to meet global construction safety standards
    Standard bidirectional hydraulic lock locks boom and outrigger oil circuit to avoid boom drop or leg collapse caused by pipeline rupture. Two strong working lamps on cab sides provide clear vision for night lifting. 1050mm thick slewing bearing withstands heavy torque with low wear during long-term rotation, complying with overseas site safety regulations.
  • One-stop full export supporting service
    ①Original technical data booklet, factory hydraulic & lifting performance test report, dual-language operation & maintenance manual delivered with each crane;
    ②Whole vehicle rust removal & cleaning, anti-rust wrapping for boom and outriggers, reinforced wooden frame package for sea shipment;
    ③Full wearable spare parts including hydraulic pump, winch motor, oil seals and steel wire rope can be consolidated in container for supplementary export;
    ④One-stop service for construction machinery customs declaration, certificate of origin and equipment inspection official documents.
