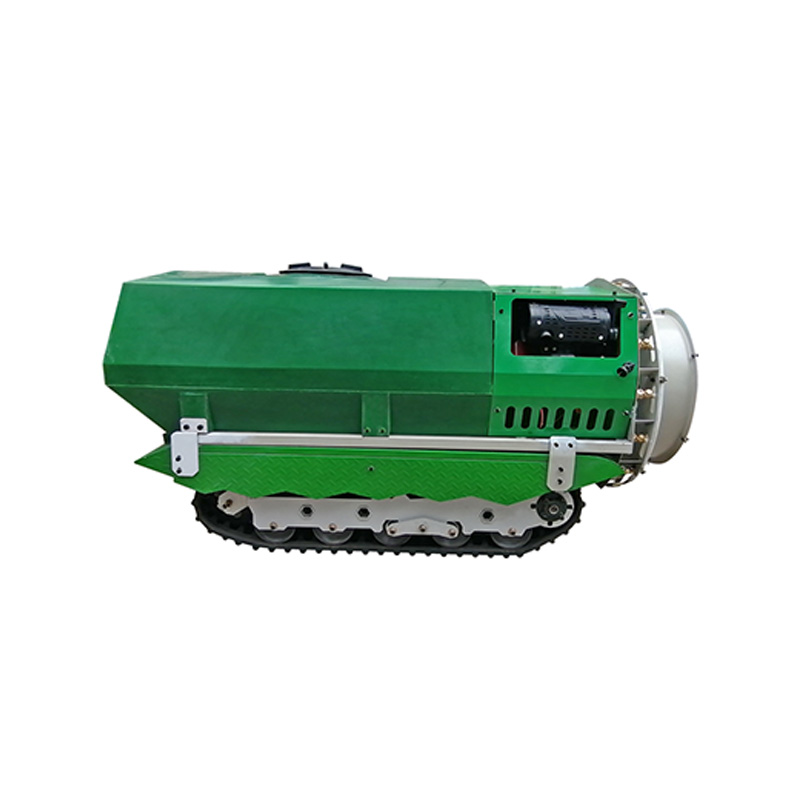

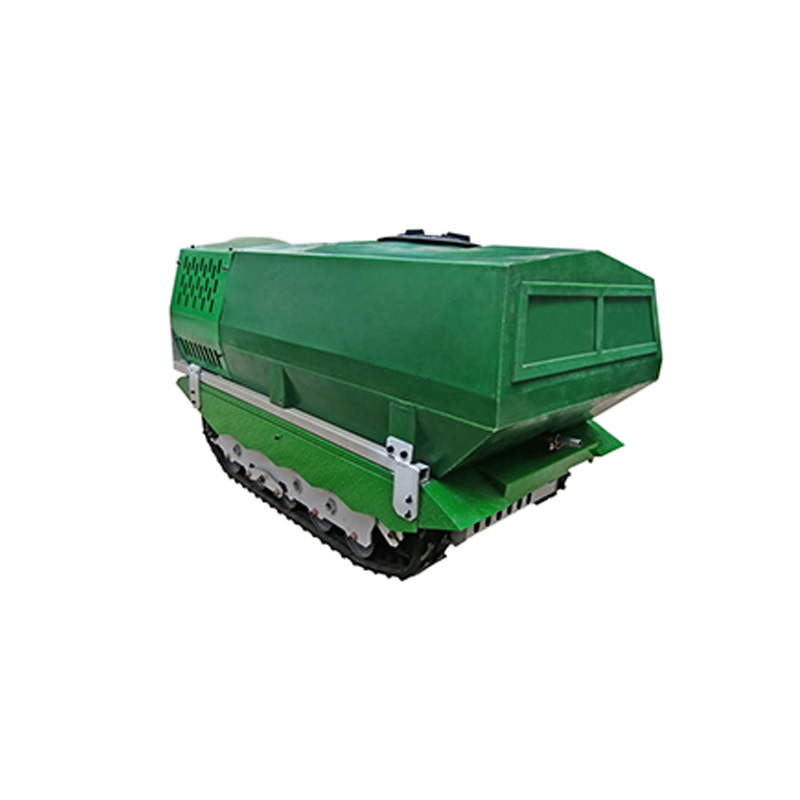

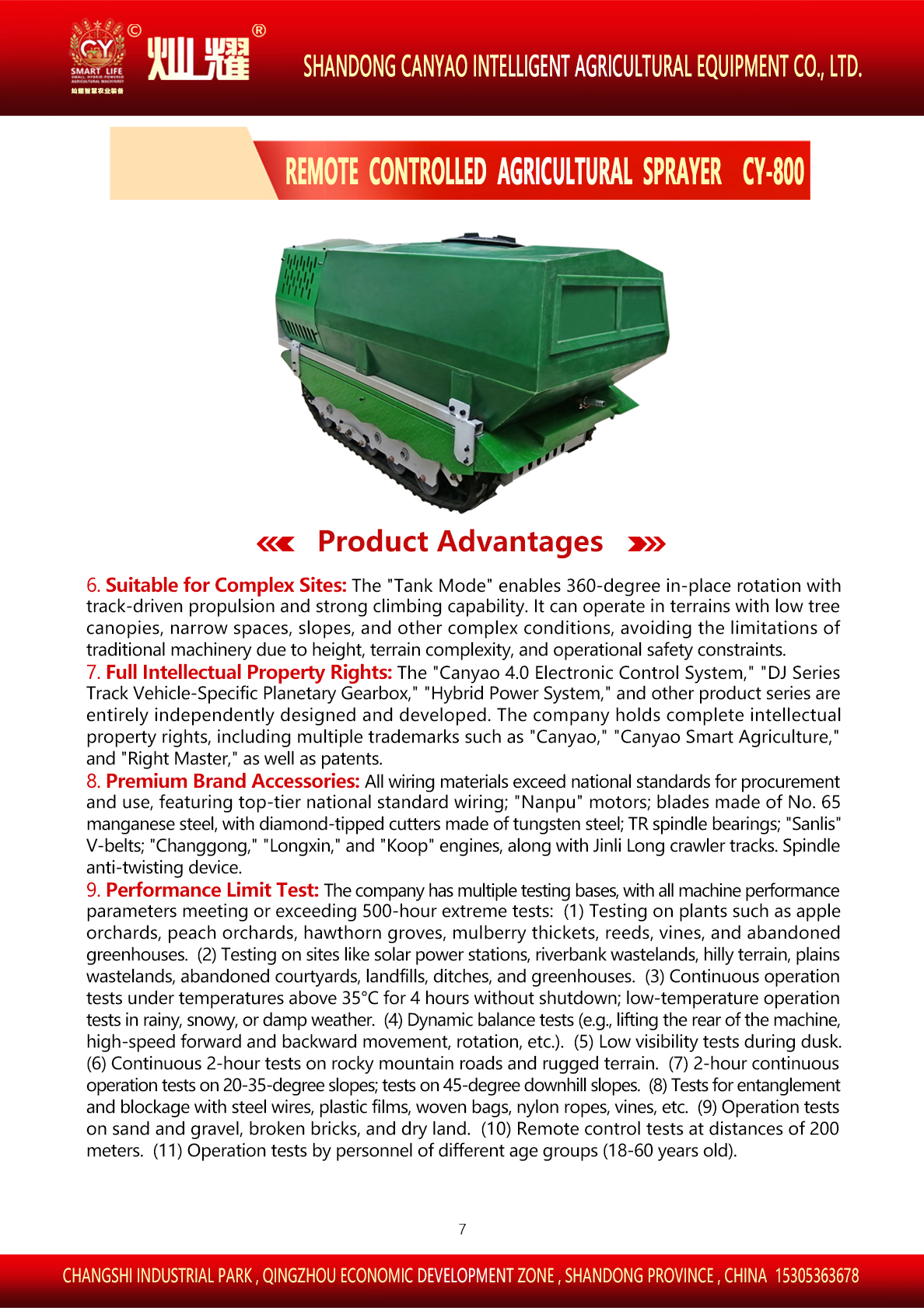

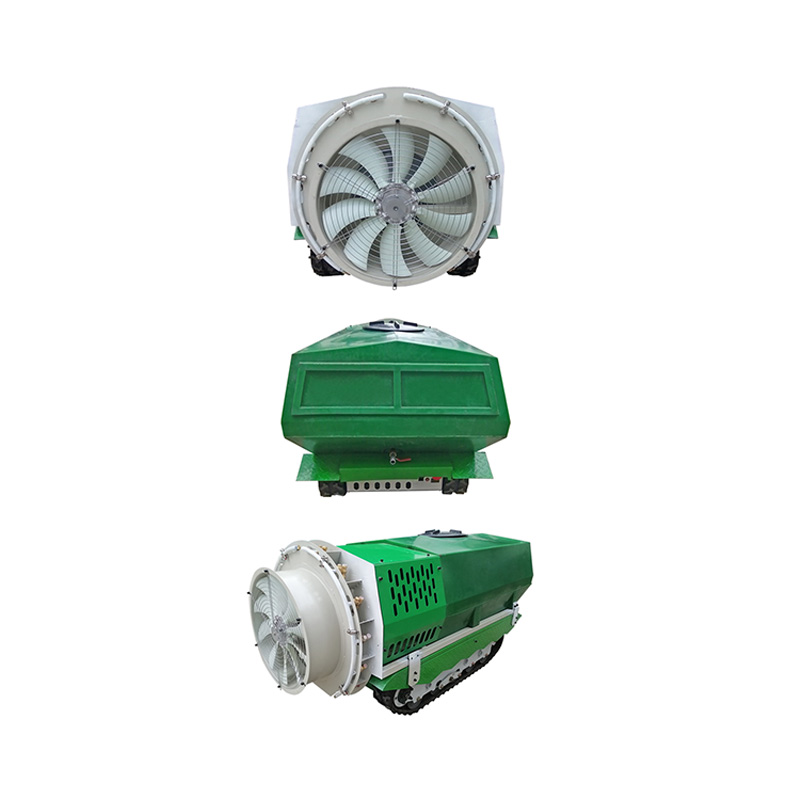

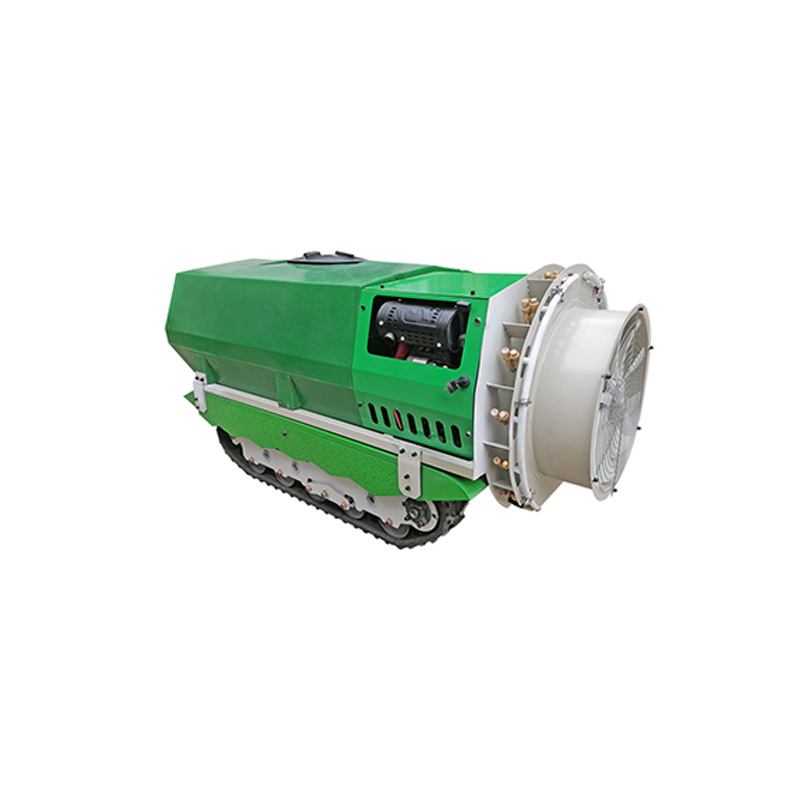

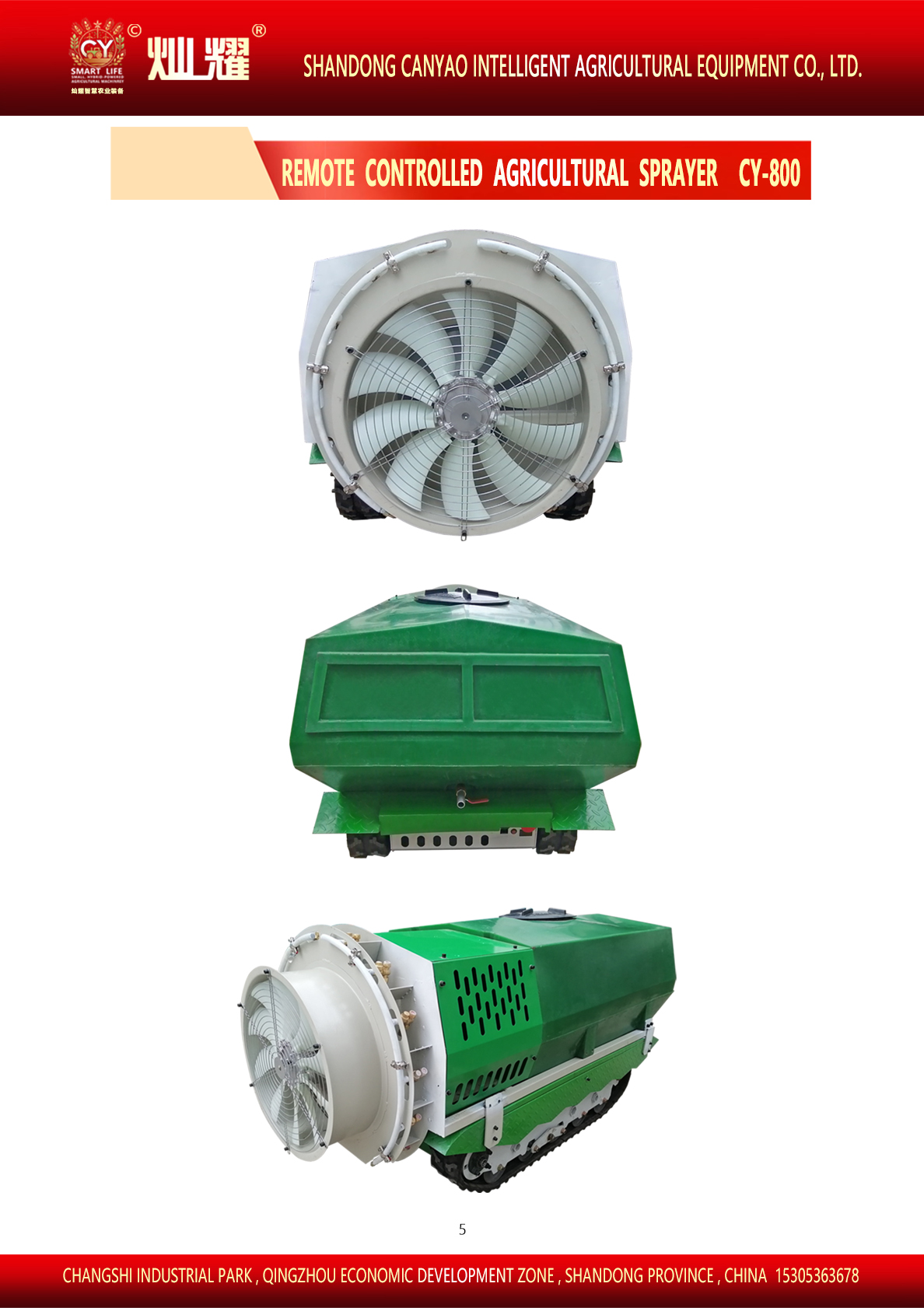

Factory Complete Canyao CY-800 Remote Crawler Sprayer, Full Pre-shipment Extreme Performance Inspection
Min. Order: 1 Pieces
- Diesel Engine:
- Changfa 195, 16-18 HP
- Fan Diameter:
- 600mm
- Pump Model:
- 30 Plunger Pump
- Drive Motor:
- Dual Motors, 2400W each
Product Features & Applications

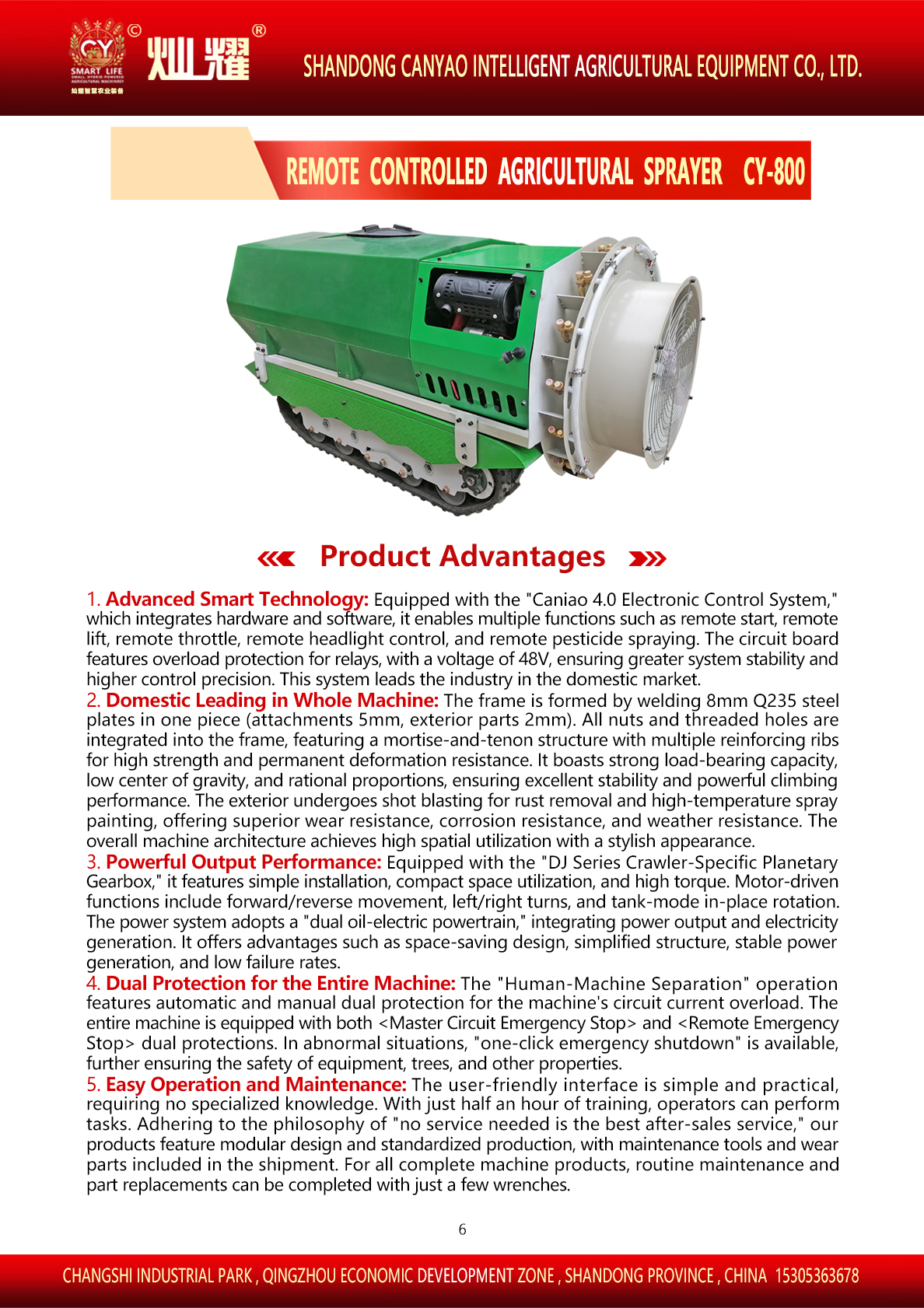

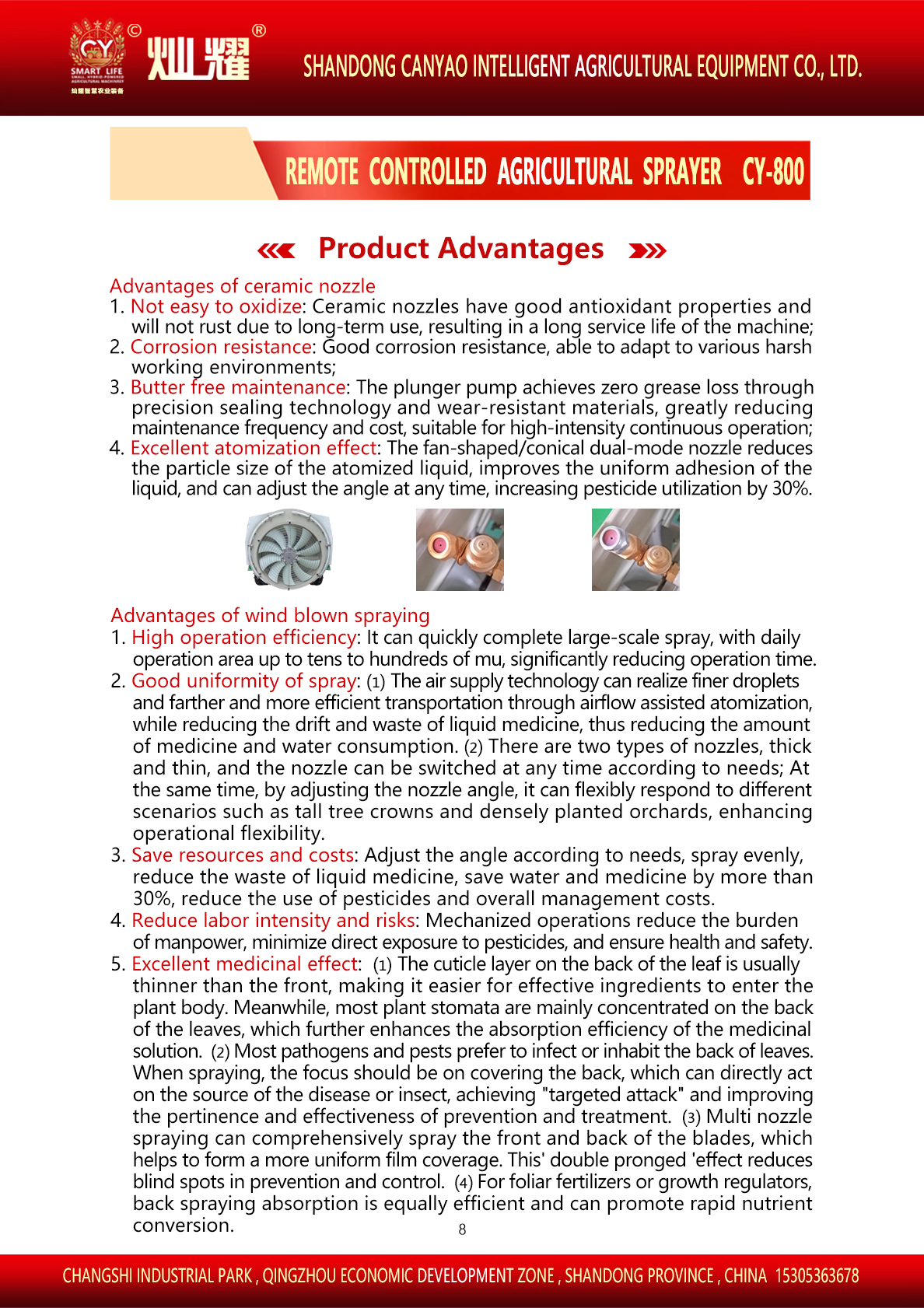

Full complete set of Canyao CY-800 diesel remote crawler wind sprayer. Equipped with 16-18HP Changfa diesel engine, 600mm large-diameter fan and 30-type plunger pump. Canyao 4.0 electronic control system supports full-function remote control up to 500 meters. Dual 2400W travel motors matched with 60V high-power hybrid oil-electric system, crawler chassis realizes 360° in-place tank rotation, suitable for 35° steep-slope orchards and low greenhouses. 8mm thick integrated Q235 welded frame, dual-circuit overload protection with human-machine separation design, standard anti-corrosion ceramic atomizing nozzles raise pesticide utilization by 30%. Modular design for easy maintenance, full machine supplied with all wearable spare parts, bilingual manual and full export documents as one set.

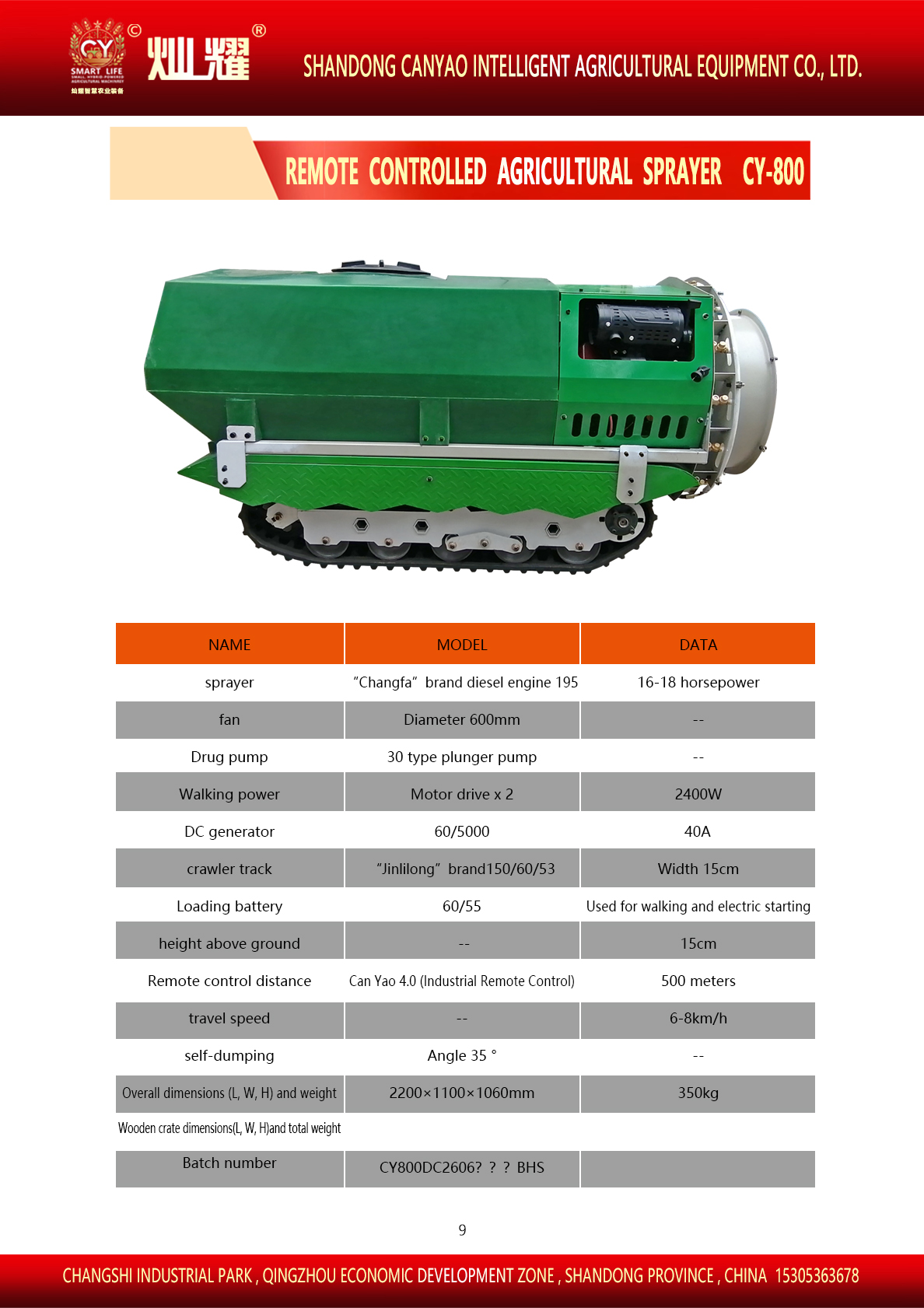

Technical Specifications
- Diesel Engine
- Changfa 195, 16-18 HP
- Fan Diameter
- 600mm
- Pump Model
- 30 Plunger Pump
- Drive Motor
- Dual Motors, 2400W each
- DC Generator
- 60V 5000W, 40A
- Track Model
- Jinlilong 150/60/53, Width 15cm
- Power Battery
- 60V55Ah, for travel & electric start
- Chassis Clearance
- 15cm
- Control System

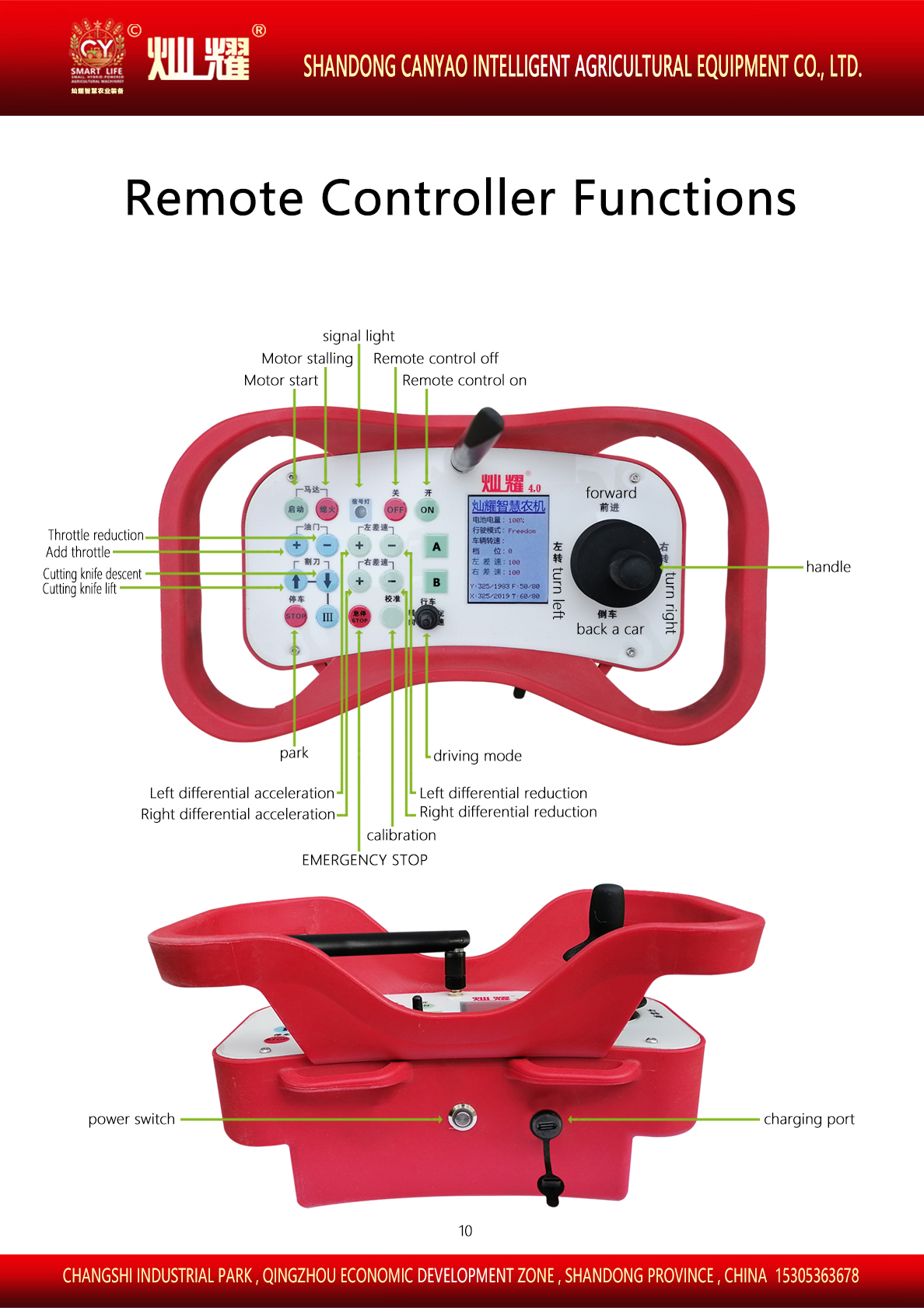

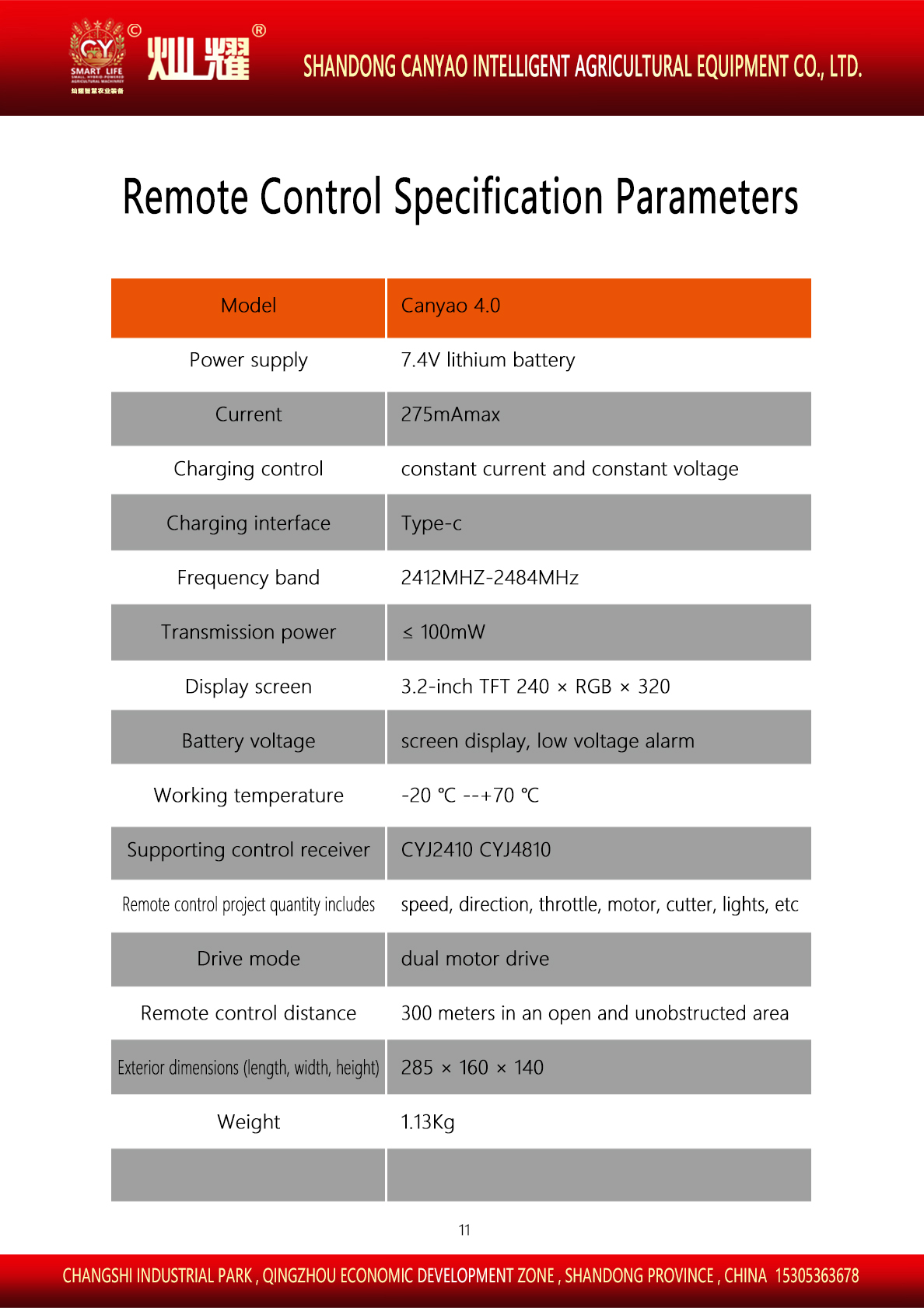

- Canyao 4.0 Industrial Remote Control, Max 500 Meters
- Running Speed
- 6-8km/h
- Dump Angle
- 35°
- Dimension / Net Weight
- 2200×1100×1060mm, 350kg
Trade Specifications
- Reference Price
- USD $2548.00 - $2800.00
- Minimum Order Quantity
- 1 Pieces
Shandong Canyao Smart Agricultural Equipment Co., Ltd.
Our company was established in Qingzhou in 2024. We are a modern manufacturing enterprise focusing on the integrated R&D, production, sales and after-sales service of smart agricultural and forestry equipment, and hold a number of independent patented technologies for agricultural machinery power and crawler operation equipment. Our main products include crawler-type intelligent pesticide sprayers, agricultural and forestry power equipment, and supporting agricultural machinery parts. We have the capabilities of equipment customization, complete machine maintenance, technology export, and import and export supply. The company adheres to the R&D and upgrading of intelligent agricultural machinery, and provides highly efficient automatic operation equipment for orchards, farmlands, gardens, mountainous and forestry scenarios. We can undertake domestic bulk procurement and overseas agricultural machinery export orders, and provide complete full-chain services including technical consultation, equipment installation and maintenance.
- Location
- No.13, Zone F, Modern Logistics Park, Economic Development Zone, Qingzhou City, Weifang City, Shandong Province, China
- Main Products
- Agricultural machinery, agricultural machinery parts
- Employees
- Less than 50 People
- Factory Area
- 1,000-5,000 m²
- Annual Revenue
- US$1 Million - US$5 Million
- Main Markets
- Southeast Asia
