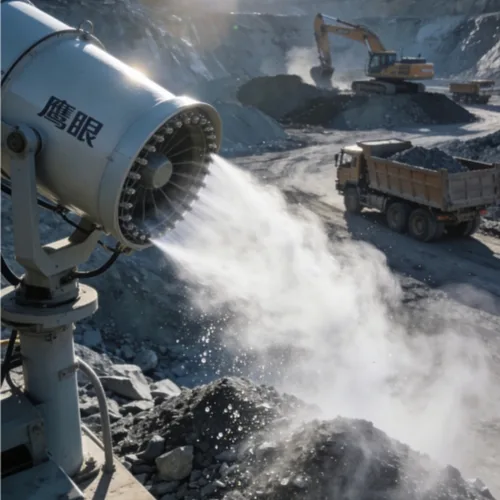

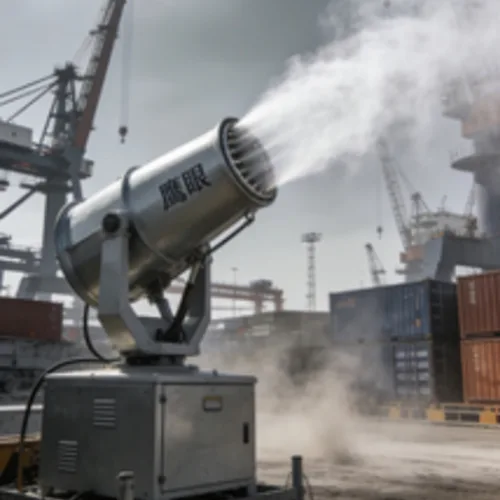

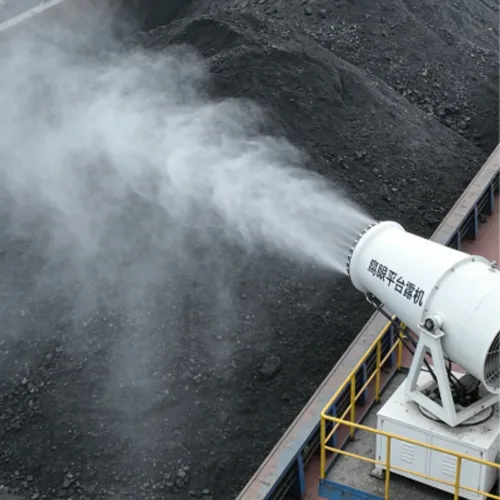

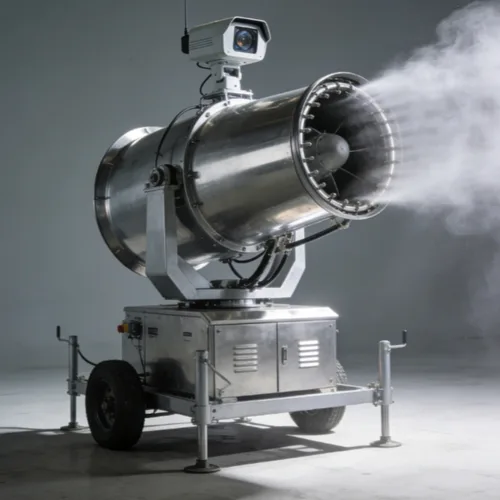

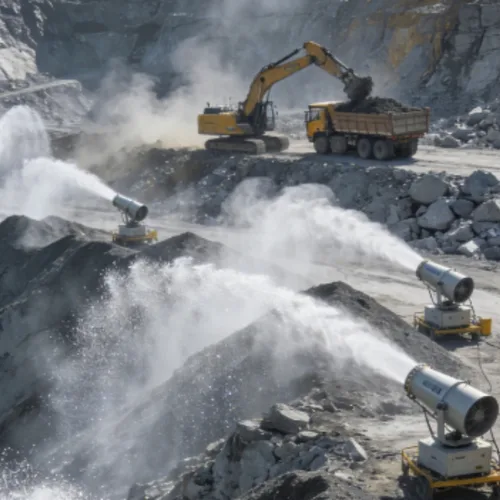

Dust control equipment for dust removal and mining operation in 60-meter remote fog gun open pit mine

Dust control equipment for dust removal and mining operation in 60-meter remote fog gun open pit mine

Model: 98

USD $10000.00 - $20000.00 / Unit

Min. Order: 1 Unit

range:
30 -150 meters (optional)
Power supply voltage:
380V
Mode of operation:
Manual/automatic
Product alias:
Remote fog sprayer, Hawkeye fog gun, intelligent dust controller, air-driven sprayer
Send Inquiry

Product Features & Applications

Applicable field: 1, landscaping, flowers and plants nursery, pesticide spraying, municipal sanitation smog control, garbage dump sterilization and deodorization, epidemic prevention and other places. 2, open-pit coal mine area, highway service area, construction site dust control, blasting demolition dust, coal pile dust reduction, open-pit mining, ports, railway stations, freight terminals, open-pit material yards, coal logistics parks, power plants, coal shed closed discharge areas, truck discharge ports, dump truck discharge dust, coastal port shipment, coal transshipment, quarry, cement plant, bulk powder handling and other dust pollution suppression. Steel slag waste is unloaded, shipped and transported, local dust control in mechanical operation, and road dust pollution control in vehicle transportation; Airports, public places, stations, schools, airports, steel mills, casting and other high-temperature industries spray humidification, cooling, dust removal places.

Working principle of dust removal fog gun: Dust-removing fog gun is also known as remote fog sprayer, air-sending fog gun, full-automatic explosion-proof fog gun and dust-reducing fog gun. The dust-removing fog gun pressurizes water by a high-pressure pump based on the principle of air delivery by a fan, atomizes the water after passing through a pipeline micronizing nozzle, and sprays the water mist to a long distance through the air volume and air pressure of the fan, so that the water mist particles generated by spraying can inhibit the dust in the air, thereby generating the dust-fixing effect. Because the fine surface tension of the suspended dust particles in the air is zero, the water mist can quickly absorb the dust-sized particles in the air when sprayed into the air. Water mist is adsorbed when it comes into contact with dust floating in the air, which increases the proportion of dust, inhibits the flow of dust in the air, and accelerates the deposition of dust, thus controlling the amount of dust and realizing dust reduction, humidification and cooling in the air. Achieve that purpose of air purification. The principle of pesticide spraying can completely atomize the mixed pesticide liquid through the rotating airflow, and can effectively and quickly turn the leaves of plants, so that the pesticides can be saturated on the trunks and leaves of plants, thus playing a role in preventing and controlling pests and diseases. Manufacturing technology of dust removal fog gun; 1. The overall design of the air duct, impeller, current collector, spray tube and guide vane of the fog gun machine is excellent. Under the condition of the same range, the fan power is small, the overall size of the air duct is short, energy is saved and consumption is reduced, and the performance is stable. High function conversion efficiency, long range, wide coverage area, fine and uniform water mist. 2. The appearance of the fog gun machine adopts sand blasting and rust removal, and brand paint is selected for spraying and baking. The product has good weather resistance, long service life, beautiful appearance, fashion, novelty and exquisite technology. Range of dust removal fog gun: 30m, 40m, 50m, 60m, 70m, 80m, 100m, 120m, 150m and 200m. Features of fog gun: 1. The control mode of fog gun is flexible, which can be divided into manual local control, wireless remote control on-site control, automatic control and remote control. Up, down, left and right steering is divided into: left and right 0-320 automatic steering device, up and down-10-45 pitch angle hydraulic adjustment system, which is fast, safe, reliable, flexible and convenient to start. 2. The host adopts frequency converter to control the startup, so as to ensure the smooth startup and operation of the fan and reduce energy consumption. Can also be configured according to user needs, star delta start, soft start and other control methods. 3. Installation mode: it can be divided into fixed, tower-mounted, lifting, traction mobile and vehicle-mounted installation modes. Application fields of dust removal fog gun: 1, landscaping, flowers and plants nursery, pesticide spraying, municipal sanitation smog control, garbage dump sterilization and deodorization, epidemic prevention and other places. 2, open-pit coal mine area, highway service area, construction site dust control, blasting demolition dust, coal pile dust reduction, open-pit mining, ports, railway stations, freight terminals, open-pit material yards, coal logistics parks, power plants, coal shed closed discharge areas, truck discharge ports, dump truck discharge dust, coastal port shipment, coal transshipment, quarry, cement plant, bulk powder handling and other dust pollution suppression. Steel slag waste is unloaded, shipped and transported, local dust control in mechanical operation, and road dust pollution control in vehicle transportation; Airports, public places, stations, schools, airports, steel mills, casting and other high-temperature industries spray humidification, cooling, dust removal places.
