Dual-Channel Servo Hydraulic Loading Test Bench Electro-hydraulic Servo Pressure & Displacement Dual-control Mechanical Testing Equipment

Dual-channel servo hydraulic loading test bench adopts dual independent loop PID closed-loop control, realizing precise pressure/displacement loading. It supports manual jog, PTP, waveform loading and 30-step sequence loading, suitable for mechanical property and durability tests of materials, structures and parts. Equipped with touch screen PLC control system, displacement/load dual sensors, proportional servo valve and safety protection system, it features stable operation, high control accuracy and easy operation, widely used in laboratories, research institutes and industrial testing fields.
$17556.00
Send Message Contact Supplier
Jining Haixin Automation Technology Co., Ltd.

Jining Haixin Automation Technology Co., Ltd.

View Supplier
Registration Date January 19, 2022
Number of Employees 15
Factory Area 2,000 m²
Annual Sales Over $210,000 (USD)
Main Products Industrial Automation Equipment, Control Systems, Industrial Robots, Smart Agricultural Equipment
Target Markets Global
Details
Specifications
  • Dual-channel independent control, supports pressure/displacement dual modes without interference
  • High-precision PID closed-loop adjustment with smooth loading, fast response and small error
  • Multiple loading modes: manual, PTP, waveform, 30-step sequence to meet various test demands
  • Three-level alarm protection (warning/stop/emergency stop), automatic shutdown for overtravel & overpressure

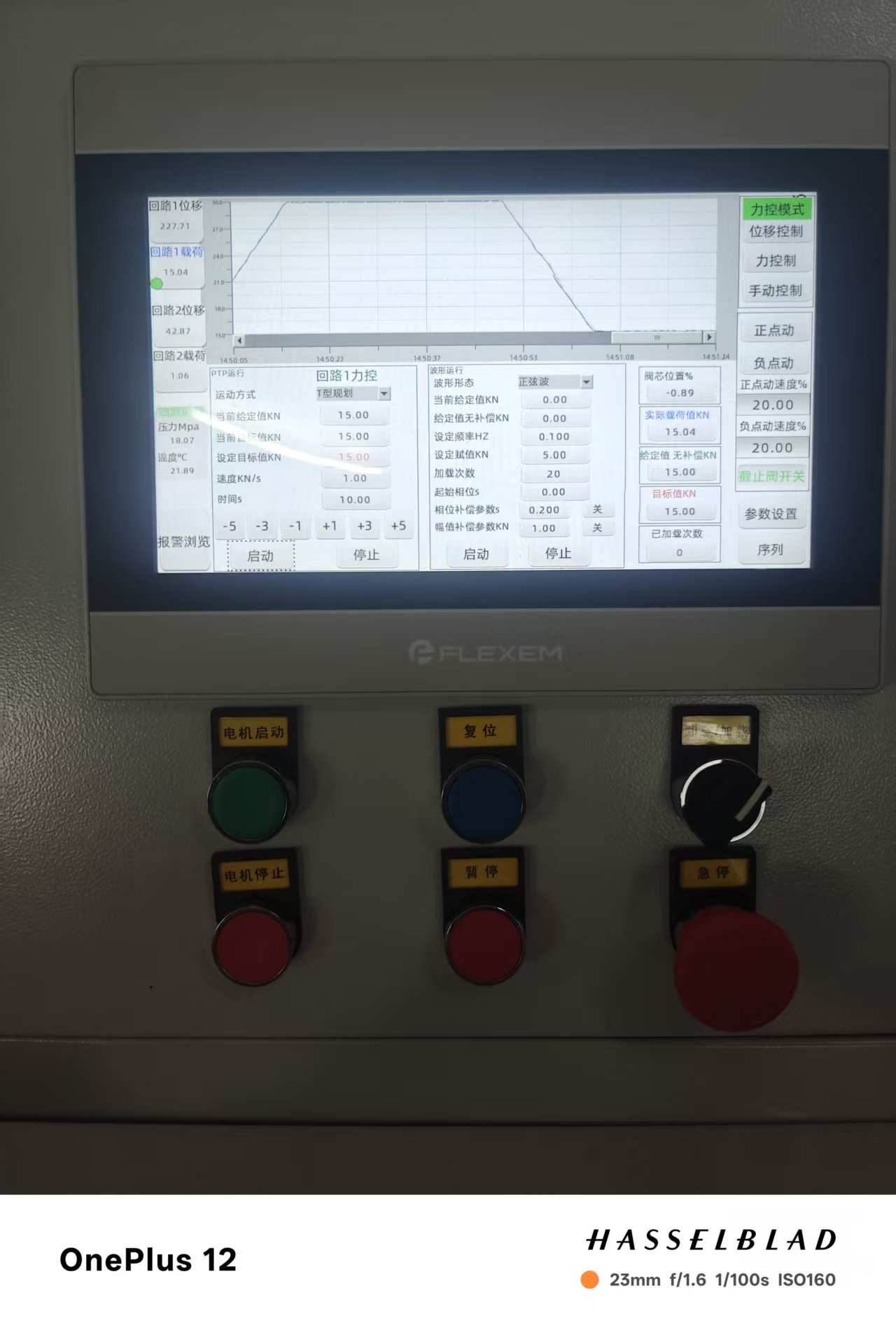

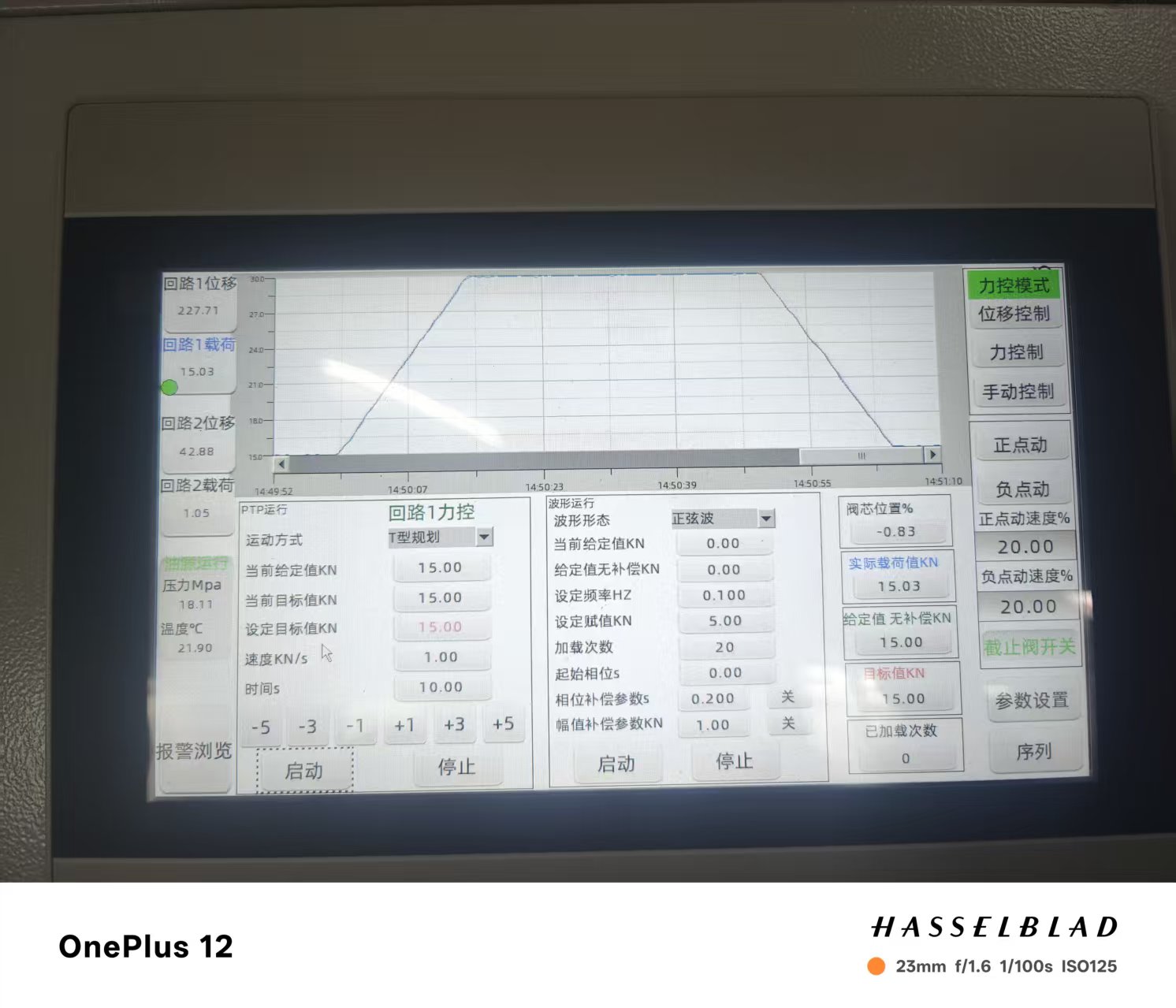

  • Touch screen visual operation, intuitive parameter setting, real-time data display and tracking

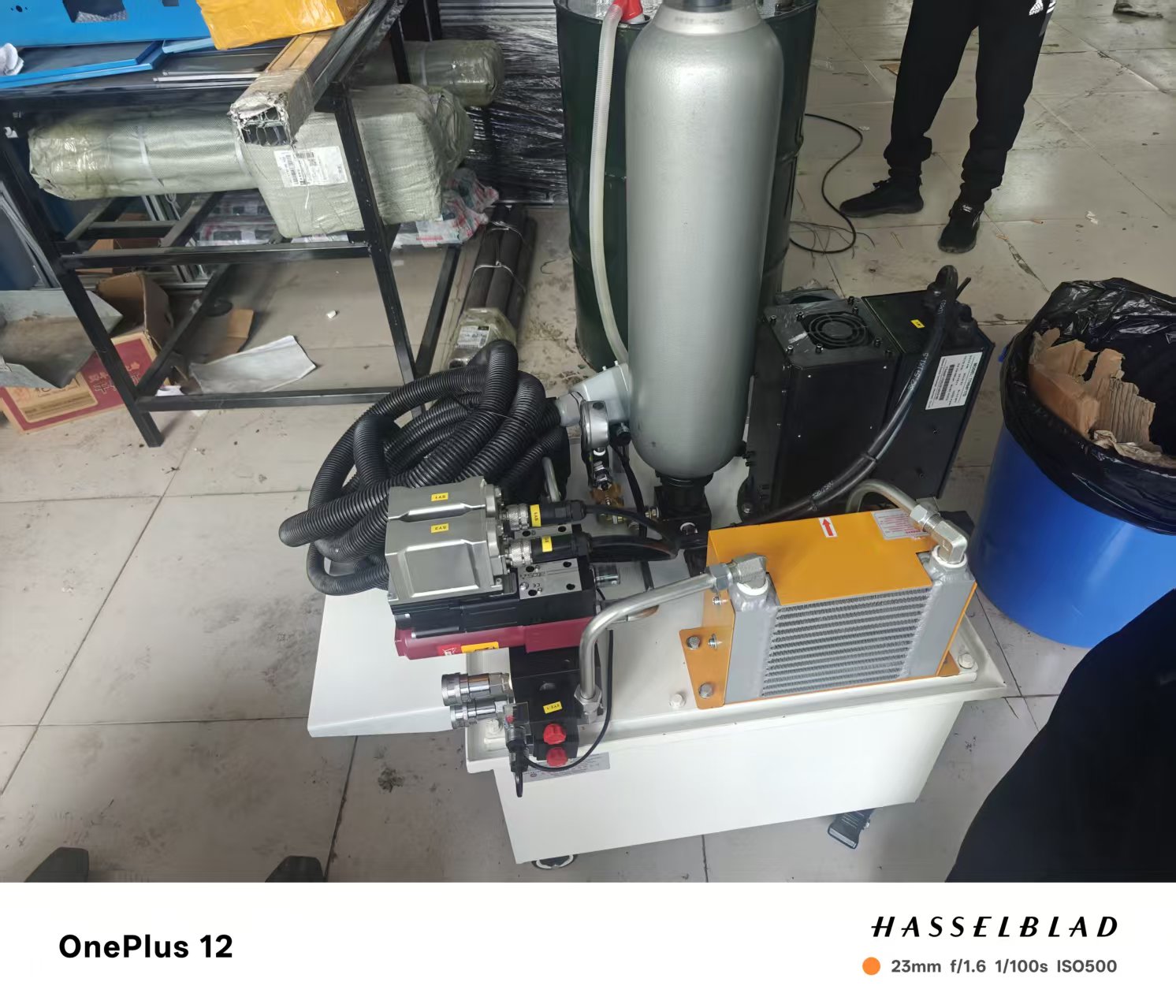

  • Industrial-grade hydraulic system, stable for long-term continuous loading tests
Control Channel
Dual Channels (Independent Control)
Control Mode
Displacement/Load/Manual Jog Control
Loading Mode
PTP/Waveform/30-step Sequence
Control Principle
PID Closed-loop Servo Control
Power Supply
Three-phase 380V 5KW
Hydraulic Oil
46# Anti-wear Hydraulic Oil NAS 9
Protection
Three-level Alarm/EMO/Overload/Leakage
Application
Material/Structure/Mechanical Testing
  • Dual-Channel Servo Hydraulic Loading Test Bench Electro-hydraulic Servo Pressure & Displacement Dual-control Mechanical Testing Equipment
  • Dual-Channel Servo Hydraulic Loading Test Bench Electro-hydraulic Servo Pressure & Displacement Dual-control Mechanical Testing Equipment
  • Dual-Channel Servo Hydraulic Loading Test Bench Electro-hydraulic Servo Pressure & Displacement Dual-control Mechanical Testing Equipment
  • Dual-Channel Servo Hydraulic Loading Test Bench Electro-hydraulic Servo Pressure & Displacement Dual-control Mechanical Testing Equipment
  • Dual-Channel Servo Hydraulic Loading Test Bench Electro-hydraulic Servo Pressure & Displacement Dual-control Mechanical Testing Equipment
  • Dual-Channel Servo Hydraulic Loading Test Bench Electro-hydraulic Servo Pressure & Displacement Dual-control Mechanical Testing Equipment

Description

  • Dual-channel independent control, supports pressure/displacement dual modes without interference
  • High-precision PID closed-loop adjustment with smooth loading, fast response and small error
  • Multiple loading modes: manual, PTP, waveform, 30-step sequence to meet various test demands
  • Three-level alarm protection (warning/stop/emergency stop), automatic shutdown for overtravel & overpressure
  • Touch screen visual operation, intuitive parameter setting, real-time data display and tracking
  • Industrial-grade hydraulic system, stable for long-term continuous loading tests
