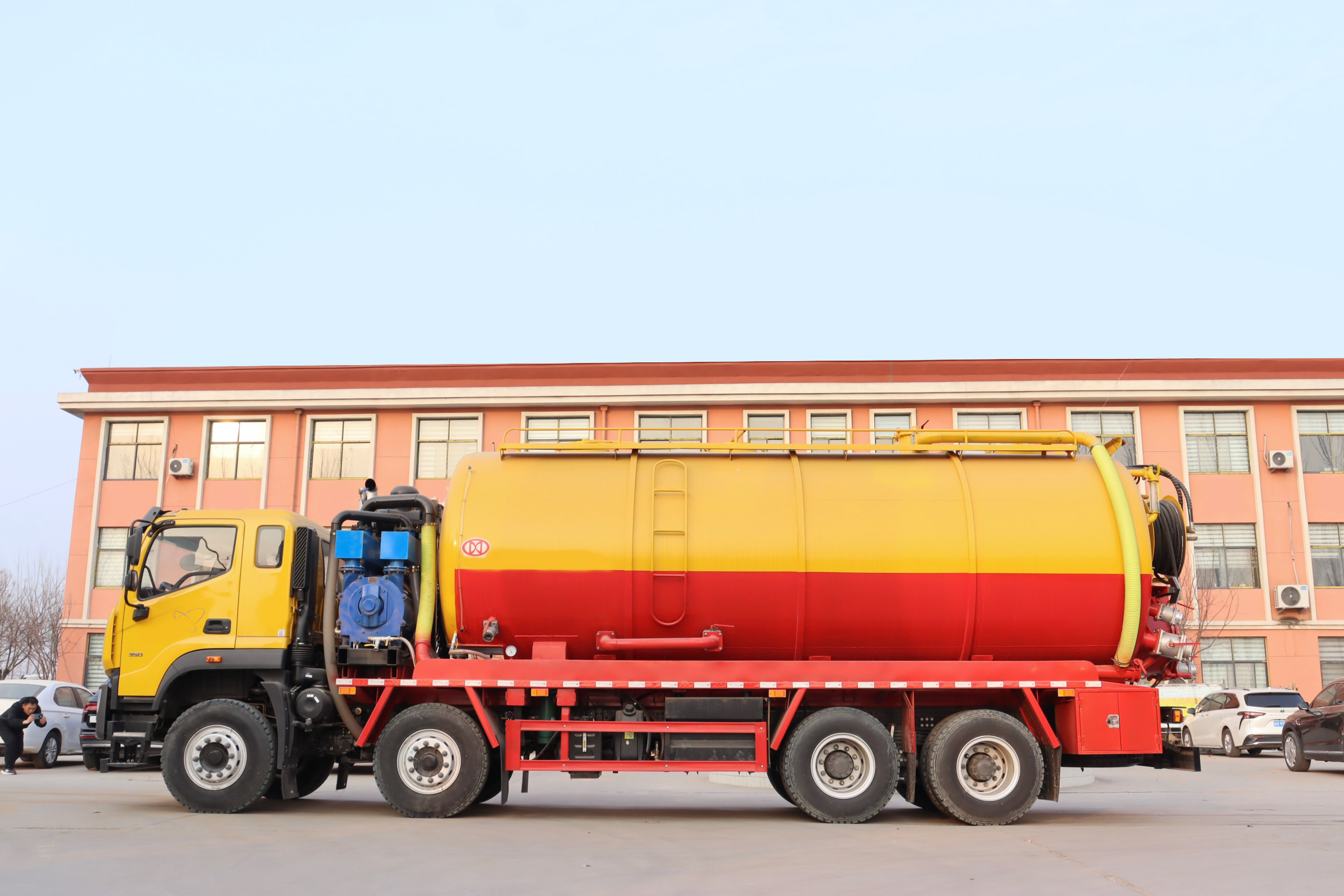

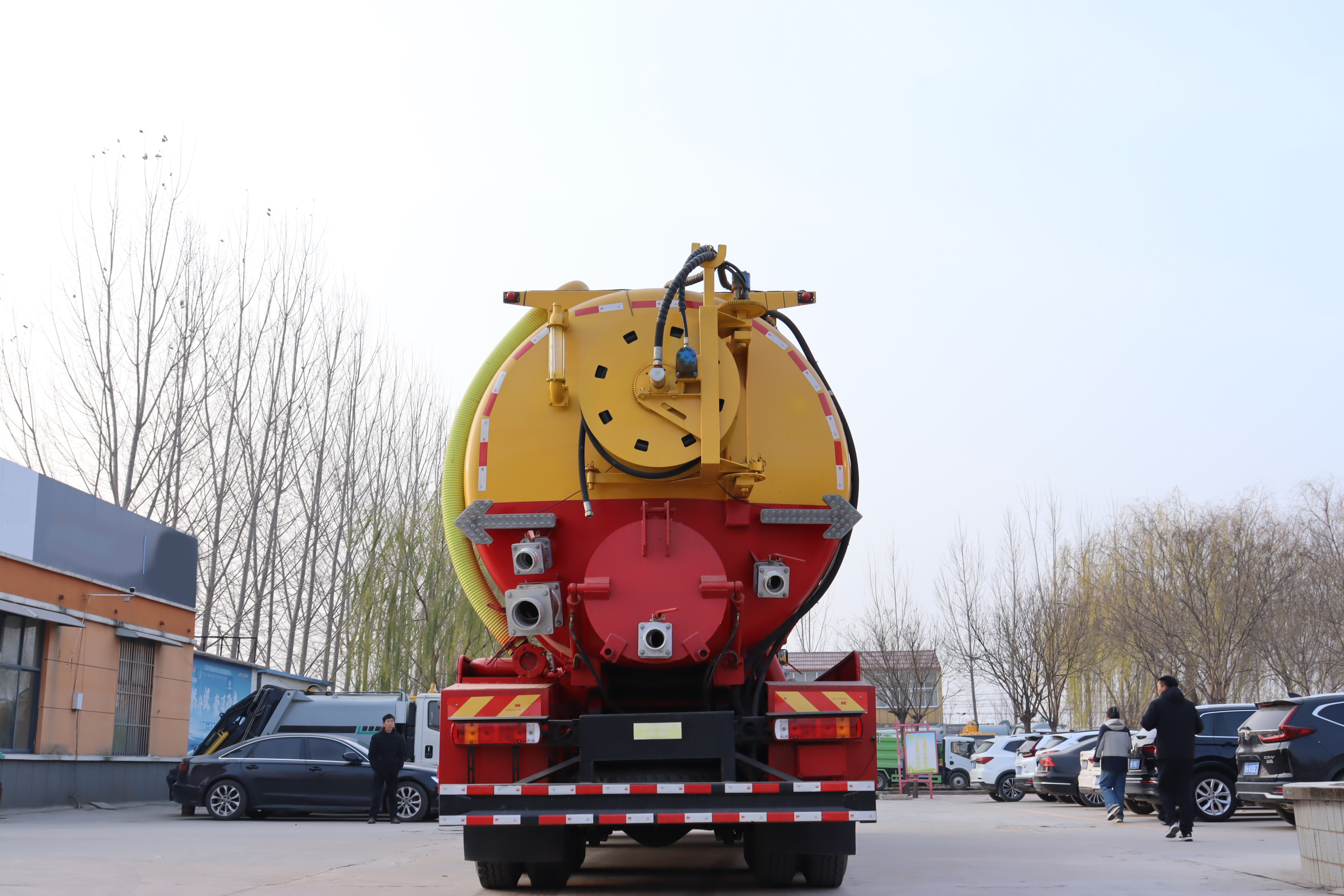

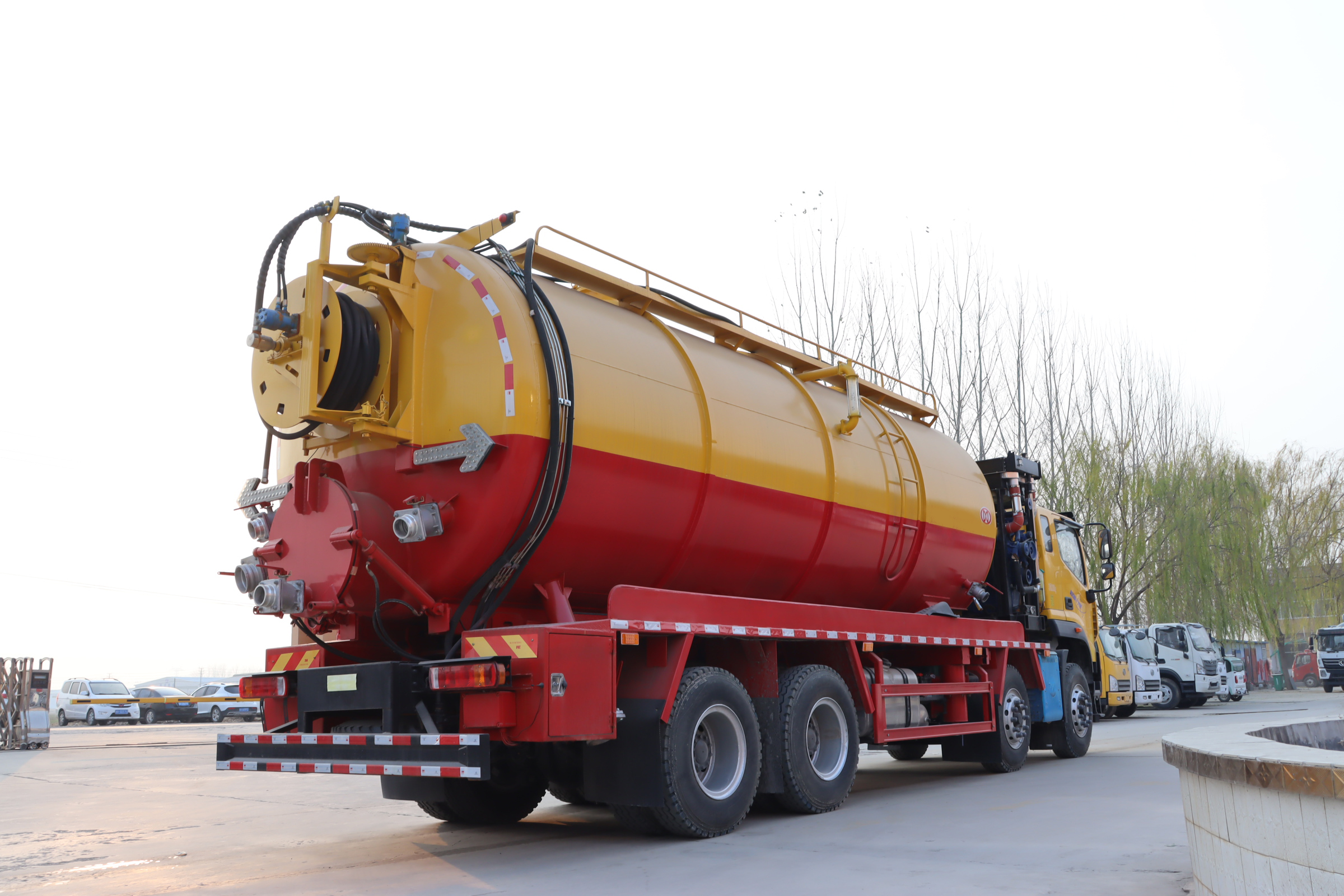

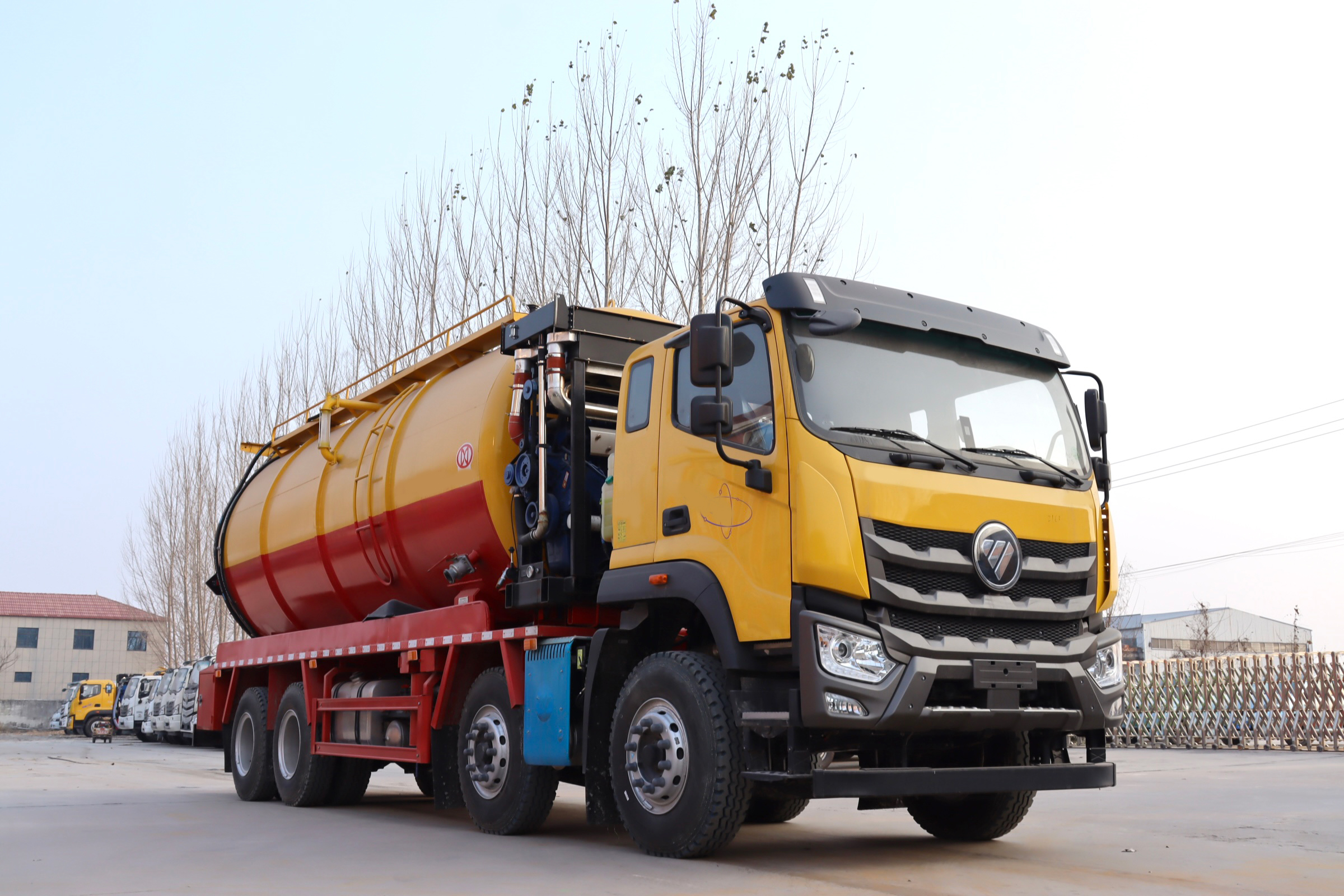

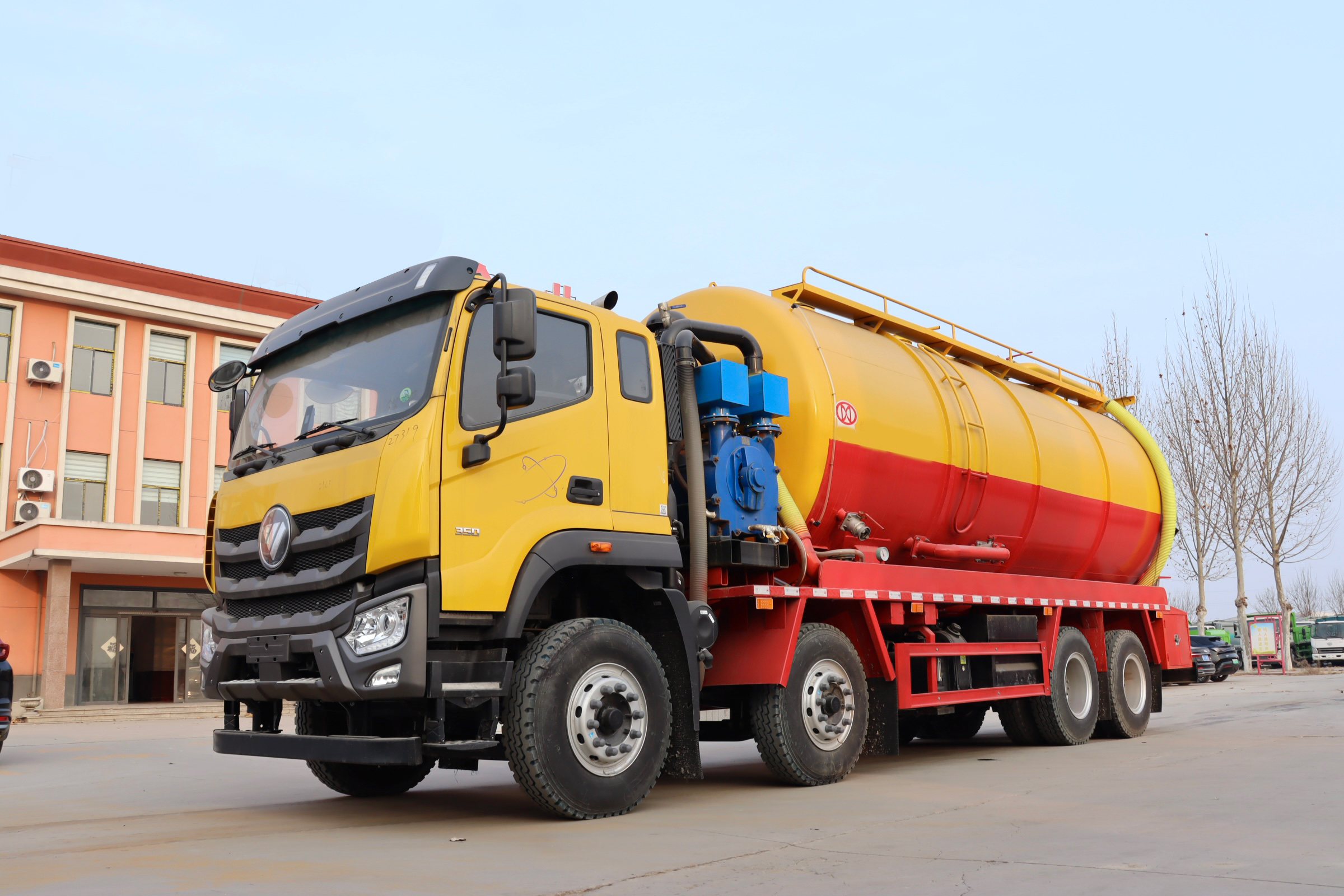

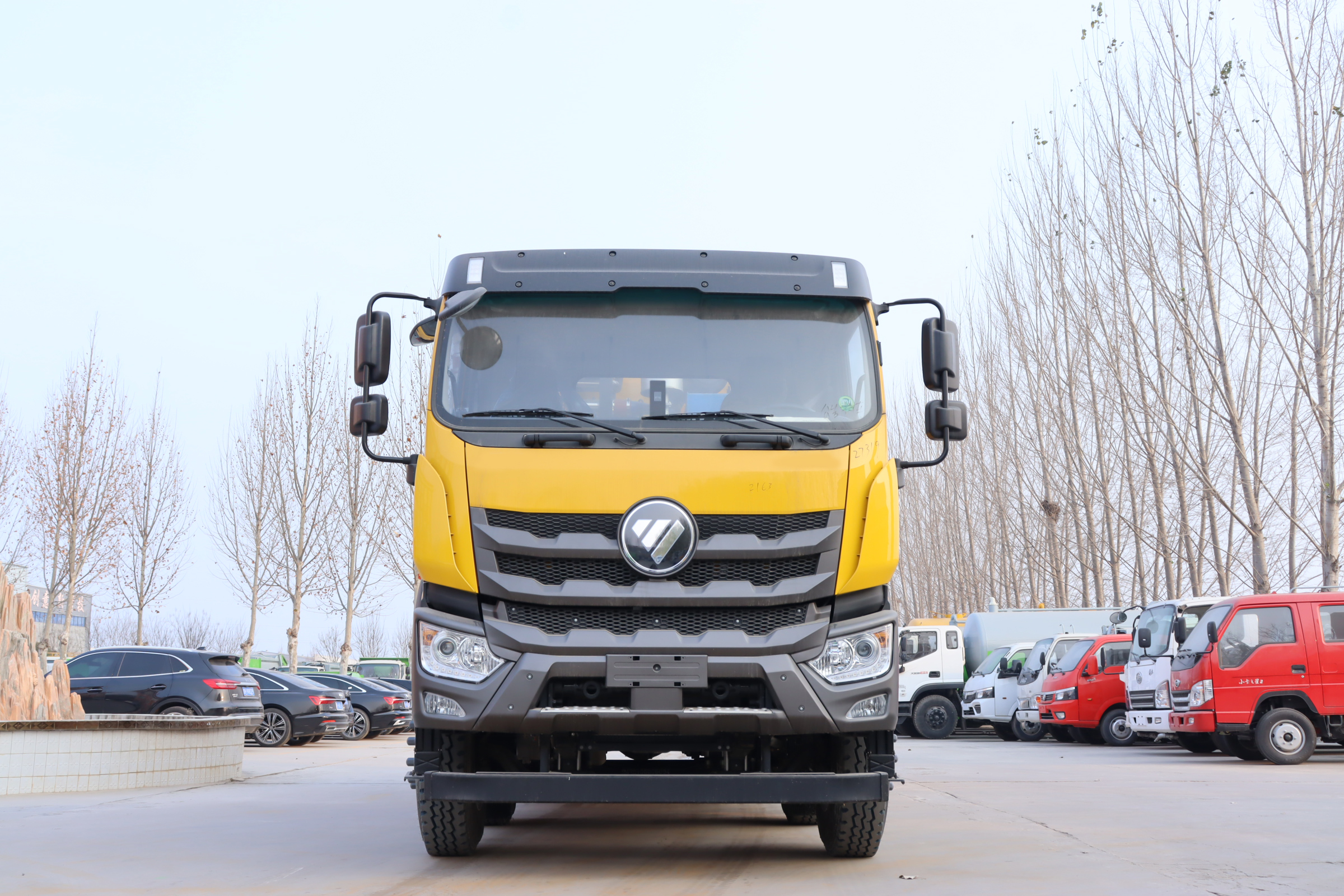

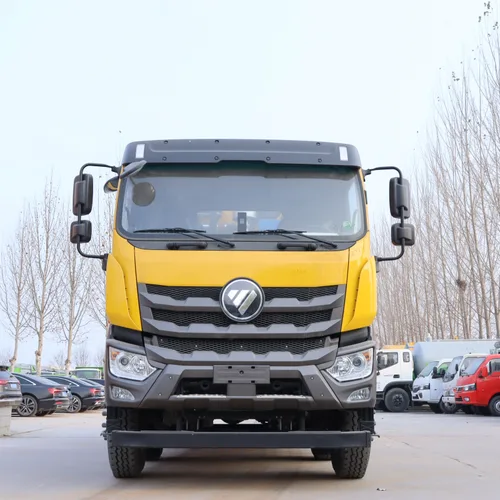

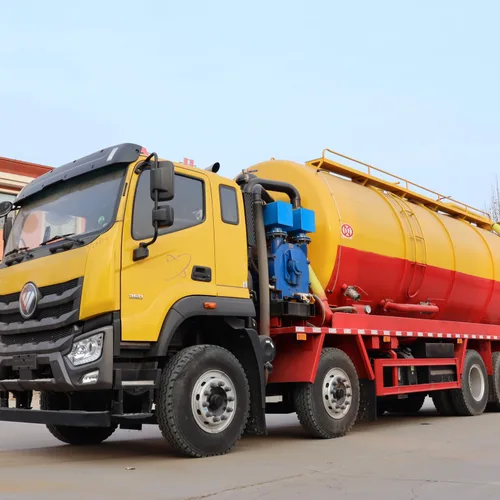

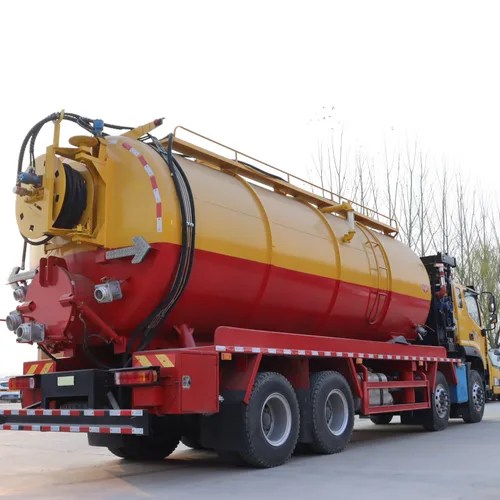

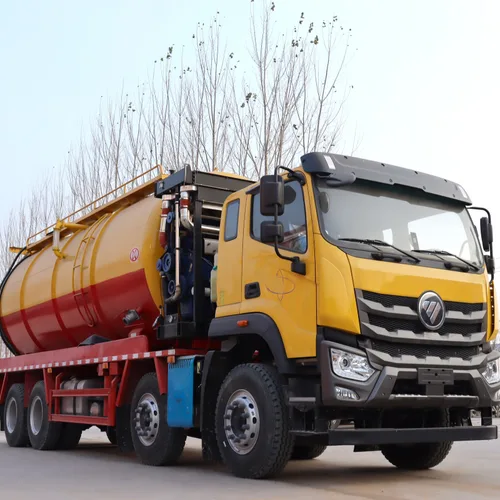

Custom Large Capacity FOTON 6x4 Engine Suction Sewage & Vacuum Truck High-Pressure Cleaning Municipal Use NEW Shandong

This Custom FOTON 6x4 Heavy-Duty Vacuum Truck is engineered for municipal waste management, combining powerful suction and high-pressure cleaning in one unit. Ideal for sewer maintenance, septic tank cleaning, and industrial liquid waste removal, it ensures efficient and reliable operation for urban sanitation departments.
Send Message Contact Supplier
Shandong Xiangnong Special Vehicles Co., Ltd.

Shandong Xiangnong Special Vehicles Co., Ltd.

View Supplier
Registration Date 2012
Number of Employees More than 200
Production Bases 2 production bases
Land Area 133,000 ㎡
Annual Output Over 8,000 special vehicles

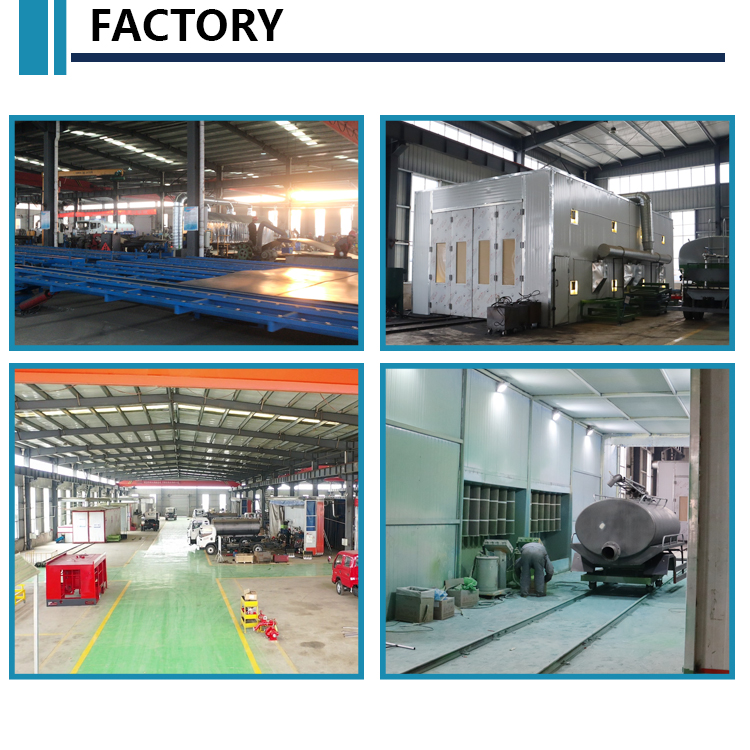

Core Equipment Welding, painting, assembly lines
Core Equipment Plate bending machine, automatic welding robot, sandblasting & painting line
Industry Experience Over 10 years in sanitation vehicle industry
Export Experience Years of export experience
Main Markets Africa, Southeast Asia, Central Asia, Middle East
Certifications ISO 9001 / ISO 14001 / ISO 45001
Honors High-Tech Enterprise of Shandong Province; Shandong Province Enterprise Abiding by Contracts and Valuing Credit
Details

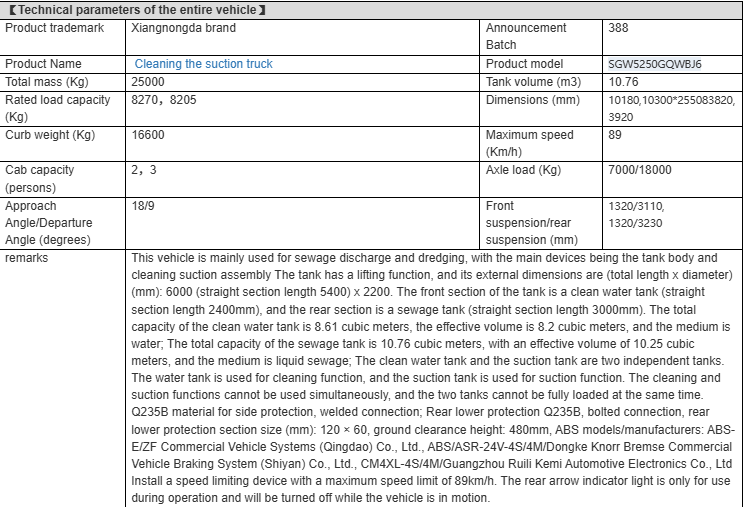

Specifications

This cleaning and suction truck is mainly used for sewage discharge and dredging, with the main devices being the tank body and cleaning and suction assembly.

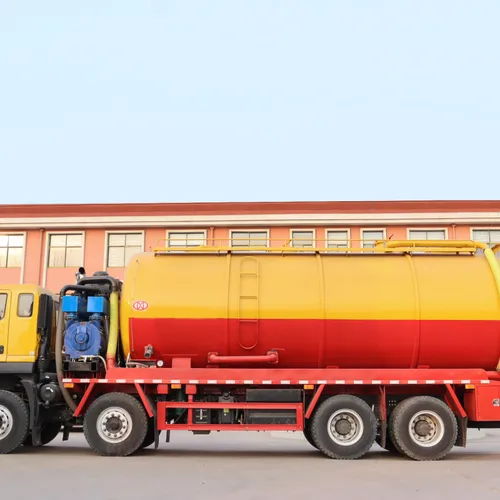

The tank of the pipeline dredging vehicle has a lifting function, and the external dimensions of the tank are (total length x diameter) (mm): 6000 (straight section length 5400) x 2200. The front section of the tank is a clean water tank (straight section length 2400mm), and the rear section is a sewage tank (straight section length 3000mm). The total capacity of the clean water tank is 8.61 cubic meters, the effective volume is 8.2 cubic meters, and the medium is water; The total capacity of the sewage tank is 10.76 cubic meters, with an effective volume of 10.25 cubic meters, and the medium is liquid sewage; The clean water tank and the suction tank are two independent tanks. The water tank is used for cleaning function, and the suction tank is used for suction function. The cleaning and suction functions cannot be used simultaneously, and the two tanks cannot be fully loaded at the same time.

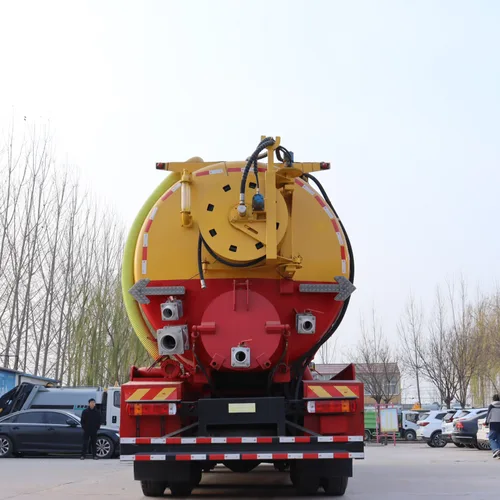

Q235B material for side protection, welded connection; Rear lower protection Q235B, bolted connection, rear lower protection section size (mm): 120 × 60, ground clearance height: 480mm.

This cleaning and suction vehicle is equipped with a limited speed device, with a maximum speed limit of 89km/h. The rear arrow indicator light is only used during operation and is turned off while the vehicle is in motion.


Color
Customers' Request
Drive Type
6*4
Maximum Speed
89KM/H
Product name
Cleaning the sewage suction truck
Fuel Type
Diesel Fuel
Emission Standard
Euro 5
Front / Rear Suspension (mm)
1320/2880,2980,1930,2030
Approach Angle / Departure Angle
13/10,13/14
External Dimensions
10400,10500*2550*3730,3830mm
Total Weight (kg)
31000
  • Custom Large Capacity FOTON 6x4 Engine Suction Sewage & Vacuum Truck High-Pressure Cleaning Municipal Use NEW Shandong
  • Custom Large Capacity FOTON 6x4 Engine Suction Sewage & Vacuum Truck High-Pressure Cleaning Municipal Use NEW Shandong
  • Custom Large Capacity FOTON 6x4 Engine Suction Sewage & Vacuum Truck High-Pressure Cleaning Municipal Use NEW Shandong
  • Custom Large Capacity FOTON 6x4 Engine Suction Sewage & Vacuum Truck High-Pressure Cleaning Municipal Use NEW Shandong
  • Custom Large Capacity FOTON 6x4 Engine Suction Sewage & Vacuum Truck High-Pressure Cleaning Municipal Use NEW Shandong
  • Custom Large Capacity FOTON 6x4 Engine Suction Sewage & Vacuum Truck High-Pressure Cleaning Municipal Use NEW Shandong

Description

This cleaning and suction truck is mainly used for sewage discharge and dredging, with the main devices being the tank body and cleaning and suction assembly.

The tank of the pipeline dredging vehicle has a lifting function, and the external dimensions of the tank are (total length x diameter) (mm): 6000 (straight section length 5400) x 2200. The front section of the tank is a clean water tank (straight section length 2400mm), and the rear section is a sewage tank (straight section length 3000mm). The total capacity of the clean water tank is 8.61 cubic meters, the effective volume is 8.2 cubic meters, and the medium is water; The total capacity of the sewage tank is 10.76 cubic meters, with an effective volume of 10.25 cubic meters, and the medium is liquid sewage; The clean water tank and the suction tank are two independent tanks. The water tank is used for cleaning function, and the suction tank is used for suction function. The cleaning and suction functions cannot be used simultaneously, and the two tanks cannot be fully loaded at the same time.

Q235B material for side protection, welded connection; Rear lower protection Q235B, bolted connection, rear lower protection section size (mm): 120 × 60, ground clearance height: 480mm.

This cleaning and suction vehicle is equipped with a limited speed device, with a maximum speed limit of 89km/h. The rear arrow indicator light is only used during operation and is turned off while the vehicle is in motion.
