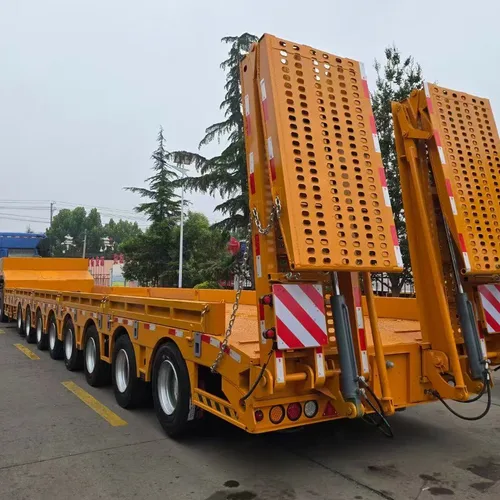

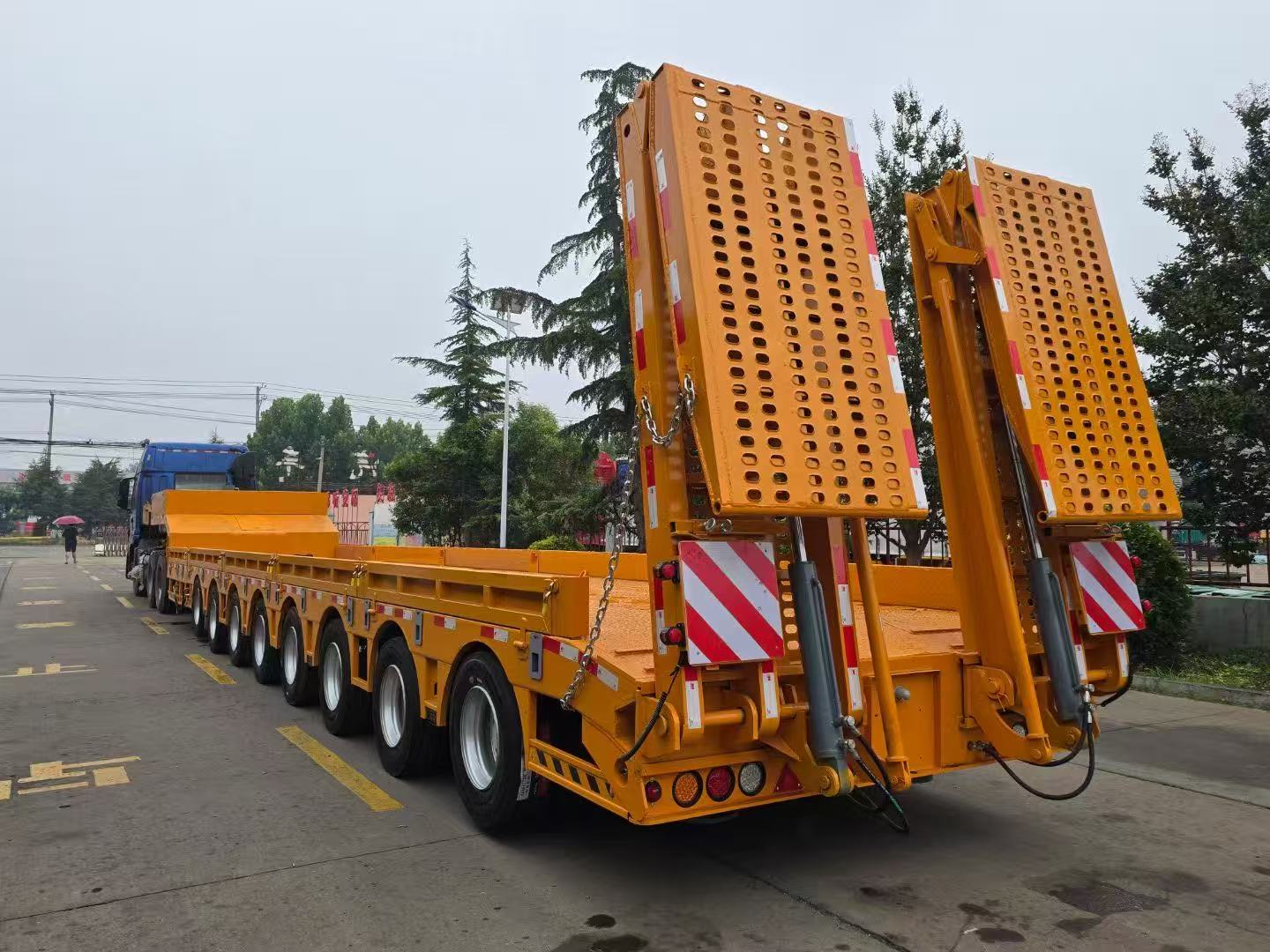

Central Asia & Africa Standard Low-bed Semi-trailer With Hydraulic Ramp For Large Mining Truck & Shield Machine Transport

Name: Central Asia & Africa Standard Low-bed Semi-trailer With Hydraulic Ramp For Large Mining Truck & Shield Machine Transport
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

Eight-axle ultra-low bed heavy machinery transport semi-trailer, overall L/W/H, load deck width, suspension and hydraulic ramp load capacity are fully customizable. Adopts widened thickened ultra-high strength manganese steel through main beam, ultra-low ground clearance flat deck, integrated synchronous hydraulic lifting folding ramp at rear for self-loading & unloading of large excavators and mining equipment. Mechanical balance suspension and air suspension are optional, eight axles share super heavy load evenly at the same time. Suitable for long-distance cross-border oversize heavy equipment transport including large excavators, drilling rigs, shield machines, mining dump trucks and crushers, widely exported to large mine infrastructure projects in Central Asia and Africa. Deck width, ramp load capacity, paint color and axle brand can all be customized.

$14814.00

Send Message Contact Supplier

Liangshan Tongluo Automobile Technology Co., Ltd.

Main Products: Trailers

View Supplier

Year Established Established in 2018

Main Products Trailers

Employees Less than 50 People

Factory Area 1,000-5,000 m²

Annual Revenue US$5 Million - US$10 Million

Main Markets Southeast Asia / Africa

Details

Specifications

Trade Information

Core Advantage Of Ultra-low Deck & Integrated Hydraulic Folding Loading Ramp
Ultra-low ground clearance flat deck design greatly reduces equipment loading height for oversize high mining machinery and shield machines to comply with road height limit rules. Integrated synchronous hydraulic lifting folding ramp at rear driven by synchronized hydraulic cylinders, no extra crane equipment required for self-loading of large excavators and mining trucks to cut labor and hoisting cost sharply. Ramp load capacity can be reinforced with multi-layer thick steel plate to carry 80~150 ton heavy construction machinery. Hollow anti-slip patterned steel deck prevents heavy machinery sliding during rainy weather to improve loading and transit safety.
Eight-axle Even Load Multi-layer High-strength Through Main Beam
Widened thickened multi-layer high manganese steel integrated bent through longitudinal beam delivers outstanding bending, torsion and impact resistance. Eight-axle balanced suspension distributes super heavy load synchronously, each axle bears even force on mountain and rough mine roads to avoid single axle overload damage to axles and tires. Dense multi-layer cross stiffeners under deck prevent sagging & deformation under long-term haulage of 100+ ton heavy machinery. Multi-layer heavy-duty lashing rails reserved on beam to fix large equipment from multiple angles and avoid collision damage during long transit.
Complete Multi-layer Safe Brake Protection System For Eight Axles
Synchronized multi-circuit brake system for eight axles with standard ABS anti-lock function ensures stable braking on long downhill full 100+ ton load to eliminate heavy load slide & rollover risks. Air suspension version provides top-class shock absorption to buffer violent mine road bumping and protect precision internal hydraulic parts of shield machines and drilling rigs. Full surrounding high-bright reflective strips meet night driving regulations of all countries on highways and mine roads. Thickened integrated anti-collision guard at front & rear reduces damage to beam and equipment from rear-end collision and scratch.
Full-range Personalized Customization Service
Overall L/W/H, deck width, hydraulic ramp load capacity, suspension type, tire spec, axle brand, paint color, LOGO printing and beam reinforcement layers are all customizable. Deck dimension and total length can be adjusted to comply with width, length and weight road limit rules of Central Asia and Africa for smooth oversize cargo approval, customs clearance and registration.
Core Application Scenarios
Long-distance cross-border logistics of 100-ton-class oversize heavy machinery: large excavators, mining dump trucks, rotary drilling rigs, shield machines and mine crushers. Ideal for large open-pit mines, tunnel construction sites and heavy machinery trade markets, it is the mainstream multi-axle low-bed semi-trailer for super oversize engineering logistics in Central Asia and Africa.
Full Export Supporting Service
①Optional imported BPW heavy-duty axles and EBS electronic brake system; CE whole vehicle export certificate and third-party heavy load pressure test report available.
②Fumigated reinforced wooden frame packaging for ocean shipping; 24-hour online Chinese & English technical after-sales support, separate export replenishment of wearing parts including ramp hydraulic cylinders, axles, tires and brake valves.
③Compatible with all global high-horsepower tractor heads, adjust fifth wheel height and full wiring lighting to meet road standards of various countries; English operation & maintenance manual supplied.

Axle Quantity

Eight-axle

Suspension System

Mechanical Balance Suspension / Air Suspension

Frame Material

Widened Thickened Ultra-high Strength Manganese Steel Through Main Beam

Load Deck

Ultra-low anti-slip flat deck, width 3~3.8m customizable

Loading Ramp

Integrated Synchronous Hydraulic Lifting Folding Ramp

Standard Length

13/13.6/14.5/15m, full L/W/H customizable

Tire Spec

275/70R22.5 / 385/65R22.5 Special Low-bed Tubeless Tires Optional

Axle Brand

FUWA / Import BPW Heavy Axle / Domestic Reinforced Axle Optional

Brake System

Multi-circuit Drum Brake, ABS Anti-lock As Standard

Rated Load Capacity

100~180 Ton Rated Load, Multi-layer Reinforced Beam For Higher Capacity

Side Lashing System

Multi-layer Lashing Rails & Heavy-duty Tensioners For Equipment Fixing

Rear Protection

Integrated Anti-collision Guard, Full High-bright Reflective Markers

Custom Scope

Full L/W/H, deck width, hydraulic ramp load capacity, suspension, paint color, LOGO & beam reinforcement layers all customizable

MOQ

1 Pieces

Description

Core Advantage Of Ultra-low Deck & Integrated Hydraulic Folding Loading Ramp
Ultra-low ground clearance flat deck design greatly reduces equipment loading height for oversize high mining machinery and shield machines to comply with road height limit rules. Integrated synchronous hydraulic lifting folding ramp at rear driven by synchronized hydraulic cylinders, no extra crane equipment required for self-loading of large excavators and mining trucks to cut labor and hoisting cost sharply. Ramp load capacity can be reinforced with multi-layer thick steel plate to carry 80~150 ton heavy construction machinery. Hollow anti-slip patterned steel deck prevents heavy machinery sliding during rainy weather to improve loading and transit safety.
Eight-axle Even Load Multi-layer High-strength Through Main Beam
Widened thickened multi-layer high manganese steel integrated bent through longitudinal beam delivers outstanding bending, torsion and impact resistance. Eight-axle balanced suspension distributes super heavy load synchronously, each axle bears even force on mountain and rough mine roads to avoid single axle overload damage to axles and tires. Dense multi-layer cross stiffeners under deck prevent sagging & deformation under long-term haulage of 100+ ton heavy machinery. Multi-layer heavy-duty lashing rails reserved on beam to fix large equipment from multiple angles and avoid collision damage during long transit.
Complete Multi-layer Safe Brake Protection System For Eight Axles
Synchronized multi-circuit brake system for eight axles with standard ABS anti-lock function ensures stable braking on long downhill full 100+ ton load to eliminate heavy load slide & rollover risks. Air suspension version provides top-class shock absorption to buffer violent mine road bumping and protect precision internal hydraulic parts of shield machines and drilling rigs. Full surrounding high-bright reflective strips meet night driving regulations of all countries on highways and mine roads. Thickened integrated anti-collision guard at front & rear reduces damage to beam and equipment from rear-end collision and scratch.
Full-range Personalized Customization Service
Overall L/W/H, deck width, hydraulic ramp load capacity, suspension type, tire spec, axle brand, paint color, LOGO printing and beam reinforcement layers are all customizable. Deck dimension and total length can be adjusted to comply with width, length and weight road limit rules of Central Asia and Africa for smooth oversize cargo approval, customs clearance and registration.
Core Application Scenarios
Long-distance cross-border logistics of 100-ton-class oversize heavy machinery: large excavators, mining dump trucks, rotary drilling rigs, shield machines and mine crushers. Ideal for large open-pit mines, tunnel construction sites and heavy machinery trade markets, it is the mainstream multi-axle low-bed semi-trailer for super oversize engineering logistics in Central Asia and Africa.
Full Export Supporting Service
①Optional imported BPW heavy-duty axles and EBS electronic brake system; CE whole vehicle export certificate and third-party heavy load pressure test report available.
②Fumigated reinforced wooden frame packaging for ocean shipping; 24-hour online Chinese & English technical after-sales support, separate export replenishment of wearing parts including ramp hydraulic cylinders, axles, tires and brake valves.
③Compatible with all global high-horsepower tractor heads, adjust fifth wheel height and full wiring lighting to meet road standards of various countries; English operation & maintenance manual supplied.
