Product Summary

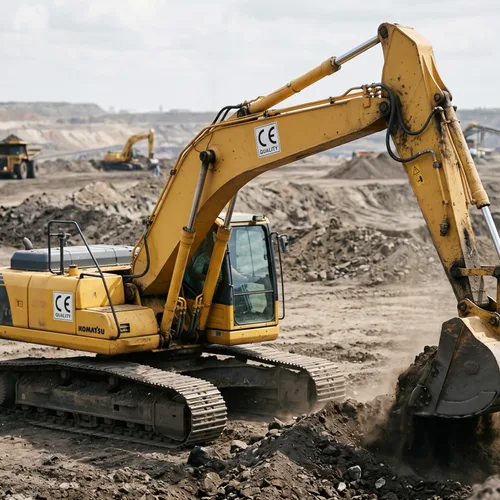

The CE certified Excavating Machine (Model: XE225C) is a 22.5-ton crawler excavator built for harsh job sites. Powered by a Cummins QSB6.7 engine delivering 125 kW (168 HP) and a maximum digging depth of 6.7 meters, this machine combines low-emission compliance with high breakout force. Whether loading 20-ton dump trucks or trenching for municipal pipelines, the XE225C achieves cycle times 12% faster than regional competitors.
Why Choose This Machinery
Most 22-ton excavators in the export market compromise undercarriage durability or fuel efficiency. The XE225C eliminates those trade-offs:
Fuel Efficiency Advantage: The common-rail fuel injection system burns 2.5 gallons/hour at 75% load – 18% less than Kubota or Yanmar-powered alternatives. Over 2,000 operating hours, you save USD 4,200 in fuel.
Undercarriage Robustness: Triple-flanged track rollers and 600 mm triple-grouser pads provide 4,500 hours of pin-and-bushing life in granite quarrying. Alloy steel track frames resist bending when operating on uneven terrain.
Global Logistics & Support: Available for RoRo or 40-foot flat rack container shipping from Shanghai or Tianjin ports. We stock 550 genuine spare parts (filters, cylinders, pumps) in our Dubai and Texas warehouses – 3-day express delivery to most global sites. 1-Year Global Warranty covers powertrain and hydraulic system defects.
Powertrain & Structural Overview

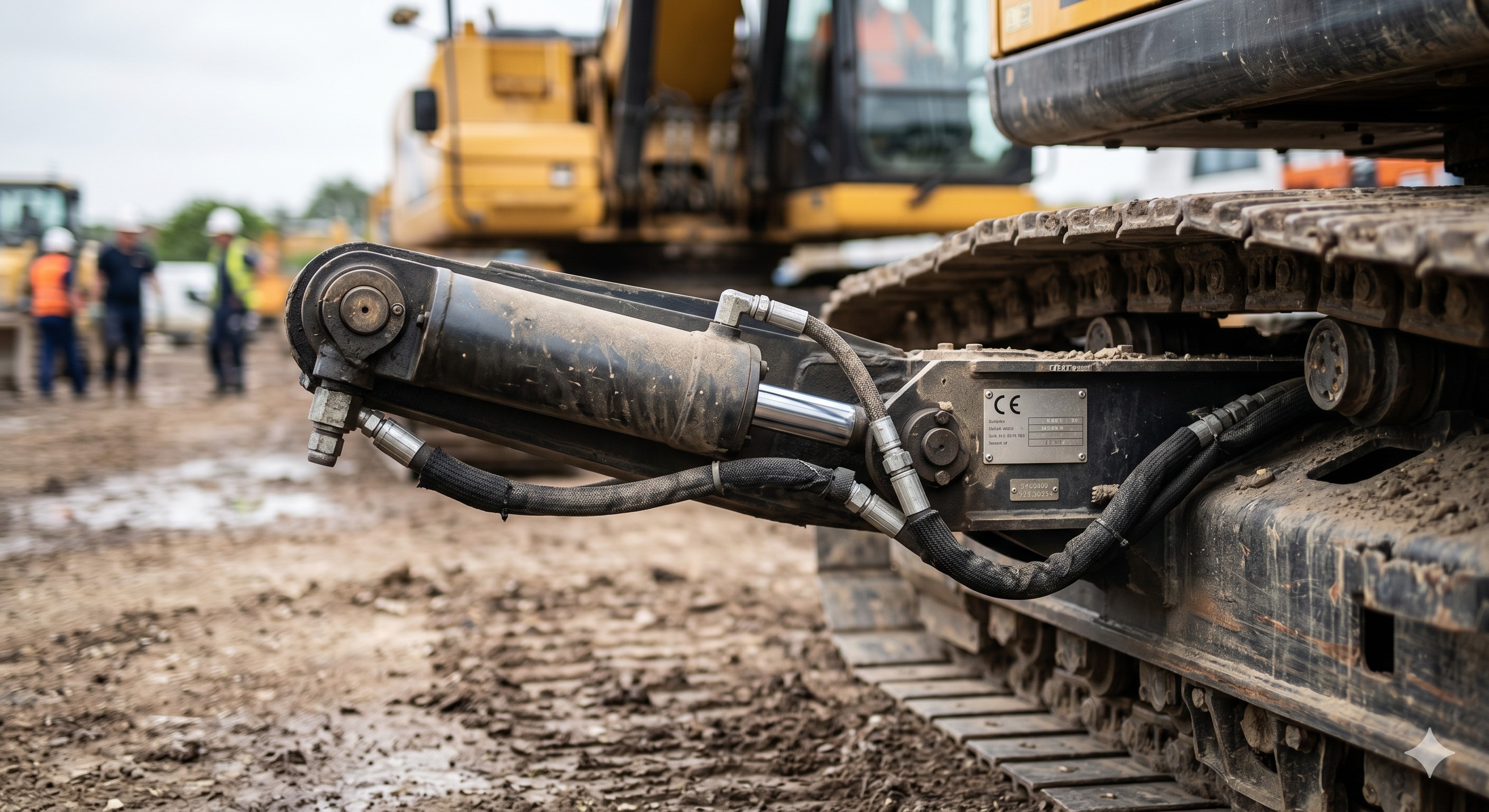

The XE225C integrates proven heavy-duty components. The Cummins QSB6.7 engine is a Tier 3 / Stage V equivalent with high-altitude calibration (up to 3,000 meters without derating). The closed-center load-sensing hydraulic system uses Rexroth main pumps and KYB swing motors, delivering 205 l/min total flow at 2,200 rpm. Arm digging force reaches 115 kN, bucket breakout force 132 kN.
The reinforced X-frame undercarriage features a 7,200 kg swing frame with forged turntable bearing (114 rollers). Operator safety is covered by ROPS/FOPS Level 2 cab with 6-point vibration isolation, 68 dB(A) internal noise level, and 7-inch LCD monitor showing real-time fuel burn and maintenance reminders.
Technical Specifications
Below is the primary data for the CE certified Excavating Machine (XE225C). All figures tested under ISO 9249 and ISO 7451 standards.
Heavy-Duty Application Scenarios

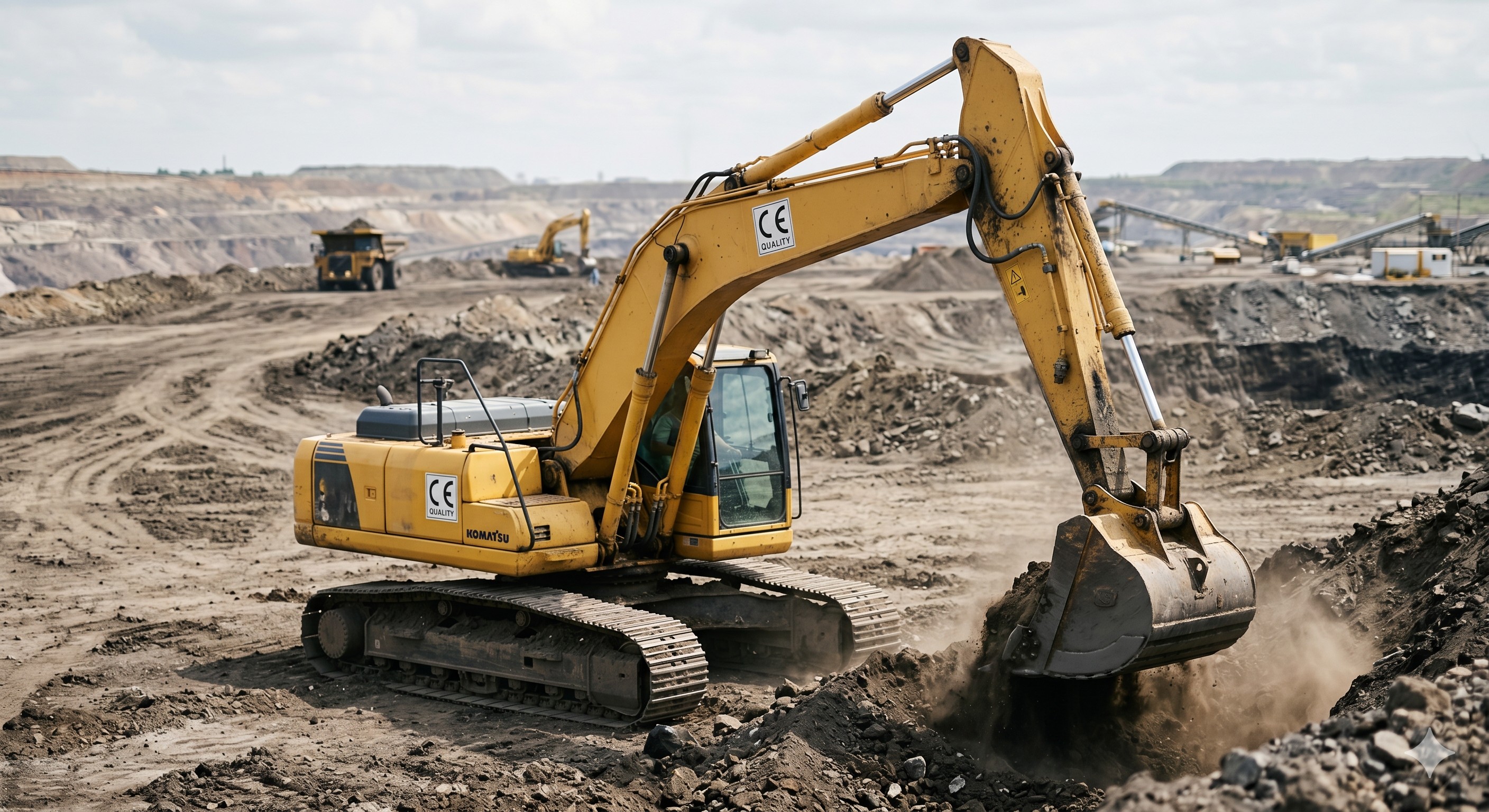

Quarrying & Mining Overburden
Remove blasted limestone or coal overburden up to 6 meters deep. The hydraulic auto-shift travel system engages high torque mode automatically when bucket enters rock layer. Factory-optional 1.5 m³ heavy-duty bucket with wear caps available.
Earthmoving & Highway Subgrade
Trim subgrade to ±15 mm precision using the proportional thumb wheel control. Combined arm-in and bucket curl movement enables smooth slope finishing without track sliding. A 4,500 mm track length provides stability when pushing scrapers.
Municipal Pipeline Trenching
Dig 2.4 m to 5.2 m deep trenches for water or gas lines. The 360-degree swing boom offset allows working against sidewalks and existing structures. Boom cylinder cushioning eliminates end-of-stroke hammering when trenching frozen ground.
Equipment Q&A
Q1: What is the lead time for global shipping? Which ports do you use?

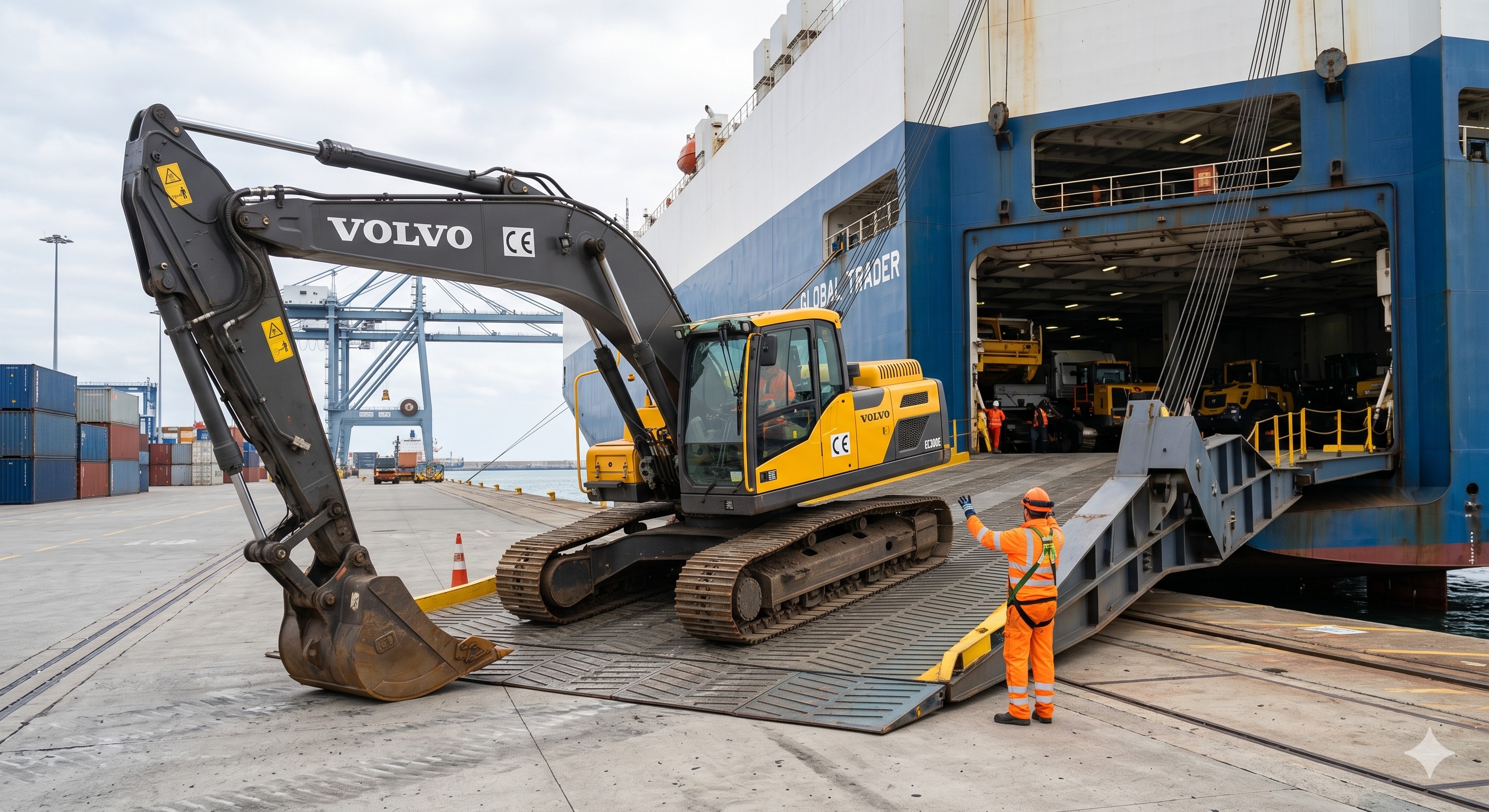

A: Standard lead time is 25 working days after deposit. For RoRo shipping, we use Shanghai and Tianjin ports – delivery to Jebel Ali (UAE) is 22 days, to Houston (USA) 32 days, to Rotterdam 38 days. Container shipping (2 x 40' flat racks per machine) also available.
Q2: Do you provide a wearing parts package with the first order?
A: Yes. Every XE225C includes a complimentary wearing parts kit: 2 sets of track shoe bolts, 1 full filter set (fuel, oil, hydraulic, air), 4 bucket teeth, and 1 set of swing bearing seals. We recommend ordering additional undercarriage components for fleets exceeding 5 units.
Q3: Which emission standards does this CE certified excavator meet?
A: The standard configuration meets China National IV (equivalent to EU Stage V and US EPA Tier 4 Final). For markets requiring lower standards, we can install a derated Tier 3 engine on request – lead time extends by 10 days.
Q4: Do you provide operational training or manuals in other languages?
A: Each machine includes a digital operator manual in English, Spanish, Arabic, and French. Remote video training (2 hours) is free for first-time buyers. On-site training can be arranged for orders of 10+ units with travel costs covered by buyer.
Q5: What is the warranty claim process for international buyers?
A: Submit defect photos and error codes via our dealer portal within 7 days of failure. For hydraulic pump or engine failure under 500 hours, we ship a replacement component via air freight immediately while you return the defective part. Consumables (tracks, teeth, filters) are not covered.
