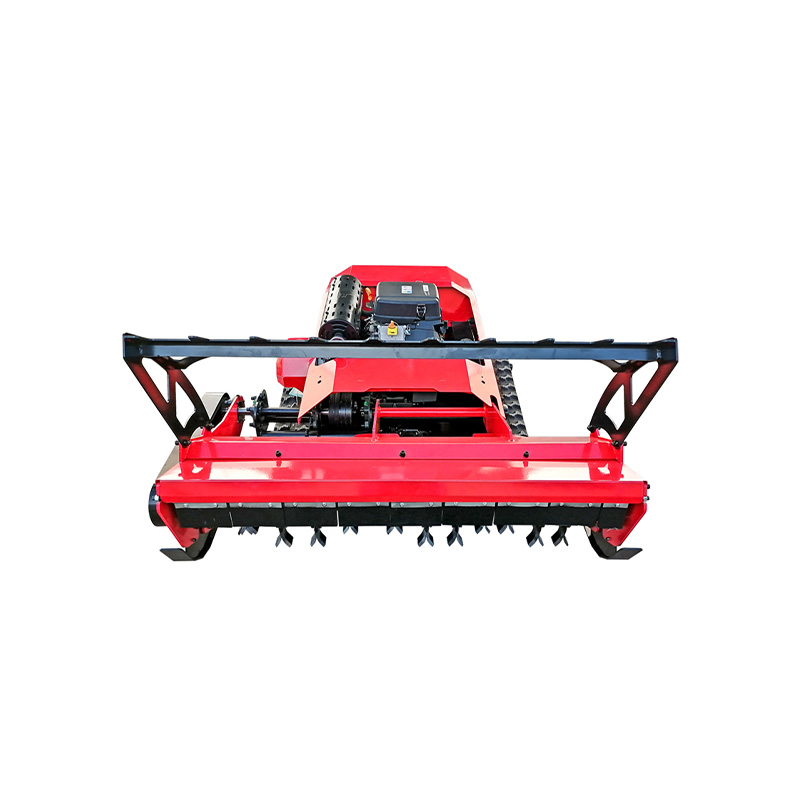

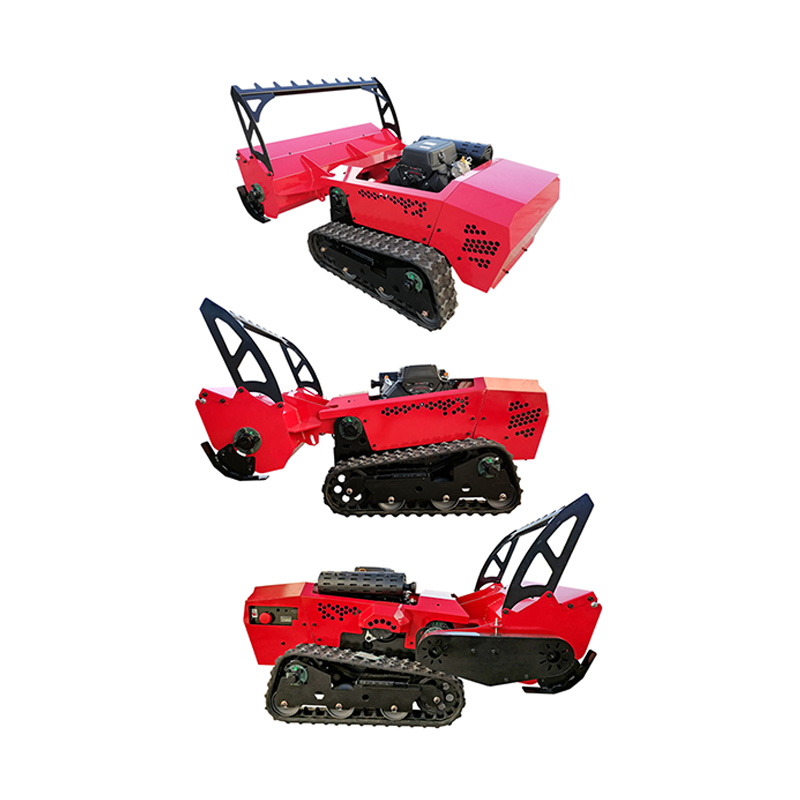

Canyao CY-1200SQ Remote Crawler Land Reclamation Mower 1.2m Cutting Width Complete Set Export
Min. Order: 1 Pieces
- Remote Reclamation Crawler Mower:
- CY1200SQ, Dual 48V Nanpu 800W Motors
- Diesel Engine:
- Loncin 764 Single Cylinder, 18 HP
- Reduction Box:
- WDJO5 Track Planetary Gearbox, Ratio 31.36 Two-stage
- Ignition:
- Remote + Manual Start, Max Remote Range 500 Meters
Product Features & Applications

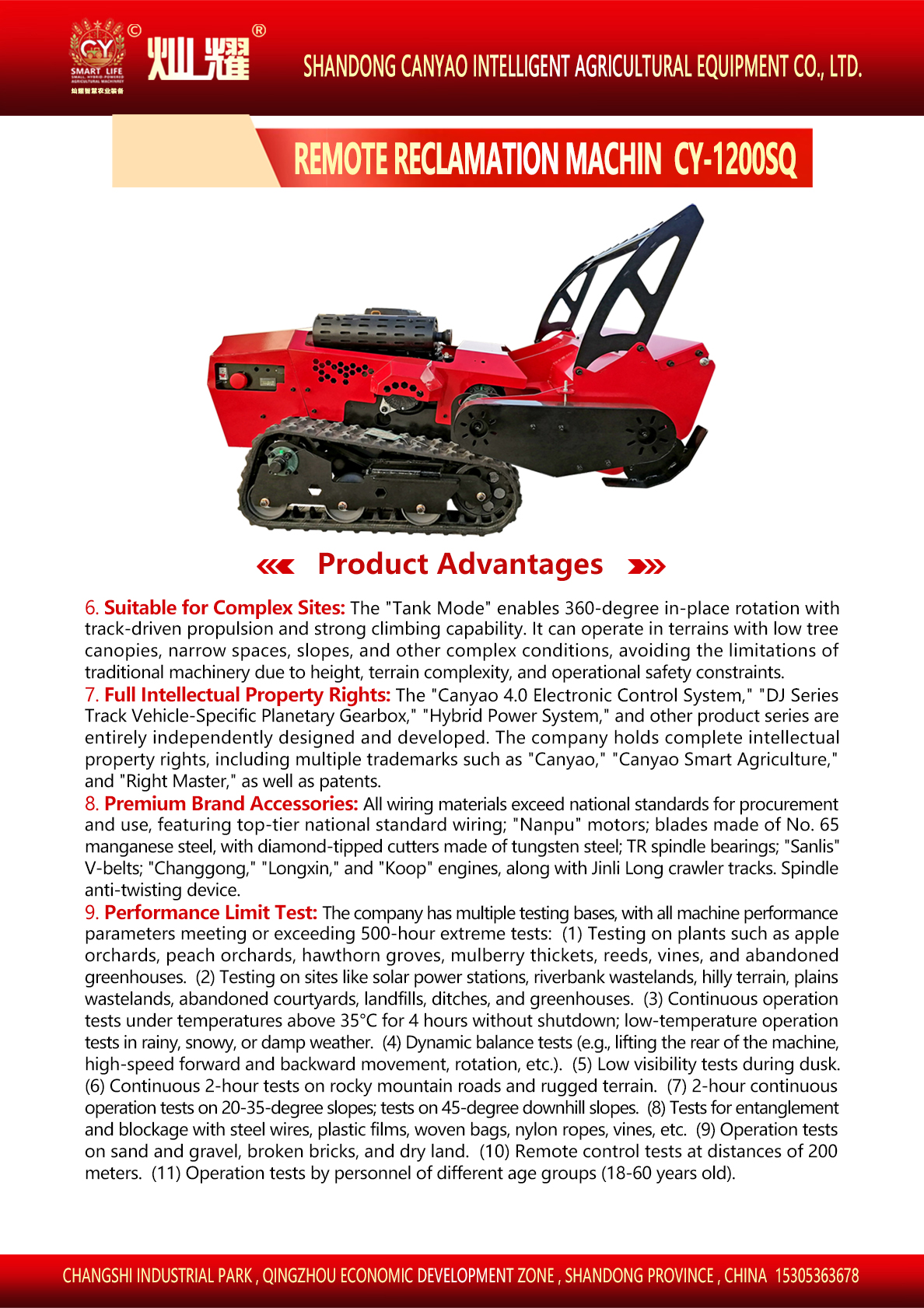

Full complete set of Canyao CY-1200SQ remote crawler land reclamation flail mower. Equipped with Loncin 764 single-cylinder 18HP diesel engine, 1200mm wide cutting width with 24 groups manganese steel blades. Canyao 4.0 electronic control system supports full-function remote control up to 500 meters. Dual 800W travel motors hybrid oil-electric chassis realizes 360° in-place tank rotation, ground clearance 5-30cm remote adjustable, max climbing angle 35°. 8mm thick integrated frame, dual-circuit overload protection with human-machine separation design, ideal for land reclamation and grass crushing in hills, orchards and wasteland. Full machine supplied with all wearable spare parts, bilingual manual and full export documents as one set.

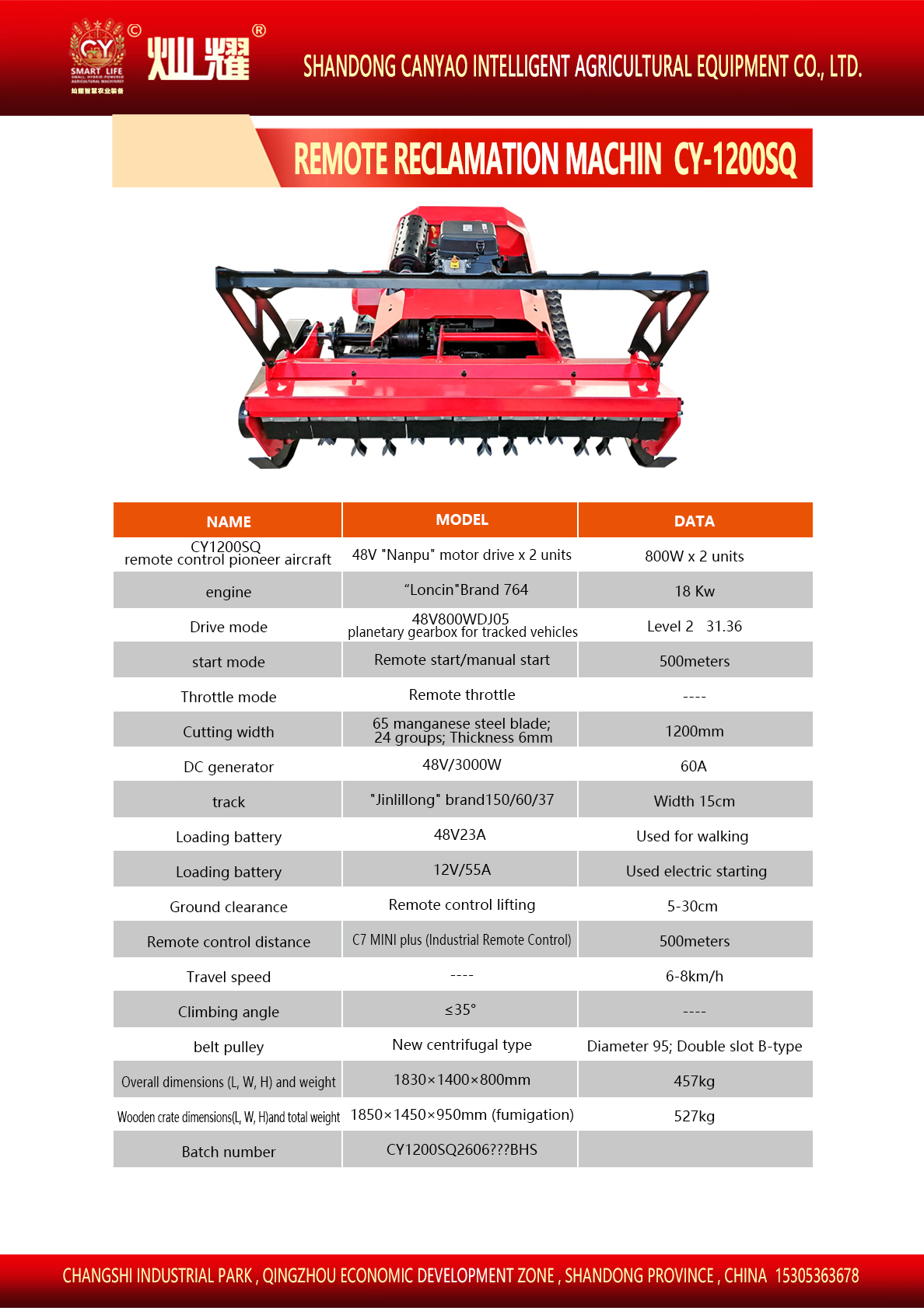

Technical Specifications
- Remote Reclamation Crawler Mower
- CY1200SQ, Dual 48V Nanpu 800W Motors
- Diesel Engine
- Loncin 764 Single Cylinder, 18 HP
- Reduction Box
- WDJO5 Track Planetary Gearbox, Ratio 31.36 Two-stage
- Ignition
- Remote + Manual Start, Max Remote Range 500 Meters
- Flail Blades
- 24 sets 65Mn Steel Blades, 6mm Thick, 1200mm Cutting Width
- Power Generation
- 48V 3000W, 60A
- Track Model
- Jinlilong 150/60/37, Width 15cm
- Drive Battery
- 48V23Ah for machine travel
- Engine Battery
- 12V55Ah for electric start
- Lift Range
- 5~30cm remote adjustable
- Controller
- C7 MINIplus Industrial Remote, Max 500 Meters
- Running Speed
- 6-8km/h
- Slope Capacity
- ≤35°
- Dimension / Net Weight
- 1830×1180×740mm, 465kg
- Case Size & Gross Weight
- 1890×1260×880mm, 535kg
Trade Specifications
- Reference Price
- USD $2651.00 - $2917.00
- Minimum Order Quantity
- 1 Pieces
Shandong Canyao Smart Agricultural Equipment Co., Ltd.
Our company was established in Qingzhou in 2024. We are a modern manufacturing enterprise focusing on the integrated R&D, production, sales and after-sales service of smart agricultural and forestry equipment, and hold a number of independent patented technologies for agricultural machinery power and crawler operation equipment. Our main products include crawler-type intelligent pesticide sprayers, agricultural and forestry power equipment, and supporting agricultural machinery parts. We have the capabilities of equipment customization, complete machine maintenance, technology export, and import and export supply. The company adheres to the R&D and upgrading of intelligent agricultural machinery, and provides highly efficient automatic operation equipment for orchards, farmlands, gardens, mountainous and forestry scenarios. We can undertake domestic bulk procurement and overseas agricultural machinery export orders, and provide complete full-chain services including technical consultation, equipment installation and maintenance.
- Location
- No.13, Zone F, Modern Logistics Park, Economic Development Zone, Qingzhou City, Weifang City, Shandong Province, China
- Main Products
- Agricultural machinery, agricultural machinery parts
- Employees
- Less than 50 People
- Factory Area
- 1,000-5,000 m²
- Annual Revenue
- US$1 Million - US$5 Million
- Main Markets
- Southeast Asia
