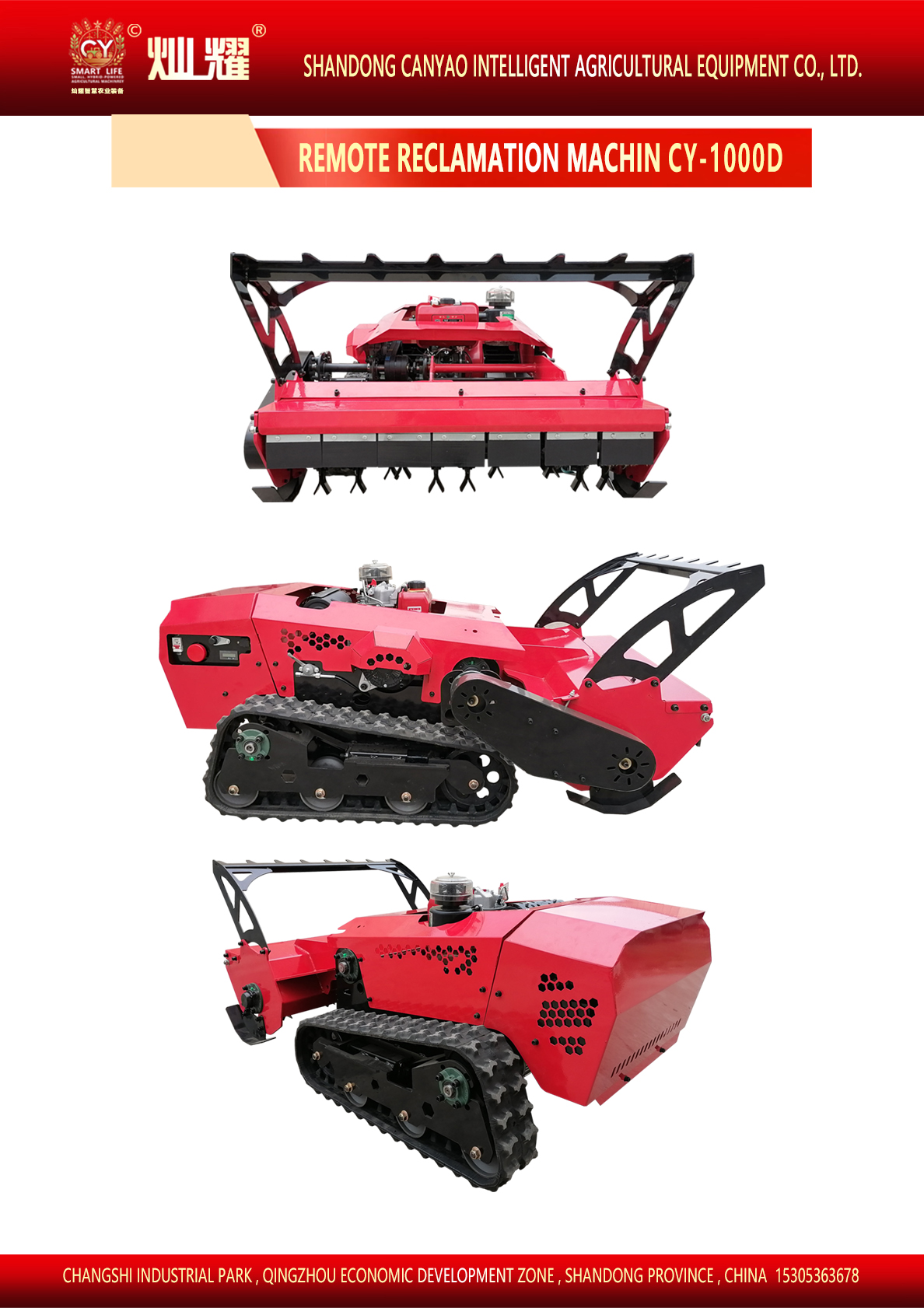

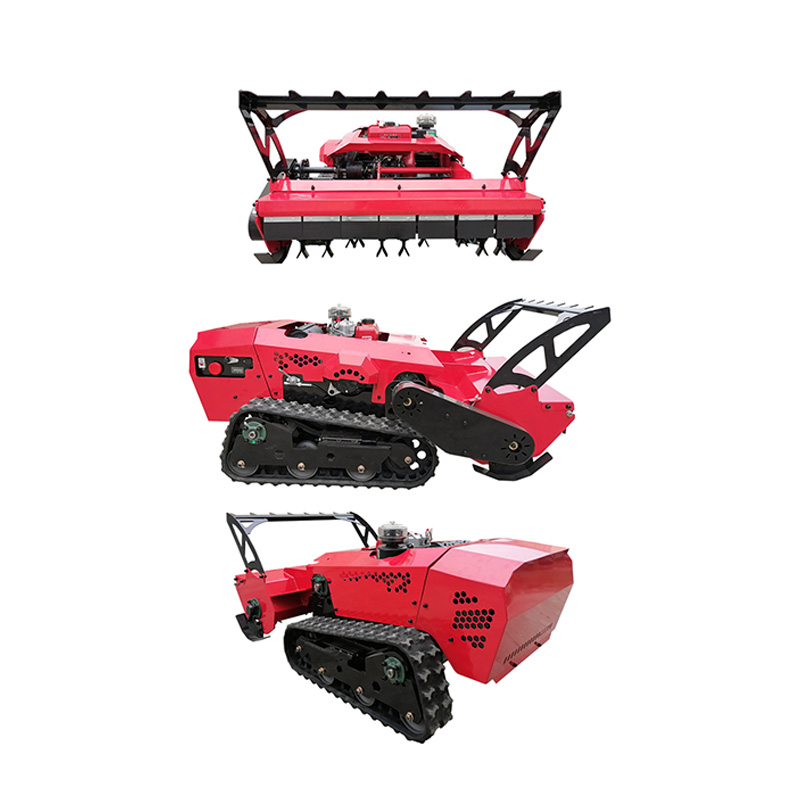

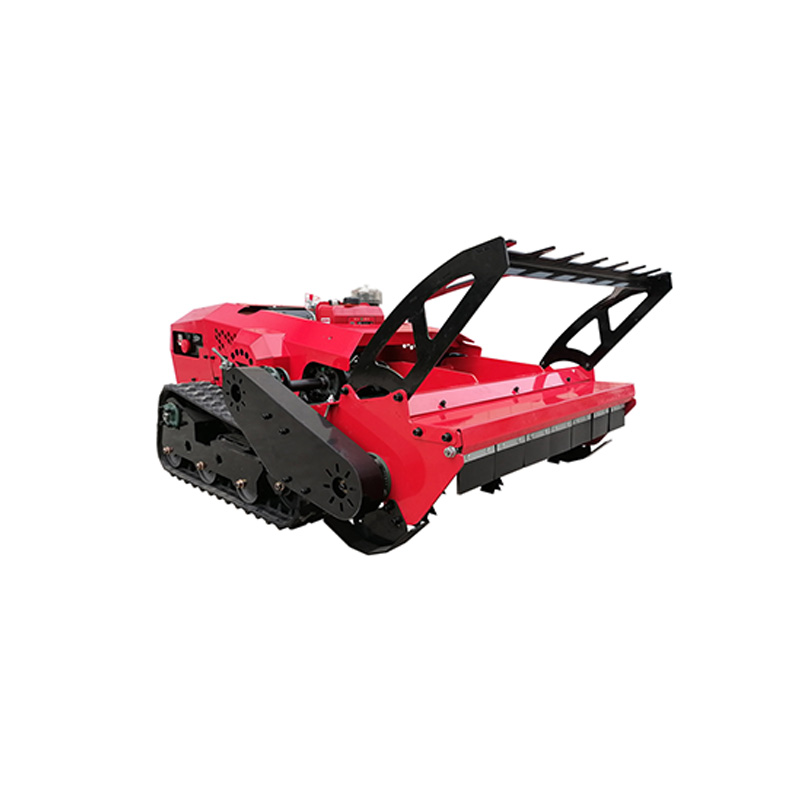

Canyao CY-1000D Remote Crawler Land Reclamation Mower 1m Cutting Width Complete Set Export
Min. Order: 1 Pieces
- Remote Reclamation Mower:
- CY1000D, Dual 48V Nanpu 800W Motors
- Diesel Engine:
- Changgong 195 Single Cylinder, 13 HP
- Reduction Box:
- WDJO5 Track Planetary Gearbox, Ratio 31.36 Two-stage
- Ignition:
- Remote + Manual Start, Max Remote Range 500 Meters
Product Features & Applications

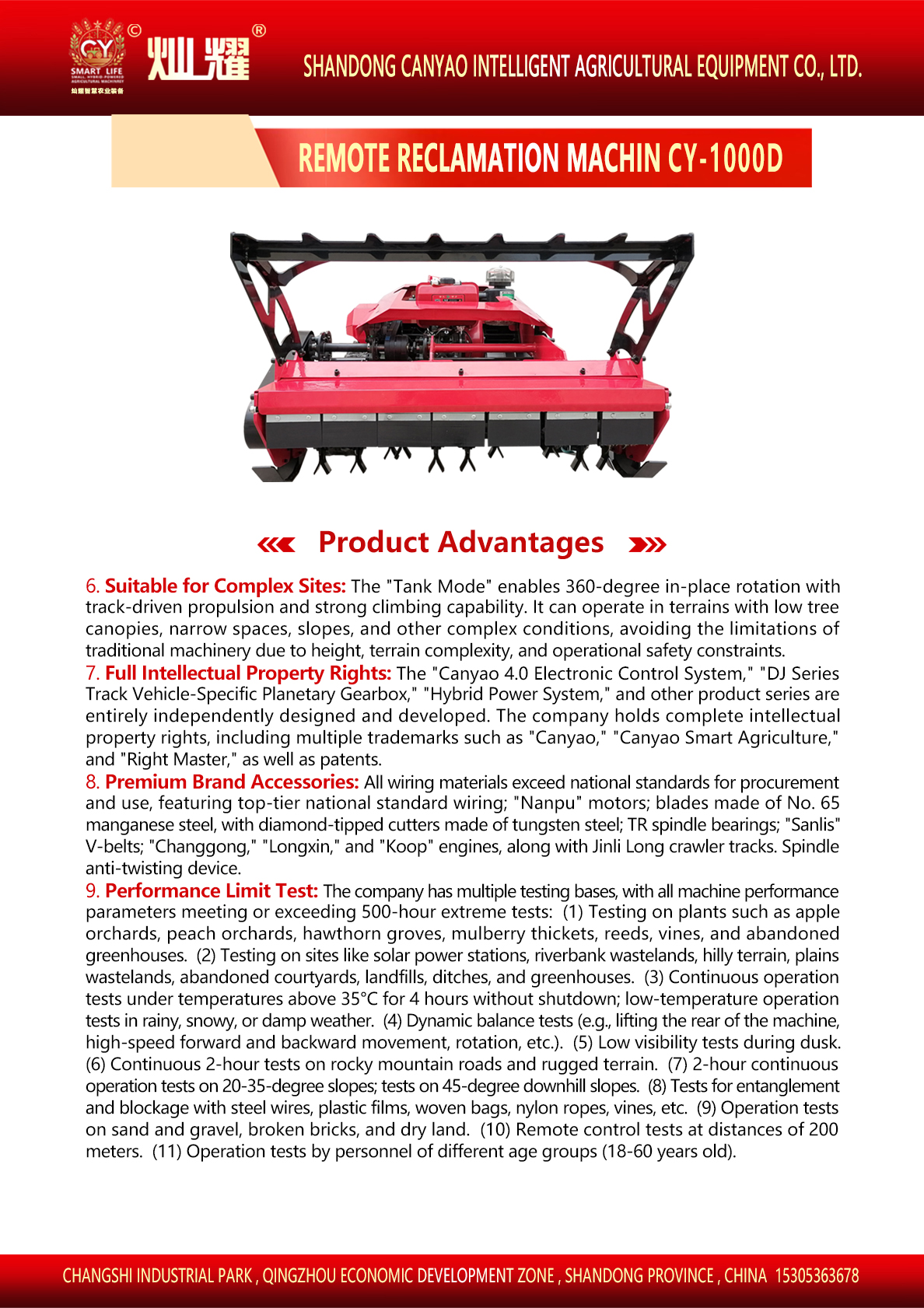

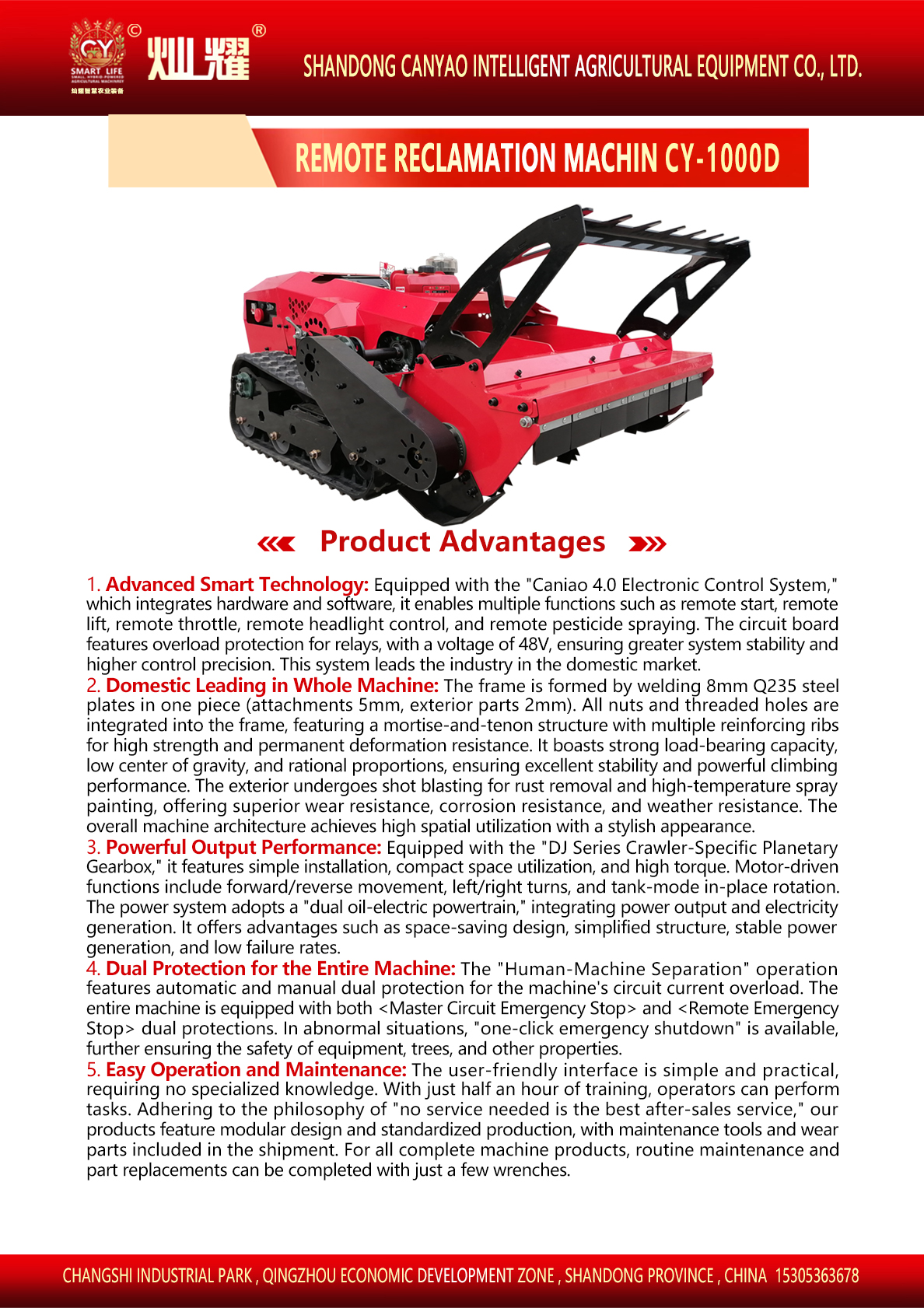

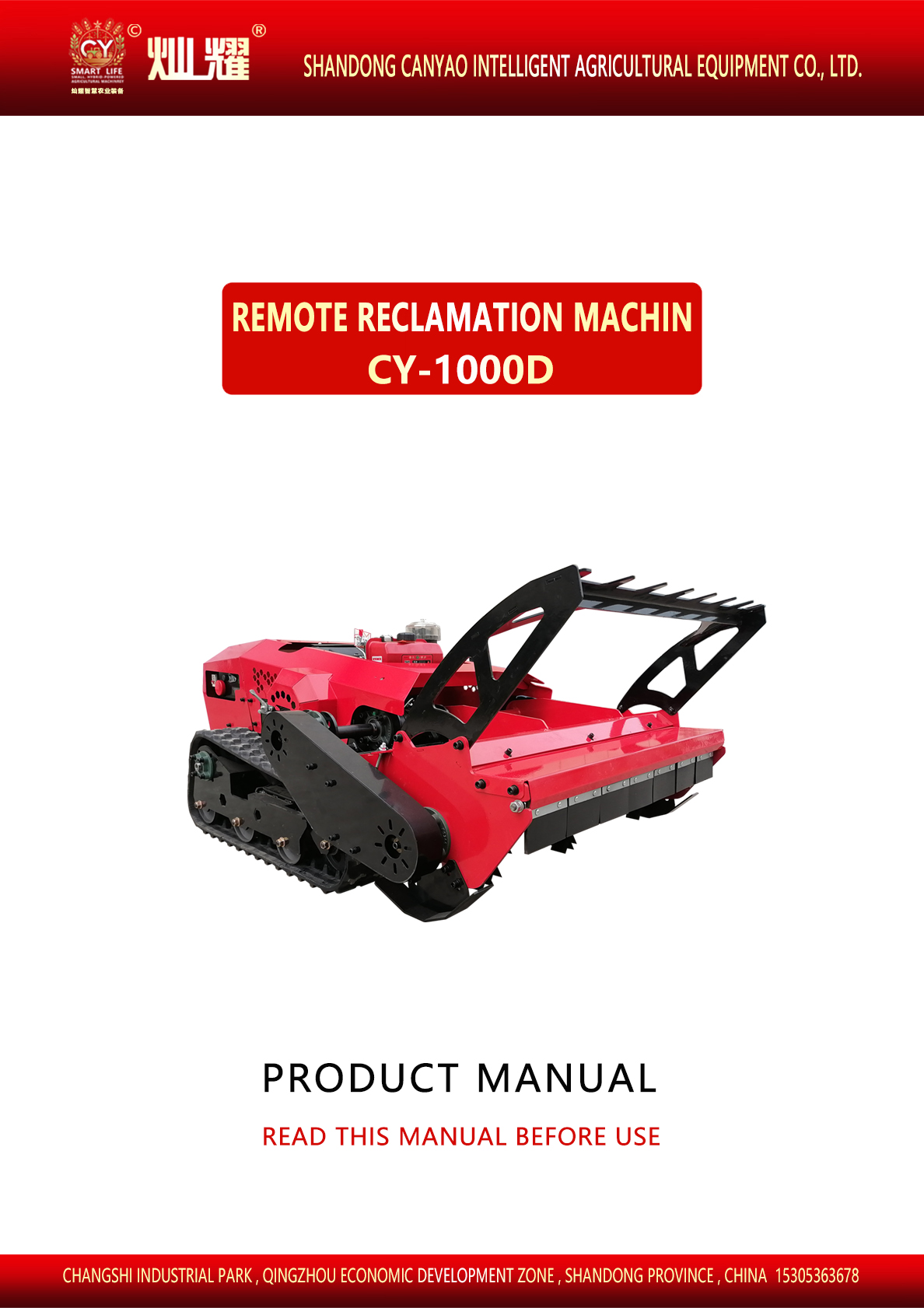

Full complete set of Canyao CY-1000D remote crawler land reclamation flail mower. Equipped with 13HP Changgong 195 single-cylinder diesel engine, 1000mm wide cutting width with 22 groups manganese steel blades. Canyao 4.0 electronic control system supports full-function remote control up to 500 meters. Dual 800W travel motors hybrid oil-electric chassis realizes 360° in-place tank rotation, ground clearance 5-30cm remote adjustable, max climbing angle 35°. 8mm thick integrated frame, dual-circuit overload protection with human-machine separation design, ideal for land reclamation and grass crushing in hills, orchards and wasteland. Full machine supplied with all wearable spare parts, bilingual manual and full export documents as one set.

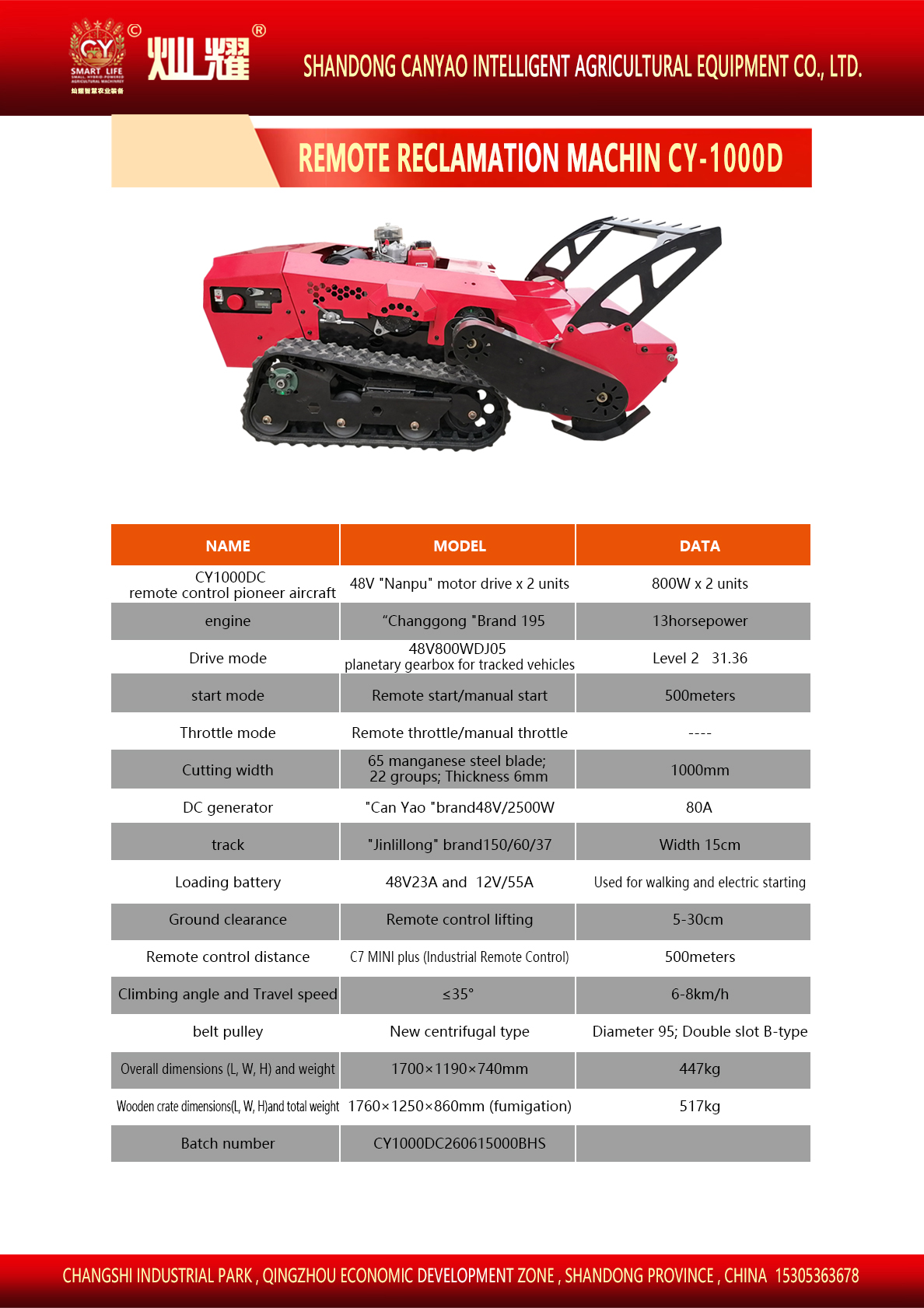

Technical Specifications
- Remote Reclamation Mower
- CY1000D, Dual 48V Nanpu 800W Motors
- Diesel Engine
- Changgong 195 Single Cylinder, 13 HP
- Reduction Box
- WDJO5 Track Planetary Gearbox, Ratio 31.36 Two-stage
- Ignition
- Remote + Manual Start, Max Remote Range 500 Meters
- Flail Blades
- 22 sets 65Mn Steel Blades, 6mm Thick, 1000mm Cutting Width
- DC Generator
- 48V 2500W, 80A
- Track Model
- Jinlilong 150/60/37, Width 15cm
- Drive Battery
- 48V23Ah for machine travel
- Engine Battery
- 12V55Ah for electric start
- Lift Range
- 5-30cm remote adjustable
- Controller
- C7 MINIplus Industrial Remote, Max 500 Meters
- Running Speed
- 6-8km/h
- Slope Capacity
- ≤35°
- Dimension / Net Weight
- 1700×1190×740mm, 447kg
- Case Size & Gross Weight
- 1760×1250×860mm, 517kg
Trade Specifications
- Reference Price
- USD $2222.00 - $2444.00
- Minimum Order Quantity
- 1 Pieces
