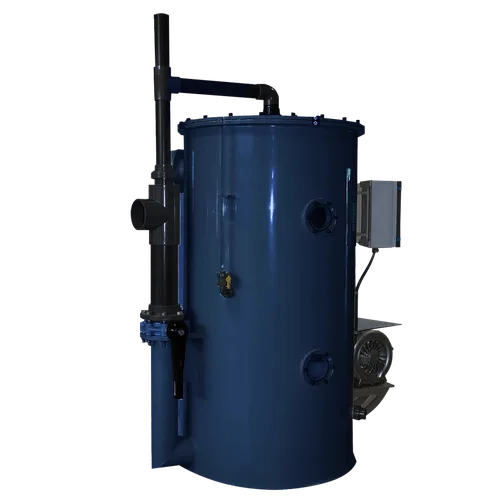

Biofilter

Name: Biofilter
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

By adding a certain amount of suspended biological carriers to the reactor, increasing aeration and stirring under natural conditions, the nutrients in the aquaculture water, functional nitrifying bacteria, denitrifying bacteria and other active microorganisms are gradually enriched on the surface of the filler. The active biofilm formed by enrichment metabolizes and decomposes nutrients such as C, N and P in the water through its own biochemical reaction, so as to realize the transformation of free ammonia nitrogen and nitrite which are toxic and harmful to the cultured object into non-toxic nitrate and nitrogen, thus ensuring the continuous purification and regeneration of the cultured water.

$12900.00

Send Message Contact Supplier

Shandong Naxin New Energy Co., Ltd.

View Supplier

Registration Date October 2017

Number of Employees 200

Factory Area 46,000 m²

Annual Sales 400 Million RMB

Main Products Water Source Heat Pump, Air Source Heat Pump, Low Temperature Difference Waste Heat Recovery Unit, Filter, Micro-filter, Protein Separator, Oxygen Increasing Equipment, Disinfection Equipment, Aquaculture Pond, Intelligent Bait Feeder, Fish Manure Collector; Full Life Cycle System Solutions for Modern Agriculture & Aquaculture

Target Markets Aquaculture Industry, Industrial Recirculating Aquaculture System

Details

Specifications

Advanced reactor design:

Advanced reactor design is suitable for circulating water and tail water treatment in mariculture.

Multiple advantages:

Combining the advantages of fixed penetrating bioreactor and suspended growth.

Durable:

The durable moving bed biological carrier is adopted to ensure the effective sludge retention time in the reactor.

Stable removal of pollutants:

Small reactor volume can realize the stable removal of pollutants (organic carbon, organic nitrogen, inorganic nitrogen, organic phosphorus, etc.).

Less sludge is produced:

The amount of generate excess sludge is small, and sludge bulking doe not exist.

Do not need frequent cleaning:

There is no need for regular backwashing. Stable removal.

Lower pressure loss:

Lower head pressure loss.

Size (mm)

1200*2250、1600*2700、2400*3000、3000*3000

Texture of wood

PP(Level A)

Packing type

Packing quantity

0.5-1.0m³、1.2-2.4m³、2.7-5.4m³、4.2-8.4m³

Conditions of use

Water temperature 15-40℃, seawater/fresh water

Maximum treatable ammonia nitrogen (kg/d)

0.6～0.8kg/d、1.5～2.0kg/d、3.2～4.3kg/d、5.1～6.8kg/d

Maximum treatable water quantity (m³/h)

30、70、130、200

Power of high-pressure centrifugal fan (kw)

3、3、5.5、5.5

Control mode of aeration fan

Frequency conversion control

Dissolved oxygen detector

Select to breed

ph meter
