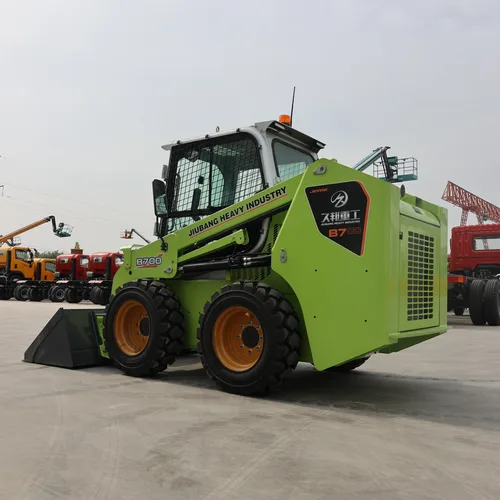

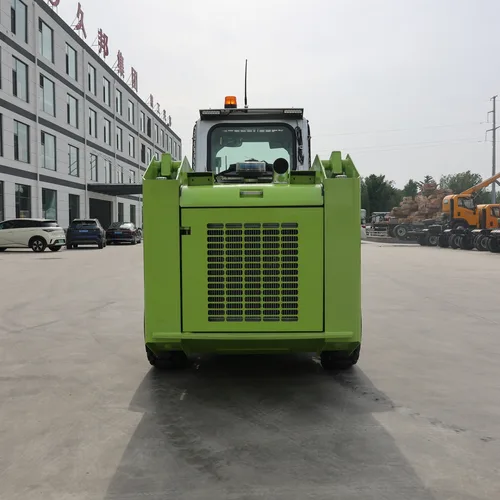

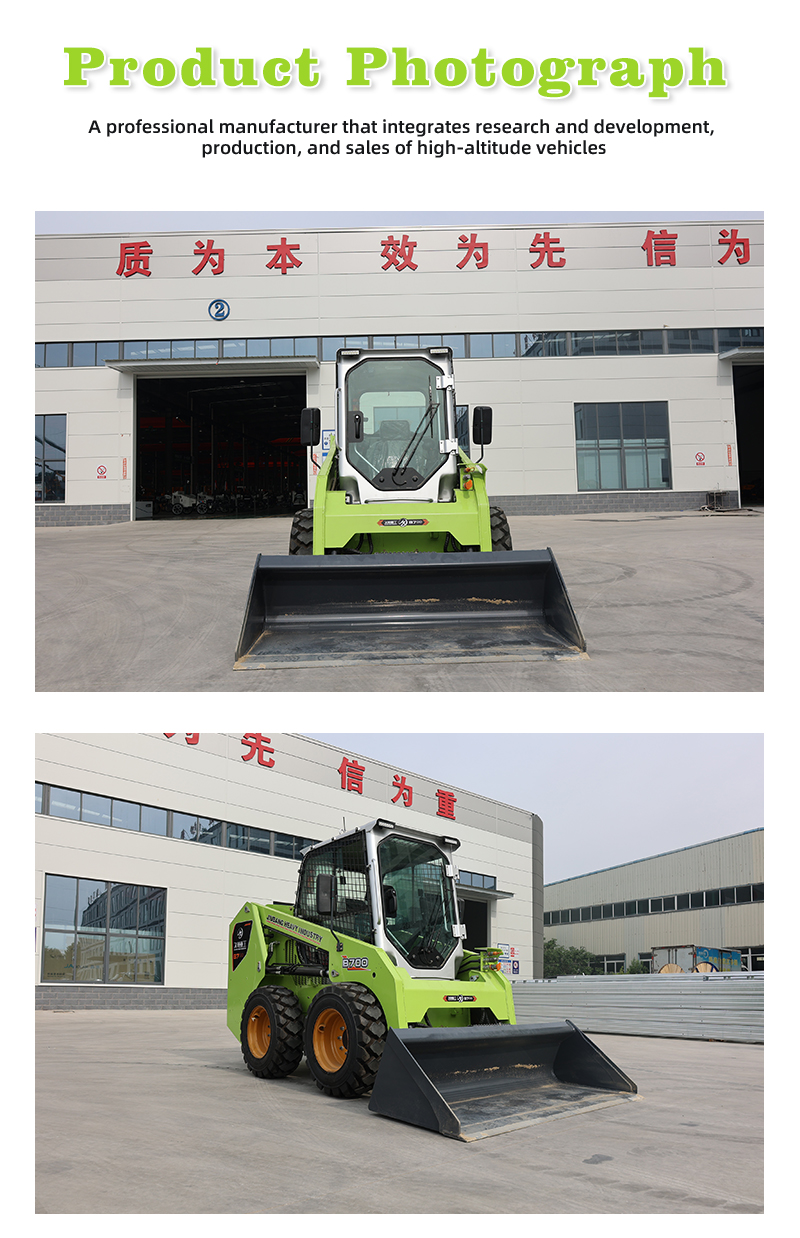

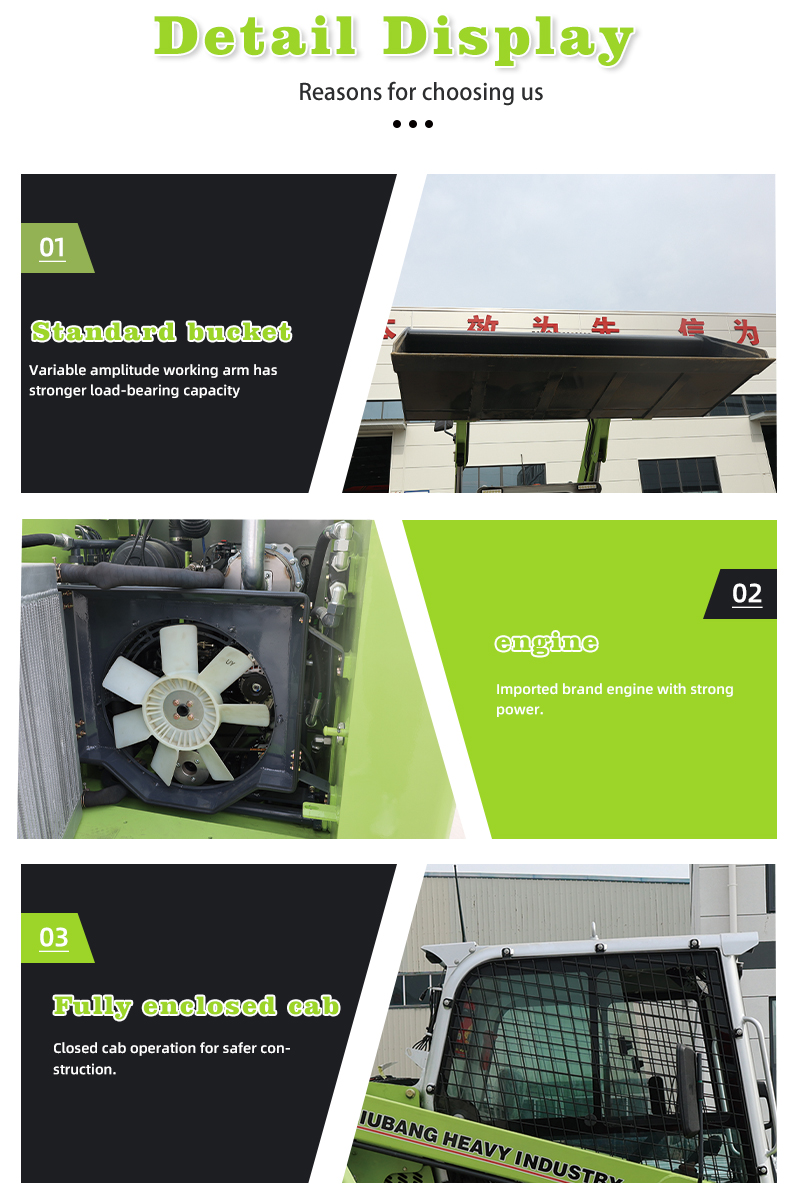

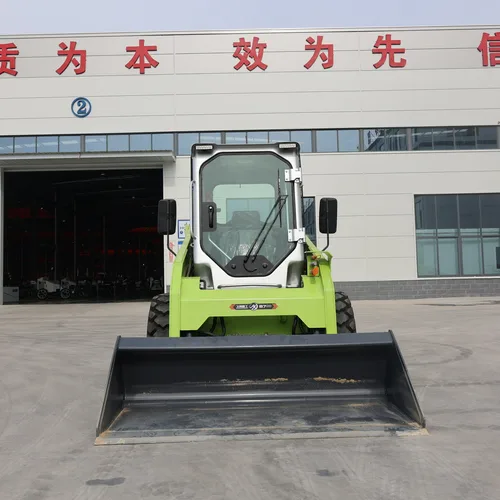

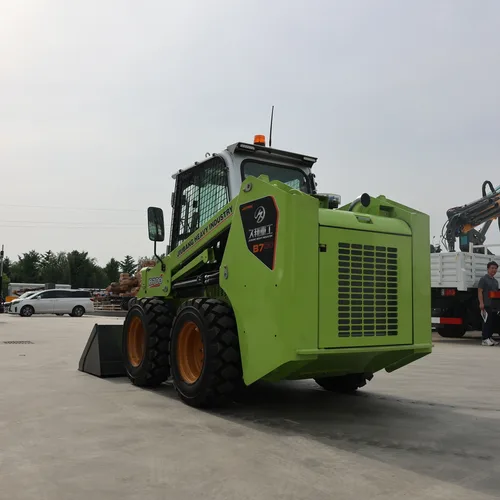

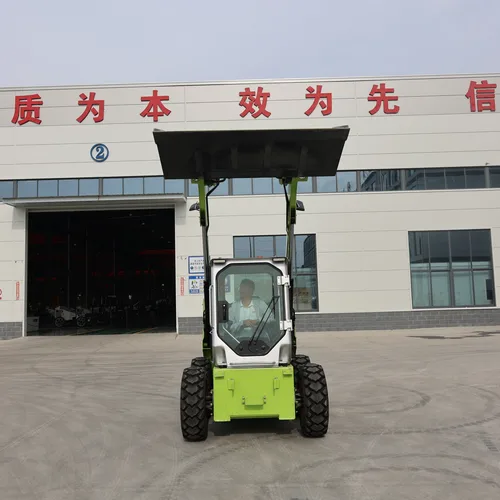

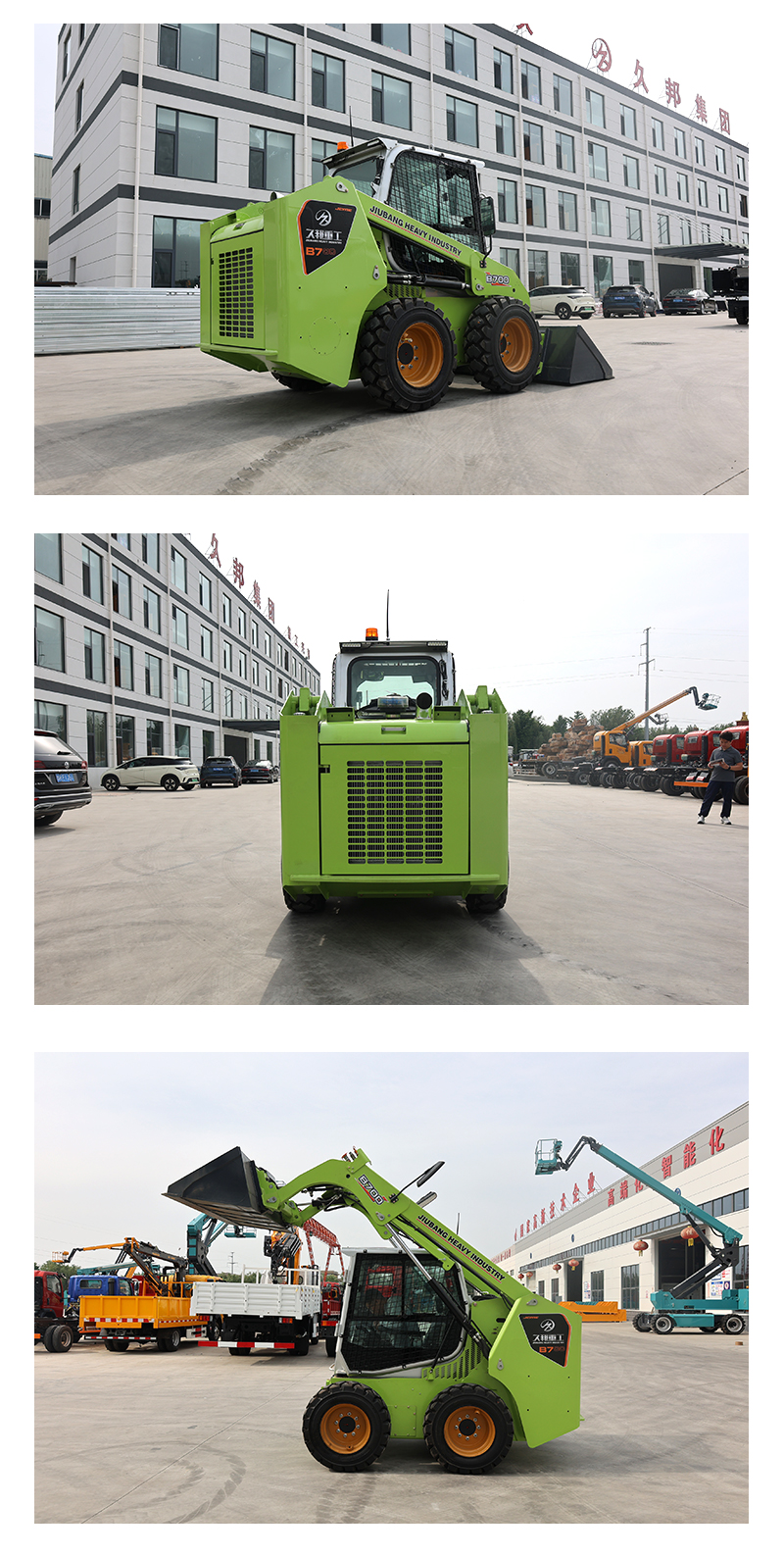

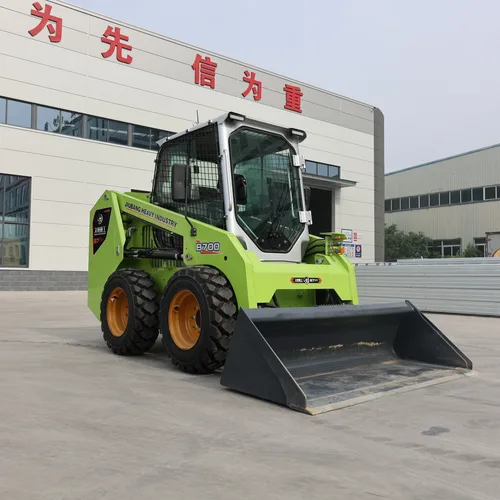

B700 Skid Steer Loader – Yanmar 49.9kW Engine | 241N·m Torque | High Flow Option | Compact & Efficient
Min. Order: 1 Pieces
- Engine Brand:
- Yanmar
- Max Torque:
- 241 N·m
- Rated Power:
- 49.9 kW
- Displacement:
- 3.3 L
Product Features & Applications
The B700 Skid Steer Loader features a compact design (3432×1830×1940mm) and an operating weight of 3100kg, making it ideal for tight job sites. Powered by a Yanmar engine with 49.9kW rated power and 241N·m max torque, it delivers strong performance. The hydraulic system offers 21MPa (work) and 35MPa (travel) pressure, with a standard flow of 79.2L/min and an optional high flow of 124L/min for versatile attachment use. Rated operating capacity is 1045kg with a 0.4m³ bucket. Dump height reaches 2220mm at a 40° dump angle. Perfect for municipal maintenance, landscaping, small earthmoving, and agricultural applications — an economical and practical entry-level choice.
Technical Specifications
- Engine Brand
- Yanmar
- Max Torque
- 241 N·m
- Rated Power
- 49.9 kW
- Displacement
- 3.3 L
- Operating Weight
- 3100 kg
- Rated Load
- 1045 kg
- Standard Bucket
- 0.4 m³ / 0.8 T
- Overall Size (L×W×H)
- 3432×1830×1940 mm
- Operating Weight
- 3100 kg
- Dump Height
- 2220 mm
- Dump Angle
- 40°
- Max Travel Speed
- 11 km/h
- Hydraulic Oil / Tank Capacity
- 52 / 70 L
- Lifting Time (Full Load)
- 4.2 s
- Lowering Time (Empty Load)
- 2.1 s
- Dumping Time
- 2.3 s
- Working Hydraulic System Pressure
- 21 MPa
- Travel Hydraulic System Pressure
- 35 MPa
- Standard Flow
- 79.2 L/min
- High Flow (Optional)
- 124 L/min
- Cooling System
- 13 L
Trade Specifications
- Reference Price
- USD $17000.00 - $18000.00
- Minimum Order Quantity
- 1 Pieces
Jining Jiubang Construction Machinery Equipment Co., Ltd.

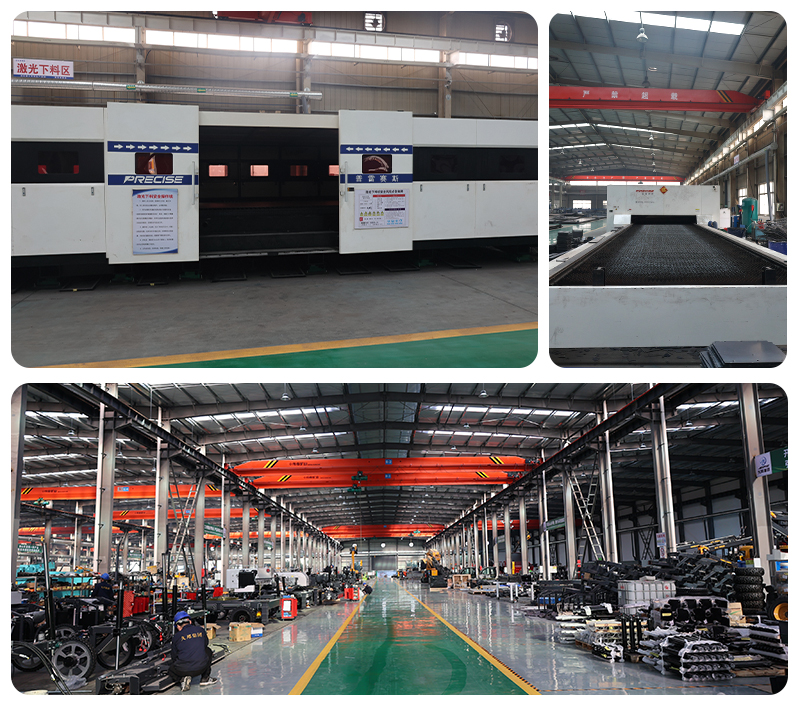

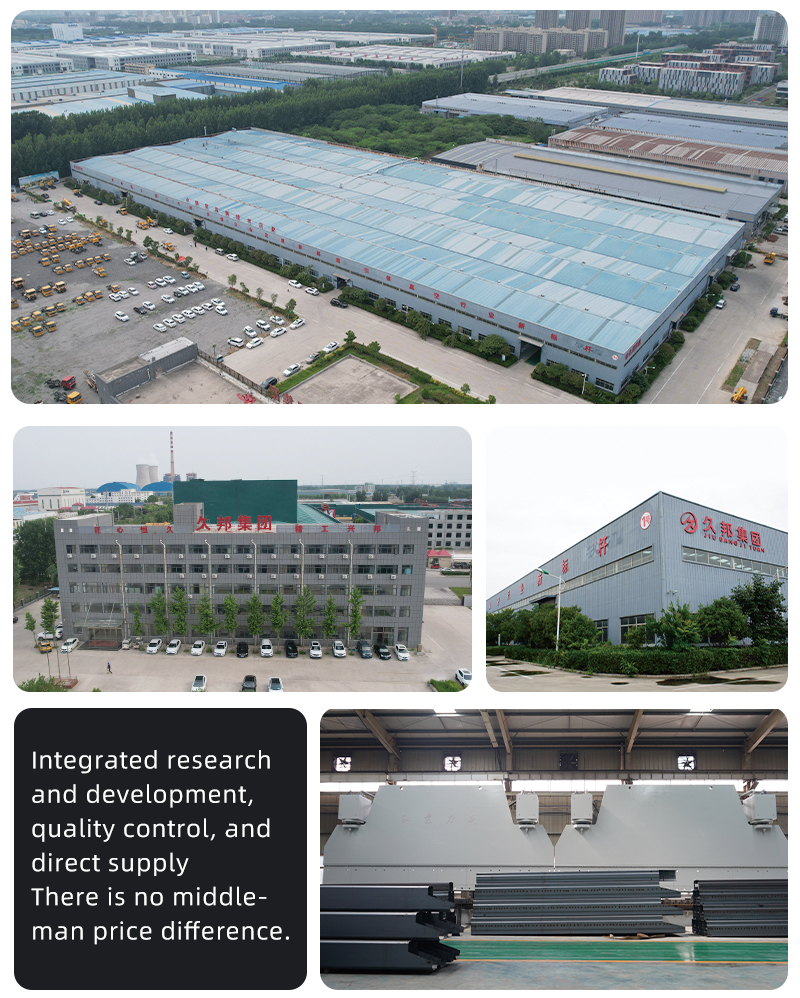

Located in Jining, Shandong, a major cluster of the construction machinery industry, Jining Jiubang Construction Machinery Equipment Co., Ltd. is a professional enterprise integrating R&D, production, sales and service. We mainly offer skid steer loaders, obstacle clearing vehicles, environmental sanitation equipment, and construction machinery parts. With years of experience in the engineering equipment field, we have mature production processes and strict quality control systems. Our products are widely used in construction, municipal sanitation, emergency rescue, garden maintenance, mining operations and other scenarios. Thanks to stable performance, high cost-effectiveness and comprehensive after-sales service, our products sell well at home and are exported to many overseas countries. Adhering to the business philosophy of "Quality-oriented, Integrity-based for Long-term Development", Jiubang Machinery focuses on creating reliable and practical engineering equipment, empowering customers with professional services, and striving to become a trusted partner in construction machinery.
