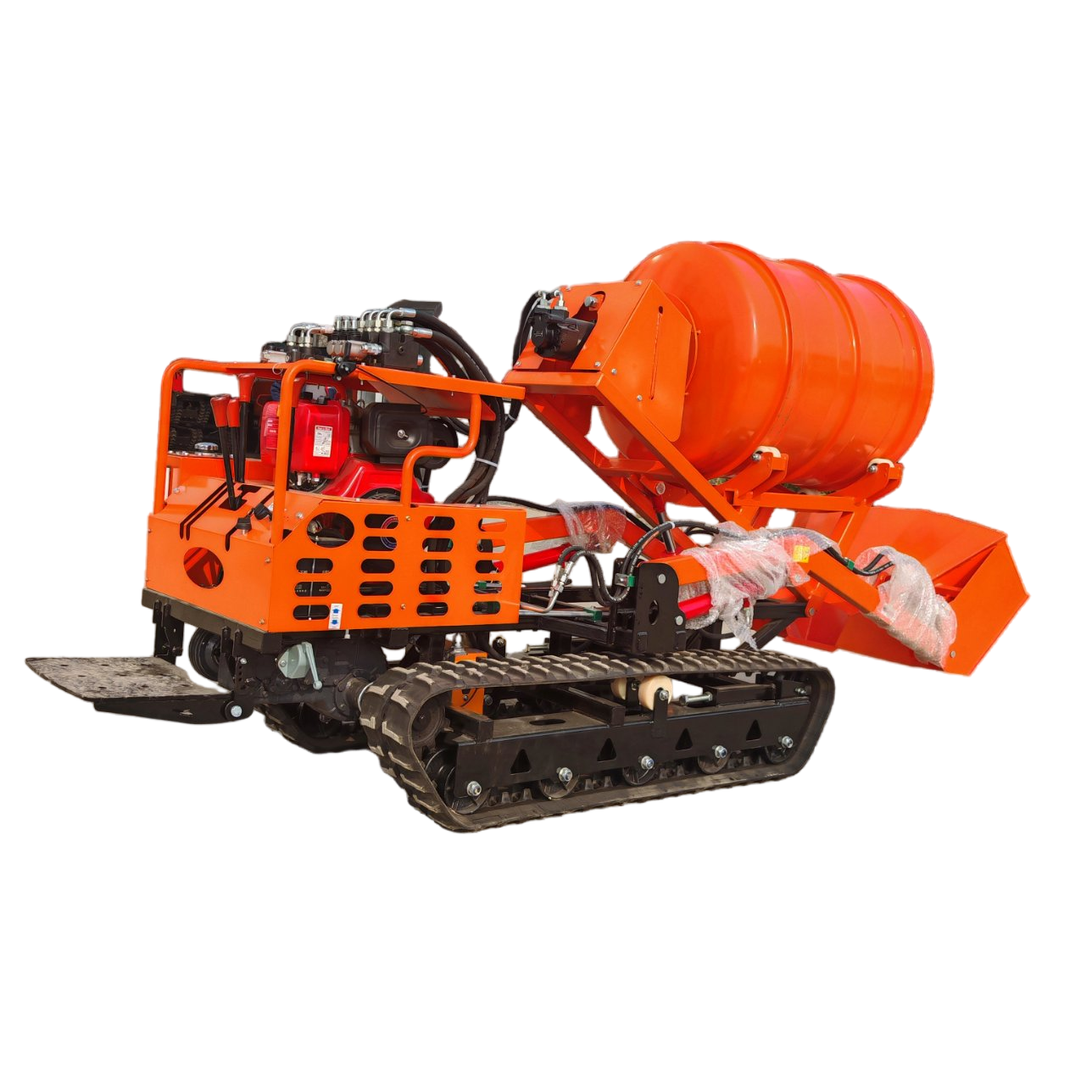

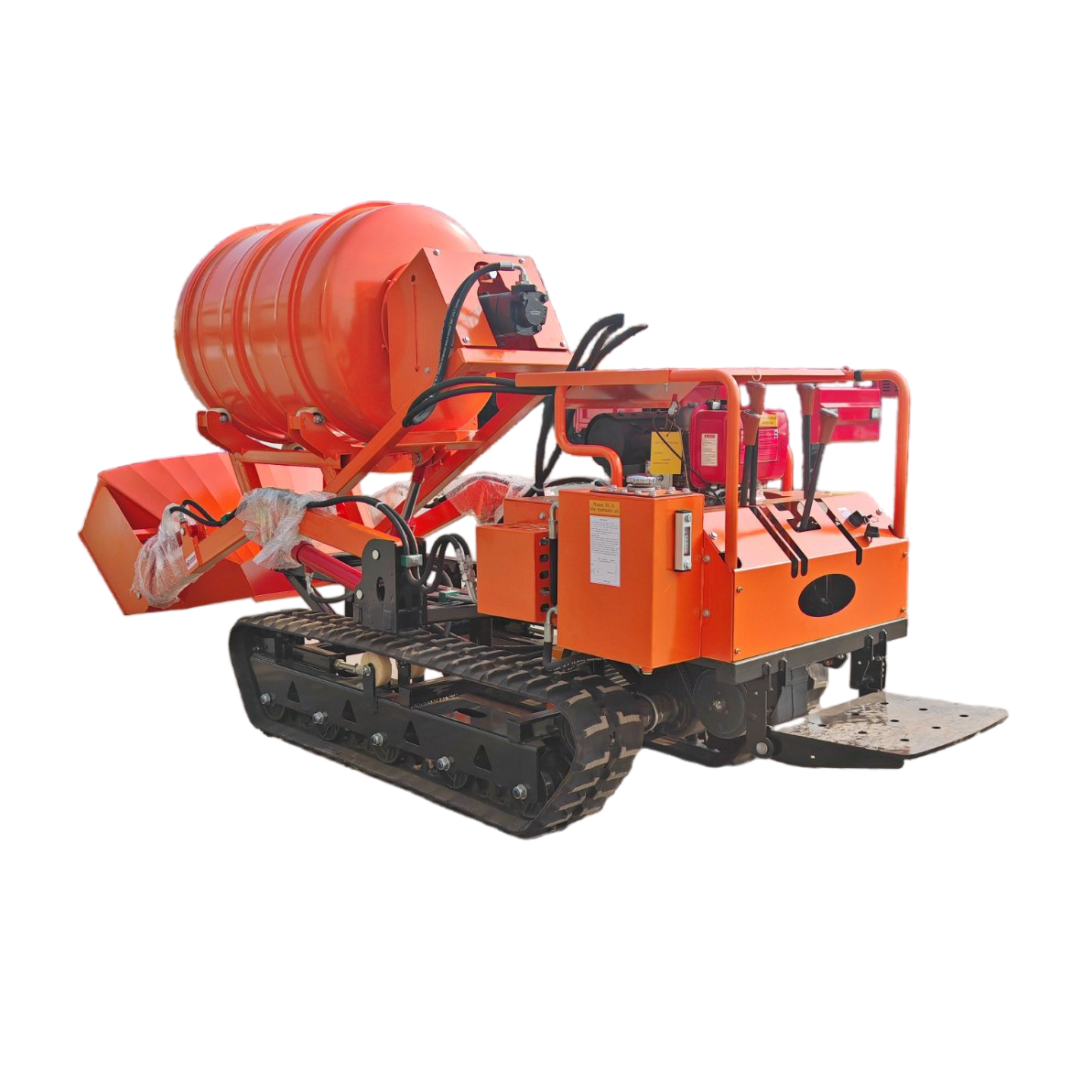

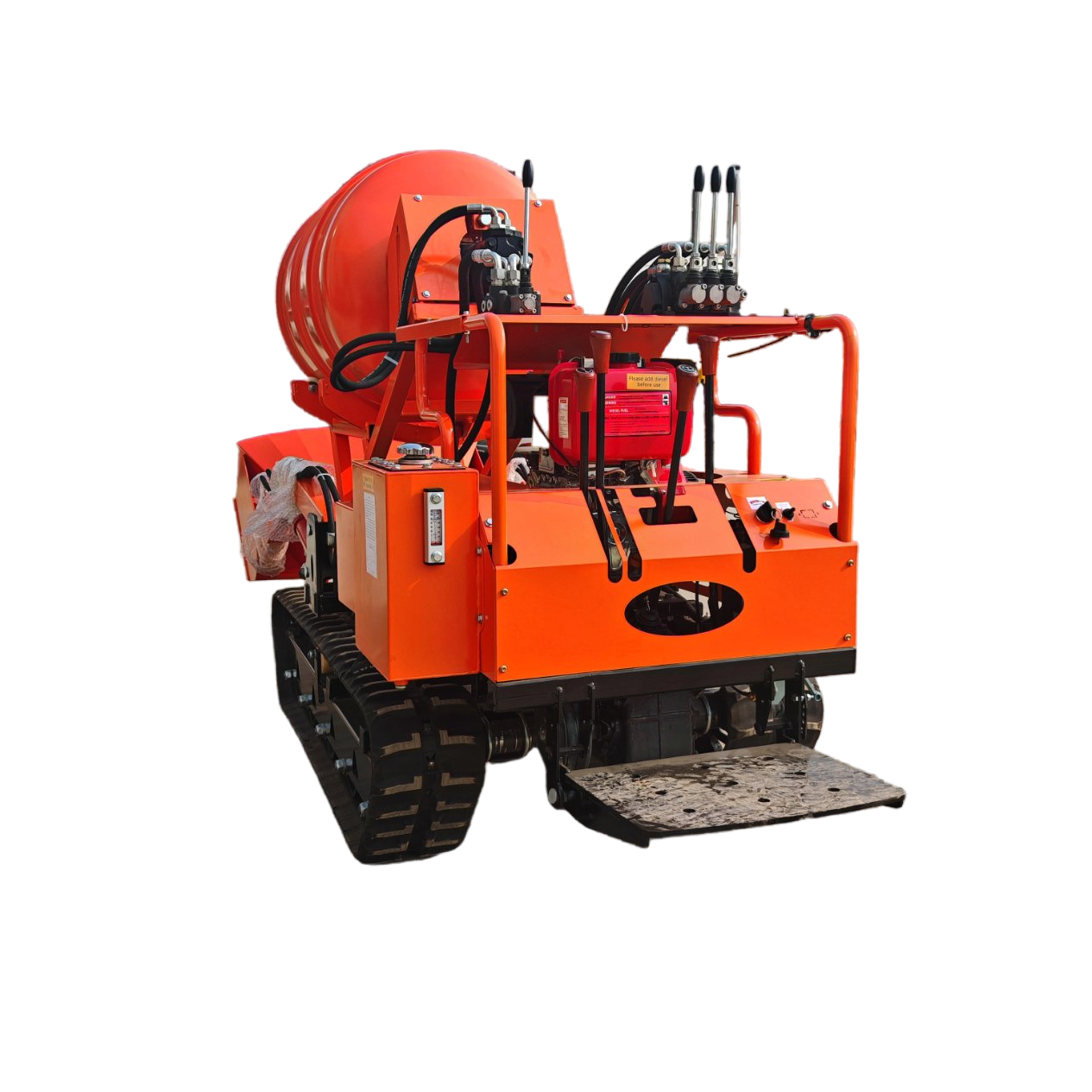

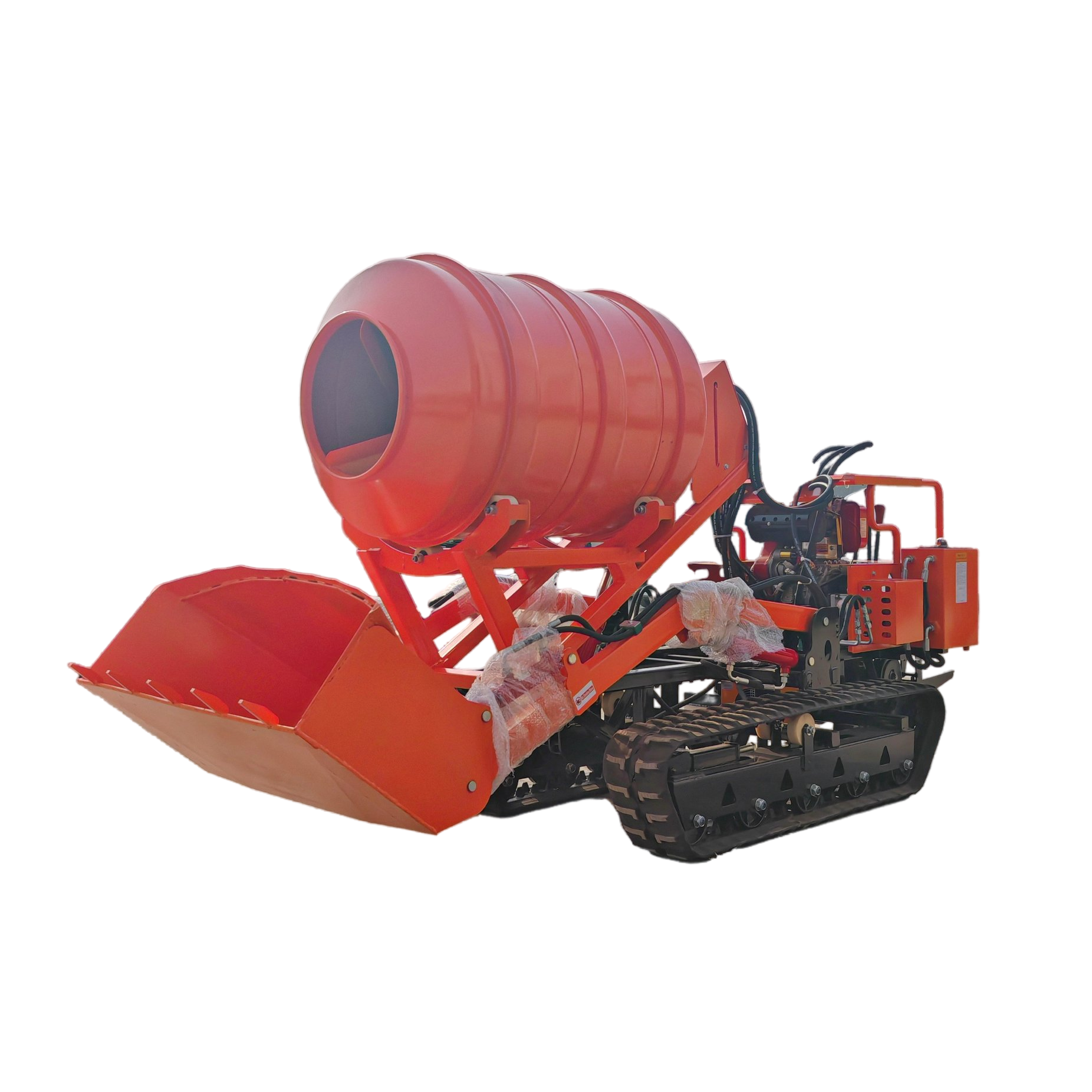

All Terrain Crawler Dumper Rubber Tracked Dumper with Hydraulic Self-Loading Hopper
Model: KC-800L
Min. Order: 1 Pieces
Product Features & Applications

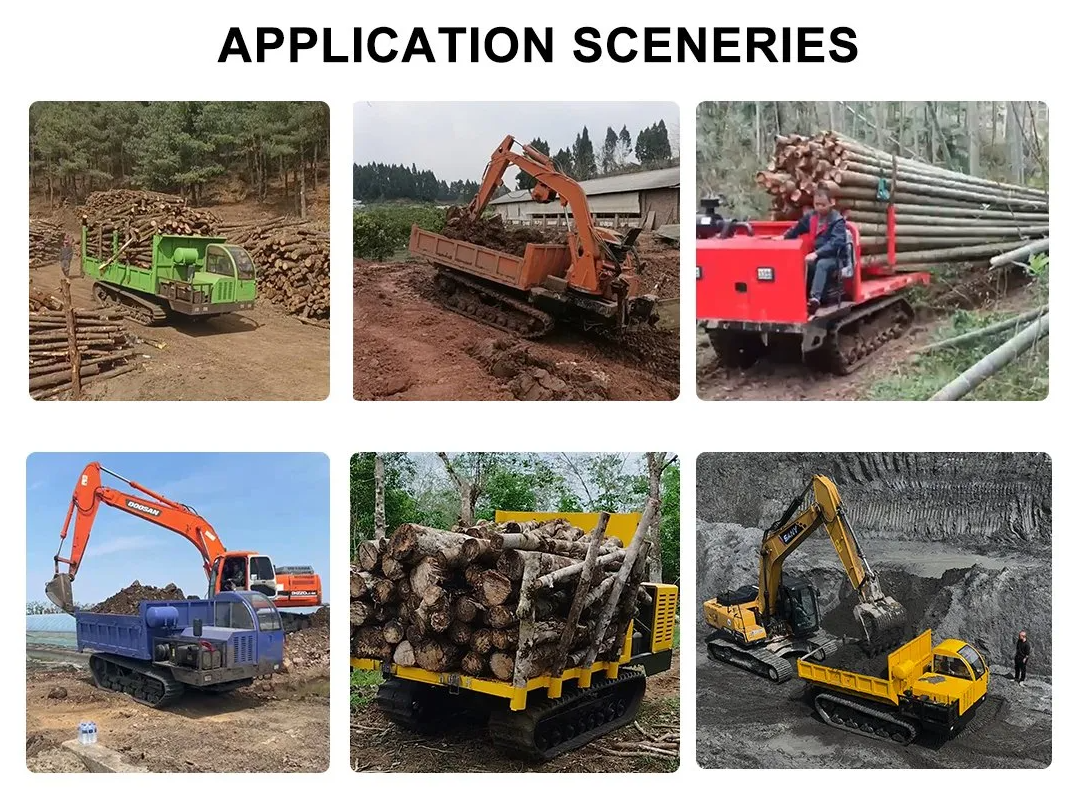

This machine is an all-terrain rubber track mixer dumper integrated with hydraulic self-loading shovel, rotating mixing drum, crawler chassis and hydraulic tipping unloading. The widened rubber track has low ground pressure, which can smoothly pass muddy mountain roads, soft orchard ground, basement foundation pits and narrow rural lanes, suitable for complex working conditions inaccessible to wheeled vehicles. Powered by single-cylinder diesel engine without external power supply, single operator can control traveling, feeding, mixing and unloading via hydraulic joysticks. The mixing drum keeps rotating to prevent concrete solidification. Compact and flexible, widely used in rural house construction, water channel building, slope protection, rural road repair and other small infrastructure projects. Custom drum capacity available for export.



| Model/Parameter | OBSJB-800L |
| Engine | Changchai 192diesel engine 12HP4-stroke air cooler 3600r/min |
| Gearbox | 3F+1R GL-15 |
| Operation ways | Manual lever |
| Unloading ways | Hydraulic system |
| Capacity of shovel | 0.15m³ |
| Feeding capacity | ≥900L |
| Discharge capacity | ≤500L |
| Weight of mixer | ≤1200kg |
| Size of drum | 760*1220 |
| Overall size | 2950*1080*1750mm |
| N.W/G.W | 830KG/960KG |
| Rubber crawler size | 230x72x50 |
| Rubber crawler touching length | 1200mm |
| Speed | 0-8KM |
| Obstacle ability | Max.30 slope,vertical height 200mm |
| Wading depth | 350mm |
| Package size | 2520X1080X1850mm |

Shandong Kuangcheng Engineering Machinery is a company thatintegrates scientific research, production, and serviceMachinery manufacturing company.A series of products such as mining trucks, tracked transport vehicles, and tracked excavator.


How long is your production cycle?The regular product is one week,Customized products will be completed in about a month.Problemsabout diesel engine?
Diesel engine we choose domestic famous brand diesel engine, At that time, we will prepare some vulnerable parts of the diesel engine before departure, As long as the engine oil, filter and other parts are changed frequently. The machine will not go wrong for 5 years.
Can you design this product according to our color?
The product color can be customized according to your needs, but it should meet our minimum order.
ls this product easy to export?
This product is easy to export,lt belongs to construction machinery.
How can the products guarantee our quality?
We have a special quality inspection department. Testing during production. Commissioning before and after painting.Strictly control the quality.
What are the benefits of choosing us?
The whole vehicle can be customized according to your request, Products are manufactured according to the drawing
Trade Specifications
- Reference Price
- USD $6500.00 - $10000.00
- Minimum Order Quantity
- 1 Pieces
Shandong Kuangcheng Engineering Machinery Co., Ltd.

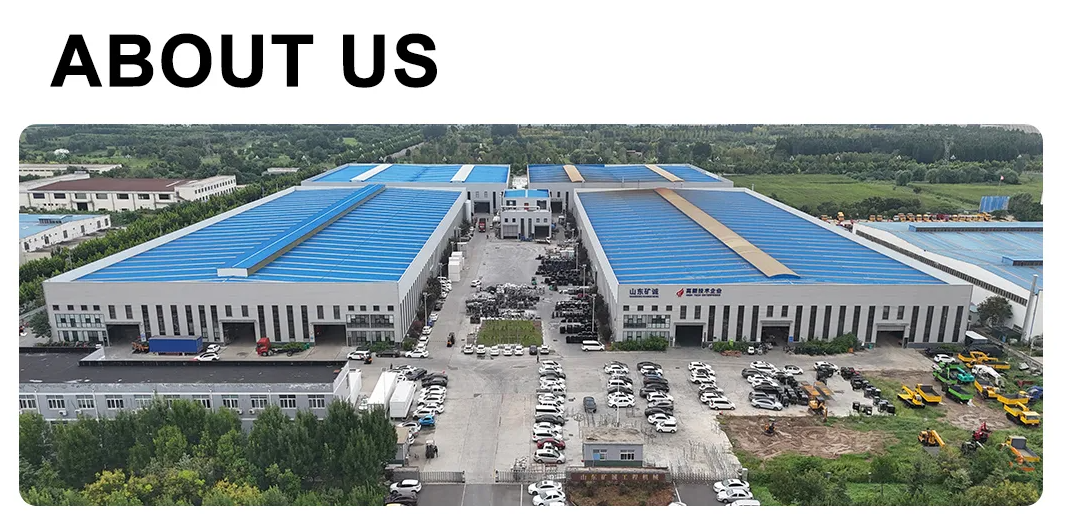

Shandong Kuangcheng Engineering Machinery is a company Thatintegrates scientific research, production, and ServiceMachinery manufacturing company. The company is located in the Economic and Technological Development Zone of Jining City, Shandong Province, with a Production area of 10000 square meters, There are currently over 100 employees, mainly engaged in the production and sales of four Different types of vehicles, such as digging and hanging, etc A series of products such as mining trucks, tracked transport Vehicles, and tracked excavator. Support non-standard customized production to meet the requirements ofdifferent customers for products. The main overseas markets are distributedin Europe, Africa, North America, Southeast Asia, and South America. So farKuangcheng Machinery products have been exported to 177 countries andregions worldwide. Product quality is the lifeline of Kuangcheng Machinerytechnological innovation is the vitality of Kuangcheng, and excellence is thecraftsmanship spirit that Kuangcheng adheres to. As of now, KuangchengMachinery has obtained more than 10 national patents. Since the productwas introduced to the market, Kuangcheng Machinery and its productionproducts have successively passed lS09001, CE, By obtaining certificationfrom internationally renowned institutions, we can fully meet the personal-ized product needs of different international markets. We always believe that technology changes the world, in the future, Kuangcheng Machinery willstrive to build an international engineering machinery brand, contribute to society, create value for customers, and create happiness for employees.
- Location
- 150 meters to the east, interchange of S319 and Jiahe Road, Tongli Town, Jining Economic Development Zone, Shan dong Province, China
- Main Products
- Mining Dump Truck, Crawler Transporter, Crawler Excavator
- Employees
- 101-500 People
- Factory Area
- 10,000-50,000 m²
- Annual Revenue
- US$10 Million - US$50 Million
- Main Markets
- North America / Europe / Southeast Asia / Latin America / Africa
