Basic Product Parameters & Overall Structure

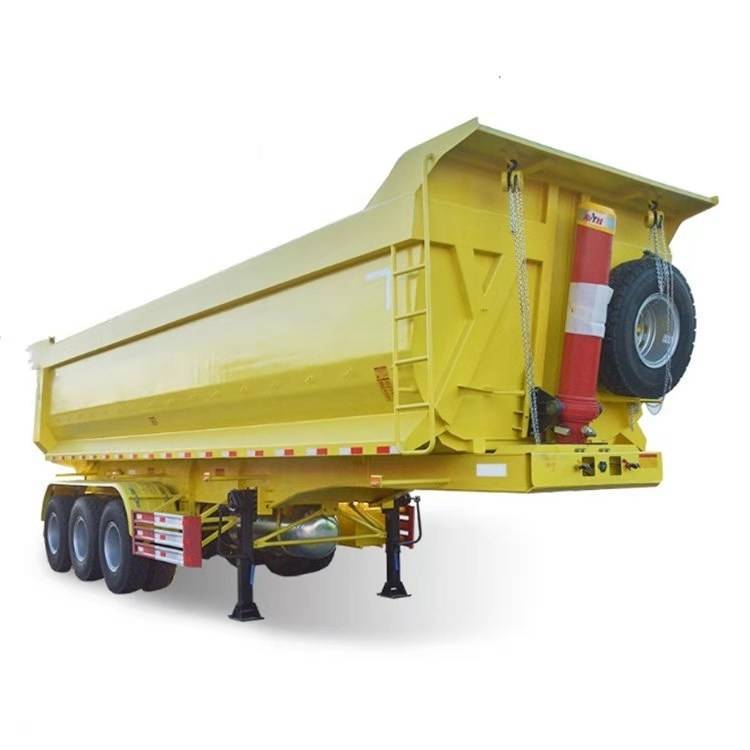

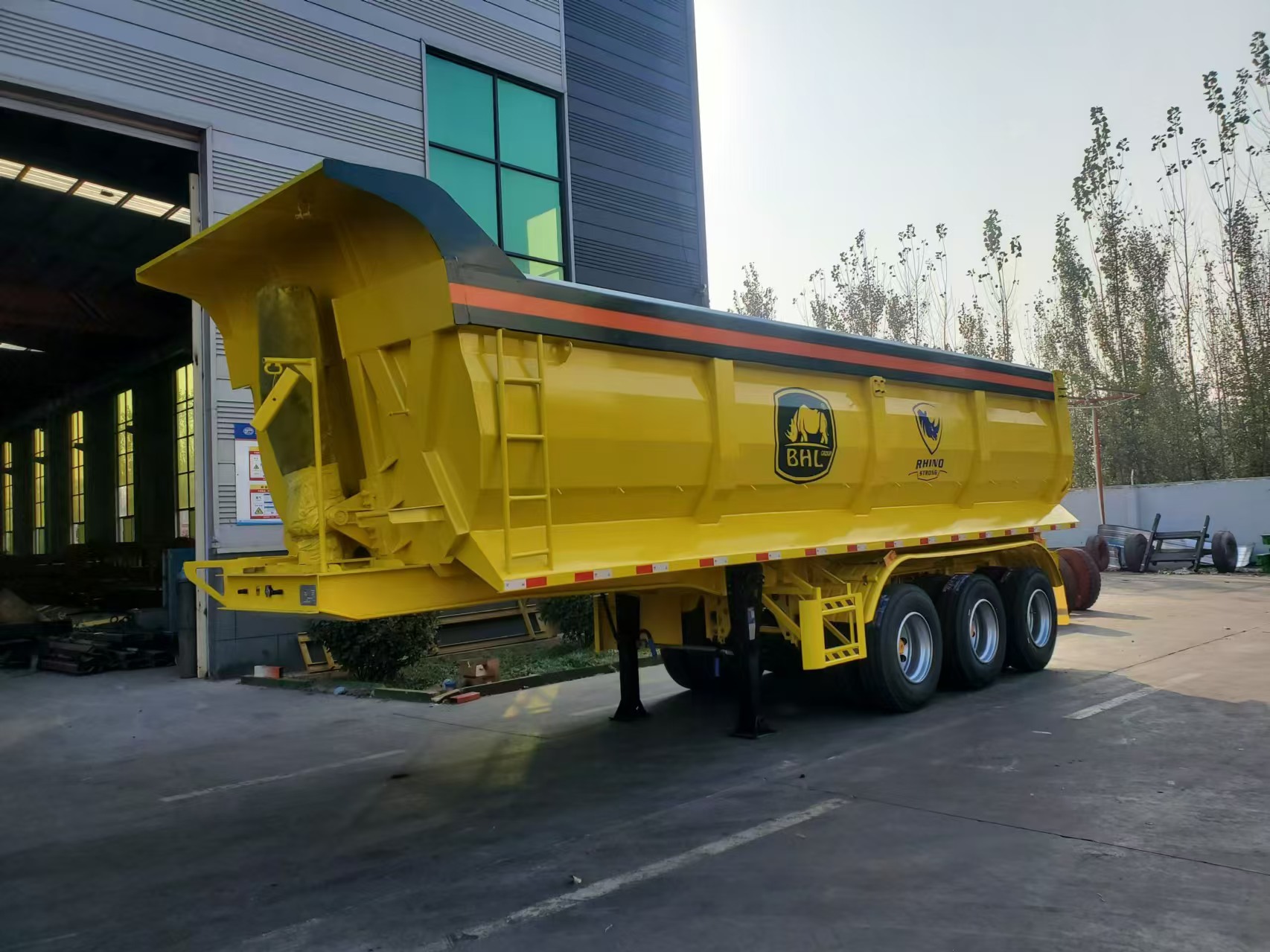

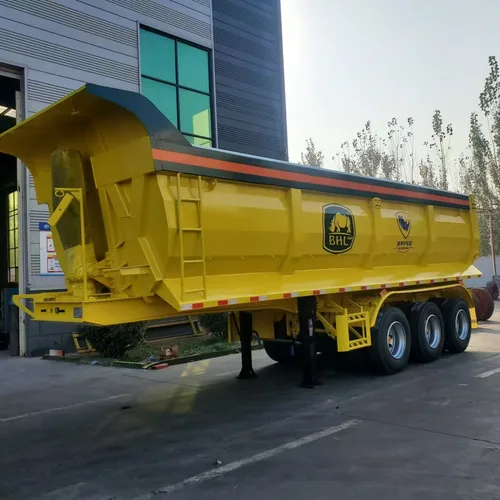

It is a brand-new heavy-duty self-dumping semi-trailer manufactured in Liangshan, Jining, Shandong. It adopts full solid steel construction with a maximum load capacity of 80 tons and a total cargo volume of 45 cubic meters. The overall dimension reaches 11000×2550×3800mm, while the inner cargo box size is 10000×2460×1800mm. Its wheel base ranges from 7000mm to 8000mm with a standard 1820mm tread, and it is designed as a rear-tipping self-dumping van-type structure specialized for bulk material transportation
Core Chassis, Suspension & Hydraulic System

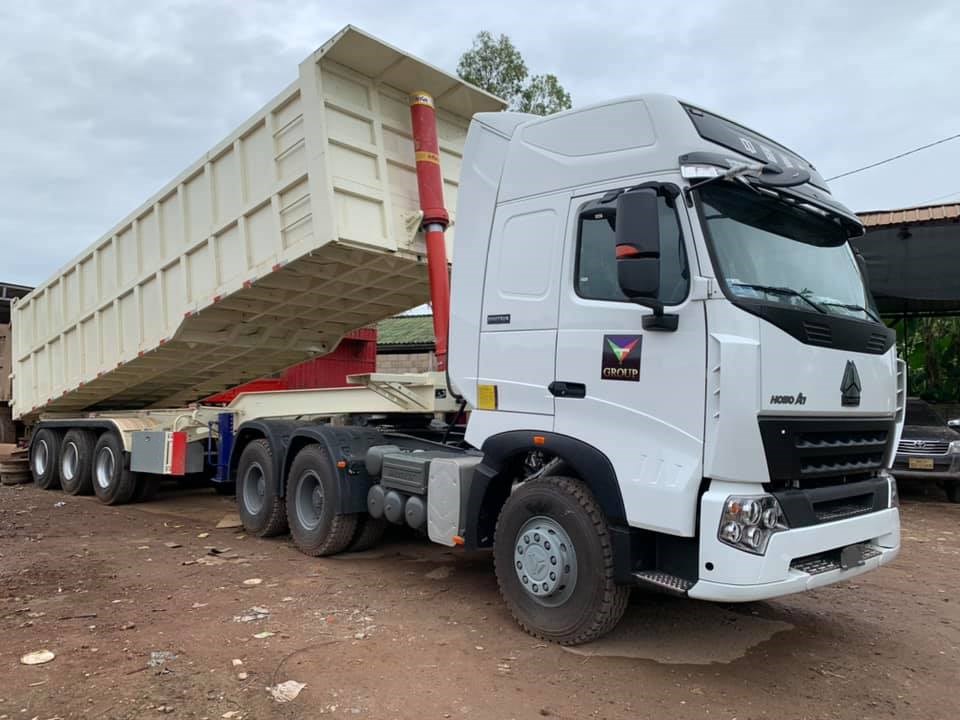

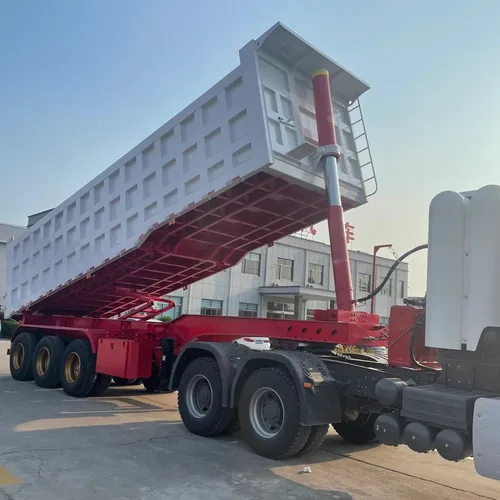

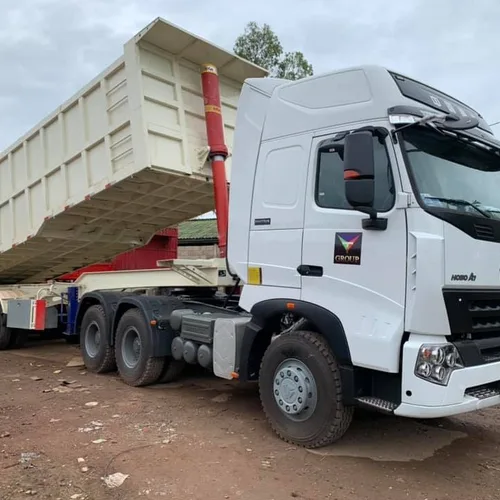

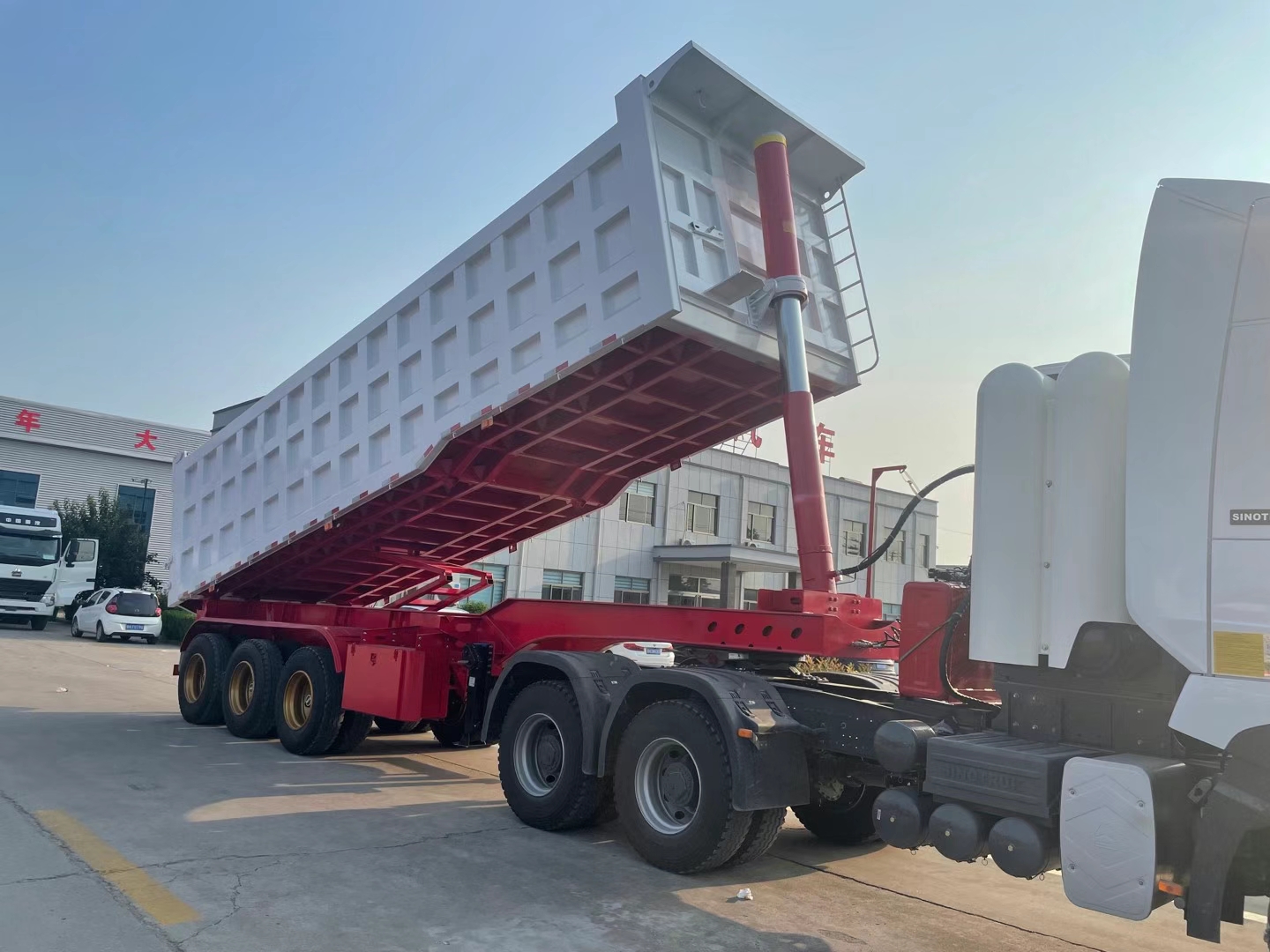

This trailer is equipped with 4 axles with optional FUWA or BPW brands, matched with 16 heavy-duty tires and standard ABS anti-lock braking system to guarantee safe driving under full load. It features cross arm type composite suspension integrating air suspension and leaf spring, which balances shock absorption and load-bearing performance for rough mine and construction roads. The lifting system adopts well-known Hyva hydraulic cylinder, delivering stable and powerful tipping force for quick unloading of sand, stone, ore and construction waste. It also configures Jost bolt-in kingpin (2-inch or 3.5-inch optional) and Jost A400 landing gear for reliable connection and independent parking support
Transport Advantages & Applicable Working Scenarios
Compared with ordinary flatbed trailers, this self-dumping semi-trailer greatly improves unloading efficiency without extra forklift assistance, cutting labor and time costs for fleets. The closed steel cargo box effectively prevents bulk goods from spilling during long-distance haulage. It perfectly fits cross-border logistics, mining yards, infrastructure construction and aggregate transportation businesses in Africa, the Middle East and Latin America. The reinforced heavy-duty frame structure can withstand long-term overloaded operation and extend service life in harsh working environments
Complete Qualifications & Factory Supply Capacity
The trailer has passed a full set of international authoritative certifications including ECE, GCC, CE, ISO9001, DOT, CCC and ISO/TS16949, fully complying with vehicle inspection standards of most overseas countries. Our factory owns an annual production capacity of 5000 units to support stable mass orders for global customers. we accept customized modifications on suspension, lifting height and cargo box thickness according to clients’ actual transport demands
Type
end dump semi trailer
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Box Dimensions
10000X2460X1800mm
Certification
ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949
Types of Suspension Systems
mechanical suspension
Self-dumping
Self-dumping
Overall Dimensions
11000X2550X3800mm
Specification
45 cubic meters
Origin
Shandong Jining Liangshan
