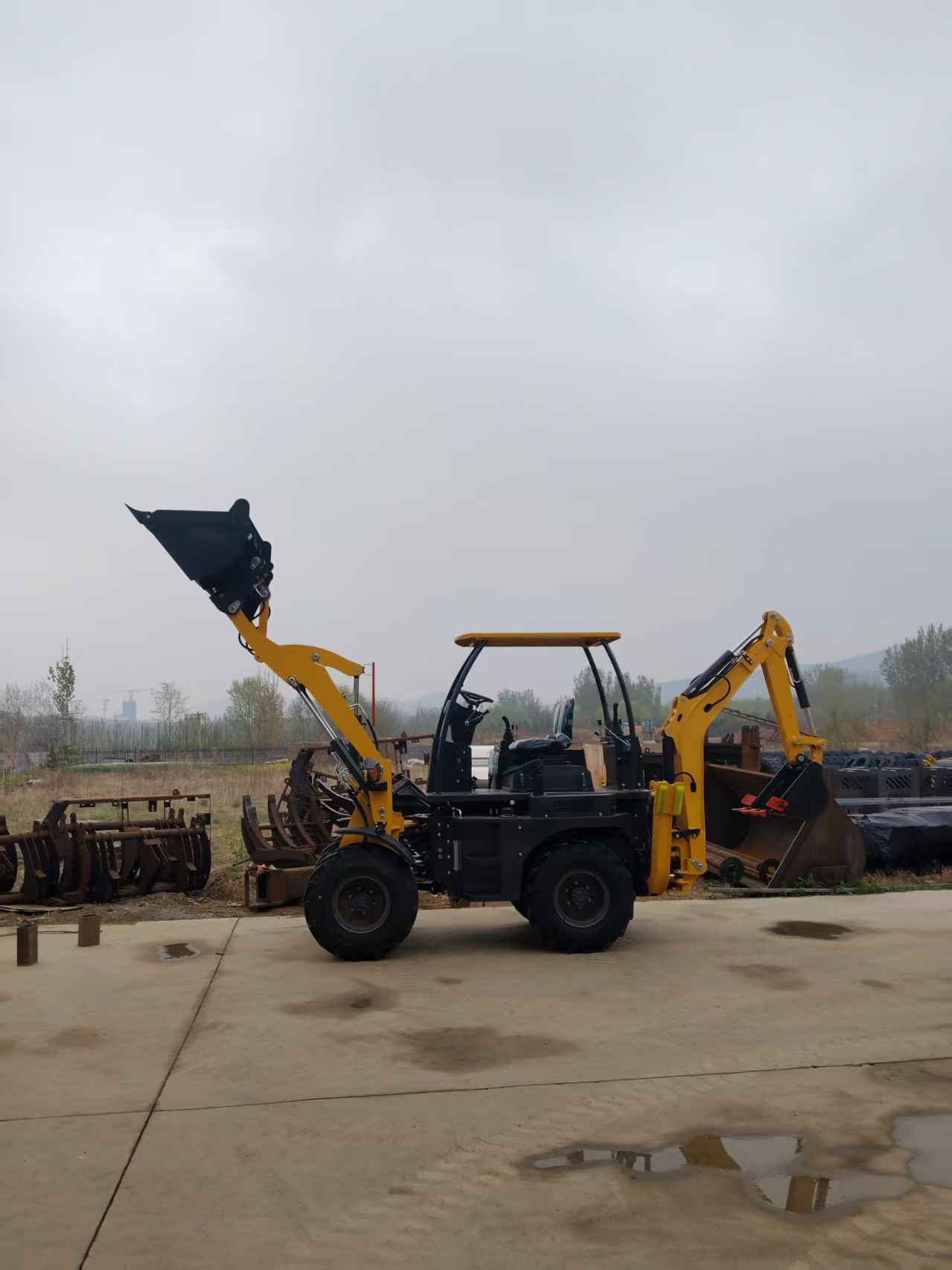

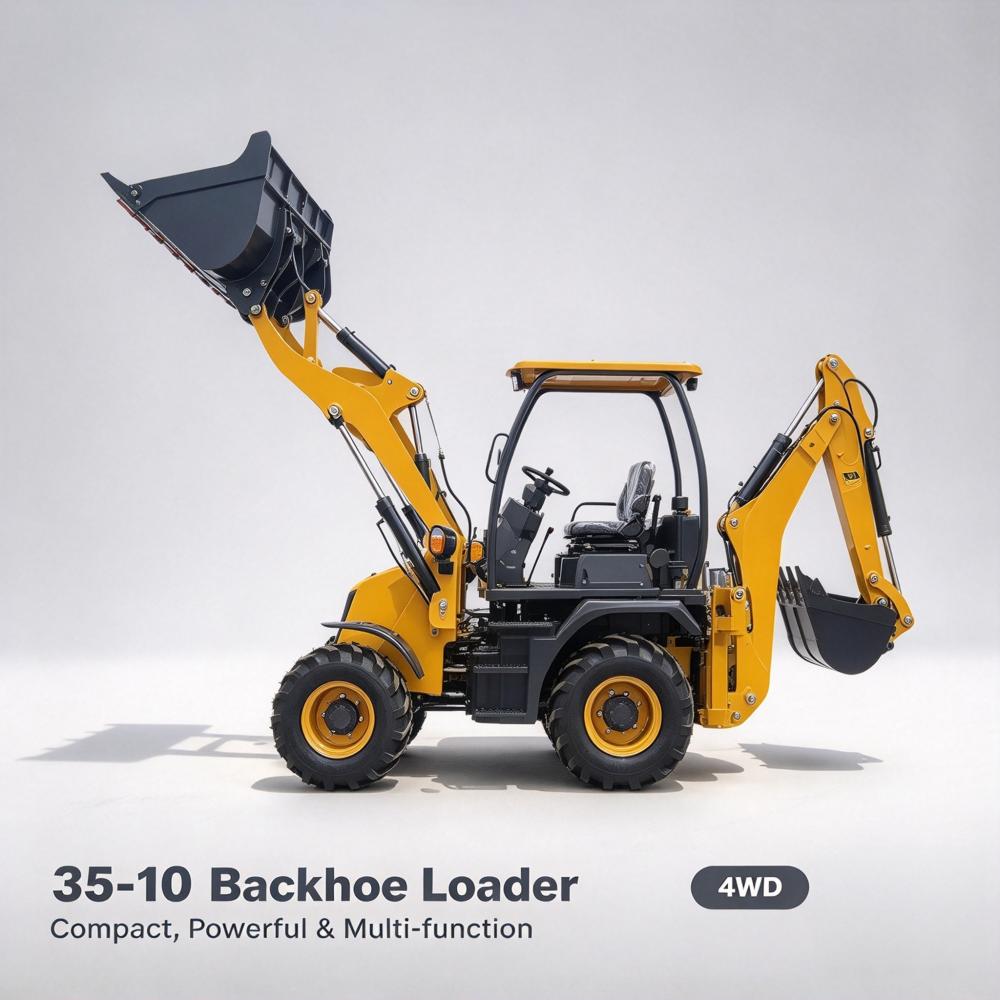

35-10 Backhoe Loader | 1 Ton Mini Loader & Digger | 4WD Articulated | SHENTUI & LANDNEO

Product Highlights
The 35-10 Backhoe Loader from LANDNEO is a versatile solution for small-scale construction and landscaping. Its 4WD system and articulated full hydraulic steering provide exceptional maneuverability, featuring a tight 3000mm minimum turning radius. Powered by a reliable Yunnei 490 engine (optional Xinchai 490), it maintains a rated speed of 2200 r/min. The machine features a 0.6 m³ loader bucket and a 0.1 m³ excavator bucket, offering dual functionality in one compact frame.

Technical Specifications
Engine: Yunnei 490 (Optional Xinchai 490), Rated Speed 2200 r/min, 4-90 Bore.
Performance: System Pressure 16 MPa, Operating Weight 3300 KG, Max Speed 18 Km/h, Gradeability 30%.
Dimensions: 5600*1680*2730 mm, Min Ground Clearance 230 mm.
Digging: Max Digging Height 3700 mm, Max Digging Radius 3398 mm, Swing Angle 190°.
Loading: Max Dump Height 2650 mm, Max Dump Reach 1325 mm, Bucket Width 1600 mm, Rated Load 1000KG.
Transmission: Fixed-shaft power shift, 2 Forward & 2 Reverse gears, ZL28F Torque Converter, Hydraulic variable speed.
Brakes: Oil-actuated drum service brake, Manual parking brake. Axle: 50 Hub Short Axle (31*15.5-15 tires).

Applications
This SHENTUI 35-10 loader is built for demanding environments where space is limited. It is ideal for urban construction, trench digging, landscaping, agriculture, and small-scale material handling. The 4WD and articulated steering allow it to navigate narrow alleys and muddy sites, while the 190° excavator swing angle enables efficient trenching and loading operations. With a 20L fuel tank and 20L hydraulic oil tank, it offers extended working cycles on site.

Packaging and Delivery
Each LANDNEO 35-10 unit is carefully inspected and securely loaded into standard shipping containers or flat racks to minimize transit damage. We provide global delivery with robust logistics support. For urgent orders, we coordinate with reliable freight forwarders to ensure timely arrival at your nearest port. Please confirm your port details with our sales team for accurate shipping quotes.

After-sales Service
SHENTUI provides comprehensive after-sales support for all 35-10 backhoe loaders. We offer a 1-year warranty on core components, accessible technical guidance, and a global network of spare parts distribution. Our team is available to assist with maintenance queries and operational training to ensure your machine maintains peak performance. We are committed to ISO-certified quality and long-term reliability for clients in over 32 countries.

FAQ

Q1: What is the engine model and rated speed of the SHENTUI 35-10 backhoe loader?
A: The 35-10 is equipped with a Yunnei 490 engine as standard, with an optional Xinchai 490. The rated speed is 2200 r/min with a 4-90 cylinder bore.

Q2: What is the maximum digging depth of this machine?
A: The specification table does not list a "maximum digging depth." However, the maximum digging height is 3700mm, and the maximum digging radius is 3398mm. Please consult our team for specific depth capabilities based on your bucket configuration.

Q3: Does the LANDNEO 35-10 have four-wheel drive and what is its turning radius?
A: Yes, it features a 4WD drive type. The minimum turning radius is 3000mm, supported by articulated full hydraulic steering, making it highly maneuverable in confined spaces.

Q4: What are the loading and dumping specifications of this backhoe loader?
A: It has a rated loading capacity of 1000KG. The maximum dump height is 2650mm, the maximum dump reach is 1325mm, and the loader bucket width is 1600mm with a 0.6 m³ capacity.

Q5: How does the transmission system work on the 35-10?
A: It utilizes a fixed-shaft power shift transmission with 2 forward and 2 reverse gears. It is equipped with a ZL28F torque converter and a hydraulic variable speed transmission mode.

Q6: What kind of braking system is used on the SHENTUI 35-10?
A: The machine uses an oil-actuated drum brake for service braking and a manual parking brake. The braking distance is specified at 3000mm. It rides on a 50 Hub Short Axle with 31*15.5-15 tires.
