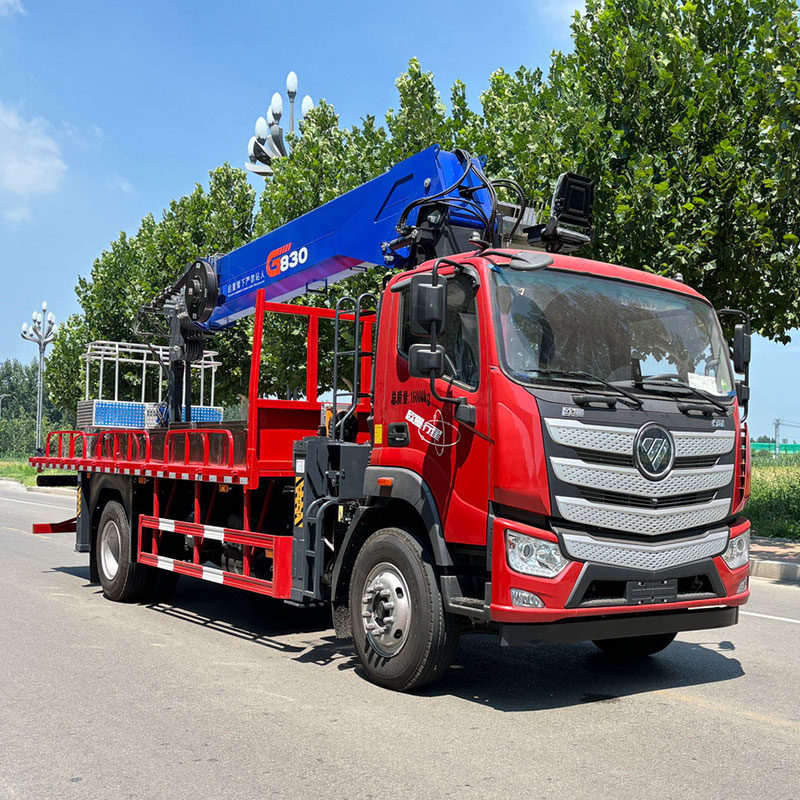

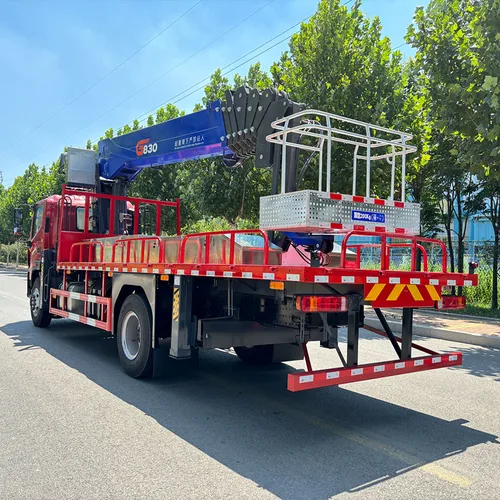

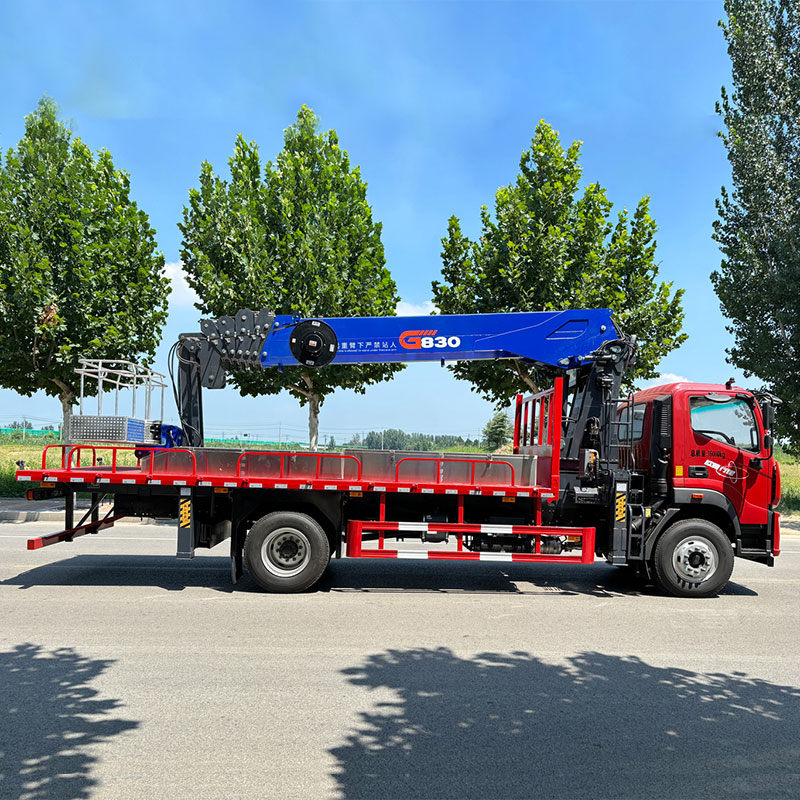

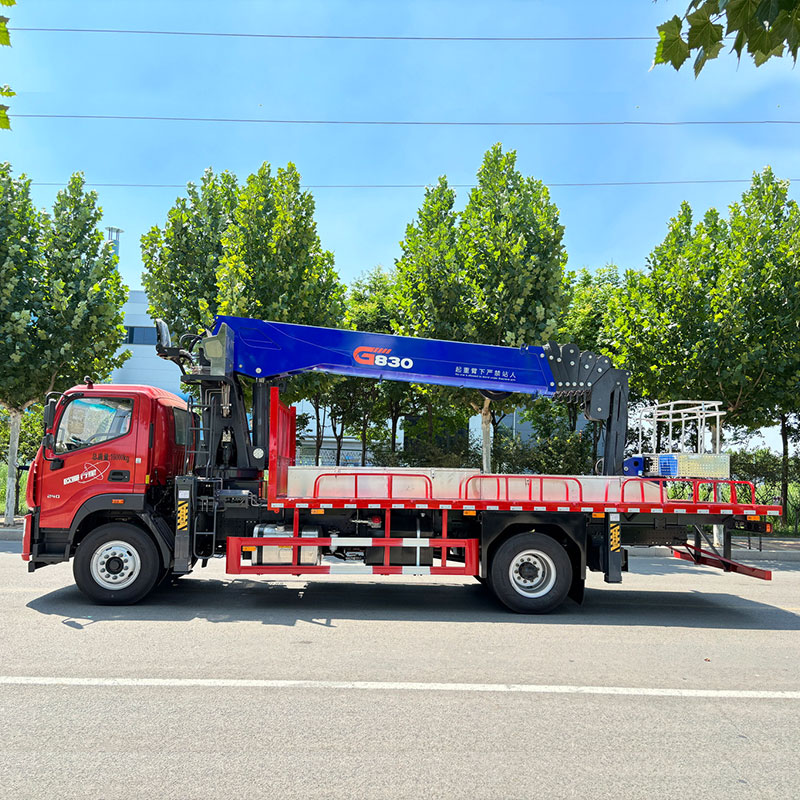

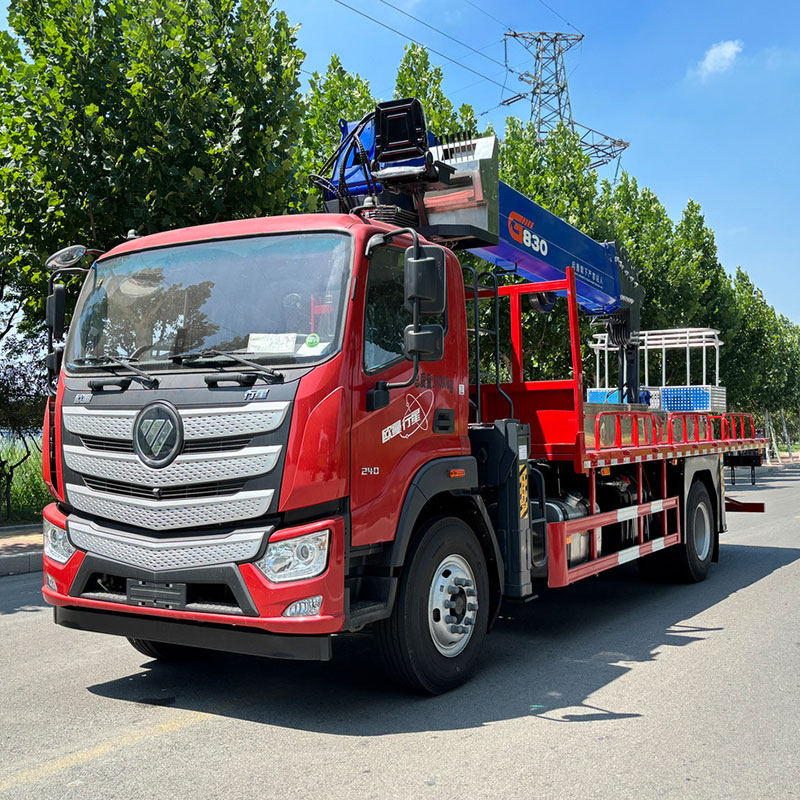

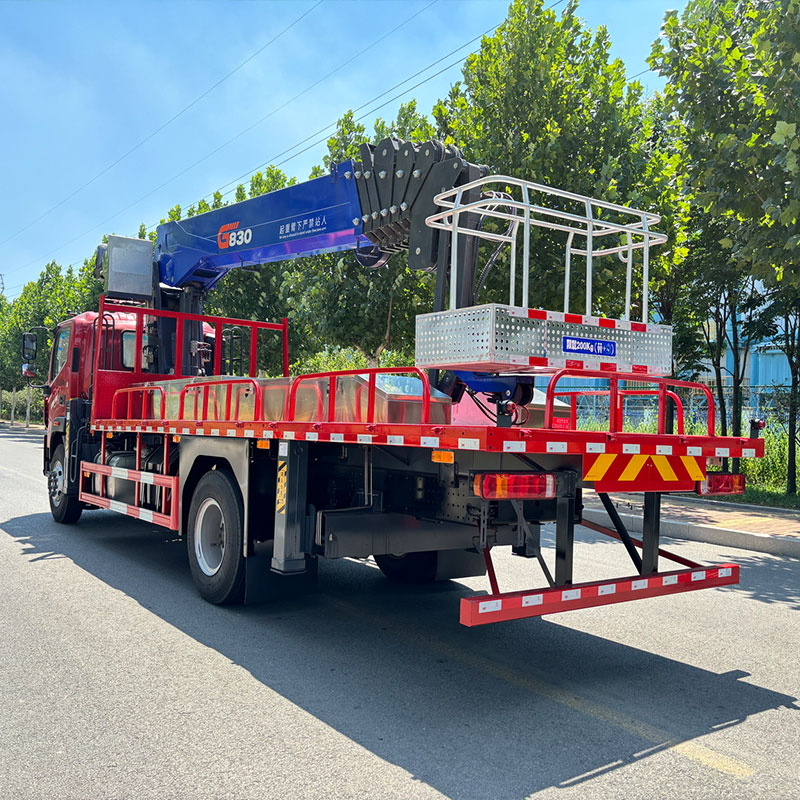

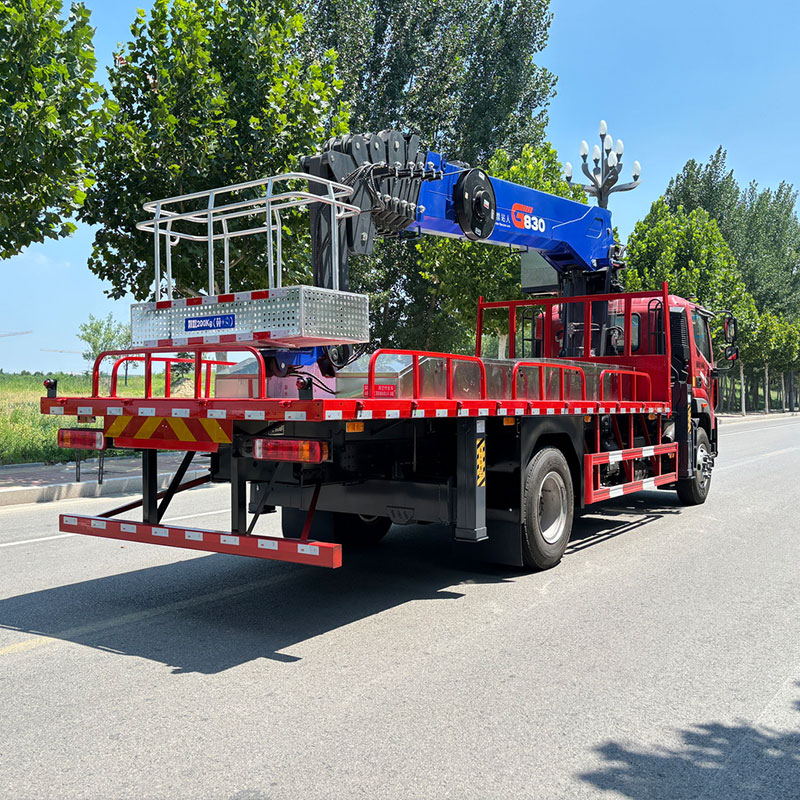

The Foton Auman G830 multi-functional aerial work platform is an engineering vehicle integrating 30m aerial work and 8-ton truck-mounted crane. Built on Foton Auman chassis, it is powered by Yuchai 240HP engine with Fast 8-speed transmission for strong and reliable performance. With a total mass of 16000kg, it is equipped with 10.00R20 18PR steel wire tires, air brake and 6T/11.5T axles for excellent load capacity and safety. The cab features air conditioning, power windows and central locking for comfortable driving. The G830 aerial platform offers 30m max working height, 20m working radius, 200kg platform load, 180° platform rotation and 360° boom rotation with 7-section telescopic boom for complex conditions. It also integrates an 8-ton crane with 8000kg max lifting capacity and 25.4m max working height. The vehicle is equipped with 4 fully enclosed H-type extendable outriggers for enhanced stability. The control system supports both platform operation and wireless remote control with electro-hydraulic proportional valve for stepless speed regulation, and safety devices including interlock and limit protection for reliable operation. With a 6500×2500mm flatbed for transporting tools and materials, it is widely used in power maintenance, municipal works, billboard installation and garden pruning, a multi-functional and high-efficiency engineering equipment. Sufficient stock supports bulk orders and customization services.
Model
Foton Auman G830 Multi-functional Aerial Work Platform with 8-ton Crane
Chassis Brand/Model
Foton Auman
Engine Model
YCS04240-66 (Yuchai 240HP)
Engine Model
YCS04240-66 (Yuchai 240HP)
Transmission
Fast 8-speed
Overall Dimension
9640×2500×3880mm
Front/Rear Axles
6.0T / 10.0T (Rear Axle 11.5T)
Cab Features
Air Conditioning, Power Windows, Central Locking
Aerial Platform Model
G830
Platform Rated Load
200kg
Platform Dimensions
1500×700×1100mm
Platform Rotation Range
180°
Boom Structure
7-section Boom (2/3 Sections Single Extension + 4-7 Sections Synchronous Extension)
Crane Max Lifting Capacity
8000kg
Crane Max Working Height
25.4m
Slewing Structure
360° Full Rotation
Power Pump
Jinan Military-Grade High-Pressure Pump
Outrigger Type
H-Type 4 Extendable Legs (Individually Adjustable, Fully Enclosed)
Front/Rear Outrigger Transverse Span
8500mm / 4900mm
Front/Rear Outrigger Longitudinal Span
5350mm
Control System
Domestic Renowned Control System + Wireless Remote Control
Hydraulic System
Electro-hydraulic Proportional Valve (Stepless Speed Regulation)
Safety Devices
Interlock, Limit Protection, Bidirectional Hydraulic Balance Valve
Platform Size
6500×2500mm
Operating Mode
Platform Operation + Remote Control
