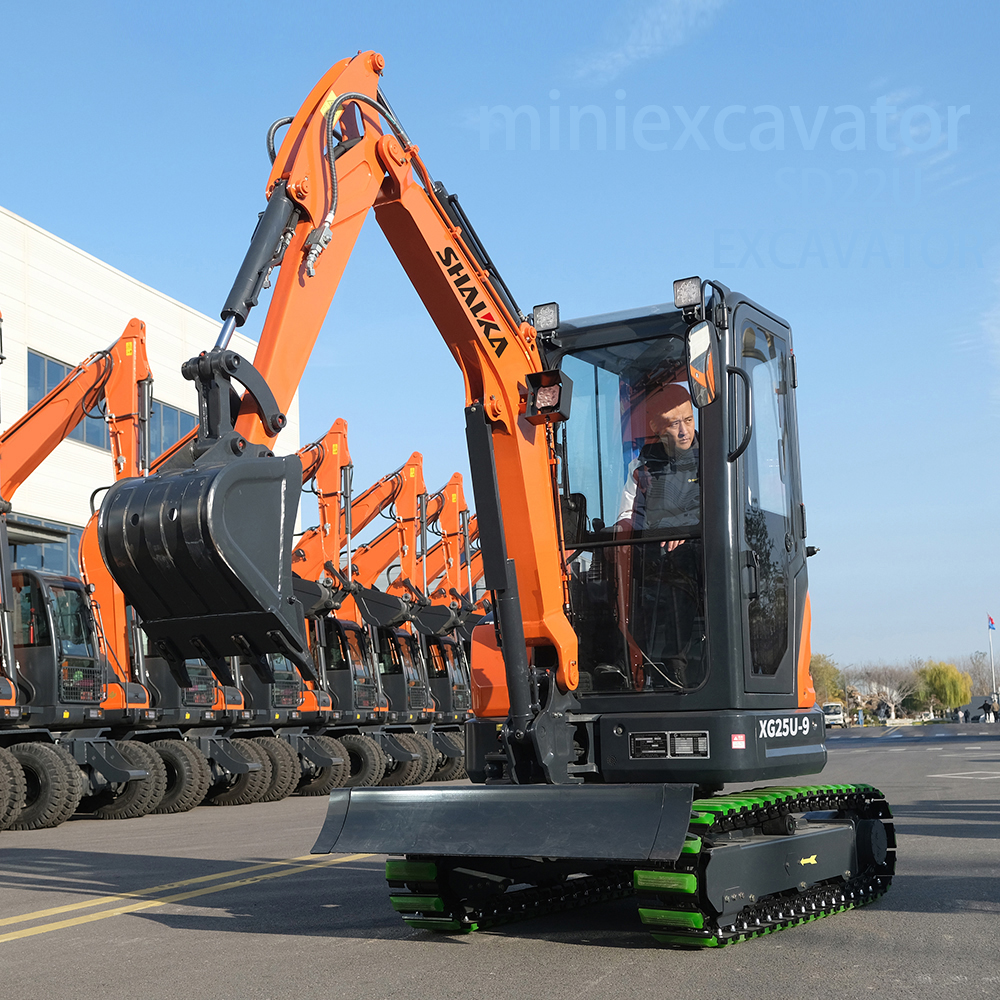

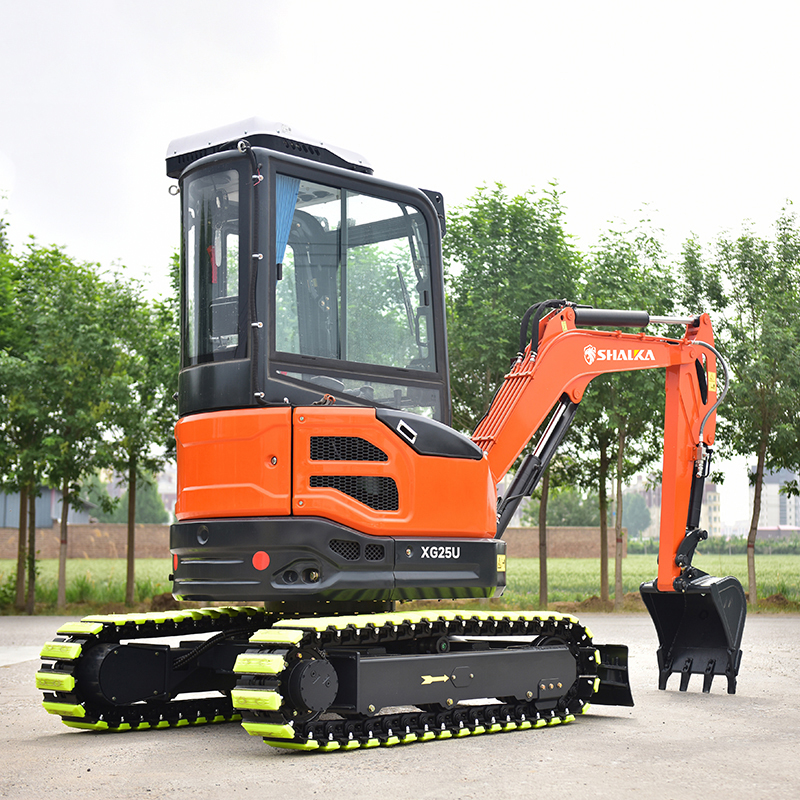

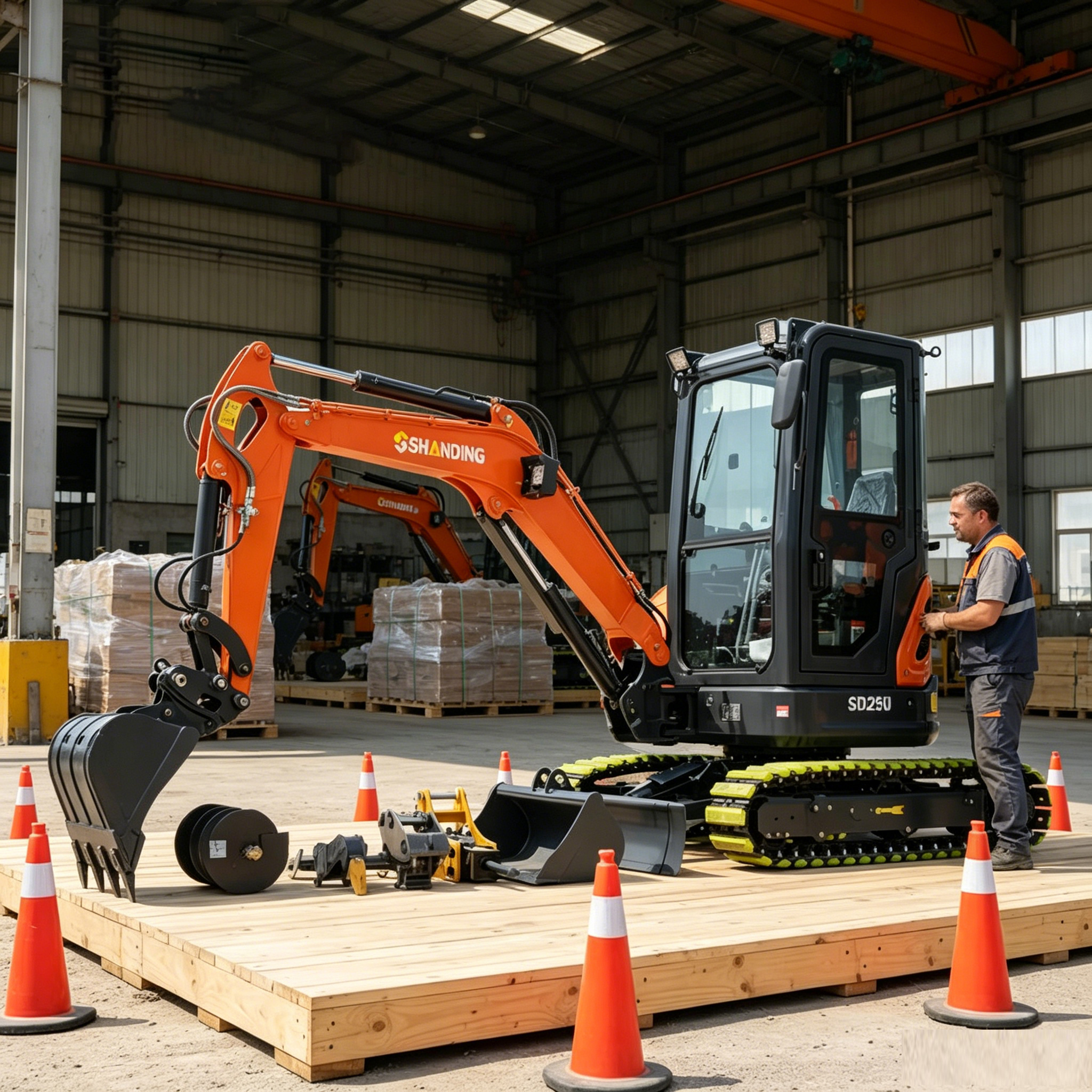

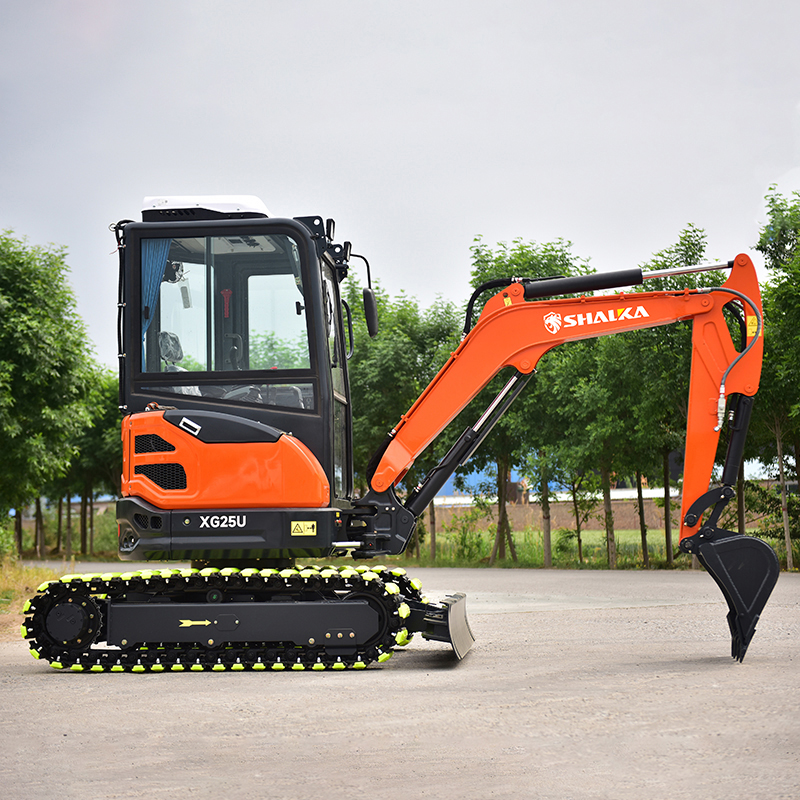

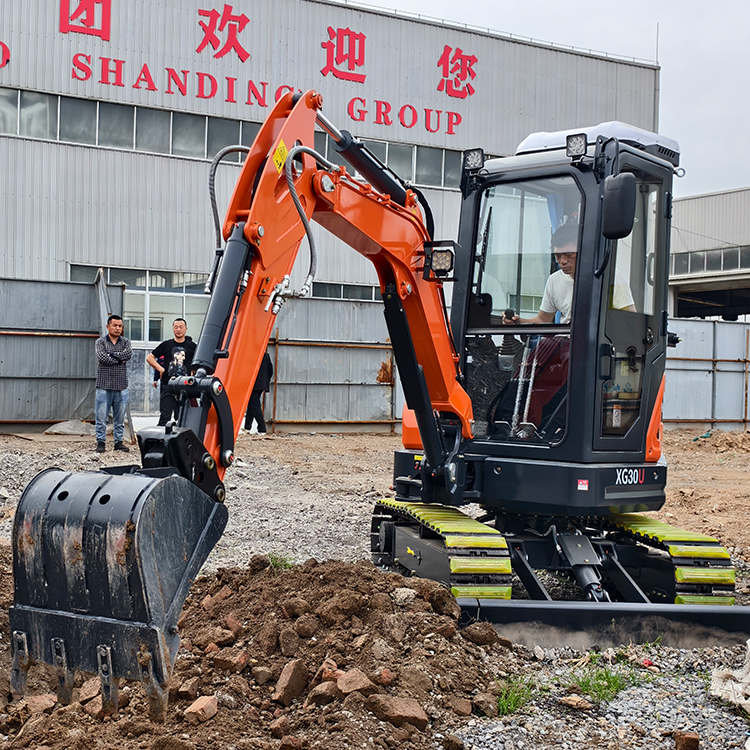

25U 2.5Ton Mini Crawler Excavator With Closed Cabin Small Digging Machinery For Garden Construction Project

Name: 25U 2.5Ton Mini Crawler Excavator With Closed Cabin Small Digging Machinery For Garden Construction Project
Brand: GLOBALMACHEX
SKU: 25U 2.5Ton Mini Crawler Excavator
Price: 15577.00 USD
Availability: InStock
Rating: 5 (1 reviews)

25U mini crawler excavator, 2420kg operating weight with 14.7KW rated power. Equipped with enclosed cabin and powerful digging force, full‑featured dozer blade, compatible with multiple attachments, ideal for garden renovation and small earth‑moving projects.

$15577.00

Send Message Contact Supplier

Shanding Machinery Group Co., Ltd.

Main Products: Mini excavator, Wheeled excavator, Backhoe loader, Skid steer loader, Lawn mower, Forklift

View Supplier

Year Established Established in 2015

Main Products Mini excavator, Wheeled excavator, Backhoe loader, Skid steer loader, Lawn mower, Forklift

Employees 101-500 People

Factory Area 1,000-5,000 m²

Annual Revenue Above US$50 Million

Main Markets North America / Europe / Southeast Asia / South Asia / Middle East & North Africa / Latin America / Africa / Oceania

Details

Specifications

Trade Information

25U mini crawler excavator is a 2.5‑ton compact digging machine fitted with closed comfortable cabin, protecting operator from dust, wind and bad weather.

Rated power 14.7KW@2200r/min, max hydraulic pressure 18MPa, maximum digging force reaches 15KN, delivers outstanding performance for earth‑moving, trenching and demolition work. Well‑built dozer blade supports ground leveling, backfilling and improves whole‑machine stability during heavy‑duty operation.

Compact turning radius design, flexible to work in garden, farm, municipal narrow job sites. Ground pressure 35kpa reduces damage to lawn and soft ground. Quick‑change interface supports digging bucket, hydraulic breaker, auger drill, ripper and other attachments to realize multi‑purpose operation.

Spacious enclosed cabin with comfortable seat, great operating experience for long‑time working. Reinforced boom & arm structure improves service life.

山鼎25U-8

We provide 1‑year warranty, lead‑time 15‑30 days, OEM customization service available. Welcome to send inquiry for quotation and technical document.

Model

25U

Overall length

3950mm

Overall width

1400mm

Overall height

2300mm

Minimum radius of gyration

790mm

Track length

1870mm

Track width

250mm

Min. ground clearance

250mm

Platform width

1330mm

Engine hood height

1350mm

Platform height above ground

480mm

Weight

2420Kg

Bucket capacity

0.1m³

Rated power

14.7KW

Rated rotation speed

2200r/min

Max hydraulic pressure

18MPa

Max. grade

30°

Ground pressure

35kpa

Max platform rotation speed

11rpm

Max digging force

15KN

Max. digging height

4300mm

Max. dumping height

2530mm

Max. digging depth

2550mm

Max digging radius

4150mm

Digging radius of max. digging height

2700mm

Min. radius of gyration

1800mm

Max. sinking depth of bulldozer

300mm

Max. lifting height of bulldozer

330mm

Numbers of track shoe sections on one side

44pieces

Boom length

1950mm

Arm length

950mm

Bucket width

450mm

Max. walking speed

2.5‑3.5Km/h

Max. traction

16KN

MOQ

1 Pieces

Lead Time

7day

Supply Ability

10 Pieces per Week

Shipping Port

Qingdao port

Trade Terms

FOB, CIF
